控制台

控制台主要的处理类是 FlowControllerV1

@RestController
@RequestMapping(value = "/v1/flow")
public class FlowControllerV1 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV1.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;

    @Autowired
    private SentinelApiClient sentinelApiClient;

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<FlowRuleEntity>> apiQueryMachineRules(@RequestParam String app,
                                                             @RequestParam String ip,
                                                             @RequestParam Integer port) {

        if (StringUtil.isEmpty(app)) {

            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {


            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {


            return Result.ofFail(-1, "port can't be null");
        }
        try {


            List<FlowRuleEntity> rules = sentinelApiClient.fetchFlowRuleOfMachine(app, ip, port);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {


            logger.error("Error when querying flow rules", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    private <R> Result<R> checkEntityInternal(FlowRuleEntity entity) {


        if (StringUtil.isBlank(entity.getApp())) {


            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {


            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null) {


            return Result.ofFail(-1, "port can't be null");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {


            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {


            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (entity.getGrade() == null) {


            return Result.ofFail(-1, "grade can't be null");
        }
        if (entity.getGrade() != 0 && entity.getGrade() != 1) {


            return Result.ofFail(-1, "grade must be 0 or 1, but " + entity.getGrade() + " got");
        }
        if (entity.getCount() == null || entity.getCount() < 0) {


            return Result.ofFail(-1, "count should be at lease zero");
        }
        if (entity.getStrategy() == null) {


            return Result.ofFail(-1, "strategy can't be null");
        }
        if (entity.getStrategy() != 0 && StringUtil.isBlank(entity.getRefResource())) {


            return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
        }
        if (entity.getControlBehavior() == null) {


            return Result.ofFail(-1, "controlBehavior can't be null");
        }
        int controlBehavior = entity.getControlBehavior();
        if (controlBehavior == 1 && entity.getWarmUpPeriodSec() == null) {


            return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
        }
        if (controlBehavior == 2 && entity.getMaxQueueingTimeMs() == null) {


            return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
        }
        if (entity.isClusterMode() && entity.getClusterConfig() == null) {


            return Result.ofFail(-1, "cluster config should be valid");
        }
        return null;
    }

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiAddFlowRule(@RequestBody FlowRuleEntity entity) {


        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {


            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        entity.setLimitApp(entity.getLimitApp().trim());
        entity.setResource(entity.getResource().trim());
        try {


            entity = repository.save(entity);

            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return Result.ofSuccess(entity);
        } catch (Throwable t) {


            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Failed to add new flow rule, app={}, ip={}", entity.getApp(), entity.getIp(), e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    @PutMapping("/save.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiUpdateFlowRule(Long id, String app,
                                                  String limitApp, String resource, Integer grade,
                                                  Double count, Integer strategy, String refResource,
                                                  Integer controlBehavior, Integer warmUpPeriodSec,
                                                  Integer maxQueueingTimeMs) {


        if (id == null) {


            return Result.ofFail(-1, "id can't be null");
        }
        FlowRuleEntity entity = repository.findById(id);
        if (entity == null) {


            return Result.ofFail(-1, "id " + id + " dose not exist");
        }
        if (StringUtil.isNotBlank(app)) {


            entity.setApp(app.trim());
        }
        if (StringUtil.isNotBlank(limitApp)) {


            entity.setLimitApp(limitApp.trim());
        }
        if (StringUtil.isNotBlank(resource)) {


            entity.setResource(resource.trim());
        }
        if (grade != null) {


            if (grade != 0 && grade != 1) {


                return Result.ofFail(-1, "grade must be 0 or 1, but " + grade + " got");
            }
            entity.setGrade(grade);
        }
        if (count != null) {


            entity.setCount(count);
        }
        if (strategy != null) {


            if (strategy != 0 && strategy != 1 && strategy != 2) {


                return Result.ofFail(-1, "strategy must be in [0, 1, 2], but " + strategy + " got");
            }
            entity.setStrategy(strategy);
            if (strategy != 0) {


                if (StringUtil.isBlank(refResource)) {


                    return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
                }
                entity.setRefResource(refResource.trim());
            }
        }
        if (controlBehavior != null) {


            if (controlBehavior != 0 && controlBehavior != 1 && controlBehavior != 2) {


                return Result.ofFail(-1, "controlBehavior must be in [0, 1, 2], but " + controlBehavior + " got");
            }
            if (controlBehavior == 1 && warmUpPeriodSec == null) {


                return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
            }
            if (controlBehavior == 2 && maxQueueingTimeMs == null) {


                return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
            }
            entity.setControlBehavior(controlBehavior);
            if (warmUpPeriodSec != null) {


                entity.setWarmUpPeriodSec(warmUpPeriodSec);
            }
            if (maxQueueingTimeMs != null) {


                entity.setMaxQueueingTimeMs(maxQueueingTimeMs);
            }
        }
        Date date = new Date();
        entity.setGmtModified(date);
        try {


            entity = repository.save(entity);
            if (entity == null) {


                return Result.ofFail(-1, "save entity fail: null");
            }

            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return Result.ofSuccess(entity);
        } catch (Throwable t) {


            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Error when updating flow rules, app={}, ip={}, ruleId={}", entity.getApp(),
                entity.getIp(), id, e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    @DeleteMapping("/delete.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<Long> apiDeleteFlowRule(Long id) {



        if (id == null) {


            return Result.ofFail(-1, "id can't be null");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {


            return Result.ofSuccess(null);
        }

        try {


            repository.delete(id);
        } catch (Exception e) {


            return Result.ofFail(-1, e.getMessage());
        }
        try {


            publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return Result.ofSuccess(id);
        } catch (Throwable t) {


            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Error when deleting flow rules, app={}, ip={}, id={}", oldEntity.getApp(),
                oldEntity.getIp(), id, e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    private CompletableFuture<Void> publishRules(String app, String ip, Integer port) {


        List<FlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setFlowRuleOfMachineAsync(app, ip, port, rules);
    }
}

从上面可以看出来,dashboard 是通过一个叫 SentinelApiClient 的类去指定的 ip 和 port 处获取数据的。这个 ip 和 port 是前端页面直接提交给后端的,而前端页面又是通过 /app/{app}/machines.json 接口获取机器列表的。

连接 dashboard

sentinel-core 在初始化的时候,通过 JVM 参数中指定的 dashboard 的 ip 和 port,会主动向 dashboard 发起连接的请求,该请求是通过 HeartbeatSender 接口以心跳的方式发送的,并将自己的 ip 和 port 告知 dashboard。这里 sentinel-core 上报给 dashboard 的端口是 sentinel 对外暴露的自己的 CommandCenter 的端口。

HeartbeatSender 有两个实现类,一个是通过 http,另一个是通过 netty,我们看 http 的实现类:

SimpleHttpHeartbeatSender.java

private final HeartbeatMessage heartBeat = new HeartbeatMessage();
private final SimpleHttpClient httpClient = new SimpleHttpClient();
@Override
public boolean sendHeartbeat() throws Exception {


    if (TransportConfig.getRuntimePort() <= 0) {


        RecordLog.info("[SimpleHttpHeartbeatSender] Runtime port not initialized, won't send heartbeat");
        return false;
    }
    InetSocketAddress addr = getAvailableAddress();
    if (addr == null) {


        return false;
    }
    SimpleHttpRequest request = new SimpleHttpRequest(addr, HEARTBEAT_PATH);
    request.setParams(heartBeat.generateCurrentMessage());
    try {


        SimpleHttpResponse response = httpClient.post(request);
        if (response.getStatusCode() == OK_STATUS) {


            return true;
        }
    } catch (Exception e) {


        RecordLog.warn("[SimpleHttpHeartbeatSender] Failed to send heartbeat to " + addr + " : ", e);
    }
    return false;
}

通过一个 HttpClient 向 dashboard 发送了自己的信息,包括 ip port 和版本号等信息。

其中consoleHost 和 consolePort 的值就是从 JVM 参数 csp.sentinel.dashboard.server 中获取的。

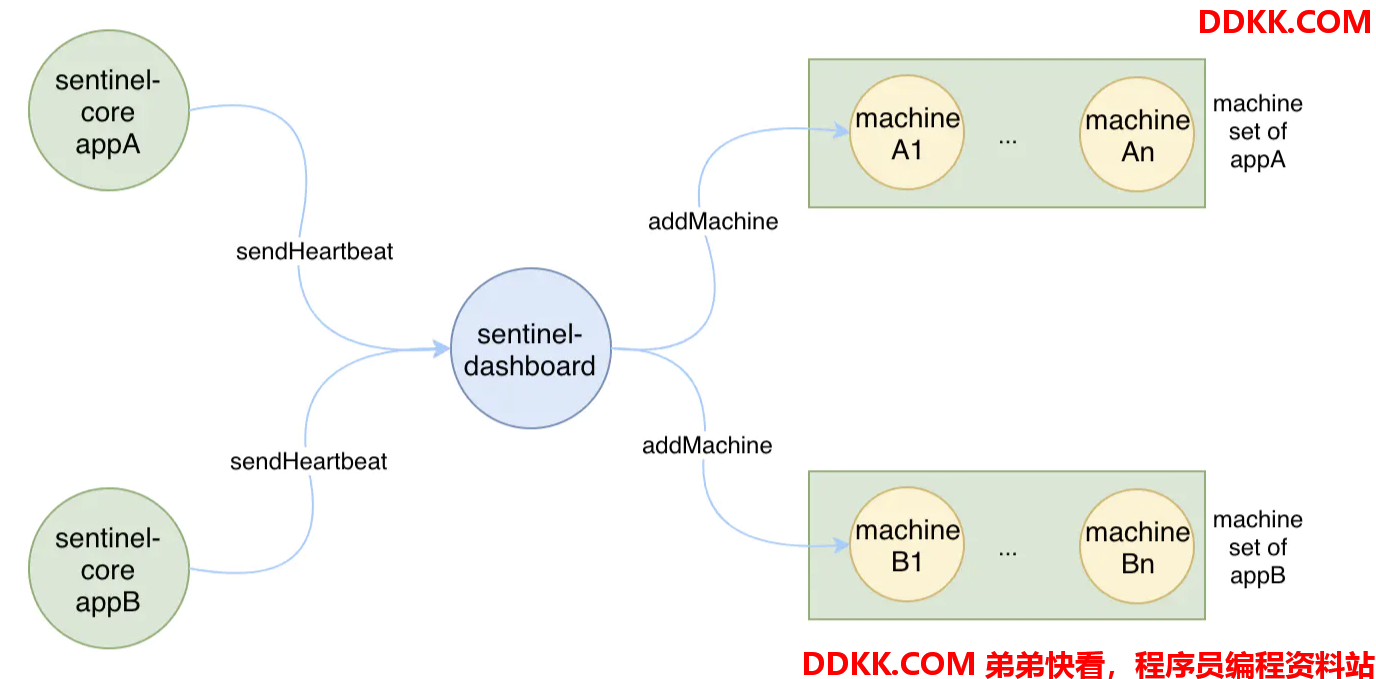

dashboard 在接收到 sentinel-core 的连接之后,就会与 sentinel-core 建立连接,并将 sentinel-core 上报的 ip 和 port 的信息包装成一个 MachineInfo 对象,然后通过 SimpleMachineDiscovery 将该对象保存在一个 map 中,如下图所示:



请求数据

当dashboard 有了具体的 sentinel-core 实例的 ip 和 port 之后,就可以去请求所需要的数据了。

让我们再回到最开始的地方,我在页面上查询某一台机器的限流的规则时,是将该机器的 ip 和 port 以及 appName 都传给了服务端,服务端通过这些信息去具体的远程实例中请求所需的数据,拿到数据后再封装成 dashboard 所需的格式返回给前端页面进行展示。

具体请求限流规则列表的代码在 SentinelApiClient 中,如下所示:

SentinelApiClient.java

public List<FlowRuleEntity> fetchFlowRuleOfMachine(String app, String ip, int port) {


    String url = "http://" + ip + ":" + port + "/" + GET_RULES_PATH + "?type=" + FLOW_RULE_TYPE;
    String body = httpGetContent(url);
    logger.info("FlowRule Body:{}", body);
    List<FlowRule> rules = RuleUtils.parseFlowRule(body);
    if (rules != null) {


        return rules.stream().map(rule -> FlowRuleEntity.fromFlowRule(app, ip, port, rule))
            .collect(Collectors.toList());
    } else {


        return null;
    }
}

可以看到也是通过一个 httpClient 请求的数据,然后再对结果进行转换,具体请求的过程是在 httpGetContent 方法中进行的,我们看下该方法,如下所示:

private String httpGetContent(String url) {


    final HttpGet httpGet = new HttpGet(url);
    final CountDownLatch latch = new CountDownLatch(1);
    final AtomicReference<String> reference = new AtomicReference<>();
    httpClient.execute(httpGet, new FutureCallback<HttpResponse>() {


        @Override
        public void completed(final HttpResponse response) {


            try {


                reference.set(getBody(response));
            } catch (Exception e) {


                logger.info("httpGetContent " + url + " error:", e);
            } finally {


                latch.countDown();
            }
        }
        @Override
        public void failed(final Exception ex) {


            latch.countDown();
            logger.info("httpGetContent " + url + " failed:", ex);
        }
        @Override
        public void cancelled() {


            latch.countDown();
        }
    });
    try {


        latch.await(5, TimeUnit.SECONDS);
    } catch (Exception e) {


        logger.info("wait http client error:", e);
    }
    return reference.get();
}

从代码中可以看到,是通过一个异步的 httpClient 再结合 CountDownLatch 等待 5 秒的超时时间去获取结果的。

客户端

sentinel-core 在启动的时候,执行了一个 InitExecutor.init 的方法,该方法会触发所有 InitFunc 实现类的 init 方法。

InitExecutor#doInit

public static void doInit() {


    //InitExecutor只会初始化一次,并且初始化失败会退出
    if (!initialized.compareAndSet(false, true)) {


        return;
    }
    try {


        //通过spi加载InitFunc子类
        ServiceLoader<InitFunc> loader = ServiceLoader.load(InitFunc.class);
        List<OrderWrapper> initList = new ArrayList<OrderWrapper>();
        for (InitFunc initFunc : loader) {


            RecordLog.info("[InitExecutor] Found init func: " + initFunc.getClass().getCanonicalName());
            //给所有的initFunc排序,按@InitOrder从小到大进行排序
            //然后封装成OrderWrapper对象
            insertSorted(initList, initFunc);
        }
        for (OrderWrapper w : initList) {


            w.func.init();
            RecordLog.info(String.format("[InitExecutor] Executing %s with order %d",
                w.func.getClass().getCanonicalName(), w.order));
        }
    } catch (Exception ex) {


        RecordLog.warn("[InitExecutor] WARN: Initialization failed", ex);
        ex.printStackTrace();
    } catch (Error error) {


        RecordLog.warn("[InitExecutor] ERROR: Initialization failed with fatal error", error);
        error.printStackTrace();
    }
}

因为这里我们引入了sentinel-transport-simple-http模块,所以使用spi加载InitFunc的子类的时候会新加载两个子类实例,分别是:CommandCenterInitFunc、HeartbeatSenderInitFunc。然后会遍历loader,根据@InitOrder的大小进行排序,并封装成OrderWrapper放入到initList中。

所以initList里面的对象顺序是:

  • CommandCenterInitFunc
  • HeartbeatSenderInitFunc
  • MetricCallbackInit

然后遍历initList依次调用init方法。

CommandCenterInitFunc

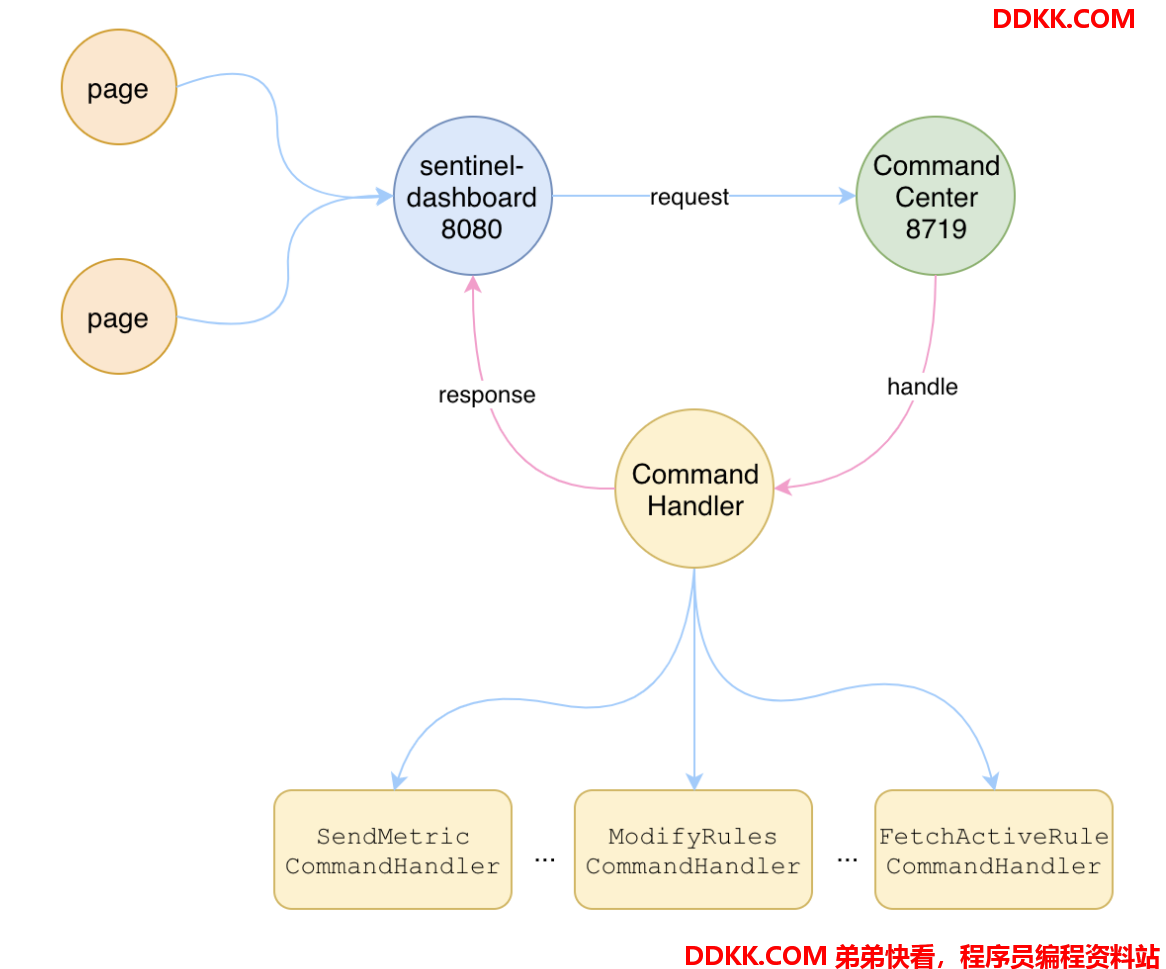

CommandCenterInitFunc 则会启动一个 CommandCenter 对外提供 sentinel-core 的数据服务,而这些数据服务是通过一个一个的 CommandHandler 来提供的,如下图所示:



CommandCenterInitFunc#init

public void init() throws Exception {


    //获取commandCenter对象
    CommandCenter commandCenter = CommandCenterProvider.getCommandCenter();

    if (commandCenter == null) {


        RecordLog.warn("[CommandCenterInitFunc] Cannot resolve CommandCenter");
        return;
    }
    //调用SimpleHttpCommandCenter的beforeStart方法
    //用来设置CommandHandler的实现类
    commandCenter.beforeStart();
    commandCenter.start();
    RecordLog.info("[CommandCenterInit] Starting command center: "
            + commandCenter.getClass().getCanonicalName());
}

这个方法里面的所有操作都是针对CommandCenter来进行的,所以我们先来看看CommandCenterProvider这个类。

CommandCenterProvider

static {


    //初始化commandCenter对象
    resolveInstance();
}

private static void resolveInstance() {


    //获取SpiOrder更大的子类实现类
    CommandCenter resolveCommandCenter = SpiLoader.loadHighestPriorityInstance(CommandCenter.class);

    if (resolveCommandCenter == null) {


        RecordLog.warn("[CommandCenterProvider] WARN: No existing CommandCenter found");
    } else {


        commandCenter = resolveCommandCenter;
        RecordLog.info("[CommandCenterProvider] CommandCenter resolved: " + resolveCommandCenter.getClass()
            .getCanonicalName());
    }
}

CommandCenterProvider会在首次初始化的时候调用resolveInstance方法。在resolveInstance方法里面会调用SpiLoader.loadHighestPriorityInstance来获取CommandCenter,这里获取的是SimpleHttpCommandCenter这个实例,loadHighestPriorityInstance方法具体的实现非常简单,我就不去分析了。然后将commandCenter赋值SimpleHttpCommandCenter实例。

所以CommandCenterProvider.getCommandCenter()方法返回的是SimpleHttpCommandCenter实例。然后调用SimpleHttpCommandCenter的beforeStart方法。

SimpleHttpCommandCenter#beforeStart

public void beforeStart() throws Exception {


    // Register handlers
    //调用CommandHandlerProvider的namedHandlers方法
    //获取CommandHandler的spi中设置的实现类
    Map<String, CommandHandler> handlers = CommandHandlerProvider.getInstance().namedHandlers();
    //将handlers中的数据设置到handlerMap中
    registerCommands(handlers);
}

这个方法首先会调用CommandHandlerProvider的namedHandlers中获取所有的CommandHandler实现类。

CommandHandlerProvider#namedHandlers

private final ServiceLoader<CommandHandler> serviceLoader = ServiceLoader.load(CommandHandler.class);

public Map<String, CommandHandler> namedHandlers() {


    Map<String, CommandHandler> map = new HashMap<String, CommandHandler>();
    for (CommandHandler handler : serviceLoader) {


        //获取实现类CommandMapping注解的name属性
        String name = parseCommandName(handler);
        if (!StringUtil.isEmpty(name)) {


            map.put(name, handler);
        }
    }
    return map;
}

这个类会通过spi先加载CommandHandler的实现类,然后将实现类按注解上面的name属性放入到map里面去。CommandHandler的实现类是用来和控制台进行交互的处理类,负责处理。

这也是策略模式的一种应用,根据map里面的不同策略来做不同的处理,例如SendMetricCommandHandler是用来统计调用信息然后发送给控制台用的,ModifyRulesCommandHandler是用来做实时修改限流策略的处理的等等。

然后我们再回到CommandCenterInitFunc中,继续往下走,调用commandCenter.start()方法。

SimpleHttpCommandCenter#start

public void start() throws Exception {


    //获取当前机器的cpu线程数
    int nThreads = Runtime.getRuntime().availableProcessors();
    //创建一个cpu线程数大小的固定线程池,用来做业务线程池用
    this.bizExecutor = new ThreadPoolExecutor(nThreads, nThreads, 0L, TimeUnit.MILLISECONDS,
        new ArrayBlockingQueue<Runnable>(10),
        new NamedThreadFactory("sentinel-command-center-service-executor"),
        new RejectedExecutionHandler() {


            @Override
            public void rejectedExecution(Runnable r, ThreadPoolExecutor executor) {


                CommandCenterLog.info("EventTask rejected");
                throw new RejectedExecutionException();
            }
        });

    Runnable serverInitTask = new Runnable() {


        int port;

        {


            try {


                //获取port
                port = Integer.parseInt(TransportConfig.getPort());
            } catch (Exception e) {


                port = DEFAULT_PORT;
            }
        }

        @Override
        public void run() {


            boolean success = false;
            //创建一个ServerSocket
            ServerSocket serverSocket = getServerSocketFromBasePort(port);

            if (serverSocket != null) {


                CommandCenterLog.info("[CommandCenter] Begin listening at port " + serverSocket.getLocalPort());
                socketReference = serverSocket;
                executor.submit(new ServerThread(serverSocket));
                success = true;
                port = serverSocket.getLocalPort();
            } else {


                CommandCenterLog.info("[CommandCenter] chooses port fail, http command center will not work");
            }

            if (!success) {


                port = PORT_UNINITIALIZED;
            }

            TransportConfig.setRuntimePort(port);
            //关闭线程池
            executor.shutdown();
        }

    };

    new Thread(serverInitTask).start();
}

1、 这个方法会创建一个固定大小的业务线程池;
2、 创建一个serverInitTask,里面负责建立serverSocket然后用executor去创建一个ServerThread异步执行serverSocket;
3、 executor用完之后会在serverInitTask里面调用executor的shutdown方法去关闭线程池;

其中executor是一个单线程的线程池:

private ExecutorService executor = Executors.newSingleThreadExecutor(
    new NamedThreadFactory("sentinel-command-center-executor"));

ServerThread是SimpleHttpCommandCenter的内部类:

public void run() {


    while (true) {


        Socket socket = null;
        try {


              //建立连接
            socket = this.serverSocket.accept();
              //默认的超时时间是3s
            setSocketSoTimeout(socket);
            HttpEventTask eventTask = new HttpEventTask(socket);
            //使用业务线程异步处理
            bizExecutor.submit(eventTask);
        } catch (Exception e) {


            CommandCenterLog.info("Server error", e);
            if (socket != null) {


                try {


                    socket.close();
                } catch (Exception e1) {


                    CommandCenterLog.info("Error when closing an opened socket", e1);
                }
            }
            try {


                // In case of infinite log.
                Thread.sleep(10);
            } catch (InterruptedException e1) {


                // Indicates the task should stop.
                break;
            }
        }
    }
}

run方法会使用构造器传入的serverSocket建立连接后设置超时时间,封装成HttpEventTask类,然后使用上面创建的bizExecutor异步执行任务。

HttpEventTask是Runnable的实现类,所以调用bizExecutor的submit的时候会调用其中的run方法使用socket与控制台进行交互。

HttpEventTask#run

public void run() {


          ....
        // Validate the target command.
        //获取commandName
        String commandName = HttpCommandUtils.getTarget(request);
        if (StringUtil.isBlank(commandName)) {


            badRequest(printWriter, "Invalid command");
            return;
        }
        // Find the matching command handler.
        //根据commandName获取处理器名字
        CommandHandler<?> commandHandler = SimpleHttpCommandCenter.getHandler(commandName);
        if (commandHandler != null) {


            //调用处理器结果,然后返回给控制台
            CommandResponse<?> response = commandHandler.handle(request);
            handleResponse(response, printWriter, outputStream);
        }
          ....
    } catch (Throwable e) {


        ....
    } finally {


        ....
    }
}

HttpEventTask的run方法很长,但是很多都是有关输入输出流的,我们不关心,所以省略。只需要知道会把request请求最后转换成一个控制台发过来的指令,然后通过SimpleHttpCommandCenter调用getHandler得到处理器,然后处理数据就行了。

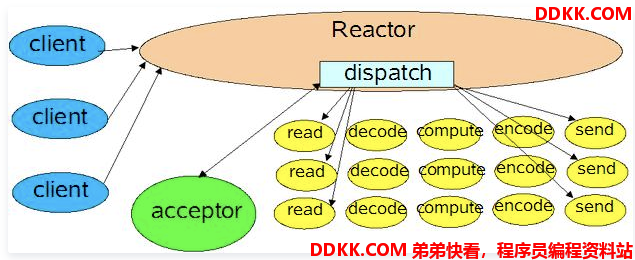

所以这个整个的处理流程就是:



通过这样的一个处理流程,然后实现了类似reactor的一个处理流程。



SimpleHttpCommandCenter#getHandler

public static CommandHandler getHandler(String commandName) {


    return handlerMap.get(commandName);
}

handlerMap里面的数据是通过前面我们分析的调用beforeStart方法设置进来的。

然后通过commandName获取对应的控制台,例如:控制台发送过来metric指令,那么就会对应的调用SendMetricCommandHandler的handle方法来处理控制台的指令。

HeartbeatSenderInitFunc

HeartbeatSenderInitFunc主要是用来做心跳线程使用的,定期的和控制台进行心跳连接。

HeartbeatSenderInitFunc#init

public void init() {


    //获取HeartbeatSender的实现类
    HeartbeatSender sender = HeartbeatSenderProvider.getHeartbeatSender();
    if (sender == null) {


        RecordLog.warn("[HeartbeatSenderInitFunc] WARN: No HeartbeatSender loaded");
        return;
    }
    //创建一个corepoolsize为2,maximumPoolSize为最大的线程池
    initSchedulerIfNeeded();
    //获取心跳间隔时间,默认10s
    long interval = retrieveInterval(sender);
    //设置间隔心跳时间
    setIntervalIfNotExists(interval);
    //开启一个定时任务,每隔interval时间发送一个心跳
    scheduleHeartbeatTask(sender, interval);
}

1、 首先会调用HeartbeatSenderProvider.getHeartbeatSender方法,里面会根据spi创建实例,返回一个SimpleHttpHeartbeatSender实例;
2、 调用initSchedulerIfNeeded方法创建一个corepoolsize为2的线程池;
3、 获取心跳间隔时间,如果没有设置,那么是10s;
4、 调用scheduleHeartbeatTask方法开启一个定时线程调用;

我们来看看scheduleHeartbeatTask方法:

HeartbeatSenderInitFunc#scheduleHeartbeatTask

private void scheduleHeartbeatTask(/*@NonNull*/ final HeartbeatSender sender, /*@Valid*/ long interval) {

    pool.scheduleAtFixedRate(new Runnable() {

        @Override
        public void run() {

            try {

                sender.sendHeartbeat();
            } catch (Throwable e) {


                RecordLog.warn("[HeartbeatSender] Send heartbeat error", e);
            }
        }
    }, 5000, interval, TimeUnit.MILLISECONDS);
    RecordLog.info("[HeartbeatSenderInit] HeartbeatSender started: "
        + sender.getClass().getCanonicalName());
}

默认的情况,创建的这个定时任务会每隔10s调用一次SimpleHttpHeartbeatSender的sendHeartbeat方法。

SimpleHttpHeartbeatSender#sendHeartbeat

public boolean sendHeartbeat() throws Exception {


    if (TransportConfig.getRuntimePort() <= 0) {


        RecordLog.info("[SimpleHttpHeartbeatSender] Runtime port not initialized, won't send heartbeat");
        return false;
    }
    //获取控制台的ip和端口等信息
    InetSocketAddress addr = getAvailableAddress();
    if (addr == null) {


        return false;
    }
    //设置http调用的ip和端口,还有访问的url
    SimpleHttpRequest request = new SimpleHttpRequest(addr, HEARTBEAT_PATH);
    //获取版本号,端口等信息
    request.setParams(heartBeat.generateCurrentMessage());
    try {


        //发送post请求
        SimpleHttpResponse response = httpClient.post(request);
        if (response.getStatusCode() == OK_STATUS) {


            return true;
        }
    } catch (Exception e) {


        RecordLog.warn("[SimpleHttpHeartbeatSender] Failed to send heartbeat to " + addr + " : ", e);
    }
    return false;
}

这个心跳检测的方法就写的很简单了,通过Dcsp.sentinel.dashboard.server预先设置好的ip和端口号发送post请求到控制台,然后检测是否返回200,如果是则说明控制台正常,否则进行异常处理。

总结

现在我们已经知道了 dashboard 是如何获取到实时数据的了,具体的流程如下所示:

1、 首先sentinel-core向dashboard发送心跳包;
2、 dashboard将sentinel-core的机器信息保存在内存中;
3、 dashboard根据sentinel-core的机器信息通过httpClient获取实时的数据;
4、 sentinel-core接收到请求之后,会找到具体的CommandHandler来处理;
5、 sentinel-core将处理好的结果返回给dashboard;
