31、SpringBoot 源码分析 - RequestMappingHandlerAdapter方法调用原理四

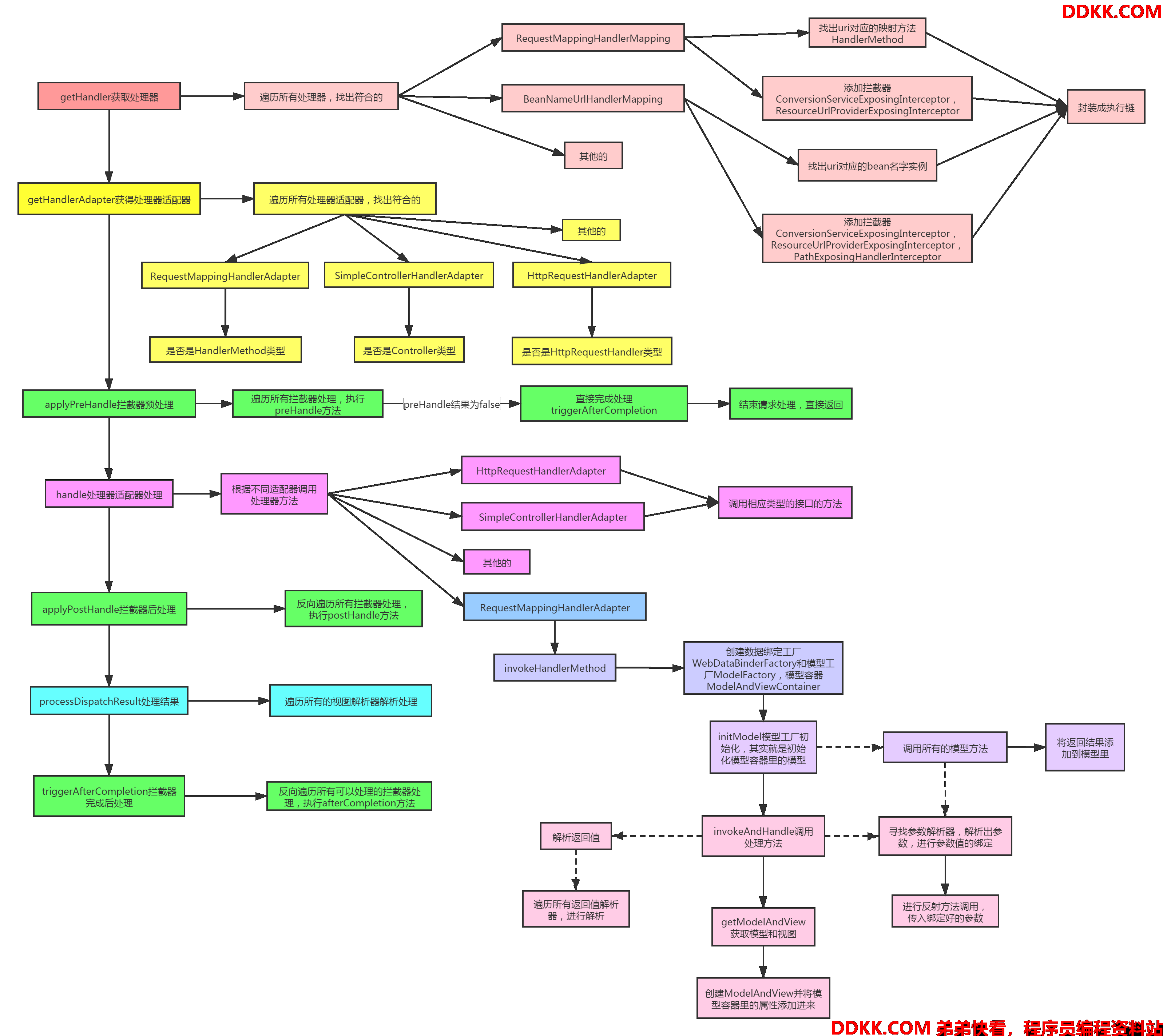

处理大致流程图



如何匹配参数supportsParameter

参数解析器有那么多,暂时不可能全部都讲,说几个比较常用的,来看看他们是怎么匹配参数的。

PathVariableMethodArgumentResolver

这个就是匹配PathVariable注解的。

@Override
	public boolean supportsParameter(MethodParameter parameter) {


		if (!parameter.hasParameterAnnotation(PathVariable.class)) {


			return false;
		}
		if (Map.class.isAssignableFrom(parameter.nestedIfOptional().getNestedParameterType())) {


			PathVariable pathVariable = parameter.getParameterAnnotation(PathVariable.class);
			return (pathVariable != null && StringUtils.hasText(pathVariable.value()));
		}
		return true;
	}

ModelAttributeMethodProcessor

匹配ModelAttribute注解的,参数类型满足不是简单类型的条件。

	@Override
	public boolean supportsParameter(MethodParameter parameter) {


		return (parameter.hasParameterAnnotation(ModelAttribute.class) ||
				(this.annotationNotRequired && !BeanUtils.isSimpleProperty(parameter.getParameterType())));
	}



RequestResponseBodyMethodProcessor

匹配RequestBody注解的。

	@Override
	public boolean supportsParameter(MethodParameter parameter) {


		return parameter.hasParameterAnnotation(RequestBody.class);
	}

RequestHeaderMethodArgumentResolver

匹配RequestHeader注解的。

	@Override
	public boolean supportsParameter(MethodParameter parameter) {


		return (parameter.hasParameterAnnotation(RequestHeader.class) &&
				!Map.class.isAssignableFrom(parameter.nestedIfOptional().getNestedParameterType()));
	}

ModelMethodProcessor

匹配Model类型的。

	@Override
	public boolean supportsParameter(MethodParameter parameter) {


		return Model.class.isAssignableFrom(parameter.getParameterType());
	}

好了,不贴了,很多都是差不多的,自己看下就好了。

解析参数resolveArgument

其实就是获取解析器解析,这个时候已经有缓存了,直接拿出来解析就好了。

	@Override
	@Nullable
	public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {


		//获取解析器
		HandlerMethodArgumentResolver resolver = getArgumentResolver(parameter);
		...
		return resolver.resolveArgument(parameter, mavContainer, webRequest, binderFactory);
	}

解析器解析

ModelMethodProcessor

这个其实就是拿出模型容器里的BindingAwareModelMapModelMap的一种扩展,也是Model接口类型的。

	@Override
	@Nullable
	public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {



		Assert.state(mavContainer != null, "ModelAndViewContainer is required for model exposure");
		return mavContainer.getModel();
	}

RequestHeaderMethodArgumentResolver

	@Override
	@Nullable
	protected Object resolveName(String name, MethodParameter parameter, NativeWebRequest request) throws Exception {


		String[] headerValues = request.getHeaderValues(name);
		if (headerValues != null) {


			return (headerValues.length == 1 ? headerValues[0] : headerValues);
		}
		else {


			return null;
		}
	}

ModelAttributeMethodProcessor

首先获取ModelAttribute注解的name属性,没有的话就是参数类型首字母小写作为名字,String的话名字就是string,然后设置是否要绑定,根据ModelAttribute注解的binding属性,默认是true要绑定。然后看模型里有没有这个属性名对应属性,没有的话就要创建

@Override
	@Nullable
	public final Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {



		...

		String name = ModelFactory.getNameForParameter(parameter);//获取参数名字,没有的话就按类型首字母小写
		ModelAttribute ann = parameter.getParameterAnnotation(ModelAttribute.class);
		if (ann != null) {


			mavContainer.setBinding(name, ann.binding());
		}

		Object attribute = null;
		BindingResult bindingResult = null;

		if (mavContainer.containsAttribute(name)) {

     //存在就取出来
			attribute = mavContainer.getModel().get(name);
		}
		else {


			// Create attribute instance
			try {

     //不存在就创建
				attribute = createAttribute(name, parameter, binderFactory, webRequest);
			}
			catch (BindException ex) {


				if (isBindExceptionRequired(parameter)) {


					// No BindingResult parameter -> fail with BindException
					throw ex;
				}
				// Otherwise, expose null/empty value and associated BindingResult
				if (parameter.getParameterType() == Optional.class) {


					attribute = Optional.empty();
				}
				bindingResult = ex.getBindingResult();//有异常要记录
			}
		}
		//没有异常
		if (bindingResult == null) {



			WebDataBinder binder = binderFactory.createBinder(webRequest, attribute, name);
			if (binder.getTarget() != null) {

     attribute不为空
				if (!mavContainer.isBindingDisabled(name)) {


					bindRequestParameters(binder, webRequest);//绑定请求参数
				}
				validateIfApplicable(binder, parameter);
				if (binder.getBindingResult().hasErrors() && isBindExceptionRequired(binder, parameter)) {


					throw new BindException(binder.getBindingResult());
				}
			}
			// Value type adaptation, also covering java.util.Optional
			if (!parameter.getParameterType().isInstance(attribute)) {


				attribute = binder.convertIfNecessary(binder.getTarget(), parameter.getParameterType(), parameter);
			}
			bindingResult = binder.getBindingResult();
		}

		// Add resolved attribute and BindingResult at the end of the model
		Map<String, Object> bindingResultModel = bindingResult.getModel();
		mavContainer.removeAttributes(bindingResultModel);
		mavContainer.addAllAttributes(bindingResultModel);//添加绑定结果

		return attribute;
	}

ModelAndViewContainer的setBinding设置绑定

根据参数看是否要绑定,绑定的就从noBinding集合里删除,否则就添加进去。noBinding集合就是放不绑定的属性名。

	public void setBinding(String attributeName, boolean enabled) {


		if (!enabled) {


			this.noBinding.add(attributeName);
		}
		else {


			this.noBinding.remove(attributeName);
		}
	}

ServletModelAttributeMethodProcessor的createAttribute

从请求中获取属性,否则的话就用反射创建一个属性,里面涉及的比较深在,暂时不跟了,后面有时间再研究。

	@Override
	protected final Object createAttribute(String attributeName, MethodParameter parameter,
			WebDataBinderFactory binderFactory, NativeWebRequest request) throws Exception {



		String value = getRequestValueForAttribute(attributeName, request);
		if (value != null) {

     //存在的话就从请求参数中创建属性
			Object attribute = createAttributeFromRequestValue(
					value, attributeName, parameter, binderFactory, request);
			if (attribute != null) {


				return attribute;
			}
		}
		//创建属性
		return super.createAttribute(attributeName, parameter, binderFactory, request);
	}

好了,今天就到这里了,希望对学习理解有帮助,大神看见勿喷,仅为自己的学习理解,能力有限,请多包涵。
