16、Spring Data JPA 实战 - -@Version与@Lock

1、问题场景

以用户账户为例,如果允许同时对某个用户的账户进行修改的话,会导致某些修改被覆盖,使最后的结果不正确。

如:1.1、张三的账户中有100元。

1.2、张三的账户消费了50元。

1.3、张三的账户充值了100元。

我们希望的张三账户最终的结果是150元。如果1.2、1.3是并发执行的,按下面的方式执行的话,回事怎样的呢?

账户实体:

/**
 * 账户实体
 *
 * @author DDKK.COM 弟弟快看,程序员编程资料站
 */
@Slf4j
@Data
@EqualsAndHashCode(callSuper = true)
@Entity
@Builder
@Table(name = "jpa_account")
@NoArgsConstructor
@AllArgsConstructor
public class Account extends AbstractID {

    /**
     *  简单代表一下账户所属人
     */
    private String accountName;

    @Column(columnDefinition = "DECIMAL(19, 2)")
    private BigDecimal balance;

}

Repository接口:

/**
 * @author DDKK.COM 弟弟快看,程序员编程资料站
 */
public interface AccountRepository extends JpaRepositoryImplementation<Account,Long> {

    Account findByAccountName(String accountName);

}

Service:

/**
 *
 * @author DDKK.COM 弟弟快看,程序员编程资料站
 */
@Service
public class AccountServiceImpl implements AccountService {

    @Resource
    private AccountRepository accountRepository;

    @Override
    @Transactional(rollbackFor = Exception.class)
    public String addAccountMoney(String accountName, BigDecimal money){

        System.out.println(Thread.currentThread().getName() + ",addAccountMoney start...");
        try {
            TimeUnit.SECONDS.sleep(1);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        Account account = accountRepository.findByAccountName(accountName);
        System.out.println(Thread.currentThread().getName() + ",find balance : " + account.getBalance());
        account.setBalance(account.getBalance().add(money));

        try {
            TimeUnit.SECONDS.sleep(1);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        Account result = accountRepository.save(account);
        System.out.println(Thread.currentThread().getName() + ", update balance end ,balance : " + result.getBalance());

        System.out.println(Thread.currentThread().getName() + ",addAccountMoney sleep...");
        try {
            TimeUnit.SECONDS.sleep(5);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        System.out.println(Thread.currentThread().getName() + ",addAccountMoney end...");

        return "success";
    }

}

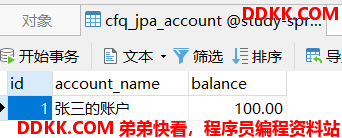

数据库表中数据:



测试用例:

@Test
void addAccountMoney() throws InterruptedException {

    CountDownLatch count = new CountDownLatch(2);

    ExecutorService executorService = Executors.newFixedThreadPool(2);

    executorService.execute(() -> {
        String result = accountService.addAccountMoney("张三的账户", BigDecimal.valueOf(-50));
        System.out.println(Thread.currentThread().getName() + ",result : " + result);
        count.countDown();
    });

    TimeUnit.SECONDS.sleep(1);

    executorService.execute(() -> {
        String result = accountService.addAccountMoney("张三的账户", BigDecimal.valueOf(100));
        System.out.println(Thread.currentThread().getName() + ",result : " + result);
        count.countDown();
    });

    count.await(10, TimeUnit.SECONDS);

    Account endAccount = accountRepository.findByAccountName("张三的账户");
    System.out.println("final balance :" + endAccount.getBalance());

}

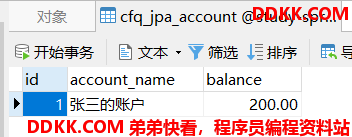

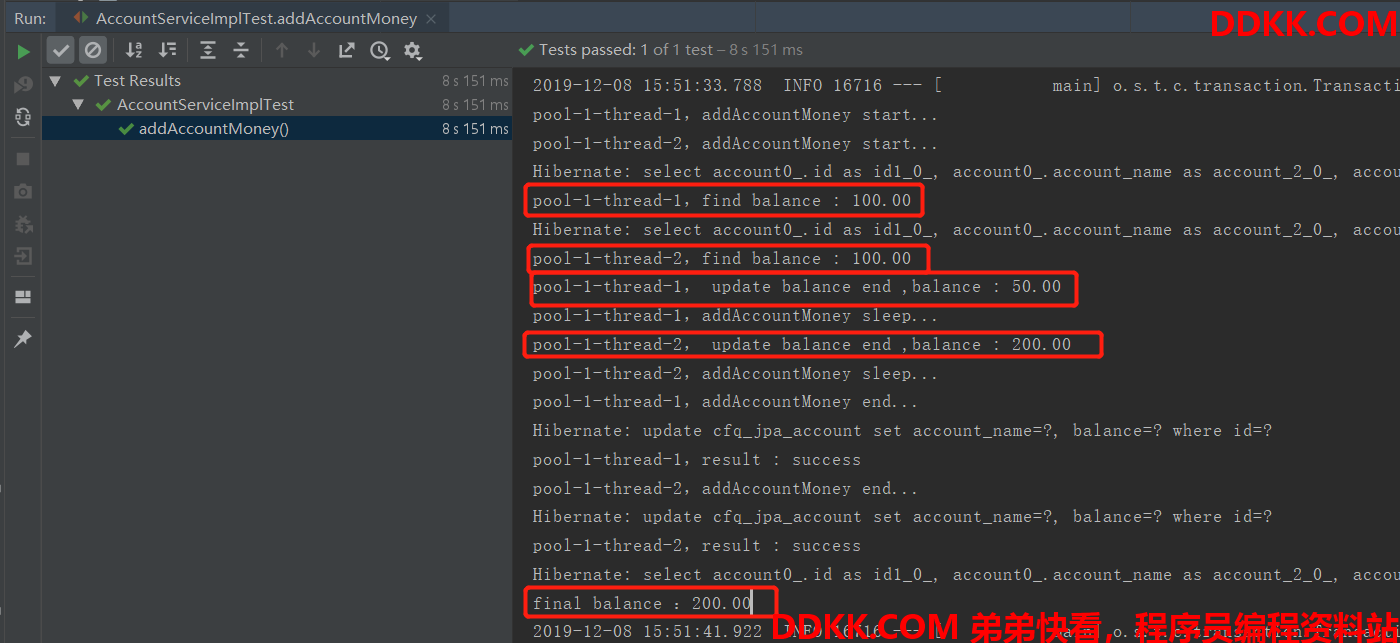

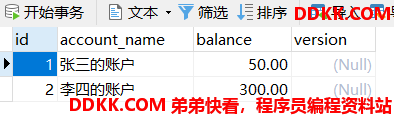

控制台打印及数据库结果:





这明显不是我们想要的正确答案,那怎么解决呢?这里提供几个方法,①如果是单JVM的话,可以使用Java的同步机制和Lock(估计这种情况很少见吧...)。②使用JPA为我们提供的乐观锁@Version。

③使用JPA为我们提供的@Lock中的悲观锁。

2、@Version

JPA提供的乐观锁,指定实体中的字段或属性作为乐观锁的version,该version用于确保并发操作的正确性。每个实体只能使用一个version属性或字段。version支持(int, Integer, short, Short, long, Long, java.sql.Timestamp)类型的属性或字段。

使用起来非常方便,我们只需要在实体中添加一个字段,并添加@Version注解就可以了。加了@Version后,insert和update的SQL语句都会带上version的操作。当乐观锁更新失败的时候,会抛出异常org.springframework.orm.ObjectOptimisticLockingFailureException。我们自己进行业务处理。

实体修改如下:

/**
 * 账户实体
 *
 * @author DDKK.COM 弟弟快看,程序员编程资料站
 */
@Slf4j
@Data
@EqualsAndHashCode(callSuper = true)
@Entity
@Builder
@Table(name = "jpa_account")
@NoArgsConstructor
@AllArgsConstructor
public class Account extends AbstractID {

    /**
     *  简单代表一下账户所属人
     */
    private String accountName;

    @Column(columnDefinition = "DECIMAL(19, 2)")
    private BigDecimal balance;

    /**
     * 乐观锁version
     */
    @Version
    private Integer version;

}

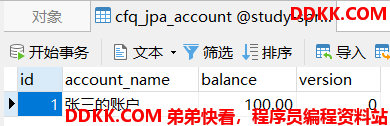

重新插入一条数据,可以看到数据库中如下



修改Service方法如下:

@Override
@Transactional(rollbackFor = Exception.class)
public String addAccountMoney(String accountName, BigDecimal money){

    try {
        updateAccount(accountName, money);
        return "success";
    }catch (ObjectOptimisticLockingFailureException e){
        //记录日志,重新操作...
        return "fail";
    }

}

@Transactional(propagation = Propagation.REQUIRES_NEW,rollbackFor = Exception.class)
public void updateAccount(String accountName, BigDecimal money) {
    System.out.println(Thread.currentThread().getName() + ",addAccountMoney start...");
    try {
        TimeUnit.SECONDS.sleep(1);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }
    Account account = accountRepository.findByAccountName(accountName);
    System.out.println(Thread.currentThread().getName() + ",find balance : " + account.getBalance());
    account.setBalance(account.getBalance().add(money));

    try {
        TimeUnit.SECONDS.sleep(1);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }
    Account result = accountRepository.save(account);
    System.out.println(Thread.currentThread().getName() + ", update balance end ,balance : " + result.getBalance());
    System.out.println(Thread.currentThread().getName() + ",addAccountMoney sleep...");
    try {
        TimeUnit.SECONDS.sleep(5);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }

    System.out.println(Thread.currentThread().getName() + ",addAccountMoney end...");
}

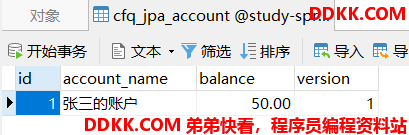

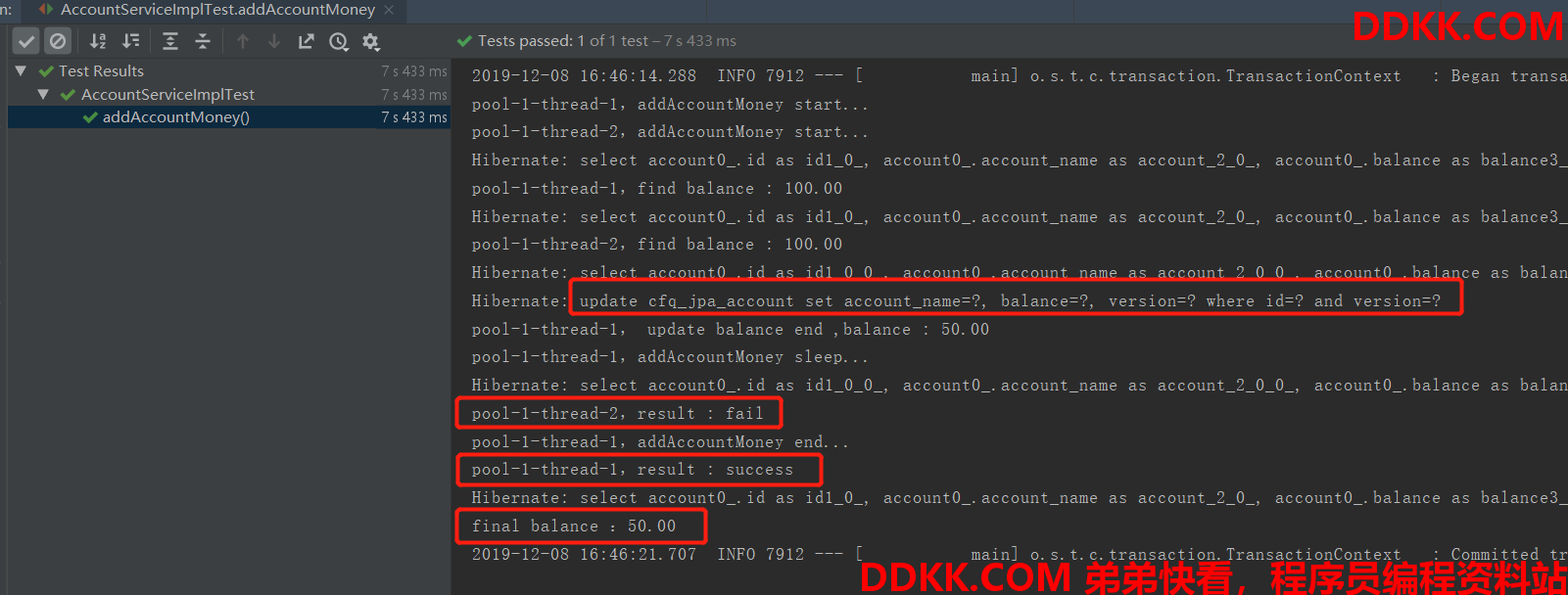

重新运行测试用例:





这样只有和我们上次版本一样的时候才会更新,就不会出现互相覆盖的问题,保证了数据的原子性。但是如果我们的业务就是需要让两次都必须成功,那么可以使用下面的悲观锁来实现。

3、@Lock

spring-data-jpa为我们提供了@Lock注解,指定查询方法要使用的锁定模式。可以添加在派生查询上,也可以重写父类CRUD的方法,添加该注解。@Lock只有一个value属性,为LockModeType枚举类型,我们主要看以下里面的悲观锁PESSIMISTIC_WRITE。

修改Repository如下:

/**
 * @author DDKK.COM 弟弟快看,程序员编程资料站
 */
public interface AccountRepository extends JpaRepositoryImplementation<Account,Long> {

    @Lock(LockModeType.PESSIMISTIC_WRITE)
    Account findByAccountName(String accountName);

}

恢复数据库表数据为100,并将@Version注解去掉,运行测试用例控制台打印如下:

pool-1-thread-1,addAccountMoney start...
pool-1-thread-2,addAccountMoney start...
Hibernate: select account0_.id as id1_0_, account0_.account_name as account_2_0_, account0_.balance as balance3_0_, account0_.version as version4_0_ from cfq_jpa_account account0_ where account0_.account_name=? for update
pool-1-thread-1,find balance : 100.00
Hibernate: select account0_.id as id1_0_, account0_.account_name as account_2_0_, account0_.balance as balance3_0_, account0_.version as version4_0_ from cfq_jpa_account account0_ where account0_.account_name=? for update
pool-1-thread-1, update balance end ,balance : 50.00
pool-1-thread-1,addAccountMoney sleep...
pool-1-thread-1,addAccountMoney end...
Hibernate: update cfq_jpa_account set account_name=?, balance=?, version=? where id=?
pool-1-thread-2,find balance : 50.00
pool-1-thread-1,result : success
pool-1-thread-2, update balance end ,balance : 150.00
pool-1-thread-2,addAccountMoney sleep...
Hibernate: select account0_.id as id1_0_, account0_.account_name as account_2_0_, account0_.balance as balance3_0_, account0_.version as version4_0_ from cfq_jpa_account account0_ where account0_.account_name=? for update
pool-1-thread-2,addAccountMoney end...
Hibernate: update cfq_jpa_account set account_name=?, balance=?, version=? where id=?
final balance :150.00
2019-12-08 17:20:43.915  INFO 4160 --- [           main] o.s.t.c.transaction.TransactionContext   : Committed transaction for test: [DefaultTestContext@7674f035 testClass = AccountServiceImplTest, testInstance = cn.caofanqi.study.studyspringdatajpa.service.impl.AccountServiceImplTest@46d69ca4, testMethod = addAccountMoney@AccountServiceImplTest, testException = [null], mergedContextConfiguration = [WebMergedContextConfiguration@69e153c5 testClass = AccountServiceImplTest, locations = '{}', classes = '{class cn.caofanqi.study.studyspringdatajpa.StudySpringDataJpaApplication}', contextInitializerClasses = '[]', activeProfiles = '{}', propertySourceLocations = '{}', propertySourceProperties = '{org.springframework.boot.test.context.SpringBootTestContextBootstrapper=true}', contextCustomizers = set[org.springframework.boot.test.context.filter.ExcludeFilterContextCustomizer@9353778, org.springframework.boot.test.json.DuplicateJsonObjectContextCustomizerFactory$DuplicateJsonObjectContextCustomizer@1700915, org.springframework.boot.test.mock.mockito.MockitoContextCustomizer@0, org.springframework.boot.test.web.client.TestRestTemplateContextCustomizer@31c88ec8, org.springframework.boot.test.autoconfigure.properties.PropertyMappingContextCustomizer@0, org.springframework.boot.test.autoconfigure.web.servlet.WebDriverContextCustomizerFactory$Customizer@20ce78ec], resourceBasePath = 'src/main/webapp', contextLoader = 'org.springframework.boot.test.context.SpringBootContextLoader', parent = [null]], attributes = map['org.springframework.test.context.web.ServletTestExecutionListener.activateListener' -> true, 'org.springframework.test.context.web.ServletTestExecutionListener.populatedRequestContextHolder' -> true, 'org.springframework.test.context.web.ServletTestExecutionListener.resetRequestContextHolder' -> true]]

可以看到查询语句通过for update进行加锁。得到了我们想要的150结果。

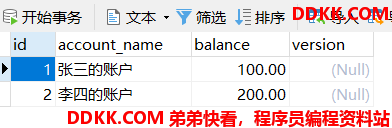

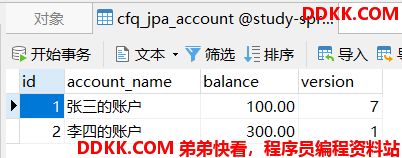

注意:for update ,如果不通过索引条件检索数据,那么InnoDB将对表中的所有记录加锁,实际效果跟锁表一样。我们进行测试,在数据库中在添加一条记录,如下:



执行下面测试用例:

    /**
     *  for update ,如果不通过索引条件检索数据,那么InnoDB将对表中的所有记录加锁,实际效果跟锁表一样
     */
    @Test
    void addAccountMoney2() throws InterruptedException {

        CountDownLatch count = new CountDownLatch(2);

        ExecutorService executorService = Executors.newFixedThreadPool(2);

        executorService.execute(() -> {
            String result = accountService.addAccountMoney("张三的账户", BigDecimal.valueOf(-50));
            System.out.println(Thread.currentThread().getName() + ",result : " + result);
            count.countDown();
        });

        TimeUnit.SECONDS.sleep(1);

        executorService.execute(() -> {
            String result = accountService.addAccountMoney("李四的账户", BigDecimal.valueOf(100));
            System.out.println(Thread.currentThread().getName() + ",result : " + result);
            count.countDown();
        });

        count.await(20, TimeUnit.SECONDS);

    }

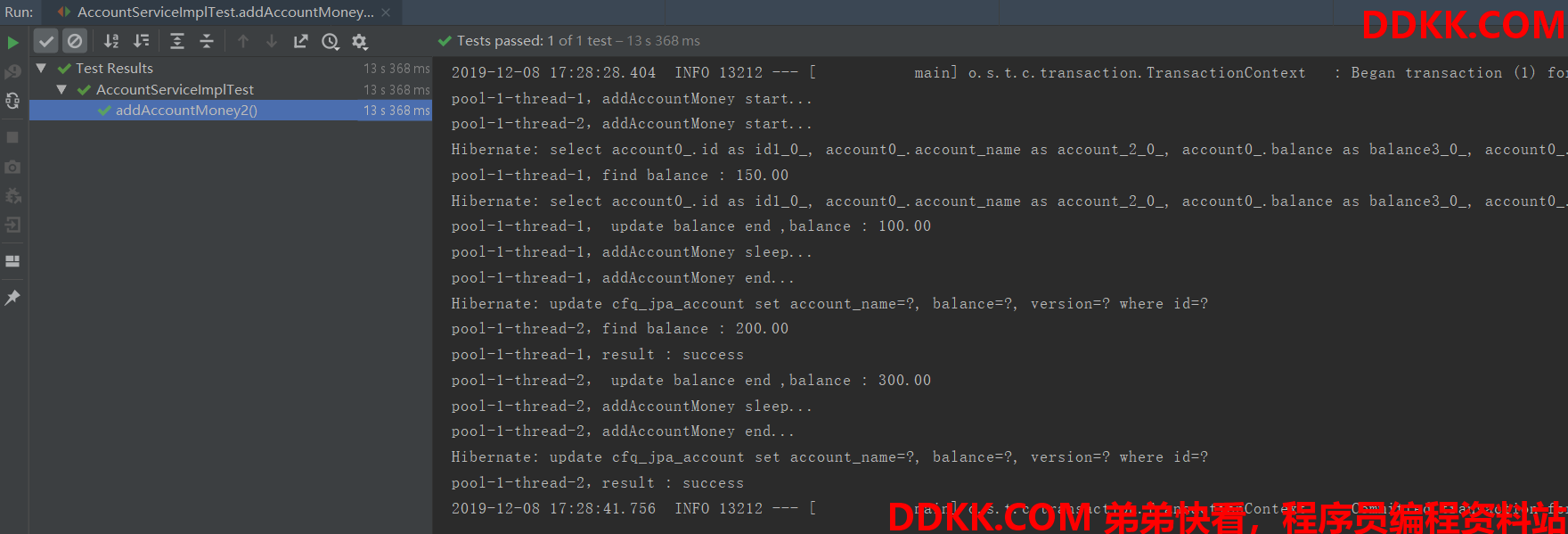

控制台打印结果:

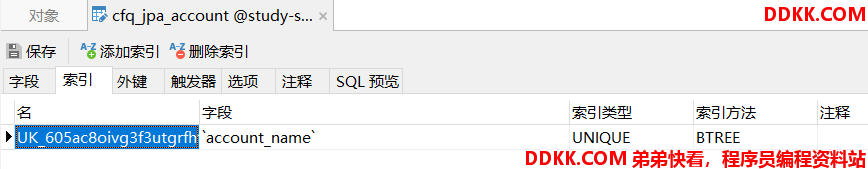

可以看到并不是并行进行的更新,我们就该实体类,重新生成数据库表,并插入数据(或直接修改数据库)

/**
 * 账户实体
 *
 * @author DDKK.COM 弟弟快看,程序员编程资料站
 */
@Slf4j
@Data
@EqualsAndHashCode(callSuper = true)
@Entity
@Builder
@Table(name = "jpa_account")
@NoArgsConstructor
@AllArgsConstructor
public class Account extends AbstractID {

    /**
     *  简单代表一下账户所属人
     */
    @Column(unique = true,nullable = false)
    private String accountName;

    @Column(columnDefinition = "DECIMAL(19, 2)")
    private BigDecimal balance;

    /**
     * 乐观锁version
     */
//    @Version
    private Integer version;

}

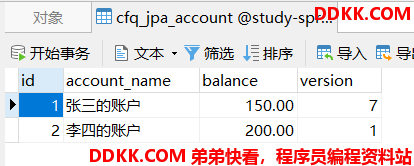

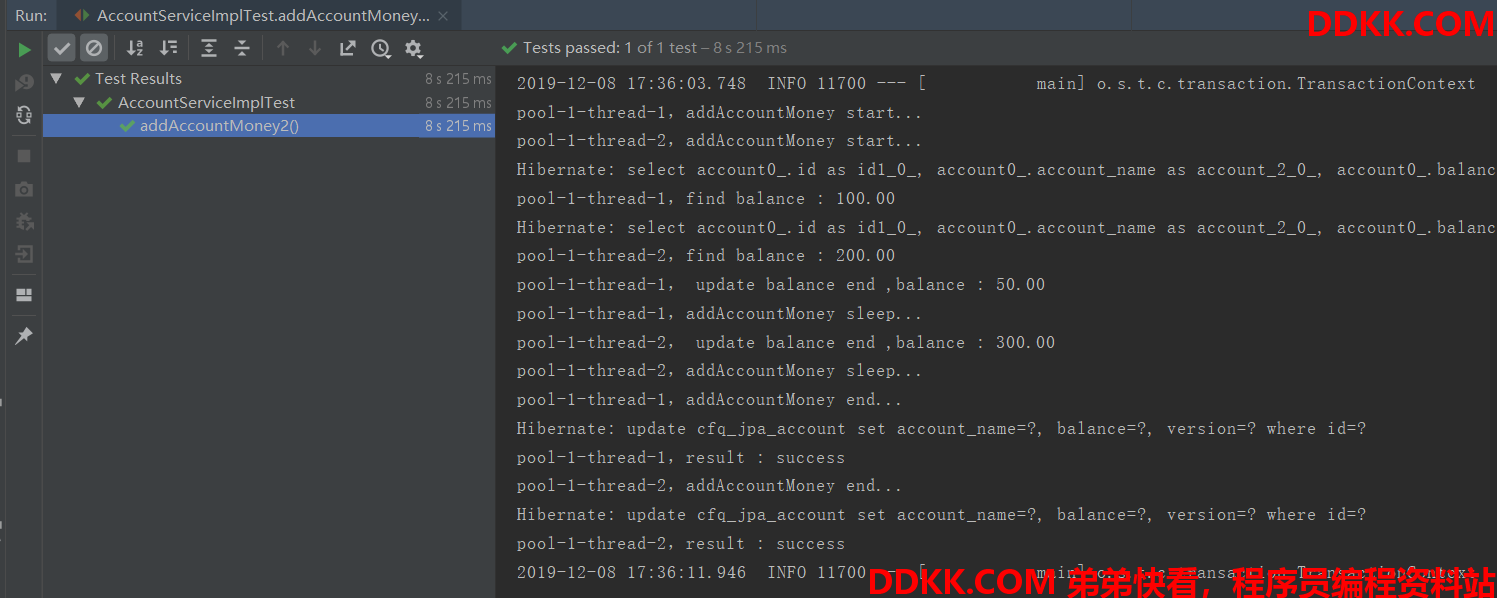

重新运行测试用例:





我们在使用的过程中要根据自己的业务进行选择。

源码地址:https://github.com/caofanqi/study-spring-data-jpa
