1.认证流程原理

1.1.认证流程

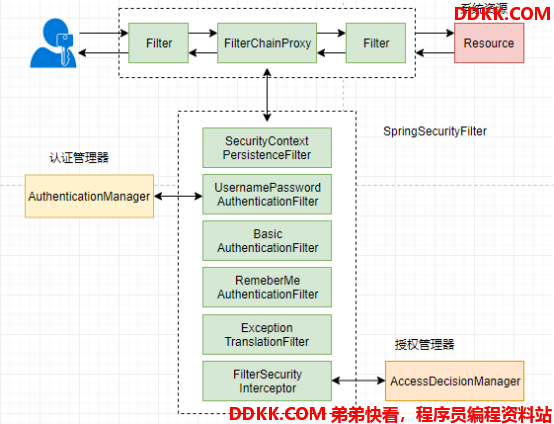

SpringSecurity是基于Filter实现认证和授权,底层通过FilterChainProxy代理去调用各种Filter(Filter链),Filter通过调用AuthenticationManager完成认证 ,通过调用AccessDecisionManager完成授权,SpringSecurity中核心的过滤器链详细如下:



  • SecurityContextPersistenceFilter
    Filter的入口和出口,它是用来将SecurityContext(认证的上下文,里面有登录成功后的认证授权信息)对象持久到Session的Filter,同时会把SecurityContext设置给SecurityContextHolder方便我们获取用户认证授权信息
  • UsernamePasswordAuthenticationFilter
    默认拦截“/login”登录请求,处理表单提交的登录认证,将请求中的认证信息包括
    username,password等封装成UsernamePasswordAuthenticationToken,然后调用
    AuthenticationManager的认证方法进行认证
  • BasicAuthenticationFilter
    基本认证,支持httpBasic认证方式的Filter
  • RememberAuthenticationFilter
    记住我功能实现的Filter
  • AnonymousAuthenticationFilter
    匿名Filter,用来处理匿名访问的资源,如果用户未登录,SecurityContext中没有Authentication,
    就会创建匿名的Token(AnonymousAuthenticationToken),然后通过
    SecurityContextHodler设置到SecurityContext中。
  • ExceptionTranslationFilter
    用来捕获FilterChain所有的异常,进行处理,但是只会处理 AuthenticationException和AccessDeniedException,异常,其他的异常 会继续抛出。
  • FilterSecurityInterceptor
    用来做授权的Filter,通过父类(AbstractSecurityInterceptor.beforeInvocation)调用
    AccessDecisionManager.decide方法对用户进行授权。

1.3.Security相关概念

Authentication

认证对象,用来封装用户的认证信息(账户状态,用户名,密码,权限等)所有提交给AuthenticationManager的认证请求都会被封装成一个Token的实现,比如 最容易理解的UsernamePasswordAuthenticationToken,其中包含了用户名和密码
Authentication常用的实现类:
UsernamePasswordAuthenticationToken:用户名密码登录的Token
AnonymousAuthenticationToken:针对匿名用户的Token
RememberMeAuthenticationToken:记住我功能的的Token

AuthenticationManager

用户认证的管理类,所有的认证请求(比如login)都会通过提交一个封装了到了登录信息的Token对象给 AuthenticationManager的authenticate()方法来实现认证。AuthenticationManager会 调
用AuthenticationProvider.authenticate进行认证。认证成功后,返回一个包含了认 证
信息的Authentication对象。

AuthenticationProvider

认证的具体实现类,一个provider是一种认证方式的实现,比如提交的用户名密码我 是通过和DB中查出的user记录做比对实现的,那就有一个DaoProvider;如果我是通 过CAS请求单点登录系统实现,那就有一个CASProvider。按照Spring一贯的作风, 主流的认证方式它都已经提供了默认实现,比如DAO、LDAP、CAS、OAuth2等。 前 面讲了AuthenticationManager只是一个代理接口,真正的认证就是由 AuthenticationProvider来做的。一个AuthenticationManager可以包含多个Provider, 每个provider通过实现一个support方法来表示自己支持那种Token的认证。 AuthenticationManager默认的实现类是ProviderManager。

UserDetailService

用户的认证通过Provider来完成,而Provider会通过UserDetailService拿到数据库(或 内存)中的认证信息然后和客户端提交的认证信息做校验。虽然叫Service,但是我更愿 意把它认为是我们系统里经常有的UserDao。

SecurityContext

当用户通过认证之后,就会为这个用户生成一个唯一的SecurityContext,里面包含用 户的认证信息Authentication。通过SecurityContext我们可以获取到用户的标识 Principle和授权信息GrantedAuthrity。在系统的任何地方只要通过 SecurityHolder.getSecruityContext()就可以获取到SecurityContext。在Shiro中通过 SecurityUtils.getSubject()到达同样的目的

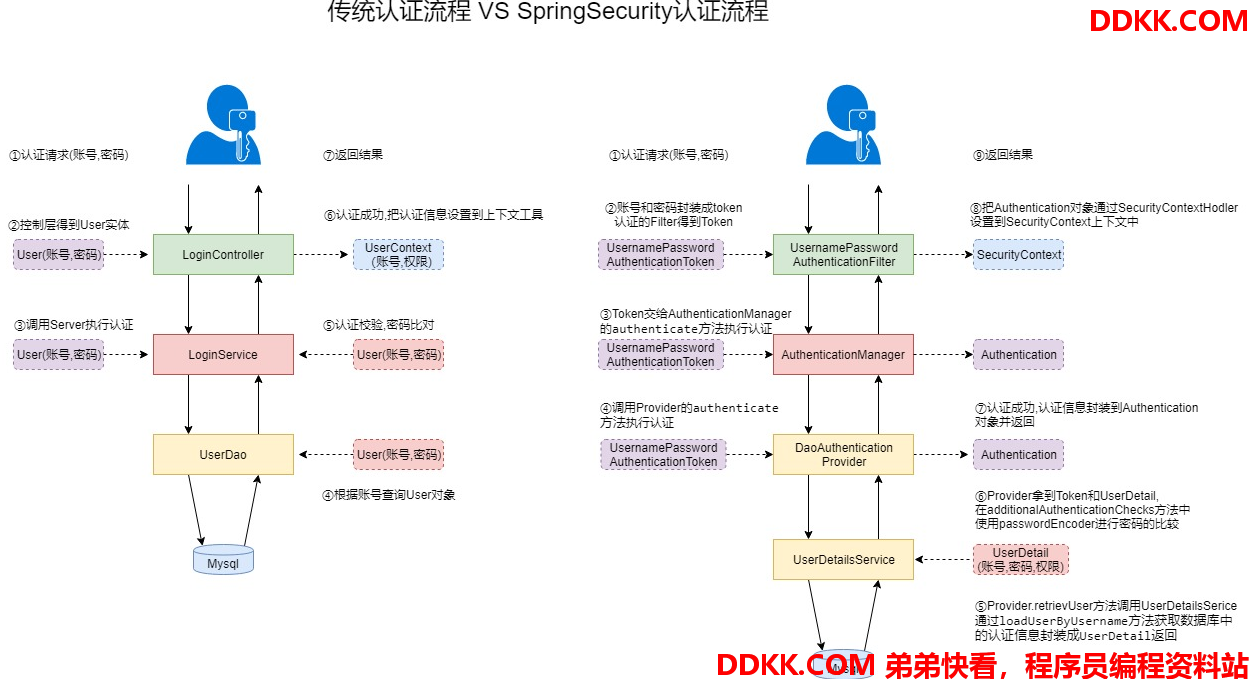

1.4.SpringSecurity认证流程原理



  • 请求过来会被过滤器链中的UsernamePasswordAuthenticationFilter拦截到,请求中的用户名和密码被封装成UsernamePasswordAuthenticationToken(Authentication的实现类)
  • 过滤器将UsernamePasswordAuthenticationToken提交给认证管理器(AuthenticationManager)进行认证.
  • AuthenticationManager委托AuthenticationProvider(DaoAuthenticationProvider)进行认证,AuthenticationProvider通过调用UserDetailsService获取到数据库中存储的用户信息(UserDetails),然后调用passwordEncoder密码编码器对UsernamePasswordAuthenticationToken中的密码和UserDetails中的密码进行比较
  • AuthenticationProvider认证成功后封装Authentication并设置好用户的信息(用户名,密码,权限等)返回
  • Authentication被返回到UsernamePasswordAuthenticationFilter,通过调用SecurityContextHolder工具把Authentication封装成SecurityContext中存储起来。然后UsernamePasswordAuthenticationFilter调用AuthenticationSuccessHandler.onAuthenticationSuccess做认证成功后续处理操作
  • 最后SecurityContextPersistenceFilter通过SecurityContextHolder.getContext()获取到SecurityContext对象然后调用SecurityContextRepository将SecurityContext存储起来,然后调用SecurityContextHolder.clearContext方法清理SecurityContext。

注意:SecurityContext是一个和当前线程绑定的工具,在代码的任何地方都可以通过SecurityContextHolder.getContext()获取到登陆信息。

2.认证流程源码跟踪

SecurityContextPersistenceFilter#

这个filter是整个filter链的入口和出口,请求开始会从SecurityContextRepository中 获取SecurityContext对象并设置给SecurityContextHolder。在请求完成后将
SecurityContextHolder持有的SecurityContext再保存到配置好的
DecurityContextRepository中,同时清除SecurityContextHolder中的SecurityContext

总结一下:SecurityContextPersistenceFilter它的作用就是请求来的时候将包含了认证授权信息的SecurityContext对象从SecurityContextRepository中取出交给SecurityContextHolder工具类,方便我们通过SecurityContextHolder获取SecurityContext从而获取到认证授权信息,请求走的时候又把SecurityContextHolder清空,源码如下:


public class SecurityContextPersistenceFilter extends GenericFilterBean {


  ...省略...
  public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain) throws IOException, ServletException {


  ...省略部分代码...
  HttpRequestResponseHolder holder = new HttpRequestResponseHolder(request,
  			response);
  //从SecurityContextRepository获取到SecurityContext
  	SecurityContext contextBeforeChainExecution = repo.loadContext(holder);

  	try {


  	 //把 securityContext设置到SecurityContextHolder,如果没认证通过,这个SecurtyContext就是空的
  		SecurityContextHolder.setContext(contextBeforeChainExecution);
  		//调用后面的filter,比如掉用usernamepasswordAuthenticationFilter实现认证
  		chain.doFilter(holder.getRequest(), holder.getResponse());

  	}
  	finally {


  		//如果认证通过了,这里可以从SecurityContextHolder.getContext();中获取到SecurityContext
  		SecurityContext contextAfterChainExecution = SecurityContextHolder
  				.getContext();
  		// Crucial removal of SecurityContextHolder contents - do this before anything
  		// else.
  		 //删除SecurityContextHolder中的SecurityContext
  		SecurityContextHolder.clearContext();
  		//把SecurityContext 存储到SecurityContextRepository
  		repo.saveContext(contextAfterChainExecution, holder.getRequest(),
  				holder.getResponse());
  		request.removeAttribute(FILTER_APPLIED);

  		if (debug) {


  			logger.debug("SecurityContextHolder now cleared, as request processing completed");
  		}
  	}
...省略...

UsernamePasswordAuthenticationFilter

它的重用是,拦截“/login”登录请求,处理表单提交的登录认证,将请求中的认证信息包括username,password等封装成UsernamePasswordAuthenticationToken,然后调用
AuthenticationManager的认证方法进行认证。

public class UsernamePasswordAuthenticationFilter extends
		AbstractAuthenticationProcessingFilter {


	// ~ Static fields/initializers
	// =====================================================================================
	//从登录请求中获取参数:username,password的名字
	public static final String SPRING_SECURITY_FORM_USERNAME_KEY = "username";
	public static final String SPRING_SECURITY_FORM_PASSWORD_KEY = "password";

	private String usernameParameter = SPRING_SECURITY_FORM_USERNAME_KEY;
	private String passwordParameter = SPRING_SECURITY_FORM_PASSWORD_KEY;
	//默认支持POST登录
	private boolean postOnly = true;
	//默认拦截/login请求,Post方式
	public UsernamePasswordAuthenticationFilter() {


		super(new AntPathRequestMatcher("/login", "POST"));
	}

	// ~ Methods
	// ========================================================================================================

	public Authentication attemptAuthentication(HttpServletRequest request,
			HttpServletResponse response) throws AuthenticationException {


			//判断请求是否是POST
		if (postOnly && !request.getMethod().equals("POST")) {


			throw new AuthenticationServiceException(
					"Authentication method not supported: " + request.getMethod());
		}
		//获取到用户名和密码
		String username = obtainUsername(request);
		String password = obtainPassword(request);

		if (username == null) {


			username = "";
		}

		if (password == null) {


			password = "";
		}

		username = username.trim();
		//用户名和密码封装Token
		UsernamePasswordAuthenticationToken authRequest = new UsernamePasswordAuthenticationToken(
				username, password);
		//设置details属性
		// Allow subclasses to set the "details" property
		setDetails(request, authRequest);
		//调用AuthenticationManager().authenticate进行认证,参数就是Token对象
		return this.getAuthenticationManager().authenticate(authRequest);
	}

AuthenticationManager

请求通过UsernamePasswordAuthenticationFilter调用AuthenticationManager,默认走的实现类是ProviderManager,它会找到能支持当前认证的AuthenticationProvider实现类调用器authenticate方法执行认证,认证成功后会清除密码,然后抛出AuthenticationSuccessEvent事件

public class ProviderManager implements AuthenticationManager, MessageSourceAware,
    InitializingBean {


    ...省略...
    //这里authentication 是封装了登录请求的认证参数,
    //即:UsernamePasswordAuthenticationFilter传入的Token对象
public Authentication authenticate(Authentication authentication)
        throws AuthenticationException {


    Class<? extends Authentication> toTest = authentication.getClass();
    AuthenticationException lastException = null;
    AuthenticationException parentException = null;
    Authentication result = null;
    Authentication parentResult = null;
    boolean debug = logger.isDebugEnabled();
    //找到所有的AuthenticationProvider ,选择合适的进行认证
    for (AuthenticationProvider provider : getProviders()) {


        //是否支持当前认证
        if (!provider.supports(toTest)) {


            continue;
        }

        if (debug) {


            logger.debug("Authentication attempt using "
                    + provider.getClass().getName());
        }

        try {


            //调用provider执行认证
            result = provider.authenticate(authentication);

            if (result != null) {


                copyDetails(authentication, result);
                break;
            }
        }
            ...省略...
    }
    ...省略...
    //result就是Authentication ,使用的实现类依然是UsernamepasswordAuthenticationToken,
    //封装了认证成功后的用户的认证信息和授权信息
    if (result != null) {


        if (eraseCredentialsAfterAuthentication
            && (result instanceof CredentialsContainer)) {


        // Authentication is complete. Remove credentials and other secret data
        // from authentication
        //这里在擦除登录密码
        ((CredentialsContainer) result).eraseCredentials();
    }

    // If the parent AuthenticationManager was attempted and successful than it will publish an AuthenticationSuccessEvent
    // This check prevents a duplicate AuthenticationSuccessEvent if the parent AuthenticationManager already published it
    if (parentResult == null) {


        //发布事件
        eventPublisher.publishAuthenticationSuccess(result);
    }
    return result;
}

DaoAuthenticationProvider

请求到达AuthenticationProvider,默认实现是DaoAuthenticationProvider,它的作用是根据传入的Token中的username调用UserDetailService加载数据库中的认证授权信息(UserDetails),然后使用PasswordEncoder对比用户登录密码是否正确

public class DaoAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {


		//密码编码器
		private PasswordEncoder passwordEncoder;
		//UserDetailsService ,根据用户名加载UserDetails对象,从数据库加载的认证授权信息
		private UserDetailsService userDetailsService;
		//认证检查方法
		protected void additionalAuthenticationChecks(UserDetails userDetails,
			UsernamePasswordAuthenticationToken authentication)
			throws AuthenticationException {


		if (authentication.getCredentials() == null) {


			logger.debug("Authentication failed: no credentials provided");

			throw new BadCredentialsException(messages.getMessage(
					"AbstractUserDetailsAuthenticationProvider.badCredentials",
					"Bad credentials"));
		}
		//获取密码
		String presentedPassword = authentication.getCredentials().toString();
		//通过passwordEncoder比较密码,presentedPassword是用户传入的密码,userDetails.getPassword()是从数据库加载到的密码
		//passwordEncoder编码器不一样比较密码的方式也不一样
		if (!passwordEncoder.matches(presentedPassword, userDetails.getPassword())) {


			logger.debug("Authentication failed: password does not match stored value");

			throw new BadCredentialsException(messages.getMessage(
					"AbstractUserDetailsAuthenticationProvider.badCredentials",
					"Bad credentials"));
		}
	}

	//检索用户,参数为用户名和Token对象
	protected final UserDetails retrieveUser(String username,
			UsernamePasswordAuthenticationToken authentication)
			throws AuthenticationException {


		prepareTimingAttackProtection();
		try {


			//调用UserDetailsService的loadUserByUsername方法,
			//根据用户名检索数据库中的用户,封装成UserDetails
			UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(username);
			if (loadedUser == null) {


				throw new InternalAuthenticationServiceException(
						"UserDetailsService returned null, which is an interface contract violation");
			}
			return loadedUser;
		}
		catch (UsernameNotFoundException ex) {


			mitigateAgainstTimingAttack(authentication);
			throw ex;
		}
		catch (InternalAuthenticationServiceException ex) {


			throw ex;
		}
		catch (Exception ex) {


			throw new InternalAuthenticationServiceException(ex.getMessage(), ex);
		}
	}
	//创建认证成功的认证对象Authentication,使用的实现是UsernamepasswordAuthenticationToken,
	//封装了认证成功后的认证信息和授权信息,以及账户的状态等
	@Override
	protected Authentication createSuccessAuthentication(Object principal,
			Authentication authentication, UserDetails user) {


		boolean upgradeEncoding = this.userDetailsPasswordService != null
				&& this.passwordEncoder.upgradeEncoding(user.getPassword());
		if (upgradeEncoding) {


			String presentedPassword = authentication.getCredentials().toString();
			String newPassword = this.passwordEncoder.encode(presentedPassword);
			user = this.userDetailsPasswordService.updatePassword(user, newPassword);
		}
		return super.createSuccessAuthentication(principal, authentication, user);
	}
	...省略...

这里提供了三个方法

  • additionalAuthenticationChecks:通过passwordEncoder比对密码
  • retrieveUser:根据用户名调用UserDetailsService加载用户认证授权信息
  • createSuccessAuthentication:登录成功,创建认证对象Authentication

然而你发现 DaoAuthenticationProvider 中并没有authenticate认证方法,真正的认证逻辑是通过父类AbstractUserDetailsAuthenticationProvider.authenticate方法完成的

AbstractUserDetailsAuthenticationProvider

public abstract class AbstractUserDetailsAuthenticationProvider implements
AuthenticationProvider, InitializingBean, MessageSourceAware {


//认证逻辑
public Authentication authenticate(Authentication authentication)
    throws AuthenticationException {


    //得到传入的用户名
    String username = (authentication.getPrincipal() == null) ? "NONE_PROVIDED"
        : authentication.getName();
        //从缓存中得到UserDetails
    boolean cacheWasUsed = true;
    UserDetails user = this.userCache.getUserFromCache(username);
    if (user == null) {


    cacheWasUsed = false;

    try {


        //检索用户,底层会调用UserDetailsService加载数据库中的UserDetails对象,保护认证信息和授权信息
        user = retrieveUser(username,
                (UsernamePasswordAuthenticationToken) authentication);
    }
    catch (UsernameNotFoundException notFound) {


        ...省略...
    }

    try {


        //前置检查,主要检查账户是否锁定,账户是否过期等
        preAuthenticationChecks.check(user);
        //比对密码在这个方法里面比对的
        additionalAuthenticationChecks(user,
            (UsernamePasswordAuthenticationToken) authentication);
    }
    catch (AuthenticationException exception) {


    ...省略...
    }
    //后置检查
    postAuthenticationChecks.check(user);

    if (!cacheWasUsed) {


        //设置UserDetails缓存
        this.userCache.putUserInCache(user);
    }

    Object principalToReturn = user;

    if (forcePrincipalAsString) {


        principalToReturn = user.getUsername();
    }
    //认证成功,创建Auhentication认证对象
    return createSuccessAuthentication(principalToReturn, authentication, user);
}

UsernamePasswordAuthenticationFilter

认证成功,请求会重新回到UsernamePasswordAuthenticationFilter,然后会通过其父类AbstractAuthenticationProcessingFilter.successfulAuthentication方法将认证对象封装成SecurityContext设置到SecurityContextHolder中

protected void successfulAuthentication(HttpServletRequest request,
        HttpServletResponse response, FilterChain chain, Authentication authResult)
        throws IOException, ServletException {



    if (logger.isDebugEnabled()) {


        logger.debug("Authentication success. Updating SecurityContextHolder to contain: "
                + authResult);
    }

    //认证成功,吧Authentication 设置到SecurityContextHolder
    SecurityContextHolder.getContext().setAuthentication(authResult);
    //处理记住我业务逻辑
    rememberMeServices.loginSuccess(request, response, authResult);

    // Fire event
    if (this.eventPublisher != null) {


        eventPublisher.publishEvent(new InteractiveAuthenticationSuccessEvent(
                authResult, this.getClass()));
    }
    //重定向登录成功地址
    successHandler.onAuthenticationSuccess(request, response, authResult);
}

然后后续请求又会回到SecurityContextPersistenceFilter,它就可以从SecurityContextHolder获取到SecurityContext持久到SecurityContextRepository(默认实现是HttpSessionSecurityContextRepository基于Session存储)

到这里认证流程就结束了,希望对您有所帮助
