04、Kubernetes 实战 - k8s 集群环境搭建

分类：容器服务 标签：Kubernetes，Docker，docker compose，Harbor，Ansible，Rancher，kubectl，Volume，ConfigMap，Volume，Secret，ReplicaSet，Deployment，DaemonSet，Job CronJob，Schedule，Helm，安装，教程，实战，笔记，控制器，私服

一，前言

前两篇，购买了 3 台阿里云服务器并完成了 ci-server 构建服务器的环境安装与配置；

三台服务器规划如下：

服务 配置 内网IP 外网IP 说明
ci-server 2c4g 172.17.178.104 182.92.4.158 Jenkins + Nexus + Docker
k8s-master 2c4g 172.17.178.105 47.93.9.45 Kubernetes + Docker
k8s-node 2c1g 172.17.178.106 39.105.58.35 Kubernetes + Docker

本篇，配置 k8s-master 和 k8s-node 两台服务器，搭建 k8s 集群；

备注：考虑服务器成本使用 1 主+1 从的集群配置，有条件也可以使用 1 主 + 2 从；

二，Kubernetes 简介

1，k8s 简介

  • kubernetes 简称 K8s，其中数字 8 指代中间的 8 个字符 ubernete；
  • K8s 是一个开源的，用于管理云平台上多个主机上的容器化的应用；
  • K8s 的目标是让部署容器化的应用简单并且高效；
  • K8s 提供了应用部署，规划，更新，维护的一种机制；
  • K8s 是一个部署镜像的平台，可以用来调度多台机器上的的镜像部署操作；

K8s可以使用集群来组织服务器，集群中存在 1 个 Master 集群控制节点，负责调度集群中其他服务器的资源；除 master 之外的其他节点称为 Node；

2，为什么要使用 k8s

大型互联网公司（如 Google），拥有上亿级别的 docker 容器，

容器维护涉及启动、停止、销毁、负载均衡、灾备、扩容等诸多问题需要解决，

因此传统的手工部署的方式就不切实际了，需要使用容器编排工具，而 k8s 目前是这个领域事实上的标准；

部署一个网站会涉及多个容器，可以通过 k8s 配置容器的部署、启动、关闭以及实现负载均衡；

三，k8s 集群搭建

以下配置，如未做特殊说明，则 k8s-master 和 k8s-node 默认都需要进行配置；

1，关闭 Swap 交换分区

swap 分区：虚拟内存分区；

Swap 分区：是 Linux 的交换分区，当系统资源不足时，Swap 分区将会启用；

比如，1c1g 配置的服务器，当需要 2g 内存时，便会从硬盘借用空间当做内存使用（但速度会比内存慢)；

搭建k8s 集群：1 个 master + n 个 node；

当master 资源不足时，新任务将自动调度到集群中的其他 node 节点处理，实现负载均衡，所以无需启用虚拟内存分区；

#关闭swap分区
swapoff -a

备注：k8s 虽然是一个集群架构，但单从表现上看和一台服务器是一样的：内存资源可以互相共享；

2，关闭 Selinux

  • 关闭 Selinux：达到支持容器访问宿主机的文件系统；
# 暂时关闭 selinux
setenforce 0

# 永久关闭
vi /etc/sysconfig/selinux
# 修改以下参数，设置为disable
SELINUX=disabled

Linux 部分权限比较严格，不方便操作

[root@k8s-master ~]# setenforce 0
setenforce: SELinux is disabled

3，统一系统时间和时区

使用ntpdate 统一系统的时间和时区，服务器时间与阿里云服务器保持一致；

# 统一时区，为上海时区
ln -snf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
bash -c "echo 'Asia/Shanghai' > /etc/timezone"

# 统一使用阿里服务器进行时间更新
ntpdate ntp1.aliyun.com

实际操作：

// ln：软连接，创建软连接，从 /usr/share/zoneinfo/Asia/Shanghai 到 /etc/localtime
[root@k8s-master ~]# ln -snf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime

// bash -c：执行 shell 脚本，将 Asia/Shanghai 写入到 /etc/timezone 中，使用亚洲/上海时区
[root@k8s-master ~]# bash -c "echo 'Asia/Shanghai' > /etc/timezone"

// 让服务器时间与阿里云标准时间对齐
[root@k8s-master ~]# ntpdate ntp1.aliyun.com
20 Dec 16:03:31 ntpdate[1608]: adjust time server 120.25.115.20 offset -0.003746 sec

备注：需要确保服务器之间的时间和时区一致，以避免执行定时任务时产生误差；

4，安装 Docker

在kubernetes 中，组件、服务均能够以 Docker 镜像的方式进行部署，需要 docker 环境支持；

// 安装 docker 依赖的基础库
yum install -y yum-utils device-mapper-persistent-data lvm2

device-mapper-persistent-data：存储驱动，Linux 上的许多高级卷管理技术；

lvm：逻辑卷管理器，用于创建逻辑磁盘分区使用；

在安装docker 前，需要先配置 docker 安装源：

// 添加阿里云的 docker 安装源
[root@k8s-node ~]# sudo yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
已加载插件：fastestmirror
adding repo from: http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
grabbing file http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo

安装docker-ce：

yum install docker-ce -y

启动docker 并设置为开机启动：

// 启动 docker
[root@k8s-master yum.repos.d]# systemctl start docker
// 设置开机启动
[root@k8s-master yum.repos.d]# systemctl enable docker
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.

设置安装镜像源，使用阿里云镜像源：

// 创建配置目录
sudo mkdir -p /etc/docker
// 创建文件 daemon.json
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://fwvjnv59.mirror.aliyuncs.com"]
}
EOF

实际操作：

[root@k8s-master yum.repos.d]# sudo mkdir -p /etc/docker
[root@k8s-master yum.repos.d]# sudo tee /etc/docker/daemon.json <<-'EOF'
> {
>   "registry-mirrors": ["https://fwvjnv59.mirror.aliyuncs.com"]
> }
> EOF
{
  "registry-mirrors": ["https://fwvjnv59.mirror.aliyuncs.com"]
}

重启docker，完成配置文件的重新加载：

sudo systemctl daemon-reload
sudo systemctl restart docker.service

这样，docker 获取镜像时就会通过阿里云镜像仓库拉取，速度会快一些；

5，安装 Kubernetes 组件

1，切换 k8s 下载源

\

指定yum 安装 k8s 的下载地址为“阿里云”源：

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
        http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

2，安装 Kubernetes 核心组件

k8s的三个核心组件：

  • kubelet：Kubernetes 核心组件。运行在集群所有节点上，负责创建、启动服务容器；

  • kubectl：Kubernetes 的命令行工具。可以用来管理，删除，创建资源；

  • kubeadm：用来初始化集群，子节点加入的工具；

// 安装最新版本，会导致安装问题
yum install -y kubelet kubectl kubeadm

// 建议指定版本安装
yum install -y kubelet-1.20.4 kubectl-1.20.4 kubeadm-1.20.4

注意：在不指定组件版本的情况下，默认会安装最新版本（此时最新版本为 1.23.1）

这样可能导致 k8s 初始化报错：

执行：

kubeadm init --config init-kubeadm.conf

报错：

[kubelet-check] It seems like the kubelet isn’t running or healthy.

[kubelet-check] The HTTP call equal to 'curl -sSL http://localhost:10248/healthz’ failed with error: Get "http://localhost:10248/healthz": dial tcp [::1]:10248: connect: connection refused.

解决办法：

网上的解决办法均未实现，指定 1.20.4 版本安装无此问题，建议使用 1.20.4 版本；

3，kubeadm 介绍

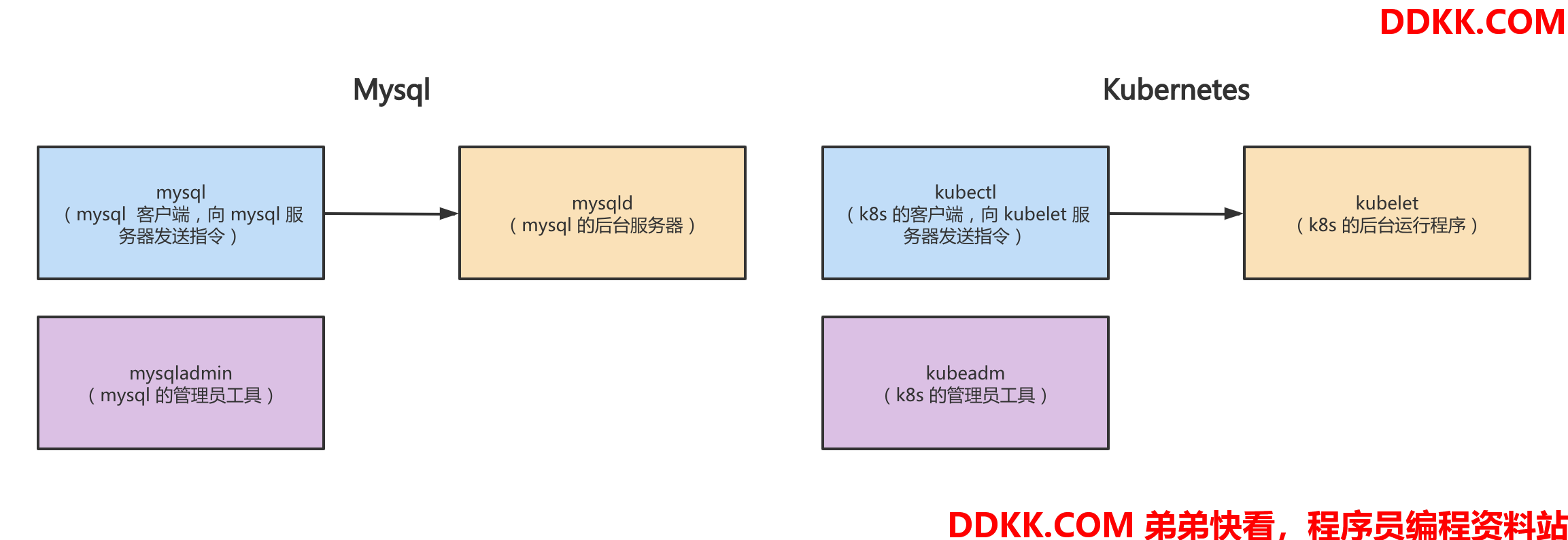

k8s与 mysql 组件功能对照



mysql组件 组件功能 对标 K8s 组件 组件功能
mysqld mysql 的后台服务器； kubelet k8s 的后台运行程序；
mysql mysql 的客户端，作为命令行工具向 mysql 服务器发送指令； kubectl k8s 的客户端，作为命令行工具向 kubelet 服务器发送指令，用于管理、创建、删除 k8s 资源；
mysqladmin mysql 的管理员工具，如：重启、关闭服务器； kubeadm k8s 的管理员工具，用于初始化集群、提供配置文件等；

4，启动 kubelet

# 启动 kubelet 并配置为开机启动
[root@k8s-master ~]# systemctl enable kubelet && systemctl start kubelet
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.

5，设置 bridge-nf-call-iptables

开启bridge-nf-call-iptables，配置内核参数，将桥接的 IPV4 浏览传递到 iptables 链

echo 1 > /proc/sys/net/bridge/bridge-nf-call-iptables

6，配置 Master 服务器（修改主机名：k8s-master）

Master 节点：负责集群中的任务调度；

hostnamectl set-hostname k8s-master

查看hosts 文件

[root@k8s-master ~]# cat /etc/hosts
::1	localhost	localhost.localdomain	localhost6	localhost6.localdomain6
127.0.0.1	localhost	localhost.localdomain	localhost4	localhost4.localdomain4

172.17.178.105	k8s-master	k8s-master

7，配置 Node 服务器（修改主机名：k8s-node）

Node 节点：负责接收调度，运行服务容器；

hostnamectl set-hostname k8s-node

查看hosts 文件:

[root@k8s-node ~]# cat /etc/hosts
cat /etc/hosts
::1	localhost	localhost.localdomain	localhost6	localhost6.localdomain6
127.0.0.1	localhost	localhost.localdomain	localhost4	localhost4.localdomain4

172.17.178.106	k8s-node	k8s-node

8，配置 Master（hosts 添加 k8s-node）

在k8s-master 中，添加 k8s-node：

[root@k8s-master ~]# vi /etc/hosts

::1     localhost       localhost.localdomain   localhost6      localhost6.localdomain6
127.0.0.1       localhost       localhost.localdomain   localhost4      localhost4.localdomain4

172.17.178.105  k8s-master
172.17.178.106  k8s-node

在k8s-master 执行 ping k8s-node，测试主从通信：

[root@k8s-master ~]# ping k8s-node
PING k8s-node (172.17.178.106) 56(84) bytes of data.
64 bytes from k8s-node (172.17.178.106): icmp_seq=1 ttl=64 time=0.492 ms
64 bytes from k8s-node (172.17.178.106): icmp_seq=2 ttl=64 time=0.307 ms
64 bytes from k8s-node (172.17.178.106): icmp_seq=3 ttl=64 time=0.299 ms
64 bytes from k8s-node (172.17.178.106): icmp_seq=4 ttl=64 time=0.296 ms
64 bytes from k8s-node (172.17.178.106): icmp_seq=5 ttl=64 time=0.328 ms
^C
--- k8s-node ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4000ms
rtt min/avg/max/mdev = 0.296/0.344/0.492/0.076 ms

9，配置 Node（hosts 添加 k8s-master）

在k8s-node 中，添加 k8s-master：

[root@k8s-node ~]# vi /etc/hosts

::1     localhost       localhost.localdomain   localhost6      localhost6.localdomain6
127.0.0.1       localhost       localhost.localdomain   localhost4      localhost4.localdomain4

172.17.178.106  k8s-node
172.17.178.105  k8s-master

在k8s-node 中执行 ping k8s-master ，测试主从通信：

[root@k8s-node ~]# ping k8s-master
PING k8s-master (172.17.178.105) 56(84) bytes of data.
64 bytes from k8s-master (172.17.178.105): icmp_seq=1 ttl=64 time=0.361 ms
64 bytes from k8s-master (172.17.178.105): icmp_seq=2 ttl=64 time=1.01 ms
64 bytes from k8s-master (172.17.178.105): icmp_seq=3 ttl=64 time=0.314 ms
^C
--- k8s-master ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2013ms
rtt min/avg/max/mdev = 0.314/0.564/1.018/0.321 ms

完成测试，目前主从两台服务器可以相互 ping 通

10，生成 Kubernetes 初始化文件（仅 master 操作即可）

init-defaults：输出一份默认初始化配置文件；

// 执行 init-defaults 命令，并将输出结果写入 init-kubeadm.conf 中
[root@k8s-master ~]# kubeadm config print init-defaults > init-kubeadm.conf

// 修改配置：镜像仓库
[root@k8s-master ~]# cat init-kubeadm.conf
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 1.2.3.4
  bindPort: 6443
nodeRegistration:
  criSocket: /var/run/dockershim.sock
  imagePullPolicy: IfNotPresent
  name: node
  taints: null
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: k8s.gcr.io
kind: ClusterConfiguration
kubernetesVersion: 1.23.0
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
scheduler: {}

11，修改 init-kubeadm.conf 配置项

需要修改以下三处配置

1，配置 k8s 拉取 docker 镜像的地址为阿里云镜像源；

2，本地 api 端点：广播地址，需修改为 k8s-master 的 ip；

3，添加 network 中的 pod 子网配置；

// 镜像仓库地址
imageRepository: k8s.gcr.io
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers // 更换 k8s 镜像仓库

// 本地 api 端点
localAPIEndpoint:
  advertiseAddress: 1.2.3.4
  bindPort: 6443

localAPIEndpoint:
  advertiseAddress: 172.17.178.105    // 广播地址，需修改为 k8s-master 的 ip
  bindPort: 6443

// 添加 network
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12

networking:
  dnsDomain: cluster.local		  // dns 域名
  serviceSubnet: 10.96.0.0/12   // 服务子网
	podSubnet: 10.244.0.0/16			// pod 子网配置

了解podSubnet 需要先了解 k8s 架构，详见附：k8s 架构；

12，查看并拉取缺少的组件

配置文件中的镜像列表：目前已经安装了 k8s 的 3 个核心组件，还差 7 个组件

// 查看缺少的组件（缺少以下 7 个组件）
[root@k8s-master ~]# kubeadm config images list --config init-kubeadm.conf
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.20.0
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.20.0
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.20.0
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.20.0
registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.2
registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.13-0
registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.7.0

// 拉取缺少的 7 个组件
[root@k8s-master ~]# kubeadm config images pull --config init-kubeadm.conf
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.20.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.20.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.20.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.20.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.2
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.13-0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.7.0

6，初始化 Kubernetes

1，通过 init-kubeadm.conf 初始化 k8s

  • kubeadm join 可以快速将 Node 节点加入到 Master 集群内
  • 将默认的 Kubernetes 认证文件拷贝到 .kube 文件夹内，默认使用该配置文件

在Master 节点执行 k8s 集群初始化命令：

// 通过 init-kubeadm.conf 初始化 k8s
[root@k8s-master ~]# kubeadm init --config init-kubeadm.conf
[init] Using Kubernetes version: v1.20.0
[preflight] Running pre-flight checks
	[WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/
	[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.12. Latest validated version: 19.03
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s-master kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 172.17.178.105]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [k8s-master localhost] and IPs [172.17.178.105 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [k8s-master localhost] and IPs [172.17.178.105 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[kubelet-check] Initial timeout of 40s passed.
[apiclient] All control plane components are healthy after 64.005020 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.20" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node k8s-master as control-plane by adding the labels "node-role.kubernetes.io/master=''" and "node-role.kubernetes.io/control-plane='' (deprecated)"
[mark-control-plane] Marking the node k8s-master as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: abcdef.0123456789abcdef
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 172.17.178.105:6443 --token abcdef.0123456789abcdef \
    --discovery-token-ca-cert-hash sha256:31e43ceaaf17f2c0d738ba6efa7fa71c6b5ad0d818a900a10b3e76bc397b5f7a

安装完成后的提示，注意以下两部分：

// 1，创建目录、添加配置、修改权限
To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

// 2，在 node 节点执行以下命令，加入到 k8s 集群汇中：
Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 172.17.178.105:6443 --token abcdef.0123456789abcdef \
    --discovery-token-ca-cert-hash sha256:31e43ceaaf17f2c0d738ba6efa7fa71c6b5ad0d818a900a10b3e76bc397b5f7a

2，创建配置文件

根据安装完成后的提示，创建目录、拷贝 k8s 配置、修改权限

[root@k8s-master ~]# mkdir -p $HOME/.kube
[root@k8s-master ~]# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@k8s-master ~]# sudo chown $(id -u):$(id -g) $HOME/.kube/config

3，查看节点启动情况

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS     ROLES                  AGE   VERSION
k8s-master   NotReady   control-plane,master   15m   v1.20.4

可以发现，k8s-master 节点，目前还是 NotReady 状态；

7，安装 Flannel

flannel 主要的作用是通过创建一个虚拟网络，让不同节点下的服务具有全局唯一的 IP 地址，且服务之见可以互相访问和连接；集群内网网络通信协议通信模式采用了 Flannel 协议；

1，安装 Flannel 内网通讯协议

// 下载 kube-flannel.yml
wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

// 拉取镜像
docker pull quay.io/coreos/flannel:v0.13.0-rc2

备注：raw.githubusercontent.com被墙可以网上下载文件内容

查看kube-flannel.yml 内容

[root@k8s-master ~]# cat kube-flannel.yml
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
  - configMap
  - secret
  - emptyDir
  - hostPath
  allowedHostPaths:
  - pathPrefix: "/etc/cni/net.d"
  - pathPrefix: "/etc/kube-flannel"
  - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  Capabilities
  allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  SELinux
  seLinux:
    SELinux is unused in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
rules:
- apiGroups: ['extensions']
  resources: ['podsecuritypolicies']
  verbs: ['use']
  resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes/status
  verbs:
  - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.13.1-rc2
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.13.1-rc2
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
            add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
      - name: run
        hostPath:
          path: /run/flannel
      - name: cni
        hostPath:
          path: /etc/cni/net.d
      - name: flannel-cfg
        configMap:
          name: kube-flannel-cfg

注意以下两个部分：

// 1,
image: quay.io/coreos/flannel:v0.13.1-rc2

// 2,
net-conf.json: |
{
  // 初始化时配置的 Pod 子网，三个 pod 互相通信，依靠 Flannel 协议组成子网
  "Network": "10.244.0.0/16",
  "Backend": {
    "Type": "vxlan"
  }
}

2，启动 Flannel

// 启动
kubectl apply -f kube-flannel.yml

// 实际执行
[root@k8s-master ~]# kubectl apply -f kube-flannel.yml
podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created

3，查看节点启动情况

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS   ROLES                  AGE   VERSION
k8s-master   Ready    control-plane,master   13h   v1.20.4

可以发现，k8s-master节点，目前已经是 Ready 状态；

8， node 节点配置

1，拷贝 Master 节点配置文件到 node

将k8s-master 节点的配置文件拷贝到 k8s-node 节点

// 将当前 $HOME/.kube/config 文件，拷贝到指定 IP 的 HOME 中
[root@k8s-master ~]# scp $HOME/.kube/config root@172.17.178.106:~/
The authenticity of host '172.17.178.106 (172.17.178.106)' can't be established.
ECDSA key fingerprint is SHA256:59P14/vci6LQz7+cksAjPYi5IuYnC6FxaCPVBe+I2p8.
ECDSA key fingerprint is MD5:8e:bd:91:34:fa:c2:34:69:07:ae:33:cf:9a:7d:6d:c3.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '172.17.178.106' (ECDSA) to the list of known hosts.
root@172.17.178.106's password:
config                                             100% 5566     8.5MB/s   00:00

到k8s-node 上，查看拷贝结果：

[root@k8s-node ~]# ls
config kube-flannel.yml

在k8s-node 节点上，归档配置文件

// 创建目录 $HOME/.kube
[root@k8s-node ~]# mkdir -p $HOME/.kube
// 将拷贝的 config 移动到 $HOME/.kube 中
[root@k8s-node ~]# sudo mv $HOME/config $HOME/.kube/config
// 修改权限
[root@k8s-node ~]# sudo chown $(id -u):$(id -g) $HOME/.kube/config

2，将 node 节点加入到集群

根据安装完成后的提示，在 node 节点中执行命令，

// 让 k8s-node 节点加入到 k8s-master 集群内
[root@k8s-node ~]# kubeadm join 172.17.178.105:6443 --token abcdef.0123456789abcdef \
>     --discovery-token-ca-cert-hash sha256:31e43ceaaf17f2c0d738ba6efa7fa71c6b5ad0d818a900a10b3e76bc397b5f7a
[preflight] Running pre-flight checks
	[WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/
	[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.12. Latest validated version: 19.03
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

备注：当前的 node 节点，在前面已经完成了 3 个 k8s 核心组件的安装；

如果加入集群的命令丢失了，可以在 master 上使用 kubeadm token create 重新生成一条命令：

kubeadm token create --print-join-command

3，查看节点启动情况

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS   ROLES                  AGE   VERSION
k8s-master   Ready    control-plane,master   13h   v1.20.4
k8s-node     Ready    <none>                 12h   v1.20.4

两个节点均已 Ready，k8s 集群配置完成；

四，结尾

本篇，完成了 k8s 两台服务器 k8s-master、k8s-node 的安装与配置；

下一篇，k8s 部署：直接部署和 yaml 部署
