Ingress介绍
Ingress是什么？
ingress 是除了 hostport nodeport clusterIP以及云环境专有的负载均衡器外的访问方式,官方提供了Nginx ingress controller。ingress-nginx本身就是nodeport模式
Ingress能做什么？
k8s中，不管是哪种类型的svc，不管是用iptables还是ipvs实现端口转发实现负载均衡，也只是实现了四层的负载均衡，但是，如果有需求要进行七层负载均衡呢？比如你想将你的网站设置为https呢？Ingress就是来帮你解决此问题的。
Ingress工作原理及主要组成部分？
工作原理：
类似于Nginx，可以理解为在Ingress建立一个个映射规则，Ingress Controller通过监听Ingress这个api对象里的规则并转化为Nginx/HAporxy等的配置，然后对外部提供服务。
组成部分：
ingress controller：
核心是一个deployment，实现方式有很多种，比如Nignx、HAproxy、trafik、lstio，需要编写的yaml有：Deployment、Service、ConfigMap、ServiceAccount(Auth)，其中Service类型可以是NodePort或者LoadBalance
ingress resources：这个是类型为ingress的k8s api对象，主要面向开发人员。
1、下载Ingress
### 进入官网下载
https://kubernetes.github.io/ingress-nginx/deploy/
里边会有提示：
Using NodePort：
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-0.32.0/deploy/static/provider/baremetal/deploy.yaml
### 可以看到，本身就是一个yaml文件，可以先下载到本地
然后进行安装：
### 查看yaml文件中用到了那个image，可以预先下载下来，所有node都要下载
[root@Centos8 ~]# grep image /usr/local/install-k8s/ingress/deploy.yaml
image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.32.0
imagePullPolicy: IfNotPresent
image: jettech/kube-webhook-certgen:v1.2.0
imagePullPolicy: IfNotPresent
image: jettech/kube-webhook-certgen:v1.2.0
imagePullPolicy:
### 下载完毕后，直接执行构建命令
[root@Centos8 ingress]# kubectl apply -f deploy.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
configmap/ingress-nginx-controller created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
service/ingress-nginx-controller-admission created
service/ingress-nginx-controller created
deployment.apps/ingress-nginx-controller created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
serviceaccount/ingress-nginx-admission created
ok，安装完毕
可以看到，创建了一个ingress-nginx的namespace
ingress-nginx本身所有的规则全部放在ingress-nginx这个名称空间下
例如：查看pod svc
[root@Centos8 k8sYaml]# kubectl get pod -n ingress-nginx
NAME READY STATUS RESTARTS AGE
ingress-nginx-admission-create-lrsvp 0/1 Completed 0 10m
ingress-nginx-admission-patch-5hk9n 0/1 Completed 0 10m
ingress-nginx-controller-5575c6cd9d-2sblm 1/1 Running 0 32m
[root@Centos8 k8sYaml]# kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller NodePort 10.107.76.91 <none> 80:30361/TCP,443:31087/TCP 114m
ingress-nginx-controller-admission ClusterIP 10.96.12.12 <none> 443/TCP 114m
可以看到ingress-nginx的svc的端口映射关系为：
80:30361/TCP,443:31087/TCP
后边的所有测试，需访问http则访问30361端口，访问https则访问31087端口

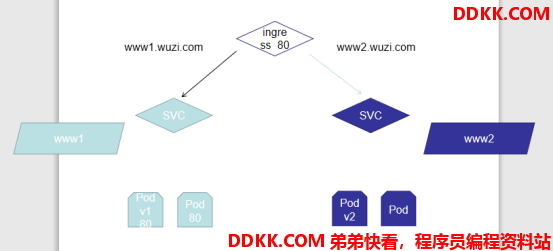

2、创建Igress HTTP代理访问
1、首先创建deployment、Pod
2、其次创建SVC，通过SVC来绑定与Pod之间的连接
3、然后创建ingress，实现svc与ingress的绑定
4、最后外网通过访问ingress映射到SVC再到具体的Pod
最后注意：ingress是通过域名进行实现转发的，所以在测试的时候不要忘记将所有用到的域名及ip加入到hosts文件中
1、创建Deployment与svc
### www1的创建
vim svc-deployment1.yml
...
apiVersion: apps/v1
kind: Deployment
metadata:
name: ingress-http1
namespace: default
spec:
replicas: 3
selector:
matchLabels:
app: myapp
template:
metadata:
labels:
app: myapp
spec:
containers:
- name: myapp1
image: hub.vfancloud.com/test/myapp:v1
imagePullPolicy: IfNotPresent
ports:
- name: http
containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: ingress-svc1
namespace: default
spec:
type: ClusterIP
selector:
app: myapp
ports:
- name: http
port: 80
targetPort: 80
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: ingress1
spec:
rules:
- host: www1.wuzi.com
http:
paths:
- path: /
backend:
serviceName: ingress-svc1
servicePort: 80
...
kubectl apply -f svc-deployment1.yml
vim svc-deployment2.yml
...
apiVersion: apps/v1
kind: Deployment
metadata:
name: ingress-http2
namespace: default
spec:
replicas: 3
selector:
matchLabels:
app: myapp2
template:
metadata:
labels:
app: myapp2
spec:
containers:
- name: myapp2
image: hub.vfancloud.com/test/myapp:v2
imagePullPolicy: IfNotPresent
ports:
- name: http
containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: ingress-svc2
namespace: default
spec:
type: ClusterIP
selector:
app: myapp2
ports:
- name: http
port: 80
targetPort: 80
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: ingress2
spec:
rules:
- host: www2.wuzi.com
http:
paths:
- path: /
backend:
serviceName: ingress-svc2
servicePort: 80
...
kubectl apply -f svc-deployment2.yml

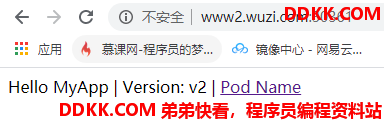

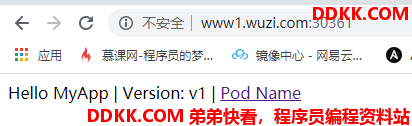

两个都构建完成，测试访问：
http://www1.wuzi.com:30361
http://www2.wuzi.com:30361
一个v1版本，一个v2版本

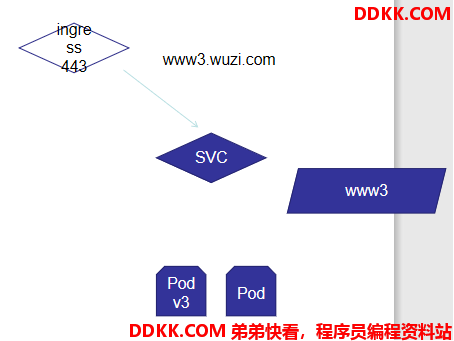

4、Ingress HTTPS代理访问
（1）创建https证书
mkdir https
cd https
## 创建私钥key
[root@Centos8 https]# openssl genrsa -des3 -out server.key 2048
Generating RSA private key, 2048 bit long modulus (2 primes)
........+++++
...............................................................+++++
e is 65537 (0x010001)
Enter pass phrase for server.key:
Verifying - Enter pass phrase for server.key:
## 创建csr请求
[root@Centos8 https]# openssl req -new -key server.key -out server.csr
Enter pass phrase for server.key:
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:cn
State or Province Name (full name) []:bj
Locality Name (eg, city) [Default City]:bj
Organization Name (eg, company) [Default Company Ltd]:vfan
Organizational Unit Name (eg, section) []:vfan
Common Name (eg, your name or your server's hostname) []:
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
## 去除私钥的连接密码
[root@Centos8 https]# cp server.key{,.org}
[root@Centos8 https]# openssl rsa -in server.key.org -out server.key
## 生成证书文件
openssl x509 -req -days 3650 -in server.csr -signkey server.key -out server.crt
## 生成tls格式
[root@Centos8 https]# kubectl create secret tls tls-secret --key server.key --cert server.crt
secret/tls-secret created
（2）创建deployment、svc、ingress
vim ingress-https.yaml
...
apiVersion: apps/v1
kind: Deployment
metadata:
name: ingress-deployment
spec:
replicas: 3
selector:
matchLabels:
name: in-https
template:
metadata:
labels:
name: in-https
spec:
containers:
- name: in-https
image: hub.vfancloud.com/test/myapp:v3
imagePullPolicy: IfNotPresent
ports:
- name: http
containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: ingress-https
spec:
selector:
name: in-https
ports:
- name: http
port: 80
targetPort: 80
protocol: TCP
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: ingress-https
spec:
tls:
- hosts:
- www3.wuzi.com
secretName: tls-secret
rules:
- host: www3.wuzi.com
http:
paths:
- path: /
backend:
serviceName: ingress-https
servicePort: 80
...
[root@Centos8 https]# kubectl apply -f ingress-https.yaml
[root@Centos8 https]# kubectl get ingress
NAME HOSTS ADDRESS PORTS AGE
ingress-https www3.wuzi.com 192.168.152.253 80, 443 16m
ingress1 www1.wuzi.com 192.168.152.253 80 45m
ingress2 www2.wuzi.com 192.168.152.253 80 45m

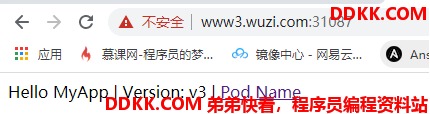

测试访问ingress https
注意，访问的是svc的443相对应的端口
导航栏输入：https://www3.wuzi.com:31087
ok，访问到了
5、Nginx进行BasicAuth
### 首先使用htpasswd命令创建BasicAuth用户，切记，保存的文件名一定要是auth
[root@Centos8 auth]# htpasswd -c auth vfan
New password:
Re-type new password:
Adding password for user vfan
### 创建secret
[root@Centos8 auth]# kubectl create secret generic basic-auth --from-file=auth
secret/basic-auth created
### 创建yaml文件
vim auth.yaml
...
apiVersion: apps/v1
kind: Deployment
metadata:
name: ingress-auth
spec:
replicas: 3
selector:
matchLabels:
name: auth
template:
metadata:
labels:
name: auth
spec:
containers:
- name: ingress-auth
image: hub.vfancloud.com/test/myapp:v4
imagePullPolicy: IfNotPresent
ports:
- name: http
containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: svc-auth
spec:
selector:
name: auth
ports:
- name: http
port: 80
targetPort: 80
protocol: TCP
---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
name: ingress-with-auth
annotations:
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/auth-secret: basic-auth
nginx.ingress.kubernetes.io/auth-realm: 'Authentication Required - vfan'
spec:
rules:
- host: www4.wuzi.com
http:
paths:
- path: /
backend:
serviceName: auth-svc
servicePort: 80
...
[root@Centos8 auth]# kubectl apply -f auth.yaml
[root@Centos8 auth]# kubectl get ingress
NAME HOSTS ADDRESS PORTS AGE
ingress-with-auth www4.wuzi.com 192.168.152.253 80 94s
ingress-https www3.wuzi.com 192.168.152.253 80, 443 33m
ingress1 www1.wuzi.com 192.168.152.253 80 62m
ingress2 www2.wuzi.com 192.168.152.253 80 62m

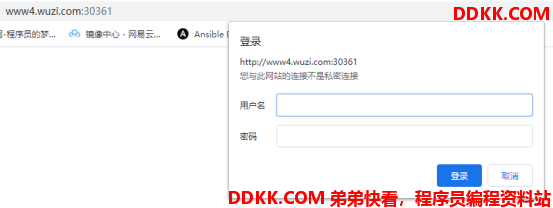

测试访问：
6、Ingress-Nginx重写
| Name |
Description |
Values |
| nginx.ingress.kubernetes.io/rewrite-target |
必须将流量重定向到的目标URI |
string |
| nginx.ingress.kubernetes.io/ssl-redirect |
指示位置部分是否仅可访问SSL（Ingress包含证书时默认为True） |
bool |
| nginx.ingress.kubernetes.io/force-ssl-redirect |
即使未启用TLS，也强制将重定向到HTTPS |
bool |
| nginx.ingress.kubernetes.io/app-root |
定义如果在“ /”上下文中，控制器必须重定向的应用程序根 |
string |
| nginx.ingress.kubernetes.io/use-regex |
指示在Ingress上定义的路径是否使用正则表达式 |
bool |
示例：
将访问www5.wuzi.com 访问 / 目录的流量全部转发至https://www3.wuzi.com:31087
vim rewrite.yaml
...
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
annotations:
nginx.ingress.kubernetes.io/rewrite-target: https://www3.wuzi.com:31087
name: rewrite
namespace: default
spec:
rules:
- host: www5.wuzi.com
http:
paths:
- backend:
serviceName: ingress-svc1
servicePort: 80
path: /
...
[root@Centos8 rewrite]# kubectl create -f rewrite.yaml
ingress.networking.k8s.io/rewrite created
[root@Centos8 rewrite]# kubectl get ingress
NAME HOSTS ADDRESS PORTS AGE
ingress-https www3.wuzi.com 192.168.152.253 80, 443 148m
ingress-with-auth www4.wuzi.com 192.168.152.253 80 20m
ingress1 www1.wuzi.com 192.168.152.253 80 177m
ingress2 www2.wuzi.com 192.168.152.253 80 177m
rewrite www5.wuzi.com 192.168.152.253 80 41s
测试访问：
http://www5.wuzi.com:30361
已跳转
