一、环境安装
参考
二、ReplicaSet介绍
Replication Set简称RS，随着Kubernetes的高速发展，官方已经推荐我们使用RS和Deployment来代替RC了，实际上RS和RC的功能基本一致，目前唯一的一个区别就是RC只支持基于等式的selector（env=dev或environment!=qa），但RS还支持基于集合的selector（version in (v1.0, v2.0)），这对复杂的运维管理就非常方便了。
查看ReplicaSet官方帮助
kubectl explain ReplicaSet
KIND: ReplicaSet
VERSION: apps/v1
DESCRIPTION:
ReplicaSet ensures that a specified number of pod replicas are running at
any given time.
FIELDS:
apiVersion <string>
APIVersion defines the versioned schema of this representation of an
object. Servers should convert recognized schemas to the latest internal
value, and may reject unrecognized values. More info:
https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources
kind <string>
Kind is a string value representing the REST resource this object
represents. Servers may infer this from the endpoint the client submits
requests to. Cannot be updated. In CamelCase. More info:
https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds
metadata <Object>
If the Labels of a ReplicaSet are empty, they are defaulted to be the same
as the Pod(s) that the ReplicaSet manages. Standard object's metadata. More
info:
https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#metadata
spec <Object>
Spec defines the specification of the desired behavior of the ReplicaSet.
More info:
https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#spec-and-status
status <Object>
Status is the most recently observed status of the ReplicaSet. This data
may be out of date by some window of time. Populated by the system.
Read-only. More info:
https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#spec-and-status
可以一级一级的查看，想查看什么只需要在后面加上 .字段名 即可。例如查看rs下的spec字段
kubectl explain rs.spec
KIND: ReplicaSet
VERSION: apps/v1
RESOURCE: spec <Object>
DESCRIPTION:
Spec defines the specification of the desired behavior of the ReplicaSet.
More info:
https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#spec-and-status
ReplicaSetSpec is the specification of a ReplicaSet.
FIELDS:
minReadySeconds <integer>
Minimum number of seconds for which a newly created pod should be ready
without any of its container crashing, for it to be considered available.
Defaults to 0 (pod will be considered available as soon as it is ready)
replicas <integer>
Replicas is the number of desired replicas. This is a pointer to
distinguish between explicit zero and unspecified. Defaults to 1. More
info:
https://kubernetes.io/docs/concepts/workloads/controllers/replicationcontroller/#what-is-a-replicationcontroller
selector <Object> -required-
Selector is a label query over pods that should match the replica count.
Label keys and values that must match in order to be controlled by this
replica set. It must match the pod template's labels. More info:
https://kubernetes.io/docs/concepts/overview/working-with-objects/labels/#label-selectors
template <Object>
Template is the object that describes the pod that will be created if
insufficient replicas are detected. More info:
https://kubernetes.io/docs/concepts/workloads/controllers/replicationcontroller#pod-template
三、ReplicaSet使用
yml文件
vimrs-nginx.yaml
replicas: 3：指定运行3个实例。
apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: pc-replicaset
namespace: dev
spec:
replicas: 3
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- name: nginx
image: nginx:1.17.1
1、创建副本集
kubectl create -f rs-nginx.yaml

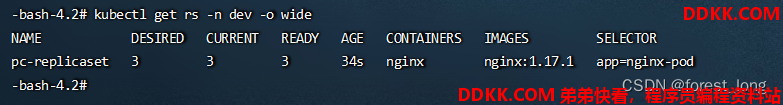

2、查看副本集信息
kubectl get rs -n dev -o wide

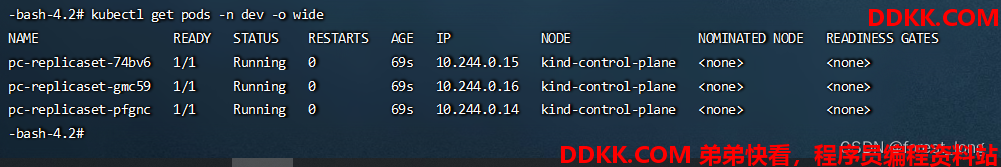

3、查看运行的 Pod
kubectl get pods -n dev -o wide

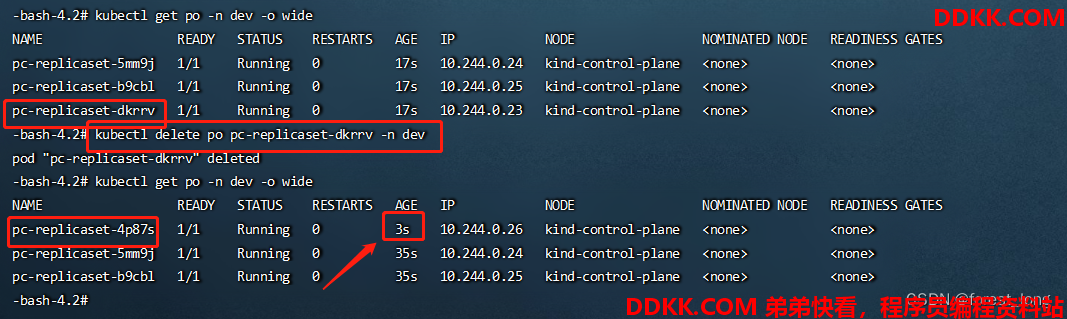

删除一个pod后，查看是否能自动新建一个pod
确实，删除完一个pod后，rs又自动新建一个pod
4、扩缩容
4.1 扩容
1）edit 方式
使用edit编辑副本集名为pc-replicaset的配置。
该命令进入的编辑页面与Vim用法一致。
kubectl edit rs pc-replicaset -n dev
将replicas修改为6

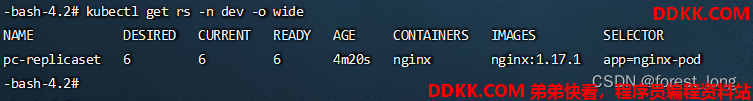

扩容后，查看rs
kubectl get rs -n dev -o wide

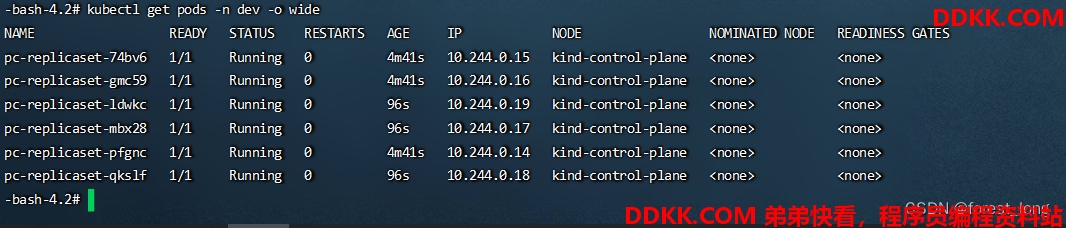

扩容后，查看pod
kubectl get pods -n dev -o wide

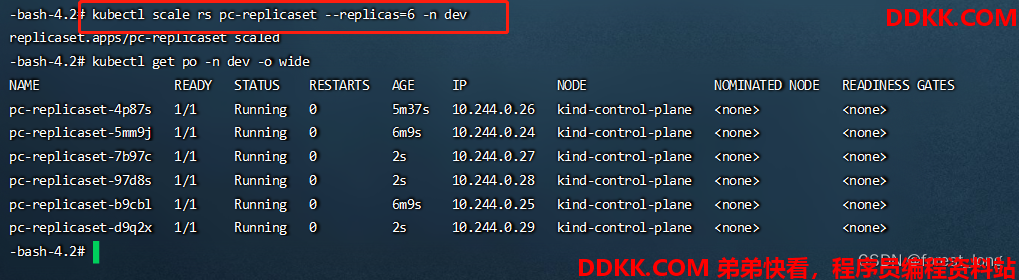

2）scale 方式
kubectl scale rs pc-replicaset --replicas=6 -n dev
4.2 缩容
1）edit 方式
使用方式同扩容，这里不再重复演示
2）scale 方式
kubectl scale rs pc-replicaset --replicas=2 -n dev
将replicas调整为2

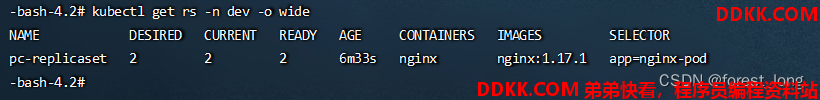

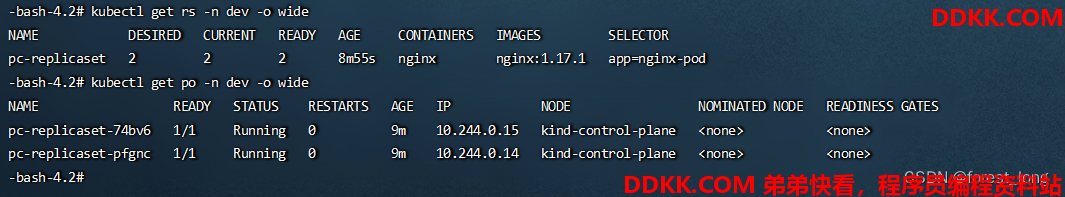

缩容后，查看rs
kubectl get rs -n dev -o wide

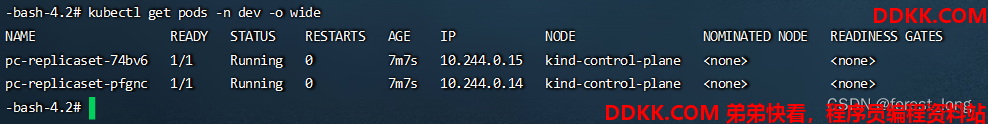

缩容后，查看pod
kubectl get pods -n dev -o wide
5、镜像升级
备注：也可以使用edit方式
例如将镜像从1.17.1升级到1.17.2
kubectl set image rs pc-replicaset nginx=nginx:1.17.2 -n dev
查看实例

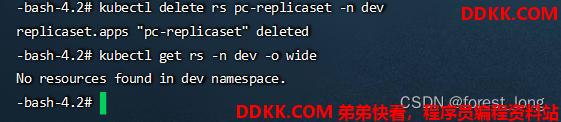

6、删除 ReplicaSet
6.1 通过名称删除
kubectl delete rs pc-replicaset -n dev

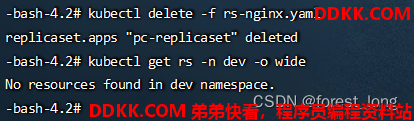

6.2 通过yml文件删除
kubectl delete -f pc-replicaset.yml
