Kubernetes - 实战：Kubernetes二进制生产集群部署

第一章、前置知识点

1.1 生产环境部署K8S集群的两种方式

kubeadm

Kubeadm是一个K8S部署工具，提供kubeadm init 和 kubeadm join，用于快速部署Kubernetes集群。

二进制包

从GitHub下载发行版的二进制包，手动部署每个组件，组成Kubernetes集群。

小结：

Kubeadm降低部署门槛，但屏蔽了很多细节，遇到问题很难排查。如果想更容易可控，推荐使用二进制包部署Kubernetes集群，虽然手动部署麻烦点，期间可以学习很多工作原理，也利于后期维护。

1.2 准备环境

服务器要求：

1、建议最小硬件配置：2核CPU、2G内存、30G硬盘；
2、服务器最好可以访问外网，会从网上拉取镜像需求，如果服务器不能上网，需要提前下载对应镜像并导入节点；

软件环境：

软件                 版本
操作系统            CentOS7.x_x64
容器引擎            Docker CE 19
Kubernetes        Kubernetes v1.22

服务器规划：

角色	IP	组件
master1.k8s.test	10.140.20.141	kube-apiserver,kube-controller-manager,kube-scheduler,docker,etcd，haproxy,keepalived
master2.k8s.test	10.140.20.142	kube-apiserver,kube-controller-manager,kube-scheduler,docker,etcd, haproxy,keepalived
master3.k8s.test	10.140.20.143	kube-apiserver,kube-controller-manager,kube-scheduler,docker,etcd, haproxy,keepalived
node01.k8s.test	10.140.20.156	kubelet，kube-proxy，docker，etcd

第二章、安装说明

本文章将演示Centos7二进制方式安装高可用k8s 1.22+，相对于其他版本，二进制安装方式并无太大区别，只需要区分每个组件版本的对应关系即可。

生产环境中，建议使用小版本大于5的Kubernetes版本，比如1.19.5以后的才可用于生产环境。

第三章、集群安装

3.1 基本环境配置

主机信息，服务器IP地址不能设成dhcp方式，要配置成静态IP。
配置主机名：

10.140.20.141 master1.k8s.test
10.140.20.142 master2.k8s.test
10.140.20.143 master3.k8s.test
10.140.20.141 k8s-master-lb 如果不是高可用集群，该IP为Master01的IP
10.140.20.156 node1.k8s.test

网段划分：
K8S Service网段：10.96.0.0/16
K8SPod网段： 10.244.0.0/16
K8SNode网段： 192.168.31.0/24

注意：宿主机网段、K8S Service网段、Pod网段不能重复。

系统环境：

[root@master1 ~]# more /etc/redhat-release
CentOS Linux release 7.9.2009 (Core)
[root@master1 ~]#

配置所有节点hosts文件：

[root@master1 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

10.140.20.141 master1.k8s.test
10.140.20.142 master2.k8s.test
10.140.20.143 master3.k8s.test
10.140.20.141 k8s-master-lb 如果不是高可用集群，该IP为Master01的IP
10.140.20.156 node1.k8s.test

CentOS 7安装yum源：

curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo

必备工具安装:

yum install wget jq psmisc vim net-tools telnet yum-utils device-mapper-persistent-data lvm2 git -y

所有节点关闭firewalld 、dnsmasq、selinux(CentOS7需要关闭NetworkManager，CentOS8不需要)

systemctl disable --now firewalld
systemctl disable --now dnsmasq
systemctl disable --now NetworkManager

setenforce 0
sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/sysconfig/selinux
sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/selinux/config

所有节点关闭swap分区，fstab注释swap：

swapoff -a && sysctl -w vm.swappiness=0
sed -ri '/^[^#]*swap/s@^@#@' /etc/fstab

所有节点同步时间：

rpm -ivh http://mirrors.wlnmp.com/centos/wlnmp-release-centos.noarch.rpm
yum install ntpdate -y

ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
echo 'Asia/Shanghai' >/etc/timezone
ntpdate time2.aliyun.com
# 加入到crontab
*/5 * * * * /usr/sbin/ntpdate time2.aliyun.com

所有节点配置limit：

ulimit -SHn 65535

vim /etc/security/limits.conf
# 末尾添加如下内容
* soft nofile 65536
* hard nofile 131072
* soft nproc 65535
* hard nproc 655350
* soft memlock unlimited
* hard memlock unlimited

配置免密登录：
Master01节点免密钥登录其他节点，安装过程中生成配置文件和证书均在Master01上操作，集群管理也在Master01上操作，阿里云或者AWS上需要单独一台kubectl服务器。密钥配置如下：

[root@master1 ~]# ssh-keygen -t rsa

Master01配置免密码登录其他节点：

[root@master1 ~]# for i in master1.k8s.test master2.k8s.test master3.k8s.test k8s-node01 k8s-node02;do ssh-copy-id -i .ssh/id_rsa.pub $i;done

Master01下载安装文件：

[root@master1 ~]# cd /root/ ; git clone https://github.com/dotbalo/k8s-ha-install.git
Cloning into 'k8s-ha-install'...
remote: Enumerating objects: 12, done.
remote: Counting objects: 100% (12/12), done.
remote: Compressing objects: 100% (11/11), done.
remote: Total 461 (delta 2), reused 5 (delta 1), pack-reused 449
Receiving objects: 100% (461/461), 19.52 MiB | 4.04 MiB/s, done.
Resolving deltas: 100% (163/163), done.

如果无法clone可以使用https://gitee.com/dukuan/k8s-ha-install.git进行克隆。

所有节点升级系统并重启，此处升级没有升级内核，下节会单独升级内核：

yum update -y --exclude=kernel* && reboot
#CentOS7需要升级，CentOS8可以按需升级系统

3.2 内核升级

CentOS7 需要升级内核至4.18+，本次升级的版本为6.3
在master01节点下载内核：

cd /root
wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-devel-4.19.12-1.el7.elrepo.x86_64.rpm
wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-4.19.12-1.el7.elrepo.x86_64.rpm
wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-6.3.2-1.el7.elrepo.x86_64.rpm
wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-devel-6.3.2-1.el7.elrepo.x86_64.rpm

从master01节点传到其他节点：

for i in master2.k8s.test master3.k8s.test k8s-node01 k8s-node02;do scp kernel-ml-4.19.12-1.el7.elrepo.x86_64.rpm kernel-ml-devel-4.19.12-1.el7.elrepo.x86_64.rpm $i:/root/ ; done

所有节点安装内核

cd /root && yum localinstall -y kernel-ml*

所有节点更改内核启动顺序

grub2-set-default  0 && grub2-mkconfig -o /etc/grub2.cfg

grubby --args="user_namespace.enable=1" --update-kernel="$(grubby --default-kernel)"

检查默认内核是不是63.

[root@master2 ~]# grubby --default-kernel
/boot/vmlinuz-6.3.2-1.el7.elrepo.x86_64

所有节点重启，然后检查内核是不是6.3。
所有节点安装ipvsadm：

yum install ipvsadm ipset sysstat conntrack libseccomp -y

所有节点配置ipvs模块，在内核4.19+版本nf_conntrack_ipv4已经改为nf_conntrack， 4.18以下使用nf_conntrack_ipv4即可：

modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
vim /etc/modules-load.d/ipvs.conf
# 加入以下内容
ip_vs
ip_vs_lc
ip_vs_wlc
ip_vs_rr
ip_vs_wrr
ip_vs_lblc
ip_vs_lblcr
ip_vs_dh
ip_vs_sh
ip_vs_fo
ip_vs_nq
ip_vs_sed
ip_vs_ftp
ip_vs_sh
nf_conntrack
ip_tables
ip_set
xt_set
ipt_set
ipt_rpfilter
ipt_REJECT
ipip

然后执行命令即可

systemctl enable --now systemd-modules-load.service

检查是否加载：

[root@master1 ~]# lsmod | grep -e ip_vs -e nf_conntrack
nf_conntrack_ipv4      16384  23
nf_defrag_ipv4         16384  1 nf_conntrack_ipv4
nf_conntrack          135168  10 xt_conntrack,nf_conntrack_ipv6,nf_conntrack_ipv4,nf_nat,nf_nat_ipv6,ipt_MASQUERADE,nf_nat_ipv4,xt_nat,nf_conntrack_netlink,ip_vs

开启一些k8s集群中必须的内核参数，所有节点配置k8s内核：

cat <<EOF > /etc/sysctl.d/k8s.conf
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
fs.may_detach_mounts = 1
vm.overcommit_memory=1
net.ipv4.conf.all.route_localnet = 1

vm.panic_on_oom=0
fs.inotify.max_user_watches=89100
fs.file-max=52706963
fs.nr_open=52706963
net.netfilter.nf_conntrack_max=2310720

net.ipv4.tcp_keepalive_time = 600
net.ipv4.tcp_keepalive_probes = 3
net.ipv4.tcp_keepalive_intvl =15
net.ipv4.tcp_max_tw_buckets = 36000
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_max_orphans = 327680
net.ipv4.tcp_orphan_retries = 3
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.ip_conntrack_max = 65536
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.tcp_timestamps = 0
net.core.somaxconn = 16384
EOF
sysctl --system

所有节点配置完内核后，重启服务器，保证重启后内核依旧加载

reboot
lsmod | grep --color=auto -e ip_vs -e nf_conntrack

第四章、基本组件安装

本节主要安装的是集群中用到的各种组件。比如Docker-ce、kubernetes各组件等。

4.1 Docker安装

所有节点安装Docker-ce 19.03

yum install docker-ce-19.03.* docker-ce-cli-19.03.* -y

温馨提示：
由于新版kubelet建议使用systemd，所以可以把docker的CgroupDriver改成systemd

mkdir /etc/docker
cat > /etc/docker/daemon.json <<EOF
{
  "exec-opts": ["native.cgroupdriver=systemd"]
}
EOF

所有节点设置开机自启动Docker：

systemctl daemon-reload && systemctl enable --now docker

4.2 K8s及etcd安装

Master01下载kubernetes安装包：

[root@master1 ~]# wget https://dl.k8s.io/v1.22.6/kubernetes-server-linux-amd64.tar.gz

wget https://dl.k8s.io/v1.22.17/kubernetes-server-linux-amd64.tar.gz

注意目前版本是1.22.6，安装时需要下载最新的1.22.x版本：https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG/CHANGELOG-1.22.md

以下操作都在master01执行：
下载etcd安装包：

[root@master1 ~]# wget https://github.com/etcd-io/etcd/releases/download/v3.5.9/etcd-v3.5.9-linux-amd64.tar.gz

wget https://github.com/etcd-io/etcd/releases/download/v3.5.0/etcd-v3.5.0-linux-amd64.tar.gz

解压kubernetes安装文件

[root@master1 ~]# tar -xf kubernetes-server-linux-amd64.tar.gz  --strip-components=3 -C /usr/local/bin kubernetes/server/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy}

解压etcd安装文件

[root@master1 ~]#  tar -zxvf etcd-v3.5.9-linux-amd64.tar.gz --strip-components=1 -C /usr/local/bin etcd-v3.5.9-linux-amd64/etcd{,ctl}

版本查看：

[root@master1 ~]# kubelet --version
Kubernetes v1.22.6
[root@master1.k8s.test ~]# etcdctl version
etcdctl version: 3.5.0
API version: 3.5
[root@master1 ~]#

将组件发送到其他节点：

MasterNodes='master2.k8s.test master3.k8s.test'
WorkNodes='node1.k8s.test'
for NODE in $MasterNodes; do echo $NODE; scp /usr/local/bin/kube{

     let,ctl,-apiserver,-controller-manager,-scheduler,-proxy} $NODE:/usr/local/bin/; scp /usr/local/bin/etcd* $NODE:/usr/local/bin/; done

for NODE in $WorkNodes; do     scp /usr/local/bin/kube{

     let,-proxy} $NODE:/usr/local/bin/ ; done

所有节点创建/opt/cni/bin目录：

mkdir -p /opt/cni/bin

切换分支：
Master01节点切换到1.22.x分支（其他版本可以切换到其他分支，.x即可，不需要更改为具体的小版本）

cd /root/k8s-ha-install && git checkout manual-installation-v1.22.x

第五章、生成证书

二进制安装最关键步骤，一步错误全盘皆输，一定要注意每个步骤都要是正确的。
Master01下载生成证书工具

wget "https://pkg.cfssl.org/R1.2/cfssl_linux-amd64" -O /usr/local/bin/cfssl
wget "https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64" -O /usr/local/bin/cfssljson
chmod +x /usr/local/bin/cfssl /usr/local/bin/cfssljson

5.1 etcd证书

所有Master节点创建etcd证书目录

mkdir /etc/etcd/ssl -p

所有节点创建kubernetes相关目录

mkdir -p /etc/kubernetes/pki

Master01节点生成etcd证书
生成证书的CSR文件：证书签名请求文件，配置了一些域名、公司、单位

[root@master1 pki]# cd /root/k8s-ha-install/pki

# 生成etcd CA证书和CA证书的key
cfssl gencert -initca etcd-ca-csr.json | cfssljson -bare /etc/etcd/ssl/etcd-ca
cfssl gencert -ca=/etc/etcd/ssl/etcd-ca.pem -ca-key=/etc/etcd/ssl/etcd-ca-key.pem -config=ca-config.json -hostname=127.0.0.1,master1.k8s.test,master2.k8s.test,master3.k8s.test,10.140.20.141,10.140.20.142,10.140.20.143, -profile=kubernetes etcd-csr.json | cfssljson -bare /etc/etcd/ssl/etcd

执行结果
2023/05/16 15:53:33 [INFO] generate received request
2023/05/16 15:53:33 [INFO] received CSR
2023/05/16 15:53:33 [INFO] generating key: rsa-2048
2023/05/16 15:53:33 [INFO] encoded CSR
2023/05/16 15:53:33 [INFO] signed certificate with serial number 189052540690168442492442794802253693390408995729

[root@master1 ssl]# cd /etc/etcd/ssl/
[root@master1.k8s.test ssl]# ls
etcd-ca.csr  etcd-ca-key.pem  etcd-ca.pem  etcd.csr  etcd-key.pem  etcd.pem
[root@master1 ssl]#

将证书复制到其他节点：

MasterNodes='master2.k8s.test master3.k8s.test'

for NODE in $MasterNodes; do
     ssh $NODE "mkdir -p /etc/etcd/ssl"
     for FILE in etcd-ca-key.pem  etcd-ca.pem  etcd-key.pem  etcd.pem; do
       scp /etc/etcd/ssl/${FILE} $NODE:/etc/etcd/ssl/${FILE}
     done
 done

5.2 k8s组件证书

Master01生成kubernetes ca 证书

[root@master1 pki]# cd /root/k8s-ha-install/pki

cfssl gencert -initca ca-csr.json | cfssljson -bare /etc/kubernetes/pki/ca

生成apiserver证书

#10.96.0.是k8s service的网段，如果说需要更改k8s service网段，那就需要更改10.96.0.1，建议多写几个IP地址，为扩容master节点准备

#如果不是高可用集群，10.140.20.141为Master01的IP

cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem -config=ca-config.json -hostname=10.96.0.1,10.140.20.141,127.0.0.1,kubernetes,kubernetes.default,kubernetes.default.svc,kubernetes.default.svc.cluster,kubernetes.default.svc.cluster.local,10.140.20.141,10.141.20.142,10.141.20.143 -profile=kubernetes apiserver-csr.json | cfssljson -bare /etc/kubernetes/pki/apiserver

生成apiserver的聚合证书。Requestheader-client-xxx requestheader-allowwd-xxx:aggerator

cfssl gencert -initca front-proxy-ca-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-ca

cfssl gencert -ca=/etc/kubernetes/pki/front-proxy-ca.pem -ca-key=/etc/kubernetes/pki/front-proxy-ca-key.pem -config=ca-config.json -profile=kubernetes front-proxy-client-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-client

生成controller-manage的证书

cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem -config=ca-config.json -profile=kubernetes manager-csr.json | cfssljson -bare /etc/kubernetes/pki/controller-manager

# 注意，如果不是高可用集群，10.140.20.141:6443改为master01的地址，6443改为apiserver的端口，默认是6443
# set-cluster：设置一个集群项，

kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://10.140.20.141:6443 --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

# 设置一个环境项，一个上下文
kubectl config set-context system:kube-controller-manager@kubernetes --cluster=kubernetes --user=system:kube-controller-manager --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

# set-credentials 设置一个用户项

kubectl config set-credentials system:kube-controller-manager --client-certificate=/etc/kubernetes/pki/controller-manager.pem --client-key=/etc/kubernetes/pki/controller-manager-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
# 使用某个环境当做默认环境

kubectl config use-context system:kube-controller-manager@kubernetes --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

生成scheduler证书

cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem -config=ca-config.json -profile=kubernetes scheduler-csr.json | cfssljson -bare /etc/kubernetes/pki/scheduler

# 注意，如果不是高可用集群，10.140.20.141:6443改为master01的地址，6443改为apiserver的端口，默认是6443

kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://10.140.20.141:6443 --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
kubectl config set-credentials system:kube-scheduler --client-certificate=/etc/kubernetes/pki/scheduler.pem --client-key=/etc/kubernetes/pki/scheduler-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

kubectl config set-context system:kube-scheduler@kubernetes --cluster=kubernetes --user=system:kube-scheduler --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
kubectl config use-context system:kube-scheduler@kubernetes --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

生成admin证书

cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem -config=ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare /etc/kubernetes/pki/admin

# 注意，如果不是高可用集群，10.140.20.141:6443改为master01的地址，6443改为apiserver的端口，默认是6443

kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://10.140.20.141:6443 --kubeconfig=/etc/kubernetes/admin.kubeconfig

kubectl config set-credentials kubernetes-admin --client-certificate=/etc/kubernetes/pki/admin.pem --client-key=/etc/kubernetes/pki/admin-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/admin.kubeconfig
kubectl config set-context kubernetes-admin@kubernetes --cluster=kubernetes --user=kubernetes-admin --kubeconfig=/etc/kubernetes/admin.kubeconfig
kubectl config use-context kubernetes-admin@kubernetes --kubeconfig=/etc/kubernetes/admin.kubeconfig

创建ServiceAccount Key->secret

openssl genrsa -out /etc/kubernetes/pki/sa.key 2048

返回结果
Generating RSA private key, 2048 bit long modulus (2 primes)
...................................................................................+++++
...............+++++
e is 65537 (0x010001)

openssl rsa -in /etc/kubernetes/pki/sa.key -pubout -out /etc/kubernetes/pki/sa.pub

发送证书至其他节点:

for NODE in master2.k8s.test master3.k8s.test; do
for FILE in $(ls /etc/kubernetes/pki | grep -v etcd); do scp /etc/kubernetes/pki/${FILE} $NODE:/etc/kubernetes/pki/${FILE};
done;
for FILE in admin.kubeconfig controller-manager.kubeconfig scheduler.kubeconfig; do
scp /etc/kubernetes/${FILE} $NODE:/etc/kubernetes/${FILE};
done;
done

5.3 检验证书

#查看证书文件，确保生成的证书是23个
[root@master2 kubernetes]# ls /etc/kubernetes/pki/|wc -l
23
[root@master2 kubernetes]# ls /etc/kubernetes/pki/
admin.csr      apiserver-key.pem  ca.pem                      front-proxy-ca.csr      front-proxy-client-key.pem  scheduler.csr
admin-key.pem  apiserver.pem      controller-manager.csr      front-proxy-ca-key.pem  front-proxy-client.pem      scheduler-key.pem
admin.pem      ca.csr             controller-manager-key.pem  front-proxy-ca.pem      sa.key                      scheduler.pem
apiserver.csr  ca-key.pem         controller-manager.pem      front-proxy-client.csr  sa.pub
[root@master2 kubernetes]# ls /etc/kubernetes/
admin.kubeconfig  controller-manager.kubeconfig  pki  scheduler.kubeconfig

第六章、 Kubernetes系统组件配置

6.1 Etcd配置

etcd配置大致相同，注意修改每个Master节点的etcd配置的主机名和IP地址。

6.1.1 Master01

cat > /etc/etcd/etcd.config.yml << EOF

name: 'master1.k8s.test'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://10.140.20.141:2380'
listen-client-urls: 'https://10.140.20.141:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://10.140.20.141:2380'
advertise-client-urls: 'https://10.140.20.141:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'master1.k8s.test=https://10.140.20.141:2380,master2.k8s.test=https://10.140.20.142:2380,master3.k8s.test=https://10.140.20.143:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false
EOF

6.1.2 Master02

cat > /etc/etcd/etcd.config.yml << EOF
name: 'master2.k8s.test'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://10.140.20.142:2380'
listen-client-urls: 'https://10.140.20.142:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://10.140.20.142:2380'
advertise-client-urls: 'https://10.140.20.142:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'master1.k8s.test=https://10.140.20.141:2380,master2.k8s.test=https://10.140.20.142:2380,master3.k8s.test=https://10.140.20.143:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false
EOF

6.1.3 Master03

cat > /etc/etcd/etcd.config.yml << EOF
name: 'master3.k8s.test'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://10.140.20.143:2380'
listen-client-urls: 'https://10.140.20.143:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://10.140.20.143:2380'
advertise-client-urls: 'https://10.140.20.143:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'master1.k8s.test=https://10.140.20.141:2380,master2.k8s.test=https://10.140.20.142:2380,master3.k8s.test=https://10.140.20.143:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false
EOF

6.1.4 创建Service

所有Master节点创建etcd service并启动

cat > /usr/lib/systemd/system/etcd.service << EOF
[Unit]
Description=Etcd Service
Documentation=https://coreos.com/etcd/docs/latest/
After=network.target

[Service]
Type=notify
ExecStart=/usr/local/bin/etcd --config-file=/etc/etcd/etcd.config.yml
Restart=on-failure
RestartSec=10
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
Alias=etcd3.service
EOF

6.1.5 所有Master节点创建etcd的证书目录

mkdir /etc/kubernetes/pki/etcd
ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
systemctl daemon-reload
systemctl enable --now etcd

查看etcd状态

export ETCDCTL_API=3
etcdctl --endpoints="10.140.20.143:2379,10.140.20.142:2379,10.140.20.141:2379" --cacert=/etc/kubernetes/pki/etcd/etcd-ca.pem --cert=/etc/kubernetes/pki/etcd/etcd.pem --key=/etc/kubernetes/pki/etcd/etcd-key.pem  endpoint status --write-out=table

+--------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
|      ENDPOINT      |        ID        | VERSION | DB SIZE | IS LEADER | IS LEARNER | RAFT TERM | RAFT INDEX | RAFT APPLIED INDEX | ERRORS |
+--------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
| 10.140.20.143:2379 | 2a5b796cadaf7df9 |   3.5.9 |   20 kB |      true |      false |         2 |          9 |                  9 |        |
| 10.140.20.142:2379 | 58b160318edea505 |   3.5.9 |   20 kB |     false |      false |         2 |          9 |                  9 |        |
| 10.140.20.141:2379 | ea4af3a294d72d25 |   3.5.9 |   20 kB |     false |      false |         2 |          9 |                  9 |        |
+--------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+

第七章、高可用配置

高可用配置（注意：如果不是高可用集群，haproxy和keepalived无需安装）
如果在云上安装也无需执行此章节的步骤，可以直接使用云上的lb，比如阿里云slb，腾讯云elb等
公有云要用公有云自带的负载均衡，比如阿里云的SLB，腾讯云的ELB，用来替代haproxy和keepalived，因为公有云大部分都是不支持keepalived的，另外如果用阿里云的话，kubectl控制端不能放在master节点，推荐使用腾讯云，因为阿里云的slb有回环的问题，也就是slb代理的服务器不能反向访问SLB，但是腾讯云修复了这个问题。
Slb-> haproxy -> apiserver
所有Master节点安装keepalived和haproxy

yum install keepalived haproxy -y

7.1 Haproxy配置，所有Master节点的配置是一样的。

vim /etc/haproxy/haproxy.cfg

global
  maxconn  2000
  ulimit-n  16384
  log  127.0.0.1 local0 err
  stats timeout 30s

defaults
  log global
  mode  http
  option  httplog
  timeout connect 5000
  timeout client  50000
  timeout server  50000
  timeout http-request 15s
  timeout http-keep-alive 15s

frontend k8s-master
  bind 0.0.0.0:6443
  bind 127.0.0.1:6443
  mode tcp
  option tcplog
  tcp-request inspect-delay 5s
  default_backend k8s-master

backend k8s-master
  mode tcp
  option tcplog
  option tcp-check
  balance roundrobin
  default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
  server master1.k8s.test    10.140.20.141:6443  check
  server master2.k8s.test    10.140.20.142:6443  check
  server master3.k8s.test    10.140.20.143:6443  check

7.2 Master01 keepalived

所有Master节点配置KeepAlived，配置不一样,注意每个节点的IP和网卡（interface参数）

vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {


    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {


    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {


    state MASTER
    interface eth0
    mcast_src_ip 10.140.20.141
    virtual_router_id 51
    priority 101
    nopreempt
    advert_int 2
    authentication {


        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {


        192.168.31.100
    }
    track_script {


      chk_apiserver
} }

7.3 Master02 keepalived

vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {


    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {


    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1

}
vrrp_instance VI_1 {


    state BACKUP
    interface eth0
    mcast_src_ip 10.140.20.142
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 2
    authentication {


        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {


        192.168.31.100
    }
    track_script {


      chk_apiserver
} }

7.4 Master03 keepalived

vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {


    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {


    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {


    state BACKUP
    interface eth0
    mcast_src_ip 10.140.20.143
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 2
    authentication {


        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {


        192.168.31.100
    }
    track_script {


      chk_apiserver
} }

7.5 健康检查配置

所有Master节点：

vim /etc/keepalived/check_apiserver.sh

#!/bin/bash

err=0
for k in $(seq 1 3)
do
    check_code=$(pgrep haproxy)
    if [[ $check_code == "" ]]; then
        err=$(expr $err + 1)
        sleep 1
        continue
    else
        err=0
        break
    fi
done

if [[ $err != "0" ]]; then
    echo "systemctl stop keepalived"
    /usr/bin/systemctl stop keepalived
    exit 1
else
    exit 0
fi
chmod +x /etc/keepalived/check_apiserver.sh

所有master节点启动haproxy和keepalived：

systemctl daemon-reload
systemctl enable --now haproxy
systemctl enable --now keepalived

7.6 VIP测试

[root@master1 ~]# ping 192.168.31.100
PING 192.168.31.100 (192.168.31.100) 56(84) bytes of data.
64 bytes from 192.168.31.100: icmp_seq=1 ttl=64 time=0.041 ms
64 bytes from 192.168.31.100: icmp_seq=2 ttl=64 time=0.054 ms
64 bytes from 192.168.31.100: icmp_seq=3 ttl=64 time=0.067 ms
64 bytes from 192.168.31.100: icmp_seq=4 ttl=64 time=0.033 ms

[root@master1 ~]# telnet  192.168.31.100 6443
Trying 192.168.31.100...
Connected to 192.168.31.100.
Escape character is '^]'.
Connection closed by foreign host.

如果ping不通且telnet没有出现 ]，则认为VIP不可以，不可在继续往下执行，需要排查keepalived的问题，比如防火墙和selinux，haproxy和keepalived的状态，监听端口等
所有节点查看防火墙状态必须为disable和inactive：systemctl status firewalld
所有节点查看selinux状态，必须为disable：getenforce
master节点查看haproxy和keepalived状态：systemctl status keepalived haproxy
master节点查看监听端口：netstat -lntp

第八章 Kubernetes组件配置

所有节点创建相关目录

mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

8.1 Apiserver

所有Master节点创建kube-apiserver service，# 注意，如果不是高可用集群，10.140.20.141改为master01的地址

8.1.1 Master01 配置

注意本文档使用的K8s service 网段为 10.96.0.0/16，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

cat > /usr/lib/systemd/system/kube-apiserver.service << EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver --v=2 --logtostderr=true --allow-privileged=true --bind-address=0.0.0.0 --secure-port=6443 --insecure-port=0 --advertise-address=10.140.20.141 --service-cluster-ip-range=10.96.0.0/16 --service-node-port-range=30000-32767 --etcd-servers=https://10.140.20.141:2379,https://10.140.20.142:2379,https://10.140.20.143:2379 --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem --etcd-certfile=/etc/etcd/ssl/etcd.pem --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem --client-ca-file=/etc/kubernetes/pki/ca.pem --tls-cert-file=/etc/kubernetes/pki/apiserver.pem --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem --service-account-key-file=/etc/kubernetes/pki/sa.pub --service-account-signing-key-file=/etc/kubernetes/pki/sa.key --service-account-issuer=https://kubernetes.default.svc.cluster.local --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota --authorization-mode=Node,RBAC --enable-bootstrap-token-auth=true --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem --requestheader-allowed-names=aggregator --requestheader-group-headers=X-Remote-Group --requestheader-extra-headers-prefix=X-Remote-Extra- --requestheader-username-headers=X-Remote-User

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

8.1.2 Master02配置

注意本文档使用的K8s service 网段为 10.96.0.0/16，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@master2 ~]# cat > /usr/lib/systemd/system/kube-apiserver.service << EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver --v=2 --logtostderr=true --allow-privileged=true --bind-address=0.0.0.0 --secure-port=6443 --insecure-port=0 --advertise-address=10.140.20.142 --service-cluster-ip-range=10.96.0.0/16 --service-node-port-range=30000-32767 --etcd-servers=https://10.140.20.141:2379,https://10.140.20.142:2379,https://10.140.20.143:2379 --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem --etcd-certfile=/etc/etcd/ssl/etcd.pem --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem --client-ca-file=/etc/kubernetes/pki/ca.pem --tls-cert-file=/etc/kubernetes/pki/apiserver.pem --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem --service-account-key-file=/etc/kubernetes/pki/sa.pub --service-account-signing-key-file=/etc/kubernetes/pki/sa.key --service-account-issuer=https://kubernetes.default.svc.cluster.local --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota --authorization-mode=Node,RBAC --enable-bootstrap-token-auth=true --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem --requestheader-allowed-names=aggregator --requestheader-group-headers=X-Remote-Group --requestheader-extra-headers-prefix=X-Remote-Extra- --requestheader-username-headers=X-Remote-User

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

8.1.3 Master03 配置

注意本文档使用的K8s service 网段为 10.96.0.0/16，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@master3 pki]# cat > /usr/lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver --v=2 --logtostderr=true --allow-privileged=true --bind-address=0.0.0.0 --secure-port=6443 --insecure-port=0 --advertise-address=10.140.20.143 --service-cluster-ip-range=10.96.0.0/16 --service-node-port-range=30000-32767 --etcd-servers=https://10.140.20.141:2379,https://10.140.20.142:2379,https://10.140.20.143:2379 --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem --etcd-certfile=/etc/etcd/ssl/etcd.pem --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem --client-ca-file=/etc/kubernetes/pki/ca.pem --tls-cert-file=/etc/kubernetes/pki/apiserver.pem --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem --service-account-key-file=/etc/kubernetes/pki/sa.pub --service-account-signing-key-file=/etc/kubernetes/pki/sa.key --service-account-issuer=https://kubernetes.default.svc.cluster.local --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota --authorization-mode=Node,RBAC --enable-bootstrap-token-auth=true --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem --requestheader-allowed-names=aggregator --requestheader-group-headers=X-Remote-Group --requestheader-extra-headers-prefix=X-Remote-Extra- --requestheader-username-headers=X-Remote-User

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

8.1.4 启动apiserver

所有master节点启动kube-apiserver

systemctl daemon-reload && systemctl enable --now kube-apiserver

检测kube-server状态

systemctl status kube-apiserver

8.2 ControllerManager

所有Master节点配置kube-controller-manager service（所有master节点配置一样）
注意本文档使用的k8s Pod网段为10.244.0.0/16，该网段不能和宿主机的网段、k8s Service网段的重复，请按需修改

[root@master1 ~]# cat > /usr/lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager --v=2 --logtostderr=true --address=127.0.0.1 --root-ca-file=/etc/kubernetes/pki/ca.pem --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem --service-account-private-key-file=/etc/kubernetes/pki/sa.key --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig --leader-elect=true --use-service-account-credentials=true --node-monitor-grace-period=40s --node-monitor-period=5s --pod-eviction-timeout=2m0s --controllers=*,bootstrapsigner,tokencleaner --allocate-node-cidrs=true --cluster-cidr=10.244.0.0/16 --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem --node-cidr-mask-size=24

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

所有Master节点启动kube-controller-manager:

systemctl daemon-reload
systemctl enable --now kube-controller-manager

查看启动状态：

[root@master1 ~]# systemctl status kube-controller-manager

8.3 Scheduler

所有Master节点配置kube-scheduler service（所有master节点配置一样）

[root@master1 ~]# vim /usr/lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler --v=2 --logtostderr=true --address=127.0.0.1 --leader-elect=true --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

[root@master1 ~]# systemctl daemon-reload
[root@master1 ~]# systemctl enable --now kube-scheduler

第九章 TLS Bootstrapping配置

只需要在Master01创建bootstrap

#注意，如果不是高可用集群，10.140.20.141:6443改为master01的地址，6443改为apiserver的端口，默认是6443

cd /root/k8s-ha-install/bootstrap

kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://10.140.20.141:6443 --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig

kubectl config set-credentials tls-bootstrap-token-user --token=c8ad9c.2e4d610cf3e7426e --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig

kubectl config set-context tls-bootstrap-token-user@kubernetes --cluster=kubernetes --user=tls-bootstrap-token-user --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig

kubectl config use-context tls-bootstrap-token-user@kubernetes --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig

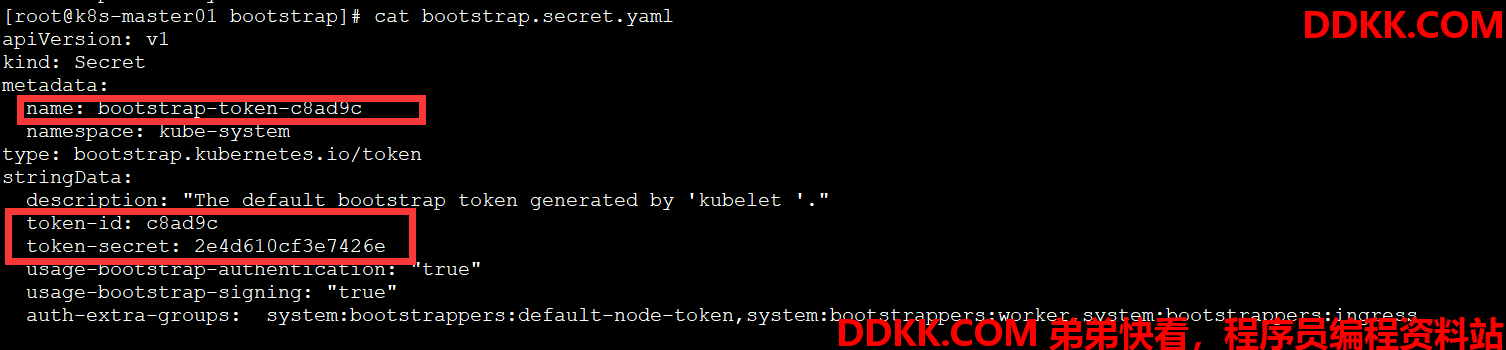

注意：如果要修改bootstrap.secret.yaml的token-id和token-secret，需要保证下图红圈内的字符串一致的，并且位数是一样的。还要保证上个命令的token：c8ad9c.2e4d610cf3e7426e与你修改的字符串要一致

[root@master1 bootstrap]# mkdir -p /root/.kube ; cp /etc/kubernetes/admin.kubeconfig /root/.kube/config

可以正常查询集群状态，才可以继续往下，否则不行，需要排查k8s组件是否有故障

[root@master1 bootstrap]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE                         ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-1               Healthy   {

     "health":"true","reason":""}
etcd-0               Healthy   {

     "health":"true","reason":""}
etcd-2               Healthy   {

     "health":"true","reason":""}
[root@master1 bootstrap]# kubectl create -f bootstrap.secret.yaml
secret/bootstrap-token-c8ad9c created
clusterrolebinding.rbac.authorization.k8s.io/kubelet-bootstrap created
clusterrolebinding.rbac.authorization.k8s.io/node-autoapprove-bootstrap created
clusterrolebinding.rbac.authorization.k8s.io/node-autoapprove-certificate-rotation created
clusterrole.rbac.authorization.k8s.io/system:kube-apiserver-to-kubelet created
clusterrolebinding.rbac.authorization.k8s.io/system:kube-apiserver created

第十章 Node节点配置

10.1 复制证书

Master01节点复制证书至Node节点

cd /etc/kubernetes/

for NODE in master2.k8s.test master3.k8s.test node1.k8s.test; do
     ssh $NODE mkdir -p /etc/kubernetes/pki
     for FILE in pki/ca.pem pki/ca-key.pem pki/front-proxy-ca.pem bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
 done
 done

检查证书文件：

[root@node1 kubernetes]# pwd
/etc/kubernetes
[root@k8s-node01 kubernetes]# tree
.
├── bootstrap-kubelet.kubeconfig
├── manifests
└── pki
    ├── ca-key.pem
    ├── ca.pem
    └── front-proxy-ca.pem

2 directories, 4 files
[root@k8s-node01 kubernetes]#

10.2 Kubelet配置

所有节点创建相关目录（如果存在，忽略）

mkdir -p /var/lib/kubelet /var/log/kubernetes /etc/systemd/system/kubelet.service.d /etc/kubernetes/manifests/

所有节点配置Kubelet service

[root@master1 ~]# cat > /usr/lib/systemd/system/kubelet.service <<EOF
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=docker.service
Requires=docker.service

[Service]
EnvironmentFile=/etc/systemd/system/kubelet.service.d/10-kubelet.conf
ExecStart=/usr/local/bin/kubelet \$KUBELET_OPTS

Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target

EOF

所有节点配置kubelet service的配置文件

mkdir -p /etc/cni/net.d
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
KUBELET_OPTS="--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig --network-plugin=cni --cni-conf-dir=/etc/cni/net.d --cni-bin-dir=/opt/cni/bin --config=/etc/kubernetes/kubelet-conf.yml --pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.5 --node-labels=node.kubernetes.io/node='' --logtostderr=true --v=2"
EOF

所有节点创建kubelet的配置文件

注意：如果更改了k8s的service网段，需要更改kubelet-conf.yml 的clusterDNS:配置，改成k8s Service网段的第十个地址，比如10.96.0.10

cat > /etc/kubernetes/kubelet-conf.yml <<EOF
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
cgroupsPerQOS: true
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
containerLogMaxFiles: 5
containerLogMaxSize: 10Mi
contentType: application/vnd.kubernetes.protobuf
cpuCFSQuota: true
cpuManagerPolicy: none
cpuManagerReconcilePeriod: 10s
enableControllerAttachDetach: true
enableDebuggingHandlers: true
enforceNodeAllocatable:
- pods
eventBurst: 10
eventRecordQPS: 5
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
evictionPressureTransitionPeriod: 5m0s
failSwapOn: true
fileCheckFrequency: 20s
hairpinMode: promiscuous-bridge
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 20s
imageGCHighThresholdPercent: 85
imageGCLowThresholdPercent: 80
imageMinimumGCAge: 2m0s
iptablesDropBit: 15
iptablesMasqueradeBit: 14
kubeAPIBurst: 10
kubeAPIQPS: 5
makeIPTablesUtilChains: true
maxOpenFiles: 1000000
maxPods: 110
nodeStatusUpdateFrequency: 10s
oomScoreAdj: -999
podPidsLimit: -1
registryBurst: 10
registryPullQPS: 5
resolvConf: /etc/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 2m0s
serializeImagePulls: true
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 4h0m0s
syncFrequency: 1m0s
volumeStatsAggPeriod: 1m0s
EOF

启动所有节点kubelet

systemctl daemon-reload
systemctl enable --now kubelet

查看集群状态

[root@master1 ~]# kubectl get nodes
NAME               STATUS     ROLES    AGE   VERSION
master1.k8s.test   NotReady   <none>   11m   v1.22.17
master2.k8s.test   NotReady   <none>   46s   v1.22.17
master3.k8s.test   NotReady   <none>   48s   v1.22.17
node1.k8s.test     NotReady   <none>   51s   v1.22.17

注：由于网络插件还没有部署，节点会没有准备就绪 NotReady。

10.3 kube-proxy配置

#注意，如果不是高可用集群，10.140.20.141:6443改为master01的地址，6443改为apiserver的端口，默认是6443

创建kube-proxy.kubeconfig文件，只需要在Master01上执行

kubectl -n kube-system create serviceaccount kube-proxy

kubectl create clusterrolebinding system:kube-proxy --clusterrole system:node-proxier --serviceaccount kube-system:kube-proxy

SECRET=$(kubectl -n kube-system get sa/kube-proxy --output=jsonpath='{.secrets[0].name}')

JWT_TOKEN=$(kubectl -n kube-system get secret/$SECRET --output=jsonpath='{.data.token}' | base64 -d)

PKI_DIR=/etc/kubernetes/pki
K8S_DIR=/etc/kubernetes

kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://10.140.20.141:6443   --kubeconfig=${K8S_DIR}/kube-proxy.kubeconfig

kubectl config set-credentials kubernetes --token=${JWT_TOKEN} --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

kubectl config set-context kubernetes --cluster=kubernetes --user=kubernetes --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

kubectl config use-context kubernetes --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

将kubeconfig发送至其他节点

for NODE in master2.k8s.test master3.k8s.test node1.k8s.test; do
     scp /etc/kubernetes/kube-proxy.kubeconfig  $NODE:/etc/kubernetes/kube-proxy.kubeconfig
 done

所有节点添加kube-proxy的配置和service文件

cat > /usr/lib/systemd/system/kube-proxy.service << EOF

[Unit]
Description=Kubernetes Kube Proxy
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-proxy --config=/etc/kubernetes/kube-proxy.yaml --v=2

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

如果更改了集群Pod的网段，需要更改kube-proxy.yaml的clusterCIDR为自己的Pod网段：

cat > /etc/kubernetes/kube-proxy.yaml << EOF
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
clientConnection:
  acceptContentTypes: ""
  burst: 10
  contentType: application/vnd.kubernetes.protobuf
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
  qps: 5
clusterCIDR: 10.244.0.0/16
configSyncPeriod: 15m0s
conntrack:
  max: null
  maxPerCore: 32768
  min: 131072
  tcpCloseWaitTimeout: 1h0m0s
  tcpEstablishedTimeout: 24h0m0s
enableProfiling: false
healthzBindAddress: 0.0.0.0:10256
hostnameOverride: ""
iptables:
  masqueradeAll: false
  masqueradeBit: 14
  minSyncPeriod: 0s
  syncPeriod: 30s
ipvs:
  masqueradeAll: true
  minSyncPeriod: 5s
  scheduler: "rr"
  syncPeriod: 30s
kind: KubeProxyConfiguration
metricsBindAddress: 127.0.0.1:10249
mode: "ipvs"
nodePortAddresses: null
oomScoreAdj: -999
portRange: ""
udpIdleTimeout: 250ms
EOF

所有节点启动kube-proxy

systemctl daemon-reload
systemctl enable --now kube-proxy
systemctl status kube-proxy

第十一章安装Calico

11.1 安装官方推荐版本

以下步骤只在Master01上执行

cd /root/k8s-ha-install/calico/
# 更改calico的网段，改为自己的Pod的网段
sed -i "s#POD_CIDR#10.244.0.0/16#g" calico.yaml

更改后如下所示：

[root@master1 calico]#  grep "IPV4POOL_CIDR" calico.yaml  -A 1
            - name: CALICO_IPV4POOL_CIDR
              value: "10.244.0.0/16"

安装calico

kubectl apply -f calico.yaml

#查看容器状态
[root@master1 calico]# kubectl get pods -A
NAMESPACE     NAME                                       READY   STATUS    RESTARTS   AGE
kube-system   calico-kube-controllers-66686fdb54-qnsnn   1/1     Running   0          42s
kube-system   calico-node-2hm5d                          1/1     Running   0          42s
kube-system   calico-node-lbt6k                          1/1     Running   0          42s
kube-system   calico-node-pm8r9                          1/1     Running   0          42s
kube-system   calico-node-vxvd5                          1/1     Running   0          42s
kube-system   calico-typha-67c6dc57d6-96qjq              1/1     Running   0          42s
kube-system   calico-typha-67c6dc57d6-h8rqw              1/1     Running   0          42s
kube-system   calico-typha-67c6dc57d6-z6qlj              1/1     Running   0          42s
[root@master1 calico]# kubectl get nodes
NAME               STATUS   ROLES    AGE   VERSION
master1.k8s.test   Ready    <none>   73m   v1.22.17
master2.k8s.test   Ready    <none>   62m   v1.22.17
master3.k8s.test   Ready    <none>   62m   v1.22.17
node1.k8s.test     Ready    <none>   62m   v1.22.17

如果容器状态异常可以使用kubectl describe 或者kubectl logs查看容器的日志。

第十二章安装CoreDNS

12.1 安装官方推荐版本(推荐)

#如果更改了k8s service的网段需要将coredns的serviceIP改成k8s service网段的第十个IP
cd /root/k8s-ha-install/
COREDNS_SERVICE_IP=kubectl get svc | grep kubernetes | awk '{print $3}'0
sed -i "s#192.168.0.10#${COREDNS_SERVICE_IP}#g" CoreDNS/coredns.yaml
#安装Coredns
[root@master1.k8s.test k8s-ha-install]# kubectl  create -f CoreDNS/coredns.yaml
serviceaccount/coredns created
clusterrole.rbac.authorization.k8s.io/system:coredns created
clusterrolebinding.rbac.authorization.k8s.io/system:coredns created
configmap/coredns created
deployment.apps/coredns created
service/kube-dns created
#检查Pod运作状况
[root@master1.k8s.test k8s-ha-install]# kubectl get pods -n kube-system -l k8s-app=kube-dns
NAME                      READY   STATUS    RESTARTS   AGE
coredns-7684f7549-jqnch   1/1     Running   0          30s
[root@master1.k8s.test k8s-ha-install]# kubectl get svc -n kube-system -l k8s-app=kube-dns
NAME       TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                  AGE
kube-dns   ClusterIP   10.96.0.10   <none>        53/UDP,53/TCP,9153/TCP   54s

12.2 安装最新版CoreDNS

COREDNS_SERVICE_IP=kubectl get svc | grep kubernetes | awk '{print $3}'0

git clone https://github.com/coredns/deployment.git
cd deployment/kubernetes
# ./deploy.sh -s -i ${COREDNS_SERVICE_IP} | kubectl apply -f -
serviceaccount/coredns created
clusterrole.rbac.authorization.k8s.io/system:coredns created
clusterrolebinding.rbac.authorization.k8s.io/system:coredns created
configmap/coredns created
deployment.apps/coredns created
service/kube-dns created
查看状态
 kubectl get po -n kube-system -l k8s-app=kube-dns
NAME                       READY   STATUS    RESTARTS   AGE
coredns-85b4878f78-h29kh   1/1     Running   0          8h

第十三章安装Metrics Server

在新版的Kubernetes中系统资源的采集均使用Metrics-server，可以通过Metrics采集节点和Pod的内存、磁盘、CPU和网络的使用率。
安装metrics server

#没有安装之前，查看
[root@master1 ~]# kubectl api-resources|grep metrics
[root@master1 ~]# kubectl api-resources|grep metrics|wc -l
0

# 安装
cd /root/k8s-ha-install/metrics-server
kubectl  create -f .

serviceaccount/metrics-server created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrole.rbac.authorization.k8s.io/system:metrics-server created
rolebinding.rbac.authorization.k8s.io/metrics-server-auth-reader created
clusterrolebinding.rbac.authorization.k8s.io/metrics-server:system:auth-delegator created
clusterrolebinding.rbac.authorization.k8s.io/system:metrics-server created
service/metrics-server created
deployment.apps/metrics-server created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created

#安装之后，查看
[root@master1.k8s.test metrics-server]# kubectl get pods -n kube-system -l k8s-app=metrics-server
NAME                              READY   STATUS    RESTARTS   AGE
metrics-server-5c8b499fd7-hvnz7   1/1     Running   0          41s

[root@master1.k8s.test metrics-server]# kubectl api-resources|grep metrics
nodes                                          metrics.k8s.io/v1beta1                 false        NodeMetrics
pods                                           metrics.k8s.io/v1beta1                 true         PodMetrics
#等待metrics server启动然后查看状态
[root@master1 metrics-server]# kubectl top nodes
NAME               CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
master1.k8s.test   189m         2%     2021Mi          6%
master2.k8s.test   158m         1%     1154Mi          3%
master3.k8s.test   149m         1%     1214Mi          3%
node1.k8s.test     85m          1%     691Mi           2%

第十四章集群验证

验证步骤：

1、 Pod必须能解析Service；
2、 Pod必须能解析跨namespace的Service；
3、每个节点都必须要能访问Kubernetes的kubernetessvc443和kube-dns的service53；
4、 Pod和Pod之间要能通；
a) 同namespace能通信
b）跨namespace能通信
c) 跨机器能通信

安装busybox和nginx进行验证

cat<<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: busybox
  namespace: default
spec:
  containers:
  - name: busybox
    image: busybox:1.28
    command:
      - sleep
      - "3600"
    imagePullPolicy: IfNotPresent
  restartPolicy: Always
EOF

[root@master1.k8s.test ~]# kubectl create deploy nginx --image=nginx --replicas=2

验证：

[root@master1 ~]# kubectl get pods -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP              NODE           NOMINATED NODE   READINESS GATES
busybox                  1/1     Running   0          54m   10.244.32.130   master1.k8s.test   <none>           <none>
nginx-6799fc88d8-9hvr8   1/1     Running   0          53m   10.244.85.193   k8s-node01     <none>           <none>
nginx-6799fc88d8-vzzg7   1/1     Running   0          53m   10.244.58.196   k8s-node02     <none>           <none>
[root@master1 ~]# ping 10.244.85.193
PING 10.244.85.193 (10.244.85.193) 56(84) bytes of data.
64 bytes from 10.244.85.193: icmp_seq=1 ttl=63 time=0.766 ms
64 bytes from 10.244.85.193: icmp_seq=2 ttl=63 time=0.231 ms
64 bytes from 10.244.85.193: icmp_seq=3 ttl=63 time=0.374 ms
64 bytes from 10.244.85.193: icmp_seq=4 ttl=63 time=1.75 ms
64 bytes from 10.244.85.193: icmp_seq=5 ttl=63 time=0.560 ms
[root@master1.k8s.test ~]# ping 10.244.58.196
PING 10.244.58.196 (10.244.58.196) 56(84) bytes of data.
64 bytes from 10.244.58.196: icmp_seq=1 ttl=63 time=3.34 ms
64 bytes from 10.244.58.196: icmp_seq=2 ttl=63 time=0.364 ms
64 bytes from 10.244.58.196: icmp_seq=3 ttl=63 time=0.270 ms

[root@master1 ~]# telnet  10.96.0.10 53
Trying 10.96.0.10...
Connected to 10.96.0.10.
Escape character is '^]'.
[root@master1.k8s.test ~]# kubectl exec busybox -n default -- nslookup kubernetes
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      kubernetes
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local
[root@master1.k8s.test ~]# kubectl exec busybox -n default -- nslookup kube-dns.kube-system
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      kube-dns.kube-system
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

第十五章安装dashboard

15.1 Dashboard部署

Dashboard用于展示集群中的各类资源，同时也可以通过Dashboard实时查看Pod的日志和在容器中执行一些命令等。

15.1.1 安装指定版本的dashboard

[root@master1 ~]# cd /root/k8s-ha-install/dashboard/
[root@master1 dashboard]# ls
dashboard-user.yaml  dashboard.yaml
[root@master1 dashboard]# kubectl create -f .

15.1.2 安装最新版

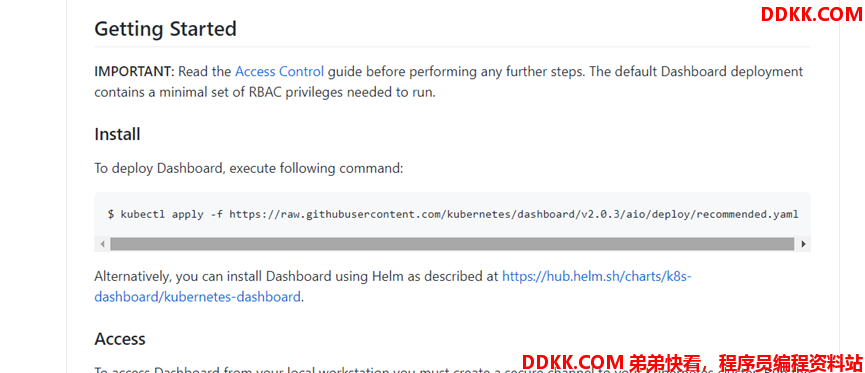

官方GitHub地址：https://github.com/kubernetes/dashboard
可以在官方dashboard查看到最新版dashboard

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.3/aio/deploy/recommended.yaml

#创建管理员用户
vim admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system
#创建
kubectl apply -f admin.yaml -n kube-system

15.1.3 登录Dashboard

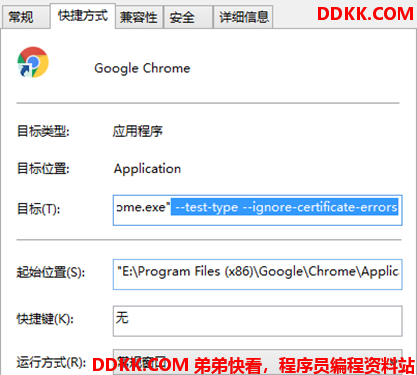

在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题，参考图1-1：

--test-type --ignore-certificate-errors

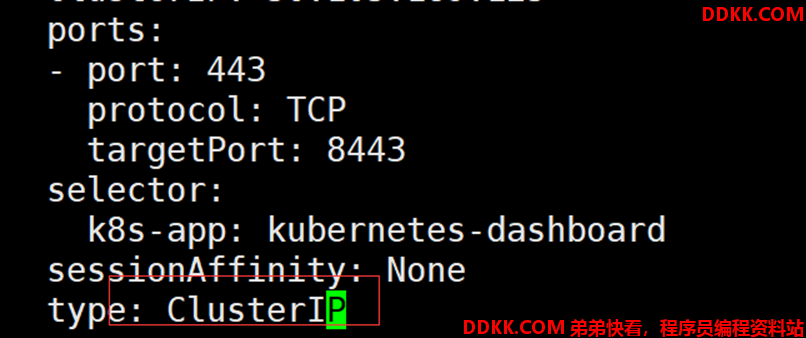

更改dashboard的svc为NodePort类型

kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard

（如果已经为NodePort 忽略此步骤）

查看端口号：

[root@master1 ~]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME                   TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)         AGE
kubernetes-dashboard   NodePort   10.96.62.177   <none>        443:30533/TCP   6m16s
[root@master1.k8s.test ~]#

根据自己的实例端口号，通过任意安装了kube-proxy的宿主机的IP+端口即可访问到dashboard：

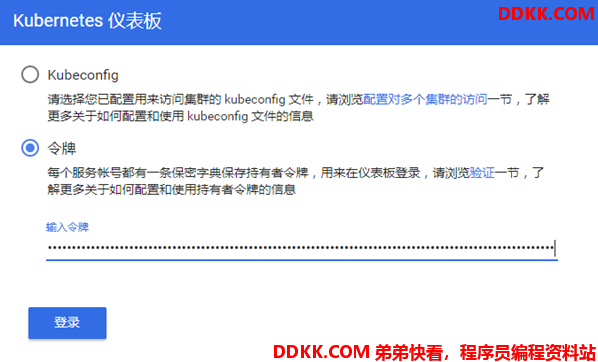

访问Dashboard：https://10.140.20.141:30533（请更改30533为自己的端口），选择登录方式为令牌（即token方式）

查看token值：

[root@master1 ~]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-6w689
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: 2b2757c1-8740-46df-ae76-e9b439d45bbf

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1411 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IjJIX2RlNVhlV3gxVzRyZmhrMmQ3X01POHpXZFBIYWxENTQ4WTJhYmlMak0ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTZ3Njg5Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIyYjI3NTdjMS04NzQwLTQ2ZGYtYWU3Ni1lOWI0MzlkNDViYmYiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.nmTIiYVZKKooYbDmLf_P2rb5NAx6TuXSYlMKew1OU0ALKzIlhyt4HCqxlqgelOLAzm8ek15oc3ej77miG_DCTqz_bZXMXOBpAMCJEqXa0DdYWJd0nHXWauwJOdlBLmzQZDFkImrPbP9v7CKABMhDxu_7XKO8grAuCRJhL2AnfNOfHioc1LWIZ_WcOmOCYvb9JADkS0I_e3AyDgMbWV4gEtlmiAo6MxXKqBGprWnuN0TDEz30rvKcaWEdbUTy4L6kbOM6ogrT_ZQFfnsXzw6CsS103m86-5AXxcdW3af7ddSu5uahDk5pDRQRo9UBe1xJ6pbBf0yNyX-nVfsdF8MYLg

将token值输入到令牌后，单击登录即可访问Dashboard。

第十六章生产环境关键性配置

Docker的配置

vim /etc/docker/daemon.json
{


 "registry-mirrors": [
    "https://registry.docker-cn.com",
    "http://hub-mirror.c.163.com",
    "https://docker.mirrors.ustc.edu.cn"
  ],
 "exec-opts": ["native.cgroupdriver=systemd"],
 "max-concurrent-downloads": 10,
 "max-concurrent-uploads": 5,
 "log-opts": {


   "max-size": "300m",
   "max-file": "2"
 },
 "live-restore": true
}

[root@master1.k8s.test ~]# systemctl daemon-reload
[root@master1.k8s.test ~]# systemctl restart docker

Controller-manager的配置

vim /usr/lib/systemd/system/kube-controller-manager.service
#添加如下配置

# --feature-gates=RotateKubeletClientCertificate=true,RotateKubeletServerCertificate=true \
--cluster-signing-duration=876000h0m0s \

kubelet配置

（更改K8S的安全扫描方式）

vim /etc/systemd/system/kubelet.service.d/10-kubelet.conf

[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--network-plugin=cni --cni-conf-dir=/etc/cni/net.d --cni-bin-dir=/opt/cni/bin"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml --pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.5"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' --tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 --image-pull-progress-deadline=30m"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS

#添加的参数为：--tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384    --image-pull-progress-deadline=30m

性能优化，保证物理机能够正常提供服务，根据实际情况，进行调整

vim /etc/kubernetes/kubelet-conf.yml
添加如下配置
rotateServerCertificates: true
allowedUnsafeSysctls:
 - "net.core*"
 - "net.ipv4.*"
kubeReserved:
  cpu: "1"
  memory: 1Gi
  ephemeral-storage: 10Gi
systemReserved:
  cpu: "1"
  memory: 1Gi
  ephemeral-storage: 10Gi

第十七章 kubectl命令的自动补全功能

yum install -y bash-completion
source /usr/share/bash-completion/bash_completion
echo "source <(kubectl completion bash)" >> ~/.bashrc
source ~/.bashrc

第十八章节点打上角色的标签（可选）

[root@master1 ~]# kubectl label node master1.k8s.test node-role.kubernetes.io/master=
node/master1.k8s.test labeled
[root@master1 ~]# kubectl label node master1.k8s.test node-role.kubernetes.io/node=
node/master1.k8s.test labeled
[root@master1 ~]# kubectl get nodes
NAME           STATUS   ROLES         AGE     VERSION
master1.k8s.test   Ready   <none>   11m   v1.22.17
master2.k8s.test   Ready   <none>   46s   v1.22.17
master3.k8s.test   Ready   <none>   48s   v1.22.17
node1.k8s.test     Ready   <none>   51s   v1.22.17

07、Kubernetes - 实战：Kubernetes二进制生产集群部署

第一章、前置知识点

1.1 生产环境部署K8S集群的两种方式

1.2 准备环境

第二章、 安装说明

第三章、集群安装

3.1 基本环境配置

3.2 内核升级

第四章、基本组件安装

4.1 Docker安装

4.2 K8s及etcd安装

第五章、生成证书

5.1 etcd证书

5.2 k8s组件证书

5.3 检验证书

第六章、 Kubernetes系统组件配置

6.1 Etcd配置

6.1.1 Master01

6.1.2 Master02

6.1.3 Master03

6.1.4 创建Service

6.1.5 所有Master节点创建etcd的证书目录

第七章、高可用配置

7.1 Haproxy配置，所有Master节点的配置是一样的。

7.2 Master01 keepalived

7.3 Master02 keepalived

7.4 Master03 keepalived

7.5 健康检查配置

7.6 VIP测试

第八章 Kubernetes组件配置

8.1 Apiserver

8.1.1 Master01 配置

8.1.2 Master02配置

8.1.3 Master03 配置

8.1.4 启动apiserver

8.2 ControllerManager

8.3 Scheduler

第九章 TLS Bootstrapping配置

第十章 Node节点配置

10.1 复制证书

10.2 Kubelet配置

10.3 kube-proxy配置

第十一章 安装Calico

11.1 安装官方推荐版本

第十二章 安装CoreDNS

12.1 安装官方推荐版本(推荐)

12.2 安装最新版CoreDNS

第十三章 安装Metrics Server

第十四章 集群验证

第十五章 安装dashboard

15.1 Dashboard部署

15.1.1 安装指定版本的dashboard

15.1.2 安装最新版

15.1.3 登录Dashboard

第十六章 生产环境关键性配置

第十七章 kubectl命令的自动补全功能

第十八章 节点打上角色的标签（可选）

第二章、安装说明

第十一章安装Calico

第十二章安装CoreDNS

第十三章安装Metrics Server

第十四章集群验证

第十五章安装dashboard

第十六章生产环境关键性配置

第十八章节点打上角色的标签（可选）
