前言

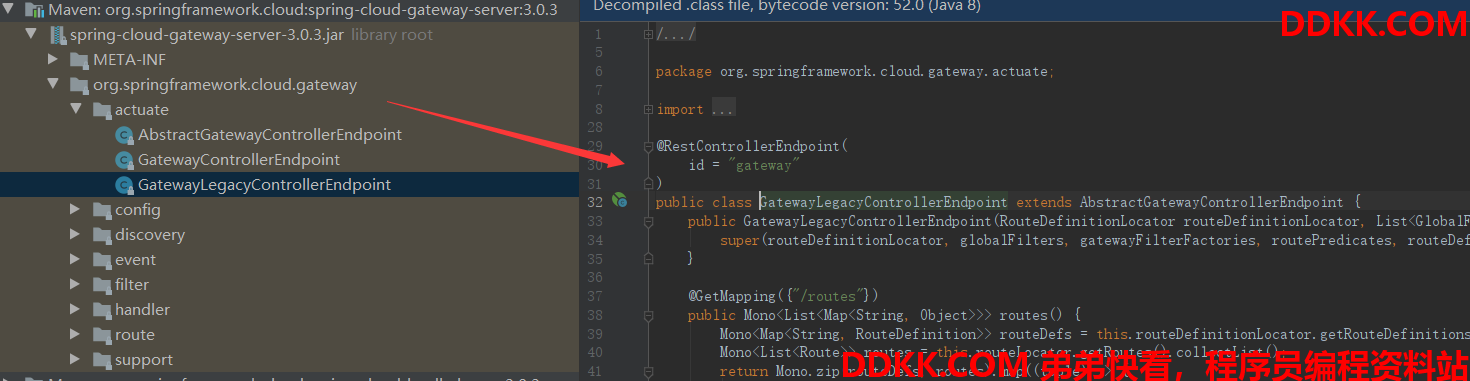

Spring Cloud Gateway 提供了很多API 用来管理网关，在org.springframework.cloud.gateway.actuate包中，可以看到提供了一些访问API。
管理API
需要配置spring-boot-starter-actuator，公开这些访问端点，首先添加Pom:
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
然后在YML中公开这些端点：
management:
endpoint:
health:
是否显示health详细信息
show-details: always
show-components: always
gateway:
enabled: true
endpoints:
Web端点的配置属性
web:
exposure:
开放端点的ID集合（eg:['health','info','beans','env']），配置为“*”表示全部
include: '*'
1. 查询所有路由
可以通过 GET /actuator/gateway/routes查询到所有路由信息：
https://localhost:8443/actuator/gateway/routes
示例如下：
[
{
"predicate": "Paths: [/app-service001/**], match trailing slash: true",
"metadata": {
"nacos.instanceId": "192.168.58.1#9000#DEFAULT#DEFAULT_GROUP@@app-service001",
"nacos.weight": "1.0",
"nacos.cluster": "DEFAULT",
"nacos.ephemeral": "true",
"nacos.healthy": "true",
"preserved.register.source": "SPRING_CLOUD",
"secure": "true"
},
"route_id": "ReactiveCompositeDiscoveryClient_app-service001",
"filters": [
"[[RewritePath /app-service001/?(?<remaining>.*) = '/${remaining}'], order = 1]"
],
"uri": "lb://app-service001",
"order": 0
}
]
2. 查询过滤器
可以通过 GET /actuator/gateway/globalfilters查询到已注入的所有全局过滤器：
https://localhost:8443/actuator/gateway/globalfilters
示例如下：
{
"org.springframework.cloud.gateway.filter.NettyWriteResponseFilter@1fb2eec": -1,
"org.springframework.cloud.gateway.filter.RouteToRequestUrlFilter@2a0b901c": 10000,
"org.springframework.cloud.gateway.filter.AdaptCachedBodyGlobalFilter@4026461d": -2147482648,
"org.springframework.cloud.gateway.filter.ForwardPathFilter@6544899b": 0,
"org.springframework.cloud.gateway.filter.WebsocketRoutingFilter@6da54910": 2147483646,
"org.springframework.cloud.gateway.filter.RemoveCachedBodyFilter@4c18516": -2147483648,
"org.springframework.cloud.gateway.filter.ReactiveLoadBalancerClientFilter@752b69e3": 10150,
"org.springframework.cloud.gateway.filter.GatewayMetricsFilter@1bd8afc8": 0,
"org.springframework.cloud.gateway.filter.NettyRoutingFilter@15605d83": 2147483647,
"org.springframework.cloud.gateway.filter.ForwardRoutingFilter@3d104c9b": 2147483647
}
可以通过 GET /actuator/gateway/routefilters查询到已注入的所有网关过滤器：
https://localhost:8443/actuator/gateway/routefilters
示例如下：
{
"[RemoveRequestHeaderGatewayFilterFactory@454bcbbf configClass = AbstractGatewayFilterFactory.NameConfig]": null,
"[RedirectToGatewayFilterFactory@624b3544 configClass = RedirectToGatewayFilterFactory.Config]": null,
"[RequestHeaderToRequestUriGatewayFilterFactory@4d4c1ba9 configClass = AbstractGatewayFilterFactory.NameConfig]": null,
"[SetRequestHostHeaderGatewayFilterFactory@ceb7701 configClass = SetRequestHostHeaderGatewayFilterFactory.Config]": null,
"[RequestSizeGatewayFilterFactory@2017f6e6 configClass = RequestSizeGatewayFilterFactory.RequestSizeConfig]": null,
"[SetStatusGatewayFilterFactory@76a362a4 configClass = SetStatusGatewayFilterFactory.Config]": null,
"[RemoveResponseHeaderGatewayFilterFactory@27e199ce configClass = AbstractGatewayFilterFactory.NameConfig]": null,
"[SetResponseHeaderGatewayFilterFactory@5e193ef5 configClass = AbstractNameValueGatewayFilterFactory.NameValueConfig]": null,
"[StripPrefixGatewayFilterFactory@5627cb29 configClass = StripPrefixGatewayFilterFactory.Config]": null,
"[AddRequestParameterGatewayFilterFactory@30b3d899 configClass = AbstractNameValueGatewayFilterFactory.NameValueConfig]": null,
"[RewriteLocationResponseHeaderGatewayFilterFactory@21274afe configClass = RewriteLocationResponseHeaderGatewayFilterFactory.Config]": null,
"[PreserveHostHeaderGatewayFilterFactory@20256a0b configClass = Object]": null,
"[RetryGatewayFilterFactory@7364f68 configClass = RetryGatewayFilterFactory.RetryConfig]": null,
"[RewritePathGatewayFilterFactory@1c3b6963 configClass = RewritePathGatewayFilterFactory.Config]": null,
"[RewriteResponseHeaderGatewayFilterFactory@106c988 configClass = RewriteResponseHeaderGatewayFilterFactory.Config]": null,
"[MapRequestHeaderGatewayFilterFactory@34c76167 configClass = MapRequestHeaderGatewayFilterFactory.Config]": null,
"[RemoveRequestParameterGatewayFilterFactory@2c9fdb64 configClass = AbstractGatewayFilterFactory.NameConfig]": null,
"[AddRequestHeaderGatewayFilterFactory@559991f5 configClass = AbstractNameValueGatewayFilterFactory.NameValueConfig]": null,
"[SetPathGatewayFilterFactory@55a0f011 configClass = SetPathGatewayFilterFactory.Config]": null,
"[ModifyRequestBodyGatewayFilterFactory@61d60e38 configClass = ModifyRequestBodyGatewayFilterFactory.Config]": null,
"[SecureHeadersGatewayFilterFactory@7ea42c82 configClass = SecureHeadersGatewayFilterFactory.Config]": null,
"[SetRequestHeaderGatewayFilterFactory@39133244 configClass = AbstractNameValueGatewayFilterFactory.NameValueConfig]": null,
"[AddResponseHeaderGatewayFilterFactory@78d92eef configClass = AbstractNameValueGatewayFilterFactory.NameValueConfig]": null,
"[SaveSessionGatewayFilterFactory@61da0413 configClass = Object]": null,
"[PrefixPathGatewayFilterFactory@71531dd7 configClass = PrefixPathGatewayFilterFactory.Config]": null,
"[ModifyResponseBodyGatewayFilterFactory@404ced67 configClass = ModifyResponseBodyGatewayFilterFactory.Config]": null,
"[DedupeResponseHeaderGatewayFilterFactory@6e95973c configClass = DedupeResponseHeaderGatewayFilterFactory.Config]": null,
"[RequestHeaderSizeGatewayFilterFactory@115c946b configClass = RequestHeaderSizeGatewayFilterFactory.Config]": null
}

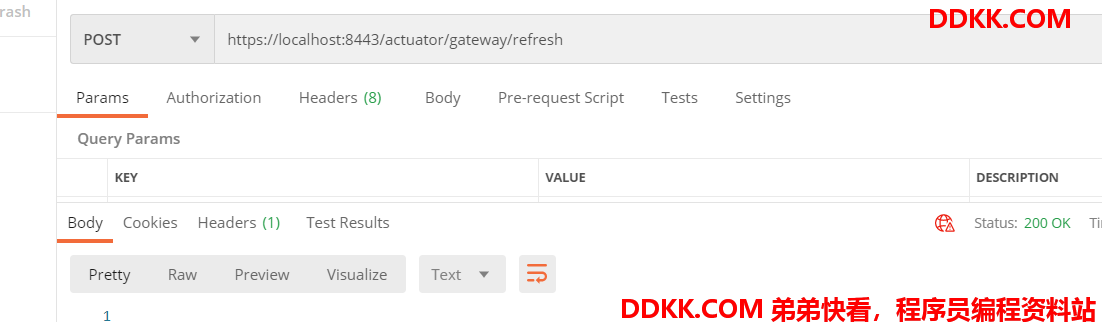

3. 刷新路由缓存
可以通过 POST /actuator/gateway/refresh清除路由缓存。该请求返回200，但没有响应正文。
4. 查询单个路由信息
可以通过 GET /actuator/gateway/routes/{id} 检索单个路由的信息。
https://localhost:8443/actuator/gateway/routes/ReactiveCompositeDiscoveryClient_app-service001
结果如下：
{
"predicate": "Paths: [/app-service001/**], match trailing slash: true",
"metadata": {
"nacos.instanceId": "192.168.58.1#9000#DEFAULT#DEFAULT_GROUP@@app-service001",
"nacos.weight": "1.0",
"nacos.cluster": "DEFAULT",
"nacos.ephemeral": "true",
"nacos.healthy": "true",
"preserved.register.source": "SPRING_CLOUD",
"secure": "true"
},
"route_id": "ReactiveCompositeDiscoveryClient_app-service001",
"filters": [
"[[RewritePath /app-service001/?(?<remaining>.*) = '/${remaining}'], order = 1]"
],
"uri": "lb://app-service001",
"order": 0
}
5. 创建和删除路由
要创建路由 ，请创建POST /gateway/routes/{id_route_to_create}，带有指定路由字段的JSON格式请求。
要删除路由，请创建一个DELETE /gateway/routes/{id_route_to_delete}请求。
一般不这么干，所以不演示了。。。
