beans包里一个非常重要的类是BeanWrapper接口和它的相应实现(BeanWrapperImpl)。BeanWrapper提供了设置和获取属性值(单独或批量)、获取属性描述符以及查询属性以确定它们是可读还是可写的功能。BeanWrapper还提供对嵌套属性的支持，能够不受嵌套深度的限制启用子属性的属性设置。然后，BeanWrapper提供了无需目标类代码的支持就能够添加标准JavaBeans的PropertyChangeListeners和VetoableChangeListeners的能力。最后然而并非最不重要的是，BeanWrapper提供了对索引属性设置的支持。BeanWrapper通常不会被应用程序的代码直接使用，而是由DataBinder和BeanFactory使用。
BeanWrapper的名字已经部分暗示了它的工作方式：它包装一个bean以对其执行操作，比如设置和获取属性。
设置并获取基本和嵌套属性
使用**setPropertyValue(s)和getPropertyValue(s)**可以设置并获取属性，两者都带有几个重载方法。在Spring自带的java文档中对它们有更详细的描述。重要的是要知道对象属性指示的几个约定。几个例子：
| 表达式 | 说明 |
|---|---|
name |
表示属性name与方法getName()或isName()和setName()相对应 |
account.name |
表示属性account的嵌套属性name与方法getAccount().setName()或getAccount().getName()相对应 |
account[2] |
表示索引属性account的第三个元素。索引属性可以是array、list或其他自然排序的集合 |
account[COMPANYNAME] |
表示映射属性account被键COMPANYNAME索引到的映射项的值 |

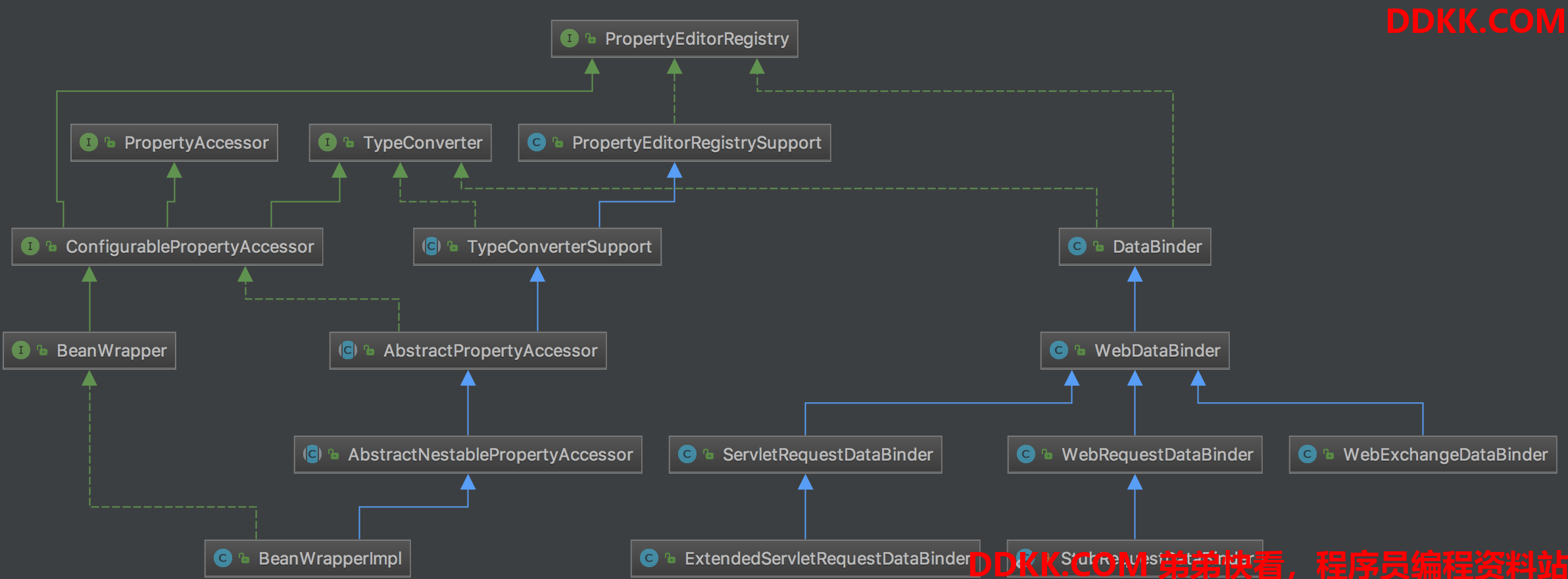

BeanWrapperImpl继承关系。
BeanWrapperImpl实现了诸多接口，下面从上往下依次接受这些接口以及实现类。
PropertyEditorRegistry提供了属性编辑器注册与查找的方法，属性编辑器相关请看这里《属性编辑器PropertyEditor》。
public interface PropertyEditorRegistry {
void registerCustomEditor(Class<?> requiredType, PropertyEditor propertyEditor);
void registerCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath, PropertyEditor propertyEditor);
@Nullable
PropertyEditor findCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath);
}
Spring还定义了一个接口用于为PropertyEditorRegistry批量注册属性编辑器。
public interface PropertyEditorRegistrar {
void registerCustomEditors(PropertyEditorRegistry registry);
}
对于在Spring ApplicationContext中批量注册属性编辑器可是使用CustomEditorConfigurer。
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
if (this.propertyEditorRegistrars != null) {
for (PropertyEditorRegistrar propertyEditorRegistrar : this.propertyEditorRegistrars) {
beanFactory.addPropertyEditorRegistrar(propertyEditorRegistrar);
}
}
if (this.customEditors != null) {
this.customEditors.forEach(beanFactory::registerCustomEditor);
}
}
下面是ResourceEditorRegistrar批量注册属性编辑器的实现。
public class ResourceEditorRegistrar implements PropertyEditorRegistrar {
private final PropertyResolver propertyResolver;
private final ResourceLoader resourceLoader;
public ResourceEditorRegistrar(ResourceLoader resourceLoader, PropertyResolver propertyResolver) {
this.resourceLoader = resourceLoader;
this.propertyResolver = propertyResolver;
}
@Override
public void registerCustomEditors(PropertyEditorRegistry registry) {
ResourceEditor baseEditor = new ResourceEditor(this.resourceLoader, this.propertyResolver);
doRegisterEditor(registry, Resource.class, baseEditor);
doRegisterEditor(registry, ContextResource.class, baseEditor);
doRegisterEditor(registry, InputStream.class, new InputStreamEditor(baseEditor));
doRegisterEditor(registry, InputSource.class, new InputSourceEditor(baseEditor));
doRegisterEditor(registry, File.class, new FileEditor(baseEditor));
doRegisterEditor(registry, Path.class, new PathEditor(baseEditor));
doRegisterEditor(registry, Reader.class, new ReaderEditor(baseEditor));
doRegisterEditor(registry, URL.class, new URLEditor(baseEditor));
ClassLoader classLoader = this.resourceLoader.getClassLoader();
doRegisterEditor(registry, URI.class, new URIEditor(classLoader));
doRegisterEditor(registry, Class.class, new ClassEditor(classLoader));
doRegisterEditor(registry, Class[].class, new ClassArrayEditor(classLoader));
if (this.resourceLoader instanceof ResourcePatternResolver) {
doRegisterEditor(registry, Resource[].class,
new ResourceArrayPropertyEditor((ResourcePatternResolver) this.resourceLoader, this.propertyResolver));
}
}
private void doRegisterEditor(PropertyEditorRegistry registry, Class<?> requiredType, PropertyEditor editor) {
if (registry instanceof PropertyEditorRegistrySupport) {
((PropertyEditorRegistrySupport) registry).overrideDefaultEditor(requiredType, editor);
}
else {
registry.registerCustomEditor(requiredType, editor);
}
}
}
PropertyEditorRegistry实现类有两个分支一个是PropertyEditorRegistrySupport和DataBinder。DataBinder以后再介绍。
PropertyEditorRegistrySupport主要成员变量。
@Nullable
private ConversionService conversionService;//可以注入，通过getConversionService()方法获取。
private boolean defaultEditorsActive = false;//为true，getDefaultEditor()方法才会注册默认提供的属性编辑器。
private boolean configValueEditorsActive = false;//为true会为String[].class，short[].class，int[].class，long[].class注册一个StringArrayPropertyEditor
@Nullable
private Map<Class<?>, PropertyEditor> defaultEditors;//默认属性编辑器的容器
@Nullable
private Map<Class<?>, PropertyEditor> overriddenDefaultEditors;//用于覆盖默认属性编辑器
@Nullable
private Map<Class<?>, PropertyEditor> customEditors;//自定义属性编辑器
@Nullable
private Map<String, CustomEditorHolder> customEditorsForPath;//带path的
PropertyEditorRegistrySupport提供了PropertyEditorRegistry的默认实现，并且getDefaultEditor()方法会注册一批Spring提供的属性编辑器。在PropertyEditorRegistrySupport这个分支的集成体系下，TypeConverterSupport的convertIfNecessary()方法会调用到getDefaultEditor()方法，这个稍后再讲。
public PropertyEditor getDefaultEditor(Class<?> requiredType) {
if (!this.defaultEditorsActive) {
return null;
}
if (this.overriddenDefaultEditors != null) {
PropertyEditor editor = this.overriddenDefaultEditors.get(requiredType);
if (editor != null) {
return editor;
}
}
if (this.defaultEditors == null) {
createDefaultEditors();//注册默认提供了属性编辑器
}
return this.defaultEditors.get(requiredType);
}
private void createDefaultEditors() {
this.defaultEditors = new HashMap<>(64);
// Simple editors, without parameterization capabilities.
// The JDK does not contain a default editor for any of these target types.
this.defaultEditors.put(Charset.class, new CharsetEditor());
this.defaultEditors.put(Class.class, new ClassEditor());
this.defaultEditors.put(Class[].class, new ClassArrayEditor());
this.defaultEditors.put(Currency.class, new CurrencyEditor());
this.defaultEditors.put(File.class, new FileEditor());
this.defaultEditors.put(InputStream.class, new InputStreamEditor());
this.defaultEditors.put(InputSource.class, new InputSourceEditor());
this.defaultEditors.put(Locale.class, new LocaleEditor());
this.defaultEditors.put(Path.class, new PathEditor());
this.defaultEditors.put(Pattern.class, new PatternEditor());
this.defaultEditors.put(Properties.class, new PropertiesEditor());
this.defaultEditors.put(Reader.class, new ReaderEditor());
this.defaultEditors.put(Resource[].class, new ResourceArrayPropertyEditor());
this.defaultEditors.put(TimeZone.class, new TimeZoneEditor());
this.defaultEditors.put(URI.class, new URIEditor());
this.defaultEditors.put(URL.class, new URLEditor());
this.defaultEditors.put(UUID.class, new UUIDEditor());
this.defaultEditors.put(ZoneId.class, new ZoneIdEditor());
// Default instances of collection editors.
// Can be overridden by registering custom instances of those as custom editors.
this.defaultEditors.put(Collection.class, new CustomCollectionEditor(Collection.class));
this.defaultEditors.put(Set.class, new CustomCollectionEditor(Set.class));
this.defaultEditors.put(SortedSet.class, new CustomCollectionEditor(SortedSet.class));
this.defaultEditors.put(List.class, new CustomCollectionEditor(List.class));
this.defaultEditors.put(SortedMap.class, new CustomMapEditor(SortedMap.class));
// Default editors for primitive arrays.
this.defaultEditors.put(byte[].class, new ByteArrayPropertyEditor());
this.defaultEditors.put(char[].class, new CharArrayPropertyEditor());
// The JDK does not contain a default editor for char!
this.defaultEditors.put(char.class, new CharacterEditor(false));
this.defaultEditors.put(Character.class, new CharacterEditor(true));
// Spring's CustomBooleanEditor accepts more flag values than the JDK's default editor.
this.defaultEditors.put(boolean.class, new CustomBooleanEditor(false));
this.defaultEditors.put(Boolean.class, new CustomBooleanEditor(true));
// The JDK does not contain default editors for number wrapper types!
// Override JDK primitive number editors with our own CustomNumberEditor.
this.defaultEditors.put(byte.class, new CustomNumberEditor(Byte.class, false));
this.defaultEditors.put(Byte.class, new CustomNumberEditor(Byte.class, true));
this.defaultEditors.put(short.class, new CustomNumberEditor(Short.class, false));
this.defaultEditors.put(Short.class, new CustomNumberEditor(Short.class, true));
this.defaultEditors.put(int.class, new CustomNumberEditor(Integer.class, false));
this.defaultEditors.put(Integer.class, new CustomNumberEditor(Integer.class, true));
this.defaultEditors.put(long.class, new CustomNumberEditor(Long.class, false));
this.defaultEditors.put(Long.class, new CustomNumberEditor(Long.class, true));
this.defaultEditors.put(float.class, new CustomNumberEditor(Float.class, false));
this.defaultEditors.put(Float.class, new CustomNumberEditor(Float.class, true));
this.defaultEditors.put(double.class, new CustomNumberEditor(Double.class, false));
this.defaultEditors.put(Double.class, new CustomNumberEditor(Double.class, true));
this.defaultEditors.put(BigDecimal.class, new CustomNumberEditor(BigDecimal.class, true));
this.defaultEditors.put(BigInteger.class, new CustomNumberEditor(BigInteger.class, true));
// Only register config value editors if explicitly requested.
if (this.configValueEditorsActive) {
StringArrayPropertyEditor sae = new StringArrayPropertyEditor();
this.defaultEditors.put(String[].class, sae);
this.defaultEditors.put(short[].class, sae);
this.defaultEditors.put(int[].class, sae);
this.defaultEditors.put(long[].class, sae);
}
}
如果上面默认类型没有我们需要的，可以调用registerCustomEditor()方法为我们的类型注册属性编辑器。
@Override
public void registerCustomEditor(Class<?> requiredType, PropertyEditor propertyEditor) {
registerCustomEditor(requiredType, null, propertyEditor);
}
@Override
public void registerCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath, PropertyEditor propertyEditor) {
if (requiredType == null && propertyPath == null) {
throw new IllegalArgumentException("Either requiredType or propertyPath is required");
}
if (propertyPath != null) {
if (this.customEditorsForPath == null) {
this.customEditorsForPath = new LinkedHashMap<>(16);
}
this.customEditorsForPath.put(propertyPath, new CustomEditorHolder(propertyEditor, requiredType));
}
else {
if (this.customEditors == null) {
this.customEditors = new LinkedHashMap<>(16);
}
this.customEditors.put(requiredType, propertyEditor);
this.customEditorCache = null;
}
}
如果默认注册的属性编辑器不能满足我们的需求，可以使用overrideDefaultEditor()方法。因为getDefaultEditor()方法优先从overriddenDefaultEditors查找。
public void overrideDefaultEditor(Class<?> requiredType, PropertyEditor propertyEditor) {
if (this.overriddenDefaultEditors == null) {
this.overriddenDefaultEditors = new HashMap<>();
}
this.overriddenDefaultEditors.put(requiredType, propertyEditor);
}
查找属性编辑器的过程，如果传入的是带path的，会先尝试从customEditorsForPath中查找，如果不存在则试图去掉path中的“[...]”在试图从customEditorsForPath查找。如果requiredType==null，调用getPropertyType()返回一个Class对象，默认返回null子类可覆盖。不能从path得到属性编辑器，则再从customEditors查找。
@Override
@Nullable
public PropertyEditor findCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath) {
Class<?> requiredTypeToUse = requiredType;
if (propertyPath != null) {
if (this.customEditorsForPath != null) {
// Check property-specific editor first.
PropertyEditor editor = getCustomEditor(propertyPath, requiredType);
if (editor == null) {
List<String> strippedPaths = new LinkedList<>();
addStrippedPropertyPaths(strippedPaths, "", propertyPath);
for (Iterator<String> it = strippedPaths.iterator(); it.hasNext() && editor == null;) {
String strippedPath = it.next();
editor = getCustomEditor(strippedPath, requiredType);
}
}
if (editor != null) {
return editor;
}
}
if (requiredType == null) {
requiredTypeToUse = getPropertyType(propertyPath);
}
}
// No property-specific editor -> check type-specific editor.
return getCustomEditor(requiredTypeToUse);
}
private void addStrippedPropertyPaths(List<String> strippedPaths, String nestedPath, String propertyPath) {
int startIndex = propertyPath.indexOf(PropertyAccessor.PROPERTY_KEY_PREFIX_CHAR);//[
if (startIndex != -1) {
int endIndex = propertyPath.indexOf(PropertyAccessor.PROPERTY_KEY_SUFFIX_CHAR);//]
if (endIndex != -1) {
String prefix = propertyPath.substring(0, startIndex);
String key = propertyPath.substring(startIndex, endIndex + 1);
String suffix = propertyPath.substring(endIndex + 1, propertyPath.length());
// Strip the first key.
strippedPaths.add(nestedPath + prefix + suffix);
// Search for further keys to strip, with the first key stripped.
addStrippedPropertyPaths(strippedPaths, nestedPath + prefix, suffix);
// Search for further keys to strip, with the first key not stripped.
addStrippedPropertyPaths(strippedPaths, nestedPath + prefix + key, suffix);
}
}
}
根据propertyName从customEditorsForPath中推断出bean的Class。
protected Class<?> guessPropertyTypeFromEditors(String propertyName) {
if (this.customEditorsForPath != null) {
CustomEditorHolder editorHolder = this.customEditorsForPath.get(propertyName);
if (editorHolder == null) {
List<String> strippedPaths = new LinkedList<>();
addStrippedPropertyPaths(strippedPaths, "", propertyName);
for (Iterator<String> it = strippedPaths.iterator(); it.hasNext() && editorHolder == null;) {
String strippedName = it.next();
editorHolder = this.customEditorsForPath.get(strippedName);
}
}
if (editorHolder != null) {
return editorHolder.getRegisteredType();
}
}
return null;
}
上面提到TypeConverterSupport的convertIfNecessary()方法会触发getDefaultEditor()方法完成默认属性编辑器的注册，这个类实现了TypeConverter接口，convertIfNecessary()方法就定义在这个接口。
public interface TypeConverter {
@Nullable
<T> T convertIfNecessary(@Nullable Object value, @Nullable Class<T> requiredType) throws TypeMismatchException;
@Nullable
<T> T convertIfNecessary(@Nullable Object value, @Nullable Class<T> requiredType, @Nullable MethodParameter methodParam) throws TypeMismatchException;
@Nullable
<T> T convertIfNecessary(@Nullable Object value, @Nullable Class<T> requiredType, @Nullable Field field) throws TypeMismatchException;
}
public abstract class TypeConverterSupport extends PropertyEditorRegistrySupport implements TypeConverter {
@Nullable
TypeConverterDelegate typeConverterDelegate;
@Override
@Nullable
public <T> T convertIfNecessary(@Nullable Object value, @Nullable Class<T> requiredType) throws TypeMismatchException {
return doConvert(value, requiredType, null, null);
}
@Override
@Nullable
public <T> T convertIfNecessary(@Nullable Object value, @Nullable Class<T> requiredType, @Nullable MethodParameter methodParam)
throws TypeMismatchException {
return doConvert(value, requiredType, methodParam, null);
}
@Override
@Nullable
public <T> T convertIfNecessary(@Nullable Object value, @Nullable Class<T> requiredType, @Nullable Field field)
throws TypeMismatchException {
return doConvert(value, requiredType, null, field);
}
@Nullable
private <T> T doConvert(@Nullable Object value,@Nullable Class<T> requiredType,
@Nullable MethodParameter methodParam, @Nullable Field field) throws TypeMismatchException {
Assert.state(this.typeConverterDelegate != null, "No TypeConverterDelegate");
try {
if (field != null) {
return this.typeConverterDelegate.convertIfNecessary(value, requiredType, field);
}
else {
return this.typeConverterDelegate.convertIfNecessary(value, requiredType, methodParam);
}
}
catch (ConverterNotFoundException | IllegalStateException ex) {
throw new ConversionNotSupportedException(value, requiredType, ex);
}
catch (ConversionException | IllegalArgumentException ex) {
throw new TypeMismatchException(value, requiredType, ex);
}
}
}
三个convertIfNecessary()接口方法都是调用doConvert()方法，内部又是委托了TypeConverterDelegate对象，TypeConverterSupport是一个抽象类，需要其子类实例化typeConverterDelegate成员变量。这正的转化都是通过typeConverterDelegate的convertIfNecessary()方法完成的。
TypeConverterDelegate通过构造方法持有一个PropertyEditorRegistrySupport一个引用，核心方法是:
@Nullable
public <T> T convertIfNecessary(@Nullable String propertyName, @Nullable Object oldValue, @Nullable Object newValue,
@Nullable Class<T> requiredType, @Nullable TypeDescriptor typeDescriptor) throws IllegalArgumentException {
// Custom editor for this type?
PropertyEditor editor = this.propertyEditorRegistry.findCustomEditor(requiredType, propertyName);
ConversionFailedException conversionAttemptEx = null;
// No custom editor but custom ConversionService specified?
ConversionService conversionService = this.propertyEditorRegistry.getConversionService();
if (editor == null && conversionService != null && newValue != null && typeDescriptor != null) {
TypeDescriptor sourceTypeDesc = TypeDescriptor.forObject(newValue);
if (conversionService.canConvert(sourceTypeDesc, typeDescriptor)) {
try {
return (T) conversionService.convert(newValue, sourceTypeDesc, typeDescriptor);
}
catch (ConversionFailedException ex) {
// fallback to default conversion logic below
conversionAttemptEx = ex;
}
}
}
Object convertedValue = newValue;
// Value not of required type?
if (editor != null || (requiredType != null && !ClassUtils.isAssignableValue(requiredType, convertedValue))) {
if (typeDescriptor != null && requiredType != null && Collection.class.isAssignableFrom(requiredType) &&
convertedValue instanceof String) {
TypeDescriptor elementTypeDesc = typeDescriptor.getElementTypeDescriptor();
if (elementTypeDesc != null) {
Class<?> elementType = elementTypeDesc.getType();
if (Class.class == elementType || Enum.class.isAssignableFrom(elementType)) {
convertedValue = StringUtils.commaDelimitedListToStringArray((String) convertedValue);//目标是集合类型支持逗号分隔
}
}
}
if (editor == null) {
editor = findDefaultEditor(requiredType);//在这完成的默认属性编辑器的注册
}
convertedValue = doConvertValue(oldValue, convertedValue, requiredType, editor);
}
boolean standardConversion = false;
if (requiredType != null) {
// Try to apply some standard type conversion rules if appropriate.
if (convertedValue != null) {
if (Object.class == requiredType) {
return (T) convertedValue;
}
else if (requiredType.isArray()) {
// Array required -> apply appropriate conversion of elements.
if (convertedValue instanceof String && Enum.class.isAssignableFrom(requiredType.getComponentType())) {
convertedValue = StringUtils.commaDelimitedListToStringArray((String) convertedValue);
}
return (T) convertToTypedArray(convertedValue, propertyName, requiredType.getComponentType());
}
else if (convertedValue instanceof Collection) {
// Convert elements to target type, if determined.
convertedValue = convertToTypedCollection(
(Collection<?>) convertedValue, propertyName, requiredType, typeDescriptor);
standardConversion = true;
}
else if (convertedValue instanceof Map) {
// Convert keys and values to respective target type, if determined.
convertedValue = convertToTypedMap(
(Map<?, ?>) convertedValue, propertyName, requiredType, typeDescriptor);
standardConversion = true;
}
if (convertedValue.getClass().isArray() && Array.getLength(convertedValue) == 1) {
convertedValue = Array.get(convertedValue, 0);
standardConversion = true;
}
if (String.class == requiredType && ClassUtils.isPrimitiveOrWrapper(convertedValue.getClass())) {
// We can stringify any primitive value...
return (T) convertedValue.toString();
}
else if (convertedValue instanceof String && !requiredType.isInstance(convertedValue)) {
if (conversionAttemptEx == null && !requiredType.isInterface() && !requiredType.isEnum()) {
try {
Constructor<T> strCtor = requiredType.getConstructor(String.class);
return BeanUtils.instantiateClass(strCtor, convertedValue);
}
catch (NoSuchMethodException ex) {
// proceed with field lookup
if (logger.isTraceEnabled()) {
logger.trace("No String constructor found on type [" + requiredType.getName() + "]", ex);
}
}
catch (Exception ex) {
if (logger.isDebugEnabled()) {
logger.debug("Construction via String failed for type [" + requiredType.getName() + "]", ex);
}
}
}
String trimmedValue = ((String) convertedValue).trim();
if (requiredType.isEnum() && "".equals(trimmedValue)) {
// It's an empty enum identifier: reset the enum value to null.
return null;
}
convertedValue = attemptToConvertStringToEnum(requiredType, trimmedValue, convertedValue);
standardConversion = true;
}
else if (convertedValue instanceof Number && Number.class.isAssignableFrom(requiredType)) {
convertedValue = NumberUtils.convertNumberToTargetClass(
(Number) convertedValue, (Class<Number>) requiredType);
standardConversion = true;
}
}
else {
// convertedValue == null
if (requiredType == Optional.class) {
convertedValue = Optional.empty();
}
}
if (!ClassUtils.isAssignableValue(requiredType, convertedValue)) {
if (conversionAttemptEx != null) {
// Original exception from former ConversionService call above...
throw conversionAttemptEx;
}
else if (conversionService != null && typeDescriptor != null) {
// ConversionService not tried before, probably custom editor found
// but editor couldn't produce the required type...
TypeDescriptor sourceTypeDesc = TypeDescriptor.forObject(newValue);
if (conversionService.canConvert(sourceTypeDesc, typeDescriptor)) {
return (T) conversionService.convert(newValue, sourceTypeDesc, typeDescriptor);
}
}
// Definitely doesn't match: throw IllegalArgumentException/IllegalStateException
StringBuilder msg = new StringBuilder();
msg.append("Cannot convert value of type '").append(ClassUtils.getDescriptiveType(newValue));
msg.append("' to required type '").append(ClassUtils.getQualifiedName(requiredType)).append("'");
if (propertyName != null) {
msg.append(" for property '").append(propertyName).append("'");
}
if (editor != null) {
msg.append(": PropertyEditor [").append(editor.getClass().getName()).append(
"] returned inappropriate value of type '").append(
ClassUtils.getDescriptiveType(convertedValue)).append("'");
throw new IllegalArgumentException(msg.toString());
}
else {
msg.append(": no matching editors or conversion strategy found");
throw new IllegalStateException(msg.toString());
}
}
}
if (conversionAttemptEx != null) {
if (editor == null && !standardConversion && requiredType != null && Object.class != requiredType) {
throw conversionAttemptEx;
}
logger.debug("Original ConversionService attempt failed - ignored since " +
"PropertyEditor based conversion eventually succeeded", conversionAttemptEx);
}
return (T) convertedValue;
}
首先从propertyEditorRegistry得到属性编辑器editor，如果editor==null并且propertyEditorRegistry含有ConversionService对象，则尝试使用ConversionService完成属性值转换。如果editor==null，findDefaultEditor()方法中调用propertyEditorRegistry.getDefaultEditor(requiredType)注册默认属性编辑器并从默认的属性编辑器查找requiredType对应的返回。doConvertValue()方法使用requiredType对应的一个默认的属性编辑器进行属性转换(针对convertedValue是String或String[])。后面是针对数组集合或Map的转换，不再一一查看了。
PropertyAccessor接口定义了对象属性读写相关的方法：
public interface PropertyAccessor {
String NESTED_PROPERTY_SEPARATOR = ".";
char NESTED_PROPERTY_SEPARATOR_CHAR = '.';
String PROPERTY_KEY_PREFIX = "[";
char PROPERTY_KEY_PREFIX_CHAR = '[';
String PROPERTY_KEY_SUFFIX = "]";
char PROPERTY_KEY_SUFFIX_CHAR = ']';
boolean isReadableProperty(String propertyName);
boolean isWritableProperty(String propertyName);
@Nullable
Class<?> getPropertyType(String propertyName) throws BeansException;
@Nullable
TypeDescriptor getPropertyTypeDescriptor(String propertyName) throws BeansException;
@Nullable
Object getPropertyValue(String propertyName) throws BeansException;
void setPropertyValue(String propertyName, @Nullable Object value) throws BeansException;
void setPropertyValue(PropertyValue pv) throws BeansException;
void setPropertyValues(Map<?, ?> map) throws BeansException;
void setPropertyValues(PropertyValues pvs) throws BeansException;
void setPropertyValues(PropertyValues pvs, boolean ignoreUnknown) throws BeansException;
void setPropertyValues(PropertyValues pvs, boolean ignoreUnknown, boolean ignoreInvalid) throws BeansException;
}
ConfigurablePropertyAccessor又扩展了PropertyAccessor。
public interface ConfigurablePropertyAccessor extends PropertyAccessor, PropertyEditorRegistry, TypeConverter {
void setConversionService(@Nullable ConversionService conversionService);
@Nullable
ConversionService getConversionService();
void setExtractOldValueForEditor(boolean extractOldValueForEditor);
boolean isExtractOldValueForEditor();
void setAutoGrowNestedPaths(boolean autoGrowNestedPaths);//对一个为null的属性设置值是是否实例化这个属性
boolean isAutoGrowNestedPaths();
}
AbstractPropertyAccessor中主要处理了ignoreUnknown与ignoreInvalid，其读写属性值交给抽象方法getPropertyValue()和setPropertyValue()由子类完成具体的实现。
public abstract class AbstractPropertyAccessor extends TypeConverterSupport implements ConfigurablePropertyAccessor {
private boolean extractOldValueForEditor = false;
private boolean autoGrowNestedPaths = false;
@Override
public void setExtractOldValueForEditor(boolean extractOldValueForEditor) {
this.extractOldValueForEditor = extractOldValueForEditor;
}
@Override
public boolean isExtractOldValueForEditor() {
return this.extractOldValueForEditor;
}
@Override
public void setAutoGrowNestedPaths(boolean autoGrowNestedPaths) {
this.autoGrowNestedPaths = autoGrowNestedPaths;
}
@Override
public boolean isAutoGrowNestedPaths() {
return this.autoGrowNestedPaths;
}
@Override
public void setPropertyValue(PropertyValue pv) throws BeansException {
setPropertyValue(pv.getName(), pv.getValue());
}
@Override
public void setPropertyValues(Map<?, ?> map) throws BeansException {
setPropertyValues(new MutablePropertyValues(map));
}
@Override
public void setPropertyValues(PropertyValues pvs) throws BeansException {
setPropertyValues(pvs, false, false);
}
@Override
public void setPropertyValues(PropertyValues pvs, boolean ignoreUnknown) throws BeansException {
setPropertyValues(pvs, ignoreUnknown, false);
}
@Override
public void setPropertyValues(PropertyValues pvs, boolean ignoreUnknown, boolean ignoreInvalid)
throws BeansException {
List<PropertyAccessException> propertyAccessExceptions = null;
List<PropertyValue> propertyValues = (pvs instanceof MutablePropertyValues ?
((MutablePropertyValues) pvs).getPropertyValueList() : Arrays.asList(pvs.getPropertyValues()));
for (PropertyValue pv : propertyValues) {
try {
// This method may throw any BeansException, which won't be caught
// here, if there is a critical failure such as no matching field.
// We can attempt to deal only with less serious exceptions.
setPropertyValue(pv);
}
catch (NotWritablePropertyException ex) {
if (!ignoreUnknown) {
throw ex;
}
// Otherwise, just ignore it and continue...
}
catch (NullValueInNestedPathException ex) {
if (!ignoreInvalid) {
throw ex;
}
// Otherwise, just ignore it and continue...
}
catch (PropertyAccessException ex) {
if (propertyAccessExceptions == null) {
propertyAccessExceptions = new LinkedList<>();
}
propertyAccessExceptions.add(ex);
}
}
// If we encountered individual exceptions, throw the composite exception.
if (propertyAccessExceptions != null) {
PropertyAccessException[] paeArray =
propertyAccessExceptions.toArray(new PropertyAccessException[propertyAccessExceptions.size()]);
throw new PropertyBatchUpdateException(paeArray);
}
}
// Redefined with public visibility.
@Override
@Nullable
public Class<?> getPropertyType(String propertyPath) {
return null;
}
@Override
@Nullable
public abstract Object getPropertyValue(String propertyName) throws BeansException;
@Override
public abstract void setPropertyValue(String propertyName, @Nullable Object value) throws BeansException;
}
AbstractNestablePropertyAccessor实现了读取写入的具体实现，它有四个重要的成员变量：
@Nullable
Object wrappedObject;//当前属性所代表的对象
private String nestedPath = "";//当前属性所在父对象的路径
@Nullable
Object rootObject;//父对象
/** Map with cached nested Accessors: nested path -> Accessor instance */
@Nullable
private Map<String, AbstractNestablePropertyAccessor> nestedPropertyAccessors;//当前对象的属性路径与该属性PropertyAccessor的映射缓存
@Override
public void setPropertyValue(String propertyName, @Nullable Object value) throws BeansException {
AbstractNestablePropertyAccessor nestedPa;
try {
nestedPa = getPropertyAccessorForPropertyPath(propertyName);
}
catch (NotReadablePropertyException ex) {
throw new NotWritablePropertyException(getRootClass(), this.nestedPath + propertyName,
"Nested property in path '" + propertyName + "' does not exist", ex);
}
PropertyTokenHolder tokens = getPropertyNameTokens(getFinalPath(nestedPa, propertyName));
nestedPa.setPropertyValue(tokens, new PropertyValue(propertyName, value));
}
对于设置属性值：
1、 首先找到该propertyName对应的AbstractNestablePropertyAccessor；
protected AbstractNestablePropertyAccessor getPropertyAccessorForPropertyPath(String propertyPath) {
int pos = PropertyAccessorUtils.getFirstNestedPropertySeparatorIndex(propertyPath);
// Handle nested properties recursively.
if (pos > -1) {
String nestedProperty = propertyPath.substring(0, pos);
String nestedPath = propertyPath.substring(pos + 1);
AbstractNestablePropertyAccessor nestedPa = getNestedPropertyAccessor(nestedProperty);
return nestedPa.getPropertyAccessorForPropertyPath(nestedPath);
}
else {
return this;
}
}
1、 1根据第一个非中括号内逗号，找到当前nestedPa的顶层属性；
1、 1.1如果pos==-1，则说明propertyPath是一个非嵌套属性，直接返回当前对象；
1、 1.2如果pos>-1则代表propertyPath是一个嵌套属性这时候需要沿着根对象一层一层向下找，直到当前层的propertyPath又是一个非嵌套属性；
private AbstractNestablePropertyAccessor getNestedPropertyAccessor(String nestedProperty) {
if (this.nestedPropertyAccessors == null) {
this.nestedPropertyAccessors = new HashMap<>();
}
// Get value of bean property.
PropertyTokenHolder tokens = getPropertyNameTokens(nestedProperty);
String canonicalName = tokens.canonicalName;
Object value = getPropertyValue(tokens);
if (value == null || (value instanceof Optional && !((Optional) value).isPresent())) {
if (isAutoGrowNestedPaths()) {
value = setDefaultValue(tokens);
}
else {
throw new NullValueInNestedPathException(getRootClass(), this.nestedPath + canonicalName);
}
}
// Lookup cached sub-PropertyAccessor, create new one if not found.
AbstractNestablePropertyAccessor nestedPa = this.nestedPropertyAccessors.get(canonicalName);
if (nestedPa == null || nestedPa.getWrappedInstance() != ObjectUtils.unwrapOptional(value)) {
if (logger.isTraceEnabled()) {
logger.trace("Creating new nested " + getClass().getSimpleName() + " for property '" + canonicalName + "'");
}
nestedPa = newNestedPropertyAccessor(value, this.nestedPath + canonicalName + NESTED_PROPERTY_SEPARATOR);
// Inherit all type-specific PropertyEditors.
copyDefaultEditorsTo(nestedPa);
copyCustomEditorsTo(nestedPa, canonicalName);
this.nestedPropertyAccessors.put(canonicalName, nestedPa);
}
else {
if (logger.isTraceEnabled()) {
logger.trace("Using cached nested property accessor for property '" + canonicalName + "'");
}
}
return nestedPa;
}
1、 1.2.1将nestedProperty转换为PropertyTokenHolder；
private PropertyTokenHolder getPropertyNameTokens(String propertyName) {
String actualName = null;
List<String> keys = new ArrayList<>(2);
int searchIndex = 0;
while (searchIndex != -1) {
int keyStart = propertyName.indexOf(PROPERTY_KEY_PREFIX, searchIndex);
searchIndex = -1;
if (keyStart != -1) {
int keyEnd = propertyName.indexOf(PROPERTY_KEY_SUFFIX, keyStart + PROPERTY_KEY_PREFIX.length());
if (keyEnd != -1) {
if (actualName == null) {
actualName = propertyName.substring(0, keyStart);
}
String key = propertyName.substring(keyStart + PROPERTY_KEY_PREFIX.length(), keyEnd);
if (key.length() > 1 && (key.startsWith("'") && key.endsWith("'")) ||
(key.startsWith("\"") && key.endsWith("\""))) {
key = key.substring(1, key.length() - 1);
}
keys.add(key);
searchIndex = keyEnd + PROPERTY_KEY_SUFFIX.length();
}
}
}
PropertyTokenHolder tokens = new PropertyTokenHolder(actualName != null ? actualName : propertyName);
if (!keys.isEmpty()) {
tokens.canonicalName += PROPERTY_KEY_PREFIX +
StringUtils.collectionToDelimitedString(keys, PROPERTY_KEY_SUFFIX + PROPERTY_KEY_PREFIX) +
PROPERTY_KEY_SUFFIX;
tokens.keys = StringUtils.toStringArray(keys);
}
return tokens;
}
1、 1.2.2读取当前嵌套属性的值；
protected Object getPropertyValue(PropertyTokenHolder tokens) throws BeansException {
String propertyName = tokens.canonicalName;
String actualName = tokens.actualName;
PropertyHandler ph = getLocalPropertyHandler(actualName);
if (ph == null || !ph.isReadable()) {
throw new NotReadablePropertyException(getRootClass(), this.nestedPath + propertyName);
}
try {
Object value = ph.getValue();
if (tokens.keys != null) {
if (value == null) {
if (isAutoGrowNestedPaths()) {
value = setDefaultValue(new PropertyTokenHolder(tokens.actualName));
}
else {
throw new NullValueInNestedPathException(getRootClass(), this.nestedPath + propertyName,
"Cannot access indexed value of property referenced in indexed " +
"property path '" + propertyName + "': returned null");
}
}
String indexedPropertyName = tokens.actualName;
// apply indexes and map keys
for (int i = 0; i < tokens.keys.length; i++) {
String key = tokens.keys[i];
if (value == null) {
throw new NullValueInNestedPathException(getRootClass(), this.nestedPath + propertyName,
"Cannot access indexed value of property referenced in indexed " +
"property path '" + propertyName + "': returned null");
}
else if (value.getClass().isArray()) {
int index = Integer.parseInt(key);
value = growArrayIfNecessary(value, index, indexedPropertyName);
value = Array.get(value, index);
}
else if (value instanceof List) {
int index = Integer.parseInt(key);
List<Object> list = (List<Object>) value;
growCollectionIfNecessary(list, index, indexedPropertyName, ph, i + 1);
value = list.get(index);
}
else if (value instanceof Set) {
// Apply index to Iterator in case of a Set.
Set<Object> set = (Set<Object>) value;
int index = Integer.parseInt(key);
if (index < 0 || index >= set.size()) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Cannot get element with index " + index + " from Set of size " +
set.size() + ", accessed using property path '" + propertyName + "'");
}
Iterator<Object> it = set.iterator();
for (int j = 0; it.hasNext(); j++) {
Object elem = it.next();
if (j == index) {
value = elem;
break;
}
}
}
else if (value instanceof Map) {
Map<Object, Object> map = (Map<Object, Object>) value;
Class<?> mapKeyType = ph.getResolvableType().getNested(i + 1).asMap().resolveGeneric(0);
// IMPORTANT: Do not pass full property name in here - property editors
// must not kick in for map keys but rather only for map values.
TypeDescriptor typeDescriptor = TypeDescriptor.valueOf(mapKeyType);
Object convertedMapKey = convertIfNecessary(null, null, key, mapKeyType, typeDescriptor);
value = map.get(convertedMapKey);
}
else {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Property referenced in indexed property path '" + propertyName +
"' is neither an array nor a List nor a Set nor a Map; returned value was [" + value + "]");
}
indexedPropertyName += PROPERTY_KEY_PREFIX + key + PROPERTY_KEY_SUFFIX;
}
}
return value;
}
catch (IndexOutOfBoundsException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Index of out of bounds in property path '" + propertyName + "'", ex);
}
catch (NumberFormatException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Invalid index in property path '" + propertyName + "'", ex);
}
catch (TypeMismatchException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Invalid index in property path '" + propertyName + "'", ex);
}
catch (InvocationTargetException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Getter for property '" + actualName + "' threw exception", ex);
}
catch (Exception ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + propertyName,
"Illegal attempt to get property '" + actualName + "' threw exception", ex);
}
}
1、 1.2.2.1通过当前属性简单名称得到一个PropertyHandler，该handler持有该属性描述符，通过属性描述符调用getter和setter方法实现对属性值的读写；
protected BeanPropertyHandler getLocalPropertyHandler(String propertyName) {
PropertyDescriptor pd = getCachedIntrospectionResults().getPropertyDescriptor(propertyName);
if (pd != null) {
return new BeanPropertyHandler(pd);
}
return null;
}
1、 1.2.3通过PropertyHandler获取当前属性值如果当前属性非集合或数组(“包含[]”)直接返回属性值，否则需要判断值是否为null，如果是null并且setAutoGrowNestedPaths(true)，构造一个默认值赋值给当前属性；
private Object setDefaultValue(PropertyTokenHolder tokens) {
pv = createDefaultPropertyValue(tokens);
setPropertyValue(tokens, pv);
Object defaultValue = getPropertyValue(tokens);
Assert.state(defaultValue != null, "Default value must not be null");
return defaultValue;
}
1、 1.2.3.1创建一个PropertyValue用于setPropertyValue()赋值；
private PropertyValue createDefaultPropertyValue(PropertyTokenHolder tokens) {
TypeDescriptor desc = getPropertyTypeDescriptor(tokens.canonicalName);
if (desc == null) {
throw new NullValueInNestedPathException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Could not determine property type for auto-growing a default value");
}
Object defaultValue = newValue(desc.getType(), desc, tokens.canonicalName);
return new PropertyValue(tokens.canonicalName, defaultValue);
}
1、 1.2.3.1.1得到当前属性的TypeDescriptor，内部通过子类的PropertyHandler取得；
public TypeDescriptor getPropertyTypeDescriptor(String propertyName) throws BeansException {
try {
AbstractNestablePropertyAccessor nestedPa = getPropertyAccessorForPropertyPath(propertyName);
String finalPath = getFinalPath(nestedPa, propertyName);
PropertyTokenHolder tokens = getPropertyNameTokens(finalPath);
PropertyHandler ph = nestedPa.getLocalPropertyHandler(tokens.actualName);
if (ph != null) {
if (tokens.keys != null) {
if (ph.isReadable() || ph.isWritable()) {
return ph.nested(tokens.keys.length);
}
}
else {
if (ph.isReadable() || ph.isWritable()) {
return ph.toTypeDescriptor();
}
}
}
}
catch (InvalidPropertyException ex) {
// Consider as not determinable.
}
return null;
}
1、 1.2.3.1.2为这个属性生成一个默认的值，具体默认值规则看下面代码，其中数组最多支持二维的；
private Object newValue(Class<?> type, @Nullable TypeDescriptor desc, String name) {
try {
if (type.isArray()) {
Class<?> componentType = type.getComponentType();
// TODO - only handles 2-dimensional arrays
if (componentType.isArray()) {
Object array = Array.newInstance(componentType, 1);
Array.set(array, 0, Array.newInstance(componentType.getComponentType(), 0));
return array;
}
else {
return Array.newInstance(componentType, 0);
}
}
else if (Collection.class.isAssignableFrom(type)) {
TypeDescriptor elementDesc = (desc != null ? desc.getElementTypeDescriptor() : null);
return CollectionFactory.createCollection(type, (elementDesc != null ? elementDesc.getType() : null), 16);
}
else if (Map.class.isAssignableFrom(type)) {
TypeDescriptor keyDesc = (desc != null ? desc.getMapKeyTypeDescriptor() : null);
return CollectionFactory.createMap(type, (keyDesc != null ? keyDesc.getType() : null), 16);
}
else {
Constructor<?> ctor = type.getDeclaredConstructor();
if (Modifier.isPrivate(ctor.getModifiers())) {
throw new IllegalAccessException("Auto-growing not allowed with private constructor: " + ctor);
}
return BeanUtils.instantiateClass(ctor);
}
}
catch (Throwable ex) {
throw new NullValueInNestedPathException(getRootClass(), this.nestedPath + name,
"Could not instantiate property type [" + type.getName() + "] to auto-grow nested property path", ex);
}
}
1、 1.2.3.2设置默认值，分两种情况；
protected void setPropertyValue(PropertyTokenHolder tokens, PropertyValue pv) throws BeansException {
if (tokens.keys != null) {
processKeyedProperty(tokens, pv);//使用父类的typeConverterDelegate的convertIfNessary（）方法完成对数组，集合，Map的转换
}
else {
processLocalProperty(tokens, pv);//普通java对象的转换
}
}
1、 1.2.3.3读取默认值返回ObjectdefaultValue=getPropertyValue(tokens);；
1、 1.2.4用当前属性值及当前propertyPath创建当前属性的属性访问器；
protected BeanWrapperImpl newNestedPropertyAccessor(Object object, String nestedPath) {
return new BeanWrapperImpl(object, nestedPath, this);
}
1、 1.2.5复制根对象的默认属性编辑器和自定义编辑器；
copyDefaultEditorsTo(nestedPa);
copyCustomEditorsTo(nestedPa, canonicalName);
2、 分解属性路径为PropertyTokenHolder上述过程的递归一直找到nestedPath；
3、 调用该属性propertyName对应的AbstractNestablePropertyAccessor的另一个setPropertyValue()方法完成对属性赋值，上面已经分析过；
最后说一下BeanWrapperImpl实现了BeanWrapper接口，提供了获取属性描述符的方法。
@Override
public PropertyDescriptor[] getPropertyDescriptors() {
return getCachedIntrospectionResults().getPropertyDescriptors();
}
@Override
public PropertyDescriptor getPropertyDescriptor(String propertyName) throws InvalidPropertyException {
BeanWrapperImpl nestedBw = (BeanWrapperImpl) getPropertyAccessorForPropertyPath(propertyName);
String finalPath = getFinalPath(nestedBw, propertyName);
PropertyDescriptor pd = nestedBw.getCachedIntrospectionResults().getPropertyDescriptor(finalPath);
if (pd == null) {
throw new InvalidPropertyException(getRootClass(), getNestedPath() + propertyName,
"No property '" + propertyName + "' found");
}
return pd;
}
PropertyDescriptor getPropertyDescriptor(String name) {
PropertyDescriptor pd = this.propertyDescriptorCache.get(name);
if (pd == null && StringUtils.hasLength(name)) {
// Same lenient fallback checking as in Property...
pd = this.propertyDescriptorCache.get(StringUtils.uncapitalize(name));
if (pd == null) {
pd = this.propertyDescriptorCache.get(StringUtils.capitalize(name));
}
}
return (pd == null || pd instanceof GenericTypeAwarePropertyDescriptor ? pd :
buildGenericTypeAwarePropertyDescriptor(getBeanClass(), pd));
}
PropertyDescriptor[] getPropertyDescriptors() {
PropertyDescriptor[] pds = new PropertyDescriptor[this.propertyDescriptorCache.size()];
int i = 0;
for (PropertyDescriptor pd : this.propertyDescriptorCache.values()) {
pds[i] = (pd instanceof GenericTypeAwarePropertyDescriptor ? pd :
buildGenericTypeAwarePropertyDescriptor(getBeanClass(), pd));
i++;
}
return pds;
}
还有一个就是上文提到的BeanPropertyHandler
protected BeanPropertyHandler getLocalPropertyHandler(String propertyName) {
PropertyDescriptor pd = getCachedIntrospectionResults().getPropertyDescriptor(propertyName);
if (pd != null) {
return new BeanPropertyHandler(pd);
}
return null;
}
BeanPropertyHandler持有了属性描述符，获取属性的getter和setter方法可以对属性完成读取和设置。
private class BeanPropertyHandler extends PropertyHandler {
private final PropertyDescriptor pd;
public BeanPropertyHandler(PropertyDescriptor pd) {
super(pd.getPropertyType(), pd.getReadMethod() != null, pd.getWriteMethod() != null);
this.pd = pd;
}
@Override
public ResolvableType getResolvableType() {
return ResolvableType.forMethodReturnType(this.pd.getReadMethod());
}
@Override
public TypeDescriptor toTypeDescriptor() {
return new TypeDescriptor(property(this.pd));
}
@Override
@Nullable
public TypeDescriptor nested(int level) {
return TypeDescriptor.nested(property(pd), level);
}
@Override
@Nullable
public Object getValue() throws Exception {
final Method readMethod = this.pd.getReadMethod();
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(readMethod);
return null;
});
try {
return AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () ->
readMethod.invoke(getWrappedInstance(), (Object[]) null), acc);
}
catch (PrivilegedActionException pae) {
throw pae.getException();
}
}
else {
ReflectionUtils.makeAccessible(readMethod);
return readMethod.invoke(getWrappedInstance(), (Object[]) null);
}
}
@Override
public void setValue(final @Nullable Object value) throws Exception {
final Method writeMethod = (this.pd instanceof GenericTypeAwarePropertyDescriptor ?
((GenericTypeAwarePropertyDescriptor) this.pd).getWriteMethodForActualAccess() :
this.pd.getWriteMethod());
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(writeMethod);
return null;
});
try {
AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () ->
writeMethod.invoke(getWrappedInstance(), value), acc);
}
catch (PrivilegedActionException ex) {
throw ex.getException();
}
}
else {
ReflectionUtils.makeAccessible(writeMethod);
writeMethod.invoke(getWrappedInstance(), value);
}
}
}
}
