前言
上一篇中，分析了OpenFeign 的初始化流程，最终会为@FeignClient标识的接口创建jdk动态代理对象。hander是FeignInvocationHandler，访问目标方法时，会进入到它的invoke( )方法。
1、进入代理方法
FeignInvocationHandler.java
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
if ("equals".equals(method.getName())) {
try {
Object otherHandler =
args.length > 0 && args[0] != null ? Proxy.getInvocationHandler(args[0]) : null;
return equals(otherHandler);
} catch (IllegalArgumentException e) {
return false;
}
} else if ("hashCode".equals(method.getName())) {
return hashCode();
} else if ("toString".equals(method.getName())) {
return toString();
}
//调用MethodHandler的invoke()方法，MethodHandler 有 SynchronousMethodHandler 和 DefaultMethodHandler
return dispatch.get(method).invoke(args);
}
2、SynchronousMethodHandler
@Override
public Object invoke(Object[] argv) throws Throwable {
//创建 RequestTemplate
RequestTemplate template = buildTemplateFromArgs.create(argv);
//从参数中获取Options或者使用默认的Options
Options options = findOptions(argv);
//重试策略
Retryer retryer = this.retryer.clone();
while (true) {
try {
//执行请求 解析响应
return executeAndDecode(template, options);
} catch (RetryableException e) {
try {
//异常 重试
retryer.continueOrPropagate(e);
} catch (RetryableException th) {
Throwable cause = th.getCause();
if (propagationPolicy == UNWRAP && cause != null) {
throw cause;
} else {
throw th;
}
}
if (logLevel != Logger.Level.NONE) {
logger.logRetry(metadata.configKey(), logLevel);
}
continue;
}
}
}
3、创建 RequestTemplate
@Override
public RequestTemplate create(Object[] argv) {

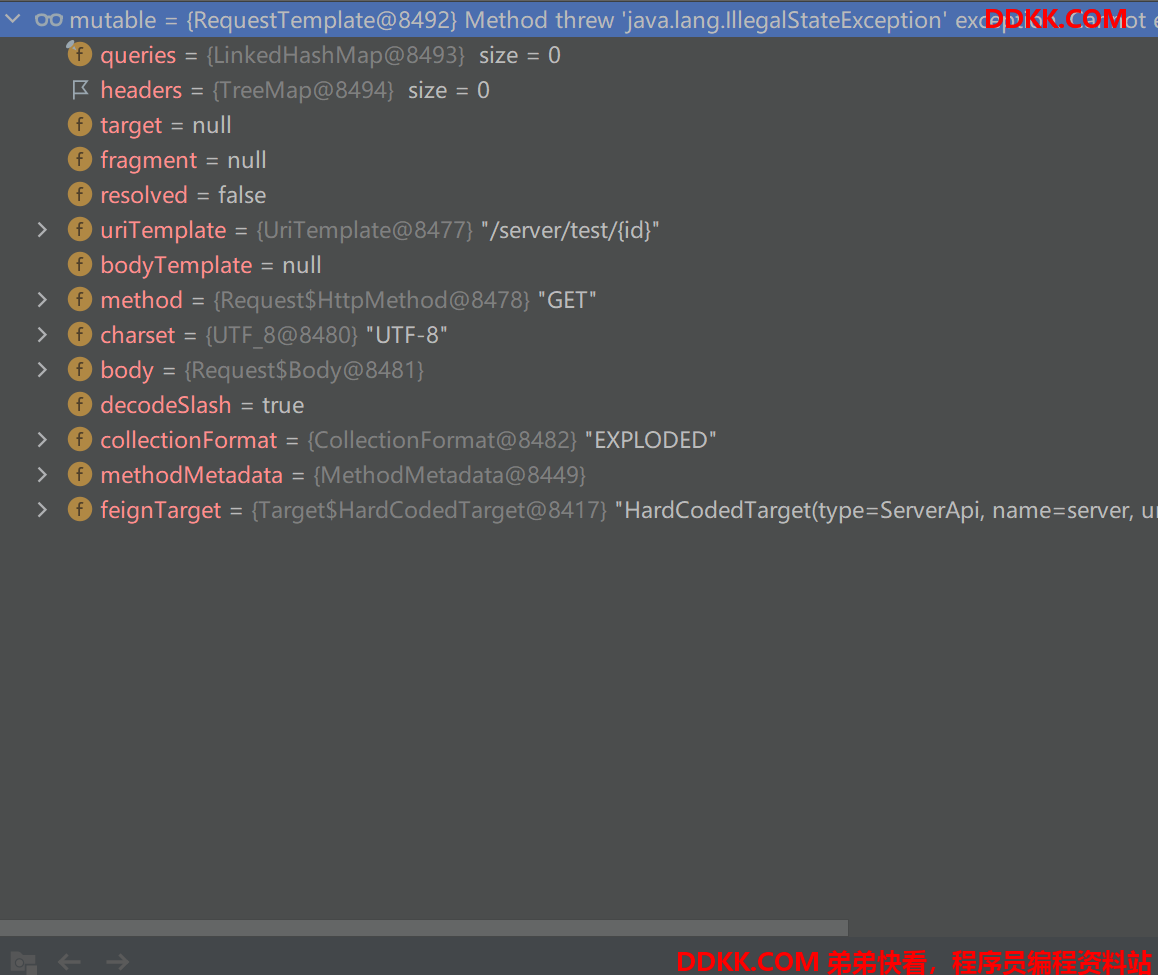

//根据请求接口方法的元数据信息创建新的 RequestTemplate 对象
RequestTemplate mutable = RequestTemplate.from(metadata.template());
mutable.feignTarget(target);
if (metadata.urlIndex() != null) {
int urlIndex = metadata.urlIndex();
checkArgument(argv[urlIndex] != null, "URI parameter %s was null", urlIndex);
mutable.target(String.valueOf(argv[urlIndex]));
}
Map<String, Object> varBuilder = new LinkedHashMap<String, Object>();
for (Entry<Integer, Collection<String>> entry : metadata.indexToName().entrySet()) {
int i = entry.getKey();
Object value = argv[entry.getKey()];
if (value != null) {
// Null values are skipped.
if (indexToExpander.containsKey(i)) {
value = expandElements(indexToExpander.get(i), value);
}
for (String name : entry.getValue()) {
varBuilder.put(name, value);
}
}
}
//占位符变量替换成值
RequestTemplate template = resolve(argv, mutable, varBuilder);
if (metadata.queryMapIndex() != null) {
// add query map parameters after initial resolve so that they take
// precedence over any predefined values
Object value = argv[metadata.queryMapIndex()];
Map<String, Object> queryMap = toQueryMap(value);
template = addQueryMapQueryParameters(queryMap, template);
}
if (metadata.headerMapIndex() != null) {
template =
addHeaderMapHeaders((Map<String, Object>) argv[metadata.headerMapIndex()], template);
}
return template;
}
RequestTemplate 包含了请求的远程服务端信息、请求的url、请求的参数等信息。
4、执行请求
1、executeAndDecode( )
Object executeAndDecode(RequestTemplate template, Options options) throws Throwable {
//调用 RequestInterceptor，创建 Request
Request request = targetRequest(template);
if (logLevel != Logger.Level.NONE) {
logger.logRequest(metadata.configKey(), logLevel, request);
}
Response response;
long start = System.nanoTime();
try {
//执行远程请求
response = client.execute(request, options);
// ensure the request is set. TODO: remove in Feign 12
response = response.toBuilder()
.request(request)
.requestTemplate(template)
.build();
} catch (IOException e) {
if (logLevel != Logger.Level.NONE) {
logger.logIOException(metadata.configKey(), logLevel, e, elapsedTime(start));
}
//出现异常时抛出重试异常 RetryableException
throw errorExecuting(request, e);
}
long elapsedTime = TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - start);
//对响应进行解析
if (decoder != null)
return decoder.decode(response, metadata.returnType());
CompletableFuture<Object> resultFuture = new CompletableFuture<>();
asyncResponseHandler.handleResponse(resultFuture, metadata.configKey(), response,
metadata.returnType(),
elapsedTime);
try {
if (!resultFuture.isDone())
throw new IllegalStateException("Response handling not done");
return resultFuture.join();
} catch (CompletionException e) {
Throwable cause = e.getCause();
if (cause != null)
throw cause;
throw e;
}
}
2、创建请求 targetRequest( )
Request targetRequest(RequestTemplate template) {
for (RequestInterceptor interceptor : requestInterceptors) {
interceptor.apply(template);
}
return target.apply(template);
}
3、执行请求
@Override
public Response execute(Request request, Request.Options options) throws IOException {
final URI originalUri = URI.create(request.url());
String serviceId = originalUri.getHost();
Assert.state(serviceId != null, "Request URI does not contain a valid hostname: " + originalUri);
String hint = getHint(serviceId);
//封装成 DefaultRequest
DefaultRequest<RequestDataContext> lbRequest = new DefaultRequest<>(
new RequestDataContext(buildRequestData(request), hint));
//获取LoadBalancerLifecycle
Set<LoadBalancerLifecycle> supportedLifecycleProcessors = LoadBalancerLifecycleValidator
.getSupportedLifecycleProcessors(
loadBalancerClientFactory.getInstances(serviceId, LoadBalancerLifecycle.class),
RequestDataContext.class, ResponseData.class, ServiceInstance.class);
//负载均衡执行前的回调
supportedLifecycleProcessors.forEach(lifecycle -> lifecycle.onStart(lbRequest));
//执行负载均衡，默认使用 RoundRobinLoadBalancer
ServiceInstance instance = loadBalancerClient.choose(serviceId, lbRequest);
org.springframework.cloud.client.loadbalancer.Response<ServiceInstance> lbResponse = new DefaultResponse(
instance);
if (instance == null) {
//远程没有可用的服务
String message = "Load balancer does not contain an instance for the service " + serviceId;
if (LOG.isWarnEnabled()) {
LOG.warn(message);
}
//负载均衡执行后的回调
supportedLifecycleProcessors.forEach(lifecycle -> lifecycle
.onComplete(new CompletionContext<ResponseData, ServiceInstance, RequestDataContext>(
CompletionContext.Status.DISCARD, lbRequest, lbResponse)));
//直接响应
return Response.builder().request(request).status(HttpStatus.SERVICE_UNAVAILABLE.value())
.body(message, StandardCharsets.UTF_8).build();
}
//远程有可用的服务时
//构建真正的请求url，将服务名称替换成 ip 地址
String reconstructedUrl = loadBalancerClient.reconstructURI(instance, originalUri).toString();
//创建新的 Request
Request newRequest = buildRequest(request, reconstructedUrl);
//执行请求
return executeWithLoadBalancerLifecycleProcessing(delegate, options, newRequest, lbRequest, lbResponse,
supportedLifecycleProcessors);
}
4、负载均衡请求 executeWithLoadBalancerLifecycleProcessing( )
static Response executeWithLoadBalancerLifecycleProcessing(Client feignClient, Request.Options options,
Request feignRequest, org.springframework.cloud.client.loadbalancer.Request lbRequest,
org.springframework.cloud.client.loadbalancer.Response<ServiceInstance> lbResponse,
Set<LoadBalancerLifecycle> supportedLifecycleProcessors, boolean loadBalanced) throws IOException {
//回调 onStartRequest
supportedLifecycleProcessors.forEach(lifecycle -> lifecycle.onStartRequest(lbRequest, lbResponse));
try {
//执行请求
Response response = feignClient.execute(feignRequest, options);
if (loadBalanced) {
//回调onComplete
supportedLifecycleProcessors.forEach(
lifecycle -> lifecycle.onComplete(new CompletionContext<>(CompletionContext.Status.SUCCESS,
lbRequest, lbResponse, buildResponseData(response))));
}
return response;
}
catch (Exception exception) {
if (loadBalanced) {
supportedLifecycleProcessors.forEach(lifecycle -> lifecycle.onComplete(
new CompletionContext<>(CompletionContext.Status.FAILED, exception, lbRequest, lbResponse)));
}
throw exception;
}
}
5、execute( )
@Override
public Response execute(Request request, Options options) throws IOException {
//发送请求
HttpURLConnection connection = convertAndSend(request, options);
//处理响应
return convertResponse(connection, request);
}
6、发送请求
HttpURLConnection convertAndSend(Request request, Options options) throws IOException {
//创建 URL
final URL url = new URL(request.url());
//打开连接 HttpURLConnection
final HttpURLConnection connection = this.getConnection(url);
if (connection instanceof HttpsURLConnection) {
//https sslContextFactory hostnameVerifier
HttpsURLConnection sslCon = (HttpsURLConnection) connection;
if (sslContextFactory != null) {
sslCon.setSSLSocketFactory(sslContextFactory);
}
if (hostnameVerifier != null) {
sslCon.setHostnameVerifier(hostnameVerifier);
}
}
//connection 属性设置
connection.setConnectTimeout(options.connectTimeoutMillis());
connection.setReadTimeout(options.readTimeoutMillis());
connection.setAllowUserInteraction(false);
connection.setInstanceFollowRedirects(options.isFollowRedirects());
connection.setRequestMethod(request.httpMethod().name());
Collection<String> contentEncodingValues = request.headers().get(CONTENT_ENCODING);
boolean gzipEncodedRequest =
contentEncodingValues != null && contentEncodingValues.contains(ENCODING_GZIP);
boolean deflateEncodedRequest =
contentEncodingValues != null && contentEncodingValues.contains(ENCODING_DEFLATE);
boolean hasAcceptHeader = false;
Integer contentLength = null;
for (String field : request.headers().keySet()) {
if (field.equalsIgnoreCase("Accept")) {
hasAcceptHeader = true;
}
for (String value : request.headers().get(field)) {
if (field.equals(CONTENT_LENGTH)) {
if (!gzipEncodedRequest && !deflateEncodedRequest) {
contentLength = Integer.valueOf(value);
connection.addRequestProperty(field, value);
}
} else {
connection.addRequestProperty(field, value);
}
}
}
// Some servers choke on the default accept string.
if (!hasAcceptHeader) {
connection.addRequestProperty("Accept", "*/*");
}
if (request.body() != null) {
if (disableRequestBuffering) {
if (contentLength != null) {
connection.setFixedLengthStreamingMode(contentLength);
} else {
connection.setChunkedStreamingMode(8196);
}
}
connection.setDoOutput(true);
OutputStream out = connection.getOutputStream();
if (gzipEncodedRequest) {
out = new GZIPOutputStream(out);
} else if (deflateEncodedRequest) {
out = new DeflaterOutputStream(out);
}
try {
//发送请求
out.write(request.body());
} finally {
try {
out.close();
} catch (IOException suppressed) {
// NOPMD
}
}
}
return connection;
}
}
7、处理响应
Response convertResponse(HttpURLConnection connection, Request request) throws IOException {
//响应状态码
int status = connection.getResponseCode();
//原因
String reason = connection.getResponseMessage();
if (status < 0) {
throw new IOException(format("Invalid status(%s) executing %s %s", status,
connection.getRequestMethod(), connection.getURL()));
}
Map<String, Collection<String>> headers = new LinkedHashMap<>();
for (Map.Entry<String, List<String>> field : connection.getHeaderFields().entrySet()) {
// response message
if (field.getKey() != null) {
headers.put(field.getKey(), field.getValue());
}
}
Integer length = connection.getContentLength();
if (length == -1) {
length = null;
}
InputStream stream;
if (status >= 400) {
stream = connection.getErrorStream();
} else {
stream = connection.getInputStream();
}
//创建Response，封装响应的信息
return Response.builder()
.status(status)
.reason(reason)
.headers(headers)
.request(request)
.body(stream, length)
.build();
}
5、DefaultMethodHandler
和SynchronousMethodHandler 一样继承MethodHandler，SynchronousMethodHandler 用于执行远程服务端方法，DefaultMethodHandler用于处理接口中的默认方法。
//方法句柄
private final MethodHandle unboundHandle;
private MethodHandle handle;
public DefaultMethodHandler(Method defaultMethod) {
try {
Class<?> declaringClass = defaultMethod.getDeclaringClass();
Field field = Lookup.class.getDeclaredField("IMPL_LOOKUP");
field.setAccessible(true);
Lookup lookup = (Lookup) field.get(null);
//创建方法句柄
this.unboundHandle = lookup.unreflectSpecial(defaultMethod, declaringClass);
} catch (NoSuchFieldException ex) {
throw new IllegalStateException(ex);
} catch (IllegalAccessException ex) {
throw new IllegalStateException(ex);
}
}
public void bindTo(Object proxy) {
if (handle != null) {
throw new IllegalStateException(
"Attempted to rebind a default method handler that was already bound");
}
//绑定代理对象
handle = unboundHandle.bindTo(proxy);
}
@Override
public Object invoke(Object[] argv) throws Throwable {
if (handle == null) {
throw new IllegalStateException(
"Default method handler invoked before proxy has been bound.");
}
//执行接口默认方法
return handle.invokeWithArguments(argv);
}
}
