18、MyBatis速成 - 一级缓存

MyBatis 包含一个非常强大的查询缓存特性,它可以非常方便地配置和定制。MyBatis 3 中的缓存实现的很多改进都已经实现了,使得它更加强大而且易于配置。

默认情况下是没有开启缓存（二级缓存-全局缓存）的,除了局部的 session 缓存,可以增强变现而且处理循环依赖也是必须的。
局部session也就是说的一级缓存（本地缓存），本篇内容将对一级缓存做一下展示和介绍

1.一级缓存效果

下面先看一下一级缓存的效果：

创建实体类
Employee

package org.mybatis.cache;

public class Employee {


    private Integer id;
    private String lastName;
    private String email;
    private String gender;

    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getLastName() {
        return lastName;
    }
    public void setLastName(String lastName) {
        this.lastName = lastName;
    }
    public String getEmail() {
        return email;
    }
    public void setEmail(String email) {
        this.email = email;
    }
    public String getGender() {
        return gender;
    }
    public void setGender(String gender) {
        this.gender = gender;
    }
    public String toString() {
        return "Employee [id=" + id + ", lastName=" + lastName + ", email="
                + email + ", gender=" + gender + "]";
    }

}

创建接口
EmployeeMapper

package org.mybatis.cache;

public interface EmployeeMapper {



    public Employee getEmpById(Integer id);

}

创建映射配置文件
cachemapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="org.mybatis.cache.EmployeeMapper">

    <select id="getEmpById" resultType="org.mybatis.cache.Employee">
        select * from mybatis_employee me where me.id ={id}
    </select>

</mapper>

创建主配置文件
mybatis-config-cache.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <properties resource="db.properties"></properties>

    <settings>
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <setting name="lazyLoadingEnabled" value="true" />
        <setting name="aggressiveLazyLoading" value="false"/>
    </settings>

    <typeAliases>
        <!-- 为包下的所有类起别名，默认为类名大小写（不区分大小写） -->
        <package name="org.mybatis.cache"/>
    </typeAliases>
    <!-- 默认development是开发环境，如果改成test则表示使用测试环境 -->
    <environments default="dev_mysql">
        <environment id="dev_mysql">
            <transactionManager type="JDBC" />
            <dataSource type="POOLED">
                <property name="driver" value="${mysql.driver}" />
                <property name="url" value="${mysql.url}" />
                <property name="username" value="${mysql.username}" />
                <property name="password" value="${mysql.password}" />
            </dataSource>
        </environment>

        <environment id="test_mysql">
            <transactionManager type="JDBC"></transactionManager>
            <dataSource type="POOLED">
                <property name="driver" value="${mysql.drivertest}" />
                <property name="url" value="${mysql.urltest}" />
                <property name="username" value="${mysql.usernametest}" />
                <property name="password" value="${mysql.passwordtest}" />
            </dataSource>
        </environment>

    </environments>

    <mappers>
        <mapper resource="mapper/cachemapper.xml"/>
    </mappers>
</configuration>

创建测试类

package org.mybatis.cache;

import java.io.IOException;
import java.io.InputStream;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;

public class MybatisTest {



    @Test
    public void testMybatis() {
        String resource = "mybatis-config-cache.xml";//全局配置文件

        InputStream inputStream = null;
        SqlSessionFactory sqlSessionFactory = null;
        SqlSession sqlSession = null;
        try {
            inputStream = Resources.getResourceAsStream(resource);
            sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
            sqlSession = sqlSessionFactory.openSession();

            EmployeeMapper mapper = sqlSession.getMapper(EmployeeMapper.class);
            Employee emp1 = mapper.getEmpById(2);
            System.out.println(emp1);
            System.out.println("######");
            Employee emp2 = mapper.getEmpById(2);
            System.out.println(emp2);
            sqlSession.close();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
        }
    }
}

查询id=2的Employee在测试类中操作了两次，测试结果：

DEBUG - ooo Using Connection [com.mysql.jdbc.JDBC4Connection@47db50c5]
DEBUG - ==> Preparing: select * from mybatis_employee me where me.id = ?
DEBUG - ==> Parameters: 2(Integer)
Employee [id=2, lastName=lisi, email=tang_greatman@qq.com, gender=2]
\######
Employee [id=2, lastName=lisi, email=tang_greatman@qq.com, gender=2]
true
DEBUG - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@47db50c5]
DEBUG - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@47db50c5]
DEBUG - Returned connection 1205555397 to pool.

结果中只执行了一次sql查询，剩下的一次查询实际上就是从mybatis缓存中获取到的数据。

2.一级缓存失效情况

1）sqlSession不同

@Test
public void testMybatis() {
    String resource = "mybatis-config-cache.xml";//全局配置文件

    InputStream inputStream = null;
    SqlSessionFactory sqlSessionFactory = null;

    try {
        inputStream = Resources.getResourceAsStream(resource);
        sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

        SqlSession sqlSession1 = sqlSessionFactory.openSession();
        EmployeeMapper mapper1 = sqlSession1.getMapper(EmployeeMapper.class);
        Employee emp1 = mapper1.getEmpById(2);
        System.out.println(emp1);
        System.out.println("######");

        SqlSession sqlSession2 = sqlSessionFactory.openSession();
        EmployeeMapper mapper2 = sqlSession2.getMapper(EmployeeMapper.class);

        Employee emp2 = mapper2.getEmpById(2);
        System.out.println(emp2);

        sqlSession1.close();
        sqlSession2.close();
    } catch (IOException e) {
        e.printStackTrace();
    } finally {
    }
}

2）sqlSession相同，查询条件不同（一级缓存中还没有缓存该数据）

@Test
public void testMybatis() {
    String resource = "mybatis-config-cache.xml";//全局配置文件

    InputStream inputStream = null;
    SqlSessionFactory sqlSessionFactory = null;

    try {
        inputStream = Resources.getResourceAsStream(resource);
        sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

        SqlSession sqlSession1 = sqlSessionFactory.openSession();
        EmployeeMapper mapper1 = sqlSession1.getMapper(EmployeeMapper.class);
        Employee emp1 = mapper1.getEmpById(2);
        System.out.println(emp1);

        System.out.println("######");

        Employee emp2 = mapper1.getEmpById(3);
        System.out.println(emp2);

        System.out.println(emp1 == emp2);

        sqlSession1.close();
    } catch (IOException e) {
        e.printStackTrace();
    } finally {
    }
}

3）sqlSession相同，两次查询之间做了增删改操作

EmployeeMapper接口添加新增方法

public void addEmp(Employee emp);

cachemapper.xml配置文件中添加新增方法配置

<insert id="addEmp" parameterType="org.mybatis.cache.Employee" useGeneratedKeys="true" keyProperty="id">
        insert into mybatis_employee
        (last_name,email,gender)
        values
        (#{lastName},#{email},#{gender});
    </insert>

@Test
    public void testMybatis() {
        String resource = "mybatis-config-cache.xml";//全局配置文件

        InputStream inputStream = null;
        SqlSessionFactory sqlSessionFactory = null;

        try {
            inputStream = Resources.getResourceAsStream(resource);
            sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

            SqlSession sqlSession1 = sqlSessionFactory.openSession();
            EmployeeMapper mapper1 = sqlSession1.getMapper(EmployeeMapper.class);
            Employee emp1 = mapper1.getEmpById(2);
            System.out.println(emp1);

            System.out.println("######");

            //执行增删改操作
            mapper1.addEmp(new Employee(null, "xiaohua", "295273263@qq.com", "1"));
            sqlSession1.commit();

            Employee emp2 = mapper1.getEmpById(2);
            System.out.println(emp2);

            System.out.println(emp1 == emp2);

            sqlSession1.close();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {

        }
    }

4）sqlSession相同，手动清除了一级缓存

@Test
public void testMybatis() {
    String resource = "mybatis-config-cache.xml";//全局配置文件

    InputStream inputStream = null;
    SqlSessionFactory sqlSessionFactory = null;

    try {
        inputStream = Resources.getResourceAsStream(resource);
        sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

        SqlSession sqlSession1 = sqlSessionFactory.openSession();
        EmployeeMapper mapper1 = sqlSession1.getMapper(EmployeeMapper.class);
        Employee emp1 = mapper1.getEmpById(2);
        System.out.println(emp1);

        System.out.println("######");

        //手动清楚sqlSession缓存
        sqlSession1.clearCache();

        Employee emp2 = mapper1.getEmpById(2);
        System.out.println(emp2);

        System.out.println(emp1 == emp2);

        sqlSession1.close();
    } catch (IOException e) {
        e.printStackTrace();
    } finally {

    }
}

以上介绍了一级缓存失效或者不起作用的几种情况。
当然还有一点可能会被忽视：在执行操作未完成情况下数据库该条内容发生改变，mybatis是无法判别的，mybatis还是取sqlSession缓存操作

@Test
    public void testMybatis() {
        String resource = "mybatis-config-cache.xml";//全局配置文件

        InputStream inputStream = null;
        SqlSessionFactory sqlSessionFactory = null;

        try {
            inputStream = Resources.getResourceAsStream(resource);
            sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

            SqlSession sqlSession1 = sqlSessionFactory.openSession();
            EmployeeMapper mapper1 = sqlSession1.getMapper(EmployeeMapper.class);
            Employee emp1 = mapper1.getEmpById(2);
            System.out.println(emp1);

            System.out.println("######");

            try {
                Thread.sleep(1000*20);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }

            Employee emp2 = mapper1.getEmpById(2);
            System.out.println(emp2);

            System.out.println(emp1 == emp2);

            sqlSession1.close();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {

        }
    }

3.一级缓存原理

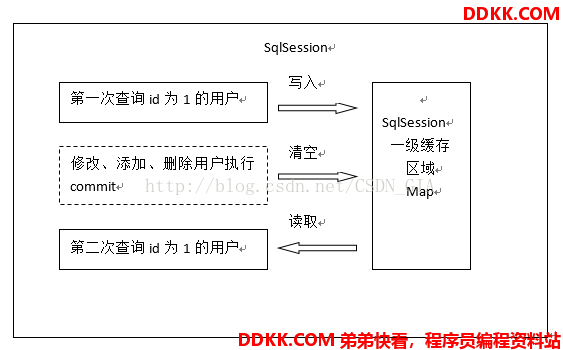

一级缓存原理实现：实际在sqlsession中有一个数据区域，是map结构，这个区域就是一级缓存区域。
一级缓存中的key是由sql语句、条件、statement等信息组成一个唯一值。一级缓存中的value，就是查询出的结果对象。

图片引自mybatis–查询缓存
