Nacos 教程 - 服务发现之微服务协作调用demo

前言

微服务调用小案例。

代码已共享至Gitee:https://gitee.com/lengcz/nacosdiscovery01.git

微服务调用demo

第一步、新建父工程

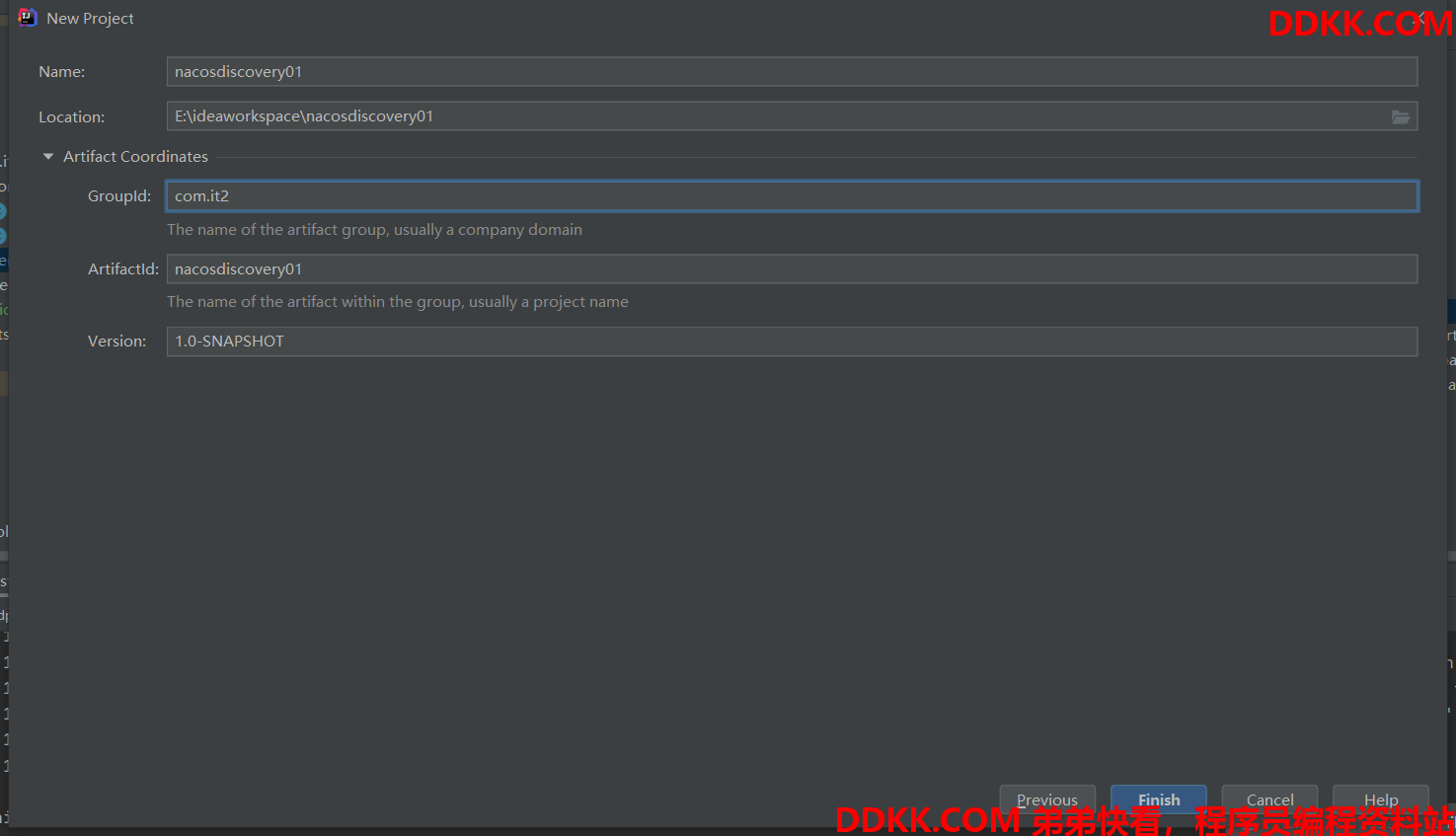

1、新建父工程；
2、引入依赖(全pom文件)；

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.it2</groupId>
    <artifactId>nacosdiscovery01</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <!--配置依赖管理-->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.1.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-dependencies -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-dependencies -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.1.3.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <!--配置插件-->
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

第二步、服务生产者

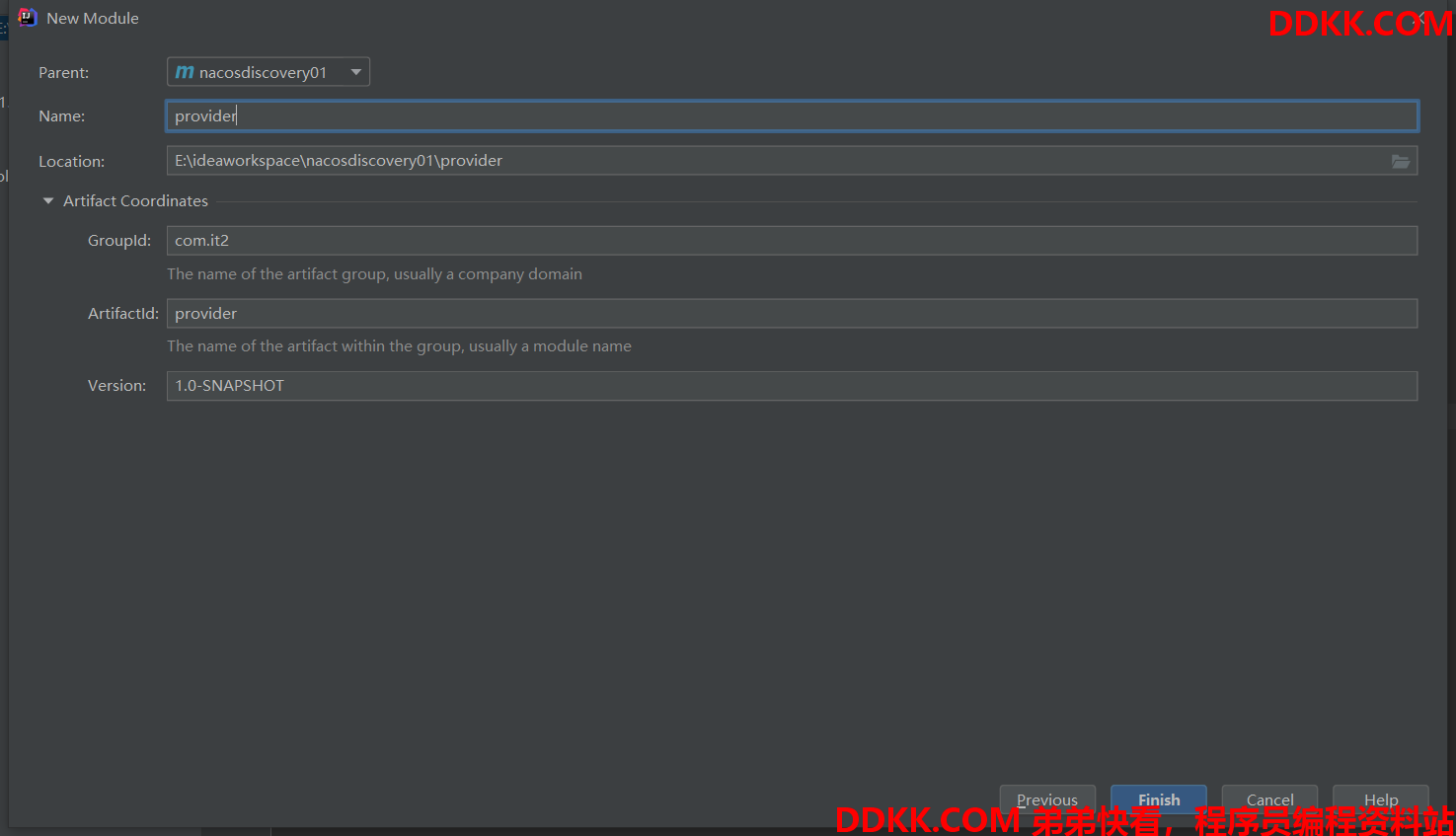

1、创建模块；
2、引入依赖；

<dependencies>
    <!--用于服务注册和发现-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--用于服务调用和负载均衡-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>
</dependencies>

1、创建配置文件application.yml；

server:
  port: ${

     port:10001}
spring:
  application:
    name: provider
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
logging:
  level:
    root: info
    org.springframework: info

1、编写一个controller对外提供服务；

@RestController
public class ProviderController {



    private static final Logger LOG= LoggerFactory.getLogger(ProviderController.class);

    @GetMapping("/service")
    public String service(){


        LOG.info("provider invoke");
        return "provider invoke";
    }
}

1、编写启动类；

@SpringBootApplication
@EnableDiscoveryClient  //开启服务发现客户端
@EnableFeignClients     //开启Feign客户端
public class ProviderApp {



    public static void main(String[] args) {


        SpringApplication.run(ProviderApp.class,args);
    }
}

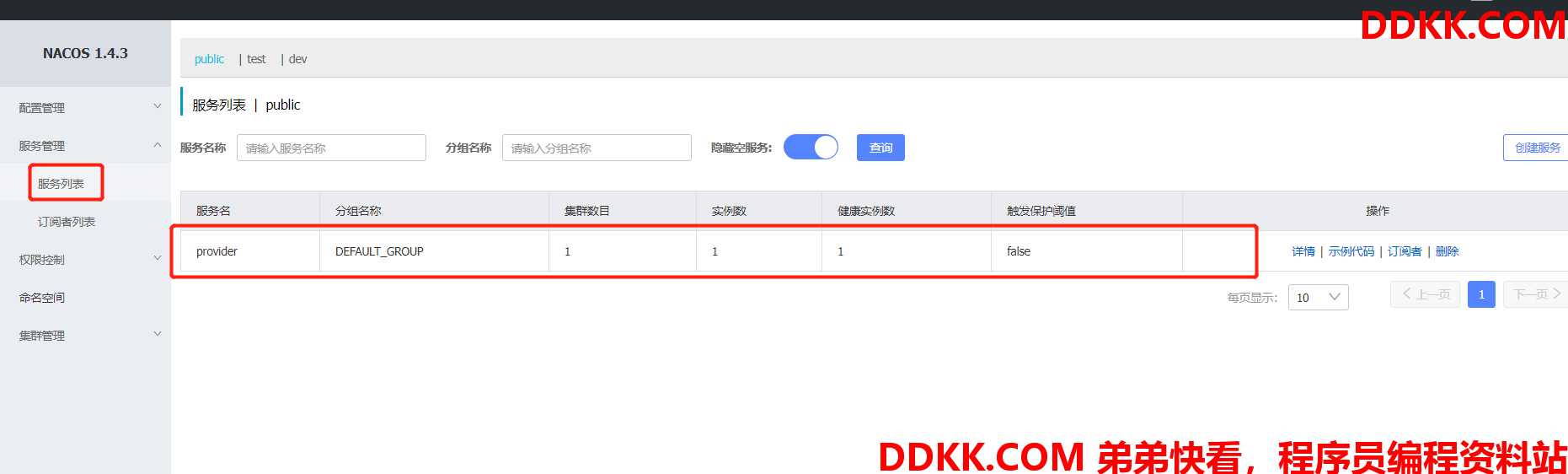

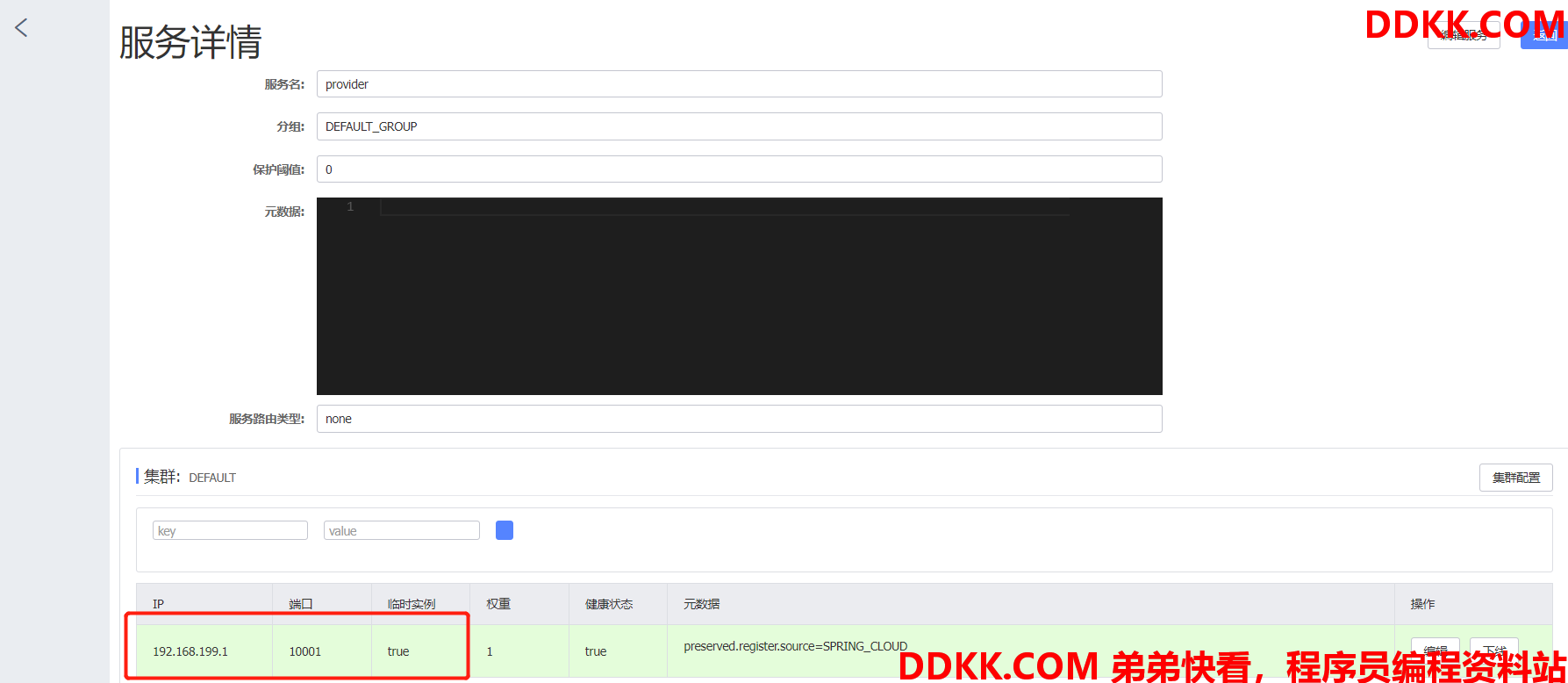

1、启动应用，查看nacos的服务列表，可以看到我们刚刚注册的provider服务，点击详情，可以看到客户端的列表；

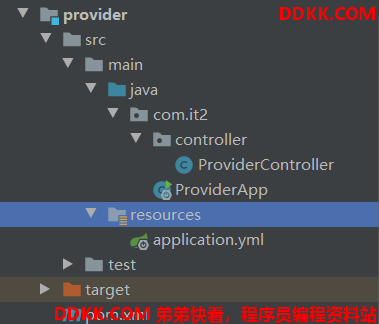

代码结构(供参考)

第三步、消费者

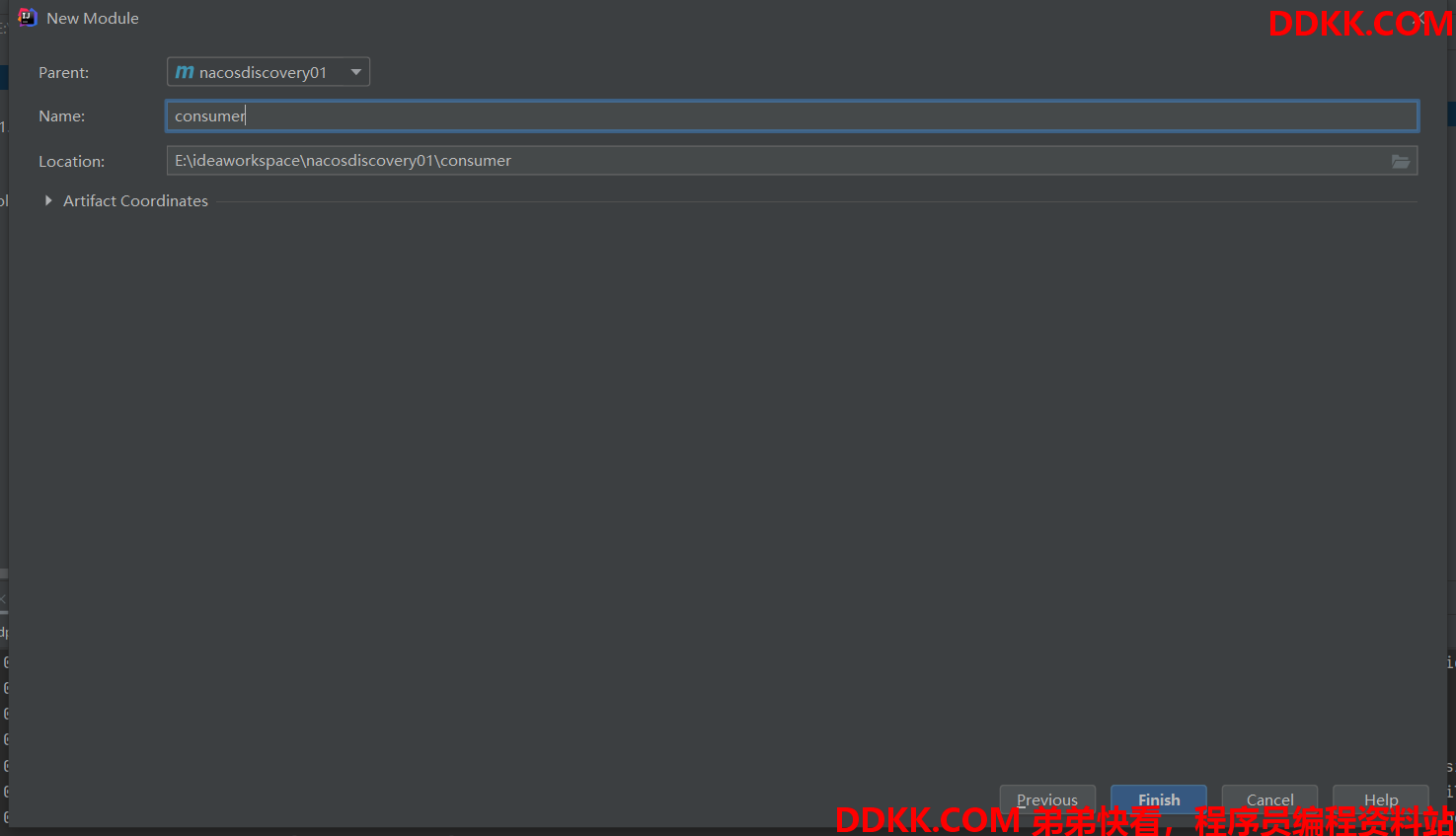

1、创建模块；
2、引入依赖；

<dependencies>
    <!--用于服务注册和发现-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--用于服务调用和负载均衡-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>
</dependencies>

1、创建配置文件application.yml；

server:
  port: ${

     port:10002}
spring:
  application:
    name: consumer
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
logging:
  level:
    root: info
    org.springframework: info

1、生产者的远程代理定义(通常我们将其定义在单独的包)；

/**
 * 定义远程调用
 */
@FeignClient(value="provider")   //value值是注册到nacos的服务名
public interface ProviderClient {



    @GetMapping("/service")
    public String service();
}

1、消费者的实现；

@RestController
public class ConsumerController {


    private static final Logger LOG= LoggerFactory.getLogger(ConsumerController.class);

    /**
     * 动态代理对象，内部远程调用生产者
     */
    @Autowired
    private ProviderClient providerClient;

    @GetMapping("/service")
    public String service(){


        LOG.info("consumer invoke");
        String result=providerClient.service(); //远程调用
        return "consumer invoke | "+result;
    }
}

1、编写启动类；

@SpringBootApplication
@EnableDiscoveryClient  //开启服务发现客户端
@EnableFeignClients     //开启Feign客户端
public class ConsumerApp {



    public static void main(String[] args) {


        SpringApplication.run(ConsumerApp.class,args);
    }
}

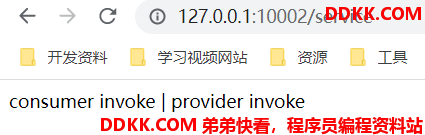

1、启动并访问接口http://127.0.0.1:10002/service；

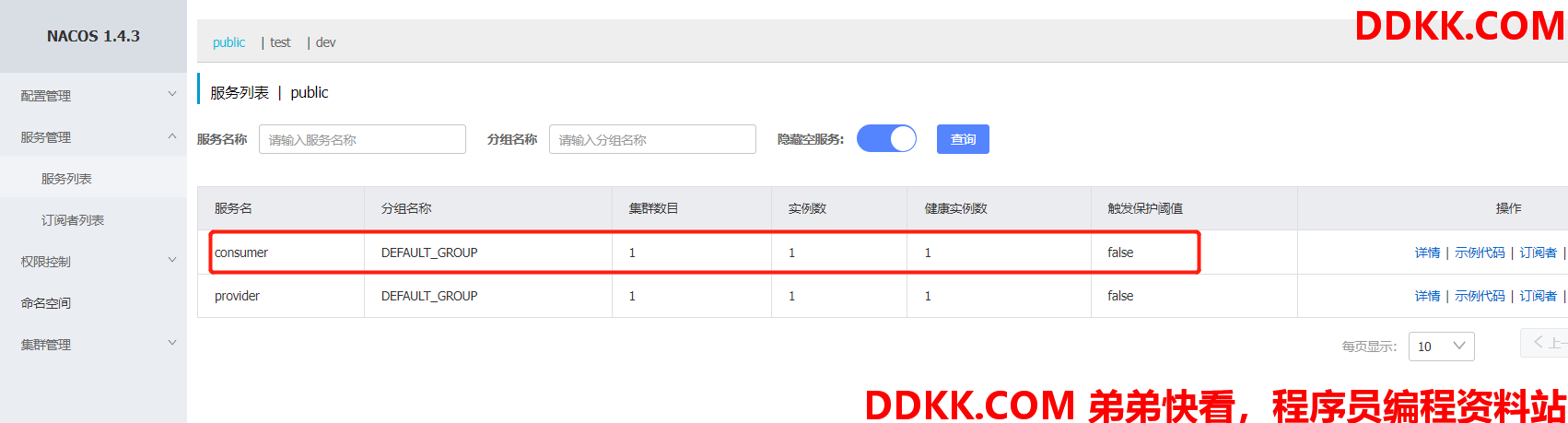

后台可以查看到消费者也注册到了发现中心。

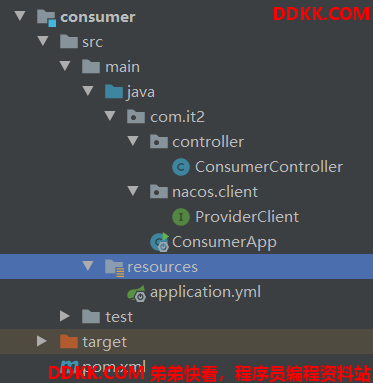

代码结构(供参考)
