02、Spring Security 实战 - 默认登录页面怎么来的?

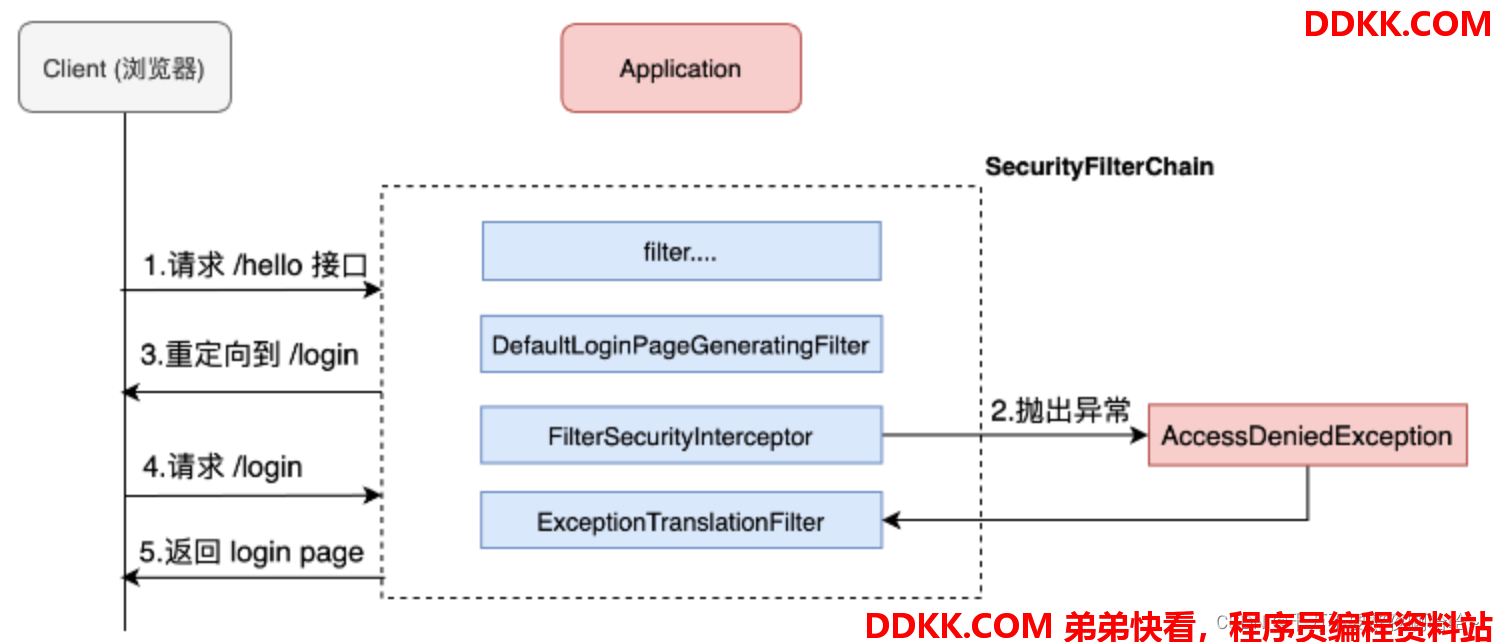

流程分析:



1、 请求/hello接口,在引入springsecurity之后会先经过一些列过滤器;
2、 在请求到达FilterSecurityInterceptor时,发现请求并未认证请求拦截下来,并抛出AccessDeniedException异常;
3. 抛出 AccessDeniedException 的异常会被 ExceptionTranslationFilter 捕获,这个 Filter 中会调用 LoginUrlAuthenticationEntryPoint#commence方法给客户端返回 302,要求客户端进行重定向到 /login ⻚面。 4、 客户端发送/login请求;
5、 /login请求会再次被拦截器中DefaultLoginPageGeneratingFilter拦截到,并在拦截器中返回生成登录⻚面;

如何生成默认登录页面?进入 DefaultLoginPageGeneratingFilter 源码:

public class DefaultLoginPageGeneratingFilter extends GenericFilterBean {


    	private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
			throws IOException, ServletException {


		boolean loginError = isErrorPage(request);
		boolean logoutSuccess = isLogoutSuccess(request);
		if (isLoginUrlRequest(request) || loginError || logoutSuccess) {


            // 生成登录页面
			String loginPageHtml = generateLoginPageHtml(request, loginError, logoutSuccess);
			response.setContentType("text/html;charset=UTF-8");
			response.setContentLength(loginPageHtml.getBytes(StandardCharsets.UTF_8).length);
            // 将登录页面响应给客户端
			response.getWriter().write(loginPageHtml);
			return;
		}
		chain.doFilter(request, response);
	}

    private String generateLoginPageHtml(HttpServletRequest request, boolean loginError, boolean logoutSuccess) {


		String errorMsg = "Invalid credentials";
		if (loginError) {


			HttpSession session = request.getSession(false);
			if (session != null) {


				AuthenticationException ex = (AuthenticationException) session
						.getAttribute(WebAttributes.AUTHENTICATION_EXCEPTION);
				errorMsg = (ex != null) ? ex.getMessage() : "Invalid credentials";
			}
		}
		String contextPath = request.getContextPath();
        // 登录页面:拼接前端登录页面字符串
		StringBuilder sb = new StringBuilder();
		sb.append("<!DOCTYPE html>\n");
		sb.append("<html lang=\"en\">\n");
		sb.append("  <head>\n");
		sb.append("    <meta charset=\"utf-8\">\n");
		sb.append("    <meta name=\"viewport\" content=\"width=device-width, initial-scale=1, shrink-to-fit=no\">\n");
		sb.append("    <meta name=\"description\" content=\"\">\n");
		sb.append("    <meta name=\"author\" content=\"\">\n");
		sb.append("    <title>Please sign in</title>\n");
		sb.append("    <link href=\"https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0-beta/css/bootstrap.min.css\" "
				+ "rel=\"stylesheet\" integrity=\"sha384-/Y6pD6FV/Vv2HJnA6t+vslU6fwYXjCFtcEpHbNJ0lyAFsXTsjBbfaDjzALeQsN6M\" crossorigin=\"anonymous\">\n");
		sb.append("    <link href=\"https://getbootstrap.com/docs/4.0/examples/signin/signin.css\" "
				+ "rel=\"stylesheet\" crossorigin=\"anonymous\"/>\n");
		sb.append("  </head>\n");
		sb.append("  <body>\n");
		sb.append("     <div class=\"container\">\n");
		if (this.formLoginEnabled) {


			sb.append("      <form class=\"form-signin\" method=\"post\" action=\"" + contextPath
					+ this.authenticationUrl + "\">\n");
			sb.append("        <h2 class=\"form-signin-heading\">Please sign in</h2>\n");
			sb.append(createError(loginError, errorMsg) + createLogoutSuccess(logoutSuccess) + "        <p>\n");
			sb.append("          <label for=\"username\" class=\"sr-only\">Username</label>\n");
			sb.append("          <input type=\"text\" id=\"username\" name=\"" + this.usernameParameter
					+ "\" class=\"form-control\" placeholder=\"Username\" required autofocus>\n");
			sb.append("        </p>\n");
			sb.append("        <p>\n");
			sb.append("          <label for=\"password\" class=\"sr-only\">Password</label>\n");
			sb.append("          <input type=\"password\" id=\"password\" name=\"" + this.passwordParameter
					+ "\" class=\"form-control\" placeholder=\"Password\" required>\n");
			sb.append("        </p>\n");
			sb.append(createRememberMe(this.rememberMeParameter) + renderHiddenInputs(request));
			sb.append("        <button class=\"btn btn-lg btn-primary btn-block\" type=\"submit\">Sign in</button>\n");
			sb.append("      </form>\n");
		}
		if (this.openIdEnabled) {


			sb.append("      <form name=\"oidf\" class=\"form-signin\" method=\"post\" action=\"" + contextPath
					+ this.openIDauthenticationUrl + "\">\n");
			sb.append("        <h2 class=\"form-signin-heading\">Login with OpenID Identity</h2>\n");
			sb.append(createError(loginError, errorMsg) + createLogoutSuccess(logoutSuccess) + "        <p>\n");
			sb.append("          <label for=\"username\" class=\"sr-only\">Identity</label>\n");
			sb.append("          <input type=\"text\" id=\"username\" name=\"" + this.openIDusernameParameter
					+ "\" class=\"form-control\" placeholder=\"Username\" required autofocus>\n");
			sb.append("        </p>\n");
			sb.append(createRememberMe(this.openIDrememberMeParameter) + renderHiddenInputs(request));
			sb.append("        <button class=\"btn btn-lg btn-primary btn-block\" type=\"submit\">Sign in</button>\n");
			sb.append("      </form>\n");
		}
		if (this.oauth2LoginEnabled) {


			sb.append("<h2 class=\"form-signin-heading\">Login with OAuth 2.0</h2>");
			sb.append(createError(loginError, errorMsg));
			sb.append(createLogoutSuccess(logoutSuccess));
			sb.append("<table class=\"table table-striped\">\n");
			for (Map.Entry<String, String> clientAuthenticationUrlToClientName : this.oauth2AuthenticationUrlToClientName
					.entrySet()) {


				sb.append(" <tr><td>");
				String url = clientAuthenticationUrlToClientName.getKey();
				sb.append("<a href=\"").append(contextPath).append(url).append("\">");
				String clientName = HtmlUtils.htmlEscape(clientAuthenticationUrlToClientName.getValue());
				sb.append(clientName);
				sb.append("</a>");
				sb.append("</td></tr>\n");
			}
			sb.append("</table>\n");
		}
		if (this.saml2LoginEnabled) {


			sb.append("<h2 class=\"form-signin-heading\">Login with SAML 2.0</h2>");
			sb.append(createError(loginError, errorMsg));
			sb.append(createLogoutSuccess(logoutSuccess));
			sb.append("<table class=\"table table-striped\">\n");
			for (Map.Entry<String, String> relyingPartyUrlToName : this.saml2AuthenticationUrlToProviderName
					.entrySet()) {


				sb.append(" <tr><td>");
				String url = relyingPartyUrlToName.getKey();
				sb.append("<a href=\"").append(contextPath).append(url).append("\">");
				String partyName = HtmlUtils.htmlEscape(relyingPartyUrlToName.getValue());
				sb.append(partyName);
				sb.append("</a>");
				sb.append("</td></tr>\n");
			}
			sb.append("</table>\n");
		}
		sb.append("</div>\n");
		sb.append("</body></html>");
		return sb.toString();
	}
}
