Sharding-Sphere 实战：垂直分库，实现写入读取

概述：垂直分库即转库专用，不同的数据库中存放不同的表信息。比如学生和课程信息，我们将课程表存放与一个数据库中，学生信息存储于另一个库中，本章将介绍如何通过配置Sharding jdbc实现垂直分库操作。

环境：SpringBoot 2.2 + mybatis plus3.0 + Sharding jdbc4.0

需求：我们将用户表t_user 表存放在数据库user_db中。course表保持上一章节《03、Sharding-Sphere 实战：水平分库，实现写入读取》中的水平分库水平分表配置。我们在保存读取用户信息时在user_db库中操作，读写course表时在course_db_1、course_db_2表中操作。

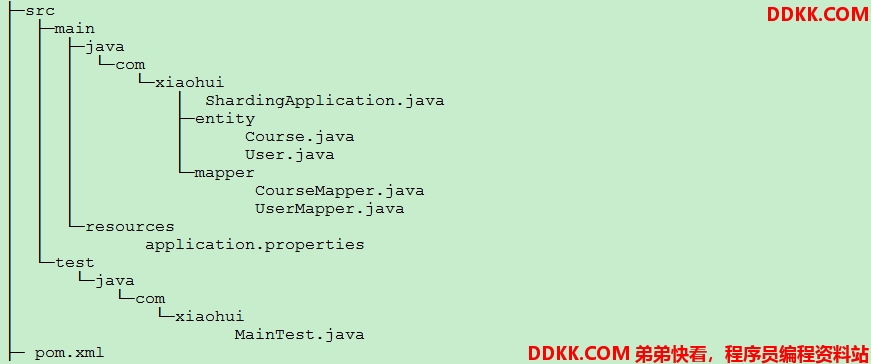

工程目录结构：

主要步骤：

1、数据库环境准备；
2、创建maven工程引入依赖；
3、创建主启动类；
4、创建业务代码；
5、创建SpringBoot配置文件；
6、编写测试类测试验证；

一、数据库环境准备

分表创建三个数据库 user_db、course_db_1、course_db_2。user_db库中创建t_user表，course_db12中分别创建course_1、course_2表

#课程表 course_1 course_2 结构一致
CREATE TABLE course_1 (
  cid bigint(20) NOT NULL,
  cname varchar(50) NOT NULL,
  user_id bigint(20) NOT NULL,
  cstatus varchar(10) NOT NULL,
  PRIMARY KEY (cid)
) ENGINE=InnoDB DEFAULT CHARSET=utf8
#用户表
CREATE TABLE t_user (
  user_id bigint(20) NOT NULL,
  username varchar(50) NOT NULL,
  ustatus varchar(50) NOT NULL,
  PRIMARY KEY (user_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8

二、创建maven工程

pom.xml 引入相关依赖，内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.sharding</groupId>
    <artifactId>sharding</artifactId>
    <version>1.0-SNAPSHOT</version>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.2.RELEASE</version>
    </parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.20</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.31</version>
        </dependency>

        <dependency>
            <groupId>org.apache.shardingsphere</groupId>
            <artifactId>sharding-jdbc-spring-boot-starter</artifactId>
            <version>4.0.0-RC1</version>
        </dependency>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.0.2</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

三、创建主启动类

src/main/java/com/xiaohui/ShardingApplication.java

package com.xiaohui;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com.xiaohui.mapper")
public class ShardingApplication {

    public static void main(String[] args) {
        SpringApplication.run(ShardingApplication.class,args);
    }
}

四、创建业务代码

编写数据库实体类以及表Dao层接口类，注意mybatis-plus 中接口层需要继承BaseMapper接口

src/main/java/com/xiaohui/entity/Course.java

package com.xiaohui.entity;

import lombok.Data;

@Data
public class Course {
    private Long cid;
    private String cname;
    private Long userId;
    private String cstatus;
}

由于user实体类与表名不匹配，所以需要使用mybatis-plus @TableName注解进行声明

package com.xiaohui.entity;

import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;

@Data
@TableName(value="t_user")
public class User {
    private Long userId;
    private String username;
    private String ustatus;
}

src/main/java/com/xiaohui/mapper/CourseMapper.java

package com.xiaohui.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xiaohui.entity.Course;
import org.springframework.stereotype.Repository;

@Repository
public interface CourseMapper extends BaseMapper<Course> {
}

src/main/java/com/xiaohui/mapper/UserMapper.java

package com.xiaohui.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xiaohui.entity.User;
import org.springframework.stereotype.Repository;

@Repository
public interface UserMapper extends BaseMapper<User> {
}

五、创建SpringBoot 配置文件(重点)

创建SpringBoot配置文件 application.properties

#sharding-jdbc 分片策略
#=================================数据源配置部分========================================
#数据源名称，多数据源以逗号分隔
spring.shardingsphere.datasource.names=ds0,ds1,ds2
#配置 ds0 ds1数据源具体内容
spring.shardingsphere.datasource.ds0.type=com.alibaba.druid.pool.DruidDataSource
spring.shardingsphere.datasource.ds0.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.ds0.url=jdbc:mysql://127.0.0.1:3306/course_db_1
spring.shardingsphere.datasource.ds0.username=root
spring.shardingsphere.datasource.ds0.password=root
spring.shardingsphere.datasource.ds1.type=com.alibaba.druid.pool.DruidDataSource
spring.shardingsphere.datasource.ds1.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.ds1.url=jdbc:mysql://127.0.0.1:3306/course_db_2
spring.shardingsphere.datasource.ds1.username=root
spring.shardingsphere.datasource.ds1.password=root
spring.shardingsphere.datasource.ds2.type=com.alibaba.druid.pool.DruidDataSource
spring.shardingsphere.datasource.ds2.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.ds2.url=jdbc:mysql://127.0.0.1:3306/user_db
spring.shardingsphere.datasource.ds2.username=root
spring.shardingsphere.datasource.ds2.password=root

#=================================数据节点配置部分======================================
#配置course表在数据库上的信息，在那些数据库里，以及库中的分表情况(tables 后面的course可以随便取名代表后面的匹配表)
spring.shardingsphere.sharding.tables.course.actual-data-nodes=ds$->{0..1}.course_$->{1..2}
spring.shardingsphere.sharding.tables.t_user.actual-data-nodes=ds$->{2}.t_user

#=================================数据库分库策略=======================================
# 配置默认的水平分库的策略 使用 user_id字段进行判断
#spring.shardingsphere.sharding.default-database-strategy.inline.sharding-column=user_id
#spring.shardingsphere.sharding.default-database-strategy.inline.algorithm-expression=ds$->{user_id % 2}
#数据库策略
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.algorithm-expression=ds2
# 配置course表的分库策略
spring.shardingsphere.sharding.tables.course.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.course.database-strategy.inline.algorithm-expression=ds$->{user_id % 2}

#=================================数据库分表策略========================================
#指定分片策略 约定cid值偶数添加到couse_1表，奇数添加到course_2表上
spring.shardingsphere.sharding.tables.course.table-strategy.inline.sharding-column=cid
spring.shardingsphere.sharding.tables.course.table-strategy.inline.algorithm-expression=course_$->{cid % 2 +1}
#表策略table-strategy
spring.shardingsphere.sharding.tables.t_user.table-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.t_user.table-strategy.inline.algorithm-expression=t_user

#==================================数据库字段生成策略====================================
###单表的水平拆分配置 指定course表里面主键cid的生成策略 SNOWFKAKE 雪花算法
spring.shardingsphere.sharding.tables.course.key-generator.column=cid
spring.shardingsphere.sharding.tables.course.key-generator.type=SNOWFLAKE
#字段生成策略key-generator
spring.shardingsphere.sharding.tables.t_user.key-generator.column=user_id
spring.shardingsphere.sharding.tables.t_user.key-generator.type=SNOWFLAKE

#==================================其他配置=============================================
#解决报错 Consider renaming one of the beans or enabling overriding...
spring.main.allow-bean-definition-overriding=true
#打开sql日志输出
spring.shardingsphere.props.sql.show=true

在垂直分库配置中主要声明部分在数据节点配置中需要指定对应表所在的库。以及分库策略中配置对应的分库策略，以来实现专库专用。

spring.shardingsphere.sharding.tables.course.actual-data-nodes=ds$->{0..1}.course_$->{1..2}
spring.shardingsphere.sharding.tables.t_user.actual-data-nodes=ds$->{2}.t_user

spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.algorithm-expression=ds2
spring.shardingsphere.sharding.tables.course.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.course.database-strategy.inline.algorithm-expression=ds$->{user_id % 2}

我们t_user表只有一个库所以我们在配置inline的分库表达式就直接写死为ds2库。

六、编写测试类测试验证

编写测试类：src/test/java/com/xiaohui/MainTest.java

package com.xiaohui;

import com.baomidou.mybatisplus.core.conditions.Wrapper;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.xiaohui.entity.Course;
import com.xiaohui.entity.User;
import com.xiaohui.mapper.CourseMapper;
import com.xiaohui.mapper.UserMapper;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
import java.util.List;

@RunWith(SpringRunner.class)
@SpringBootTest
public class MainTest {

    @Autowired
    private CourseMapper courseMapper;

    @Autowired
    private UserMapper userMapper;

    @Test
    public void testUserAdd(){
        User u = new User();
        u.setUsername("王五");
        u.setUstatus("1");
        userMapper.insert(u);
    }
       @Test
    public void testUserGet(){
        QueryWrapper wrapper = new QueryWrapper<User>();
        wrapper.eq("user_id", 563316786842304513L);
        User user = userMapper.selectOne(wrapper);
        System.out.println(user);
    }

    @Test
    public void testCourseGet(){
        QueryWrapper<Course> wrapper = new QueryWrapper<>();
        wrapper.eq("cid",563102169142657024L);
        wrapper.eq("user_id",102L);
        Course course = courseMapper.selectOne(wrapper);
        System.out.println(course);
    }
    @Test
    public void testCourseDel(){
        QueryWrapper<Course> wrapper = new QueryWrapper<>();
        wrapper.eq("cid",557605627916976129L);
        wrapper.eq("user_id",101L);
        courseMapper.delete(wrapper);
    }
}

执行新增测试方法testUserAdd(),控制台打印如下：

2023-02-02 10:59:47.944  INFO 8960 --- [           main] ShardingSphere-SQL                       : Logic SQL: INSERT INTO t_user  ( username,ustatus )  VALUES  ( ?,? )
2023-02-02 10:59:47.945  INFO 8960 --- [           main] ShardingSphere-SQL                       : Actual SQL: ds2 ::: INSERT INTO t_user   (username, ustatus, user_id) VALUES (?, ?, ?) ::: [王五, 1, 563316786842304513]

通过sql 和数据库查看我们只在ds2即 user_db库中新增了一条数据。

执行查询用户测试方法testUserGet()，日志打印如下：

2023-02-02 11:08:57.926  INFO 8780 --- [           main] ShardingSphere-SQL                       : Logic SQL: SELECT  user_id,username,ustatus  FROM t_user  WHERE  user_id = ?
2023-02-02 11:08:57.927  INFO 8780 --- [           main] ShardingSphere-SQL                       : Actual SQL: ds2 ::: SELECT  user_id,username,ustatus  FROM t_user  WHERE  user_id = ? ::: [563316786842304513]
User(userId=563316786842304513, username=王五, ustatus=1)

执行课程查询方法，日志打印如下：

2023-02-02 11:12:56.141  INFO 7824 --- [           main] ShardingSphere-SQL                       : Rule Type: sharding
2023-02-02 11:12:56.143  INFO 7824 --- [           main] ShardingSphere-SQL                       : Logic SQL: SELECT  cid,cname,user_id,cstatus  FROM course  WHERE  cid = ? AND user_id = ?
2023-02-02 11:12:56.144  INFO 7824 --- [           main] ShardingSphere-SQL                       : Actual SQL: ds0 ::: SELECT  cid,cname,user_id,cstatus  FROM course_1  WHERE  cid = ? AND user_id = ? ::: [563102169142657024, 102]
Course(cid=563102169142657024, cname=sql_2, userId=102, cstatus=1)

根据上面打印，均按照Sharding对应的配置规则进行正确的分库分表路由。成功的进行了新增以及查询操作。
