Seata Server(TC)环境搭建详解

Server端存储模式(store.mode)支持三种:

1、 file:单机模式,全局事务会话信息内存中读写并持久化本地文件root.data,性能较高(默认);
2、 DB:高可用模式,全局事务会话信息通过DB共享,相对性能差一些;
3、 redis:Seata-Server1.3及以上版本支持,性能较高,存在事务信息丢失风险,需要配合实际场景使用;

具体操作

1、 修改Seata-Server模式为DB高可用模式;

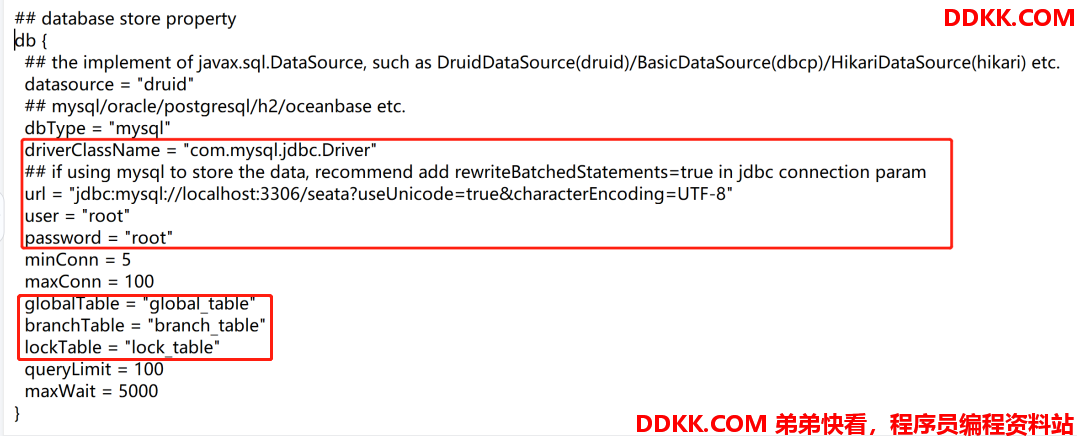

找到以下对应的db配置,要修改其中的jdbc连接,以及要注意其中涉及到了三个表,分别是global_table,branch_table,lock_table分别是全局事务会话表,分支事务会话表,锁数据表;



1、 建表语句地址:https://github.com/seata/seata/blob/develop/script/server/db/mysql.sql

-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS global_table
(
    xid                       VARCHAR(128) NOT NULL,
    transaction_id            BIGINT,
    status                    TINYINT      NOT NULL,
    application_id            VARCHAR(32),
    transaction_service_group VARCHAR(32),
    transaction_name          VARCHAR(128),
    timeout                   INT,
    begin_time                BIGINT,
    application_data          VARCHAR(2000),
    gmt_create                DATETIME,
    gmt_modified              DATETIME,
    PRIMARY KEY (xid),
    KEY idx_gmt_modified_status (gmt_modified, status),
    KEY idx_transaction_id (transaction_id)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS branch_table
(
    branch_id         BIGINT       NOT NULL,
    xid               VARCHAR(128) NOT NULL,
    transaction_id    BIGINT,
    resource_group_id VARCHAR(32),
    resource_id       VARCHAR(256),
    branch_type       VARCHAR(8),
    status            TINYINT,
    client_id         VARCHAR(64),
    application_data  VARCHAR(2000),
    gmt_create        DATETIME(6),
    gmt_modified      DATETIME(6),
    PRIMARY KEY (branch_id),
    KEY idx_xid (xid)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

-- the table to store lock data
CREATE TABLE IF NOT EXISTS lock_table
(
    row_key        VARCHAR(128) NOT NULL,
    xid            VARCHAR(128),
    transaction_id BIGINT,
    branch_id      BIGINT       NOT NULL,
    resource_id    VARCHAR(256),
    table_name     VARCHAR(32),
    pk             VARCHAR(36),
    status         TINYINT      NOT NULL DEFAULT '0' COMMENT '0:locked ,1:rollbacking',
    gmt_create     DATETIME,
    gmt_modified   DATETIME,
    PRIMARY KEY (row_key),
    KEY idx_status (status),
    KEY idx_branch_id (branch_id)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

1、 重启Seata即可生效;
