Helm安装Dashboard

简介

Dashboard 是 kubernetes 的图形化管理工具,可直观的看到k8s中各个类型控制器的当前运行情况,以及Pod的日志,另外也可直接在 dashboard 中对已有的资源进行资源清单的修改。



安装

注意:前提是已经安装好helm工具,如未安装还可请参考本人其他随笔:/zhuanlan/container/kubernetes/6/20.html

# 安装 helm 的 repo源
helm repo add k8s-dashboard https://kubernetes.github.io/dashboard

# 安装Dashboard,注意:要安装到kube-system名称空间下才可以操控整个集群
[root@Centos8 ~]# helm install k8s-dashboard/kubernetes-dashboard --version 2.6.0 -n k8s-dashboard --namespace kube-system
NAME:   k8s-dashboard
LAST DEPLOYED: Sat Sep 12 11:43:46 2020
NAMESPACE: kube-system
STATUS: DEPLOYED

RESOURCES:
==> v1/ClusterRole
NAME                                        AGE
k8s-dashboard-kubernetes-dashboard-metrics  0s

==> v1/ClusterRoleBinding
NAME                                        AGE
k8s-dashboard-kubernetes-dashboard-metrics  0s

==> v1/ConfigMap
NAME                                         DATA  AGE
k8s-dashboard-kubernetes-dashboard-settings  0     1s

==> v1/Deployment
NAME                                READY  UP-TO-DATE  AVAILABLE  AGE
k8s-dashboard-kubernetes-dashboard  0/1    1           0          1s

==> v1/Pod(related)
NAME                                                 READY  STATUS             RESTARTS  AGE
k8s-dashboard-kubernetes-dashboard-6d5c6c747f-zgz79  0/1    ContainerCreating  0         1s

==> v1/Role
NAME                                AGE
k8s-dashboard-kubernetes-dashboard  0s

==> v1/RoleBinding
NAME                                AGE
k8s-dashboard-kubernetes-dashboard  0s

==> v1/Secret
NAME                                      TYPE    DATA  AGE
k8s-dashboard-kubernetes-dashboard-certs  Opaque  0     1s
kubernetes-dashboard-csrf                 Opaque  0     1s
kubernetes-dashboard-key-holder           Opaque  0     1s

==> v1/Service
NAME                                TYPE       CLUSTER-IP     EXTERNAL-IP  PORT(S)  AGE
k8s-dashboard-kubernetes-dashboard  ClusterIP  10.111.75.108  <none>       443/TCP  1s

==> v1/ServiceAccount
NAME                                SECRETS  AGE
k8s-dashboard-kubernetes-dashboard  1        1s


NOTES:
*********************************************************************************
*** PLEASE BE PATIENT: kubernetes-dashboard may take a few minutes to install ***
*********************************************************************************

Get the Kubernetes Dashboard URL by running:
  export POD_NAME=$(kubectl get pods -n kube-system -l "app.kubernetes.io/name=kubernetes-dashboard,app.kubernetes.io/instance=k8s-dashboard" -o jsonpath="{.items[0].metadata.name}")
  echo https://127.0.0.1:8443/
  kubectl -n kube-system port-forward $POD_NAME 8443:8443

回显中可以看到,在kube-system名称空间下为k8s集群创建ClusterRole、ClusterRoleBinding、ConfigMap、Deployment、Pod(related)、Role、RoleBinding、Secret、Service和ServiceAccount等资源

详细可参考helm官方手册:https://hub.helm.sh/charts/k8s-dashboard/kubernetes-dashboard

查看是Pod是否正常启动

[root@Centos8 dashboard]# kubectl get pod -n kube-system
NAME                                                 READY   STATUS        RESTARTS   AGE
k8s-dashboard-kubernetes-dashboard-6d5c6c747f-zgz79   0/1     ImagePullBackOff   0  2m59s

发现Pod 状态为 ImagePullBackOff ,因为镜像的原因,查看下所需镜像:

[root@Centos8 dashboard]# kubectl describe pod k8s-dashboard-kubernetes-dashboard-6d5c6c747f-zgz79 -n kube-system
  Normal   BackOff    72s (x7 over 3m13s)   kubelet, testcentos7  Back-off pulling image "kubernetesui/dashboard:v2.0.3"

自己手动导入镜像,并传入所有的node节点即可:

[root@Centos8 dashboard]# docker pull kubernetesui/dashboard:v2.0.3
v2.0.3: Pulling from kubernetesui/dashboard
d5ba0740de2a: Pull complete
Digest: sha256:45ef224759bc50c84445f233fffae4aa3bdaec705cb5ee4bfe36d183b270b45d
Status: Downloaded newer image for kubernetesui/dashboard:v2.0.3

再次查看Pod状态,正常运行:

[root@Centos8 ~]# kubectl get pod -n kube-system
NAME                                                  READY   STATUS    RESTARTS   AGE
k8s-dashboard-kubernetes-dashboard-6d5c6c747f-zgz79   1/1     Running   0          102s

配置

修改service的type类型为Nodeport,使其可以外部访问

# 默认为 ClusterIp
[root@Centos8 ~]# kubectl get svc -n kube-system
NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)
k8s-dashboard-kubernetes-dashboard   ClusterIP   10.111.75.108    <none>        443/TCP

# 修改
[root@Centos8 ~]# kubectl edit svc k8s-dashboard-kubernetes-dashboard -n kube-system
...
ports:
  - name: https
    nodePort: 30001
type: NodePort
...
service/k8s-dashboard-kubernetes-dashboard edited

#修改成功
[root@Centos8 ~]# kubectl get svc -n kube-system
NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)
k8s-dashboard-kubernetes-dashboard   NodePort    10.111.75.108    <none>    443:30001/TCP

Dashboard默认为https

访问

https://192.168.152.53:3000

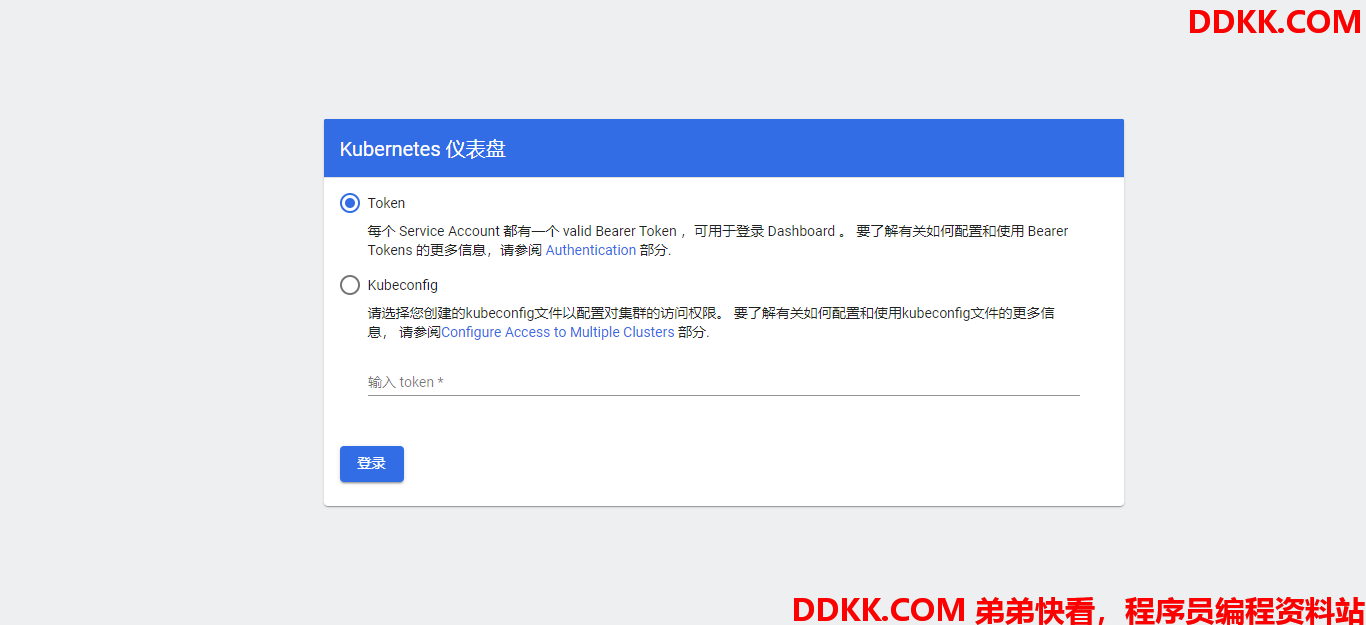

提示选择是使用Token方式连接还是Kubeconfig方式连接,看个人心情。

在此使用Token连接,查看Token方法:

[root@Centos8 ~]# kubectl get secret -n kube-system |grep dashboard
k8s-dashboard-kubernetes-dashboard-certs         Opaque                                0
k8s-dashboard-kubernetes-dashboard-token-xpjj8   kubernetes.io/service-account-token   3

[root@Centos8 ~]# kubectl describe secret k8s-dashboard-kubernetes-dashboard-token-xpjj8 -n kube-system | grep token
Name:         k8s-dashboard-kubernetes-dashboard-token-xpjj8
Type:  kubernetes.io/service-account-token
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrOHMtZGFzaGJvYXJkLWt1YmVybmV0ZXMtZGFzaGJvYXJkLXRva2VuLXhwamo4Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6Ims4cy1kYXNoYm9hcmQta3ViZXJuZXRlcy1kYXNoYm9hcmQiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI1YjRjMzViYi02Mzc3LTRhY2EtYWY0Yy1mZmQyYjg2OWFmM2YiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06azhzLWRhc2hib2FyZC1rdWJlcm5ldGVzLWRhc2hib2FyZCJ9.WTibcCYSOqTpfyTBT6vqsHULTfmWh3TU3NcQHIf-yZw-r5pdd2H5Edz4VqG6d_Ef1zwCzD6Burvdq80gQps7Ju9FdxLl_cjNgq6r9fycaYUMIedrgof7w43BIyBiwh064f3SFpJuZToVxErdHBnLToDpiNjJ0rbsn79oRufA6VRbqA0ogstcFfZ55lWGuEZ7JoDOUH_vno1geZQvk8LJLfd75EeMEBaq_F7I_7go5cydPvi11Sm3hKigOY53wwsBlvNJ3FlTfZMAxPb5IP024cJB-zXXdZjiUDGzeagcwAqrKdKwZl78RW1q0VXM5QwtL08dOBDgoOHMFeiSkeEjyw

将Token的值粘贴进网页,点击登录即可。

注意:如果是使用base64加过密的,要记得输入解密后的token哦

但是,默认情况下,直接进入,它本身没有访问整个集群的权限,所以要先对 dashborad 的SA进行一个ClusterRoleBinding 的操作:

vimdashbindins.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: dashboard-1
subjects:
- kind: ServiceAccount
  name: k8s-dashboard-kubernetes-dashboard
  namespace: kube-system
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io

将cluster-admin 的权限赋予给名称为 k8s-dashboard-kubernetes-dashboard 的 SA,cluster-admin是集群默认的的角色,具有整个集群的所有权限,如果有个性化需求,自己定义一个ClusterRole也是可以的

进行绑定:

[root@Centos8 dashboard]# kubectl create -f dashbindins.yaml
clusterrolebinding.rbac.authorization.k8s.io/dashboard-1 created

绑定完成后,再次刷新 dashboard 的界面,就可以看到整个集群的资源情况。

个性化定制参数

Dashboard 默认采用 https 的形式进行访问,众所周知,https是需要绑定证书的,咱们以上直接通过 helm 方法安装的是自动绑定了config文件里的证书:

crt:grep 'client-certificate-data' ~/.kube/config | head -n 1 | awk '{print $2}' | base64 -d
kry:grep 'client-key-data' ~/.kube/config | head -n 1 | awk '{print $2}' | base64 -d >> kubecfg.key

但是如果我们想要定义自己的https证书,我们可以在创建 dashboard 的时候采用指定变量的方法:

先将dashboard 文件下载下来:

[root@Centos8 dashboard]# helm fetch k8s-dashboard/kubernetes-dashboard
[root@Centos8 dashboard]# ls
kubernetes-dashboard-2.6.0.tgz

[root@Centos8 dashboard]# tar zxvf kubernetes-dashboard-2.6.0.tgz
[root@Centos8 kubernetes-dashboard]# ls
charts  Chart.yaml  README.md  requirements.lock  requirements.yaml  templates  values.yaml

创建变量文件:

vimdashboardvaluse.yaml

image:
  repository: k8s.gcr.io/kubernetes-dashboard-amd64 指定存储库
  tag: v1.10.1 指定版本
ingress:
  enabled: trueingress是否开启
  hosts:
  - k8s.vfancloud.com  指定域名
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
  tls: 指定secret,也就是指定你的证书
  - secretName: repository-ssl
    hosts:
    - k8s.vfancloud.com
rbac:
  clusterAdminRole: true

创建tls:kubectl create secret tls repository-ssl --key server.key --cert server.crt

编辑完毕后,创建时使用 -f 指定此变量文件即可:

[root@Centos8 kubernetes-dashboard]# helm install . --version 2.6.0 -n k8s-dashboard --namespace kube-system -f dashboardvaluse.yaml
NAME:   k8s-dashboard
LAST DEPLOYED: Wed Sep 23 21:58:42 2020
NAMESPACE: kube-system
STATUS: DEPLOYED

RESOURCES:
==> v1/ClusterRole
NAME                                        AGE
k8s-dashboard-kubernetes-dashboard-metrics  0s

==> v1/ClusterRoleBinding
NAME                                        AGE
k8s-dashboard-kubernetes-dashboard-metrics  0s

==> v1/ConfigMap
NAME                                         DATA  AGE
k8s-dashboard-kubernetes-dashboard-settings  0     2s

==> v1/Deployment
NAME                                READY  UP-TO-DATE  AVAILABLE  AGE
k8s-dashboard-kubernetes-dashboard  0/1    1           0          2s

==> v1/Pod(related)
NAME                                                 READY  STATUS             RESTARTS  AGE
k8s-dashboard-kubernetes-dashboard-6d5c6c747f-5dkhj  0/1    ContainerCreating  0         1s

==> v1/Role
NAME                                AGE
k8s-dashboard-kubernetes-dashboard  0s

==> v1/RoleBinding
NAME                                AGE
k8s-dashboard-kubernetes-dashboard  0s

==> v1/Secret
NAME                                      TYPE    DATA  AGE
k8s-dashboard-kubernetes-dashboard-certs  Opaque  0     2s
kubernetes-dashboard-csrf                 Opaque  0     2s
kubernetes-dashboard-key-holder           Opaque  0     2s

==> v1/Service
NAME                                TYPE       CLUSTER-IP   EXTERNAL-IP  PORT(S)  AGE
k8s-dashboard-kubernetes-dashboard  ClusterIP  10.97.71.25  <none>       443/TCP  2s

==> v1/ServiceAccount
NAME                                SECRETS  AGE
k8s-dashboard-kubernetes-dashboard  1        2s

==> v1beta1/Ingress
NAME                                HOSTS              ADDRESS  PORTS  AGE
k8s-dashboard-kubernetes-dashboard  hub.vfancloud.com  80, 443  2s


NOTES:
*********************************************************************************
*** PLEASE BE PATIENT: kubernetes-dashboard may take a few minutes to install ***
*********************************************************************************
From outside the cluster, the server URL(s) are:
     https://hub.vfancloud.com

至此,后边的步骤就和上边演示的一样了,绑定ClusterRole即可使用https://hub.vfancloud.com进行访问,以上变量文件仅仅是指定了部分值,具体其他可选变量可以去官网上查看。

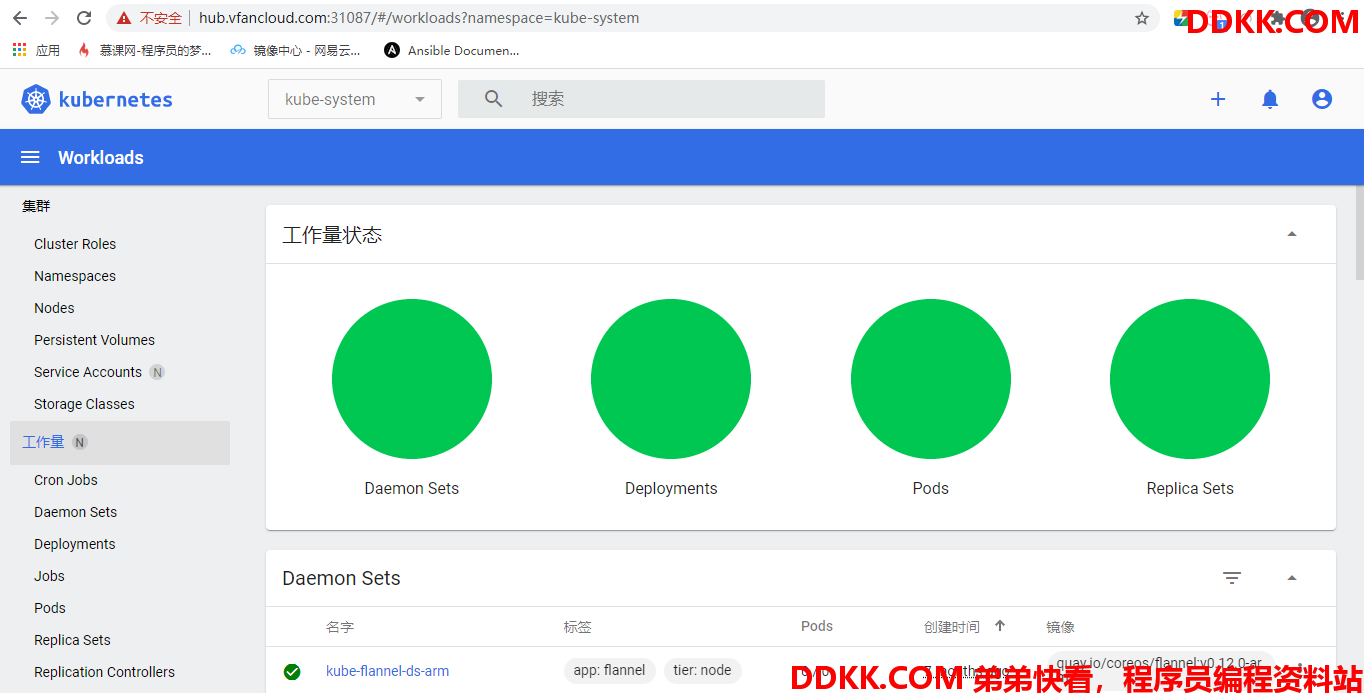

使用域名访问:https://hub.vfancloud.com:31087
