07、MyCat 实战 - 基于 HA 机制的 MyCat 高可用

在实际项目中,Mycat 服务也需要考虑高可用性,如果 Mycat 所在服务器出现宕机,或 Mycat 服

务故障,需要有备机提供服务,需要考虑 Mycat 集群。

1、 高可用方案

使用HAProxy + Keepalived 配合两台 Mycat 搭起 Mycat 集群,实现高可用性。

HAProxy实现了 MyCat 多节点的集群 高可用负载均衡

HAProxy 自身的高可用则可以通过 Keepalived 来实现。



角色 ip
mycat01 192.168.199.217
mycat02 192.168.199.120
HA(主) 192.168.199.174
keepalive(主机) 192.168.199.174
HA(主) 192.168.199.199
keepalive(主机 192.168.199.199

先配置好mycat并且启动mycat

2 安装配置 HAProxy

1、 安装 HAProxy

2解压到/usr/local/src

3进入解压后的目录,查看内核版本,进行编译

[root@mycat05 software]# cd /usr/local/src/haproxy-1.5.18/
[root@mycat05 haproxy-1.5.18]# uname -r
3、 10.0-957.el7.x86_64;
[root@mycat05 haproxy-1.5.18]# make TARGET=linux310 PREFIX=/usr/local/haproxy ARCH=x86_64

# ARGET=linux310,内核版本,使用uname -r查看内核,如:3.10.0-957.el7,此时该参数就为linux310;

#ARCH=x86_64,系统位数;

#PREFIX=/usr/local/haprpxy #/usr/local/haprpxy,为haprpxy安装路径。

4编译完成后,进行安装

make install PREFIX=/usr/local/haproxy

5安装完成后,创建目录、创建HAProxy配置文件

mkdir -p /usr/data/haproxy/

vim/usr/local/haproxy/haproxy.conf

6向配置文件中插入以下配置信息,并保存

global
 log 127.0.0.1 local0
log 127.0.0.1 local1 notice
log loghost local0 info
 maxconn 4096
 chroot /usr/local/haproxy
 pidfile /usr/data/haproxy/haproxy.pid
 uid 99
 gid 99
 daemon
debug
quiet
defaults
 log global
 mode tcp
 option abortonclose
 option redispatch
 retries 3
 maxconn 2000
 timeout connect 5000
 timeout client 50000
 timeout server 50000
listen proxy_status
bind :48066
 mode tcp
 balance roundrobin
 server mycat_1 192.168.140.128:8066 check inter 10s
 server mycat_2 192.168.140.127:8066 check inter 10s
frontend admin_stats
bind :7777
 mode http
 stats enable
 option httplog
 maxconn 10
 stats refresh 30s
 stats uri /admin
 stats auth admin:123123 //登陆账户and密码
 stats hide-version
 stats admin if TRUE

2、 启动验证

1启动HAProxy

/usr/local/haproxy/sbin/haproxy -f /usr/local/haproxy/haproxy.conf

2查看HAProxy进程

ps-ef|grep haproxy

3打开浏览器访问

http://192.168.199.174:7777/admin

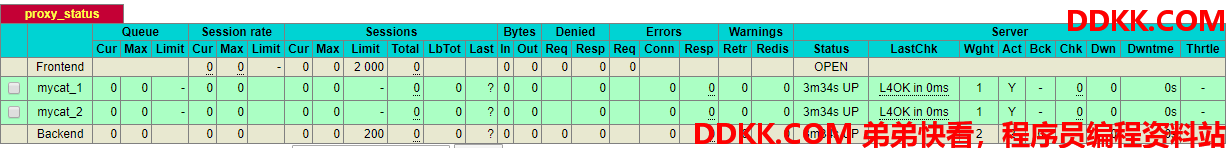

如果Mycat主备机均已启动,则可以看到如下图

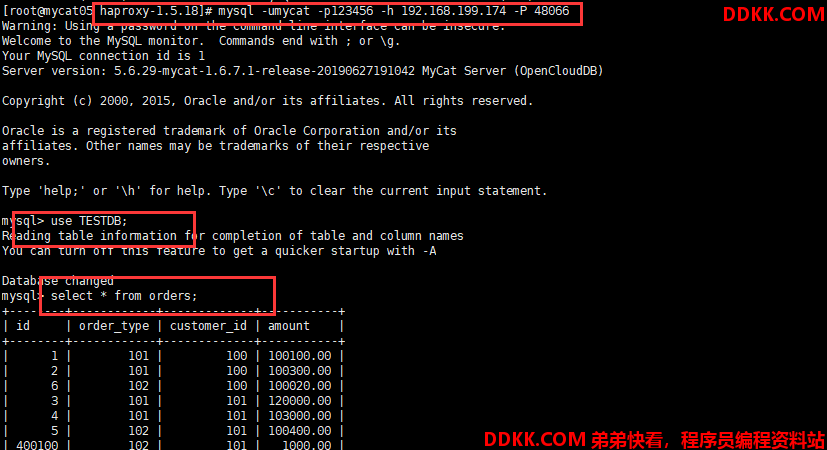

4验证负载均衡,通过HAProxy访问Mycat

在HAProxy主机上执行(192.168.199.174HA的主机地址)

[root@mycat05 haproxy-1.5.18]# mysql -umycat -p123456 -h 192.168.199.174 -P 48066



3 配置 Keepalived

下载地址:https://www.keepalived.org/software/

1准备好Keepalived安装包,传到/opt目录下

2解压到/usr/local/src

tar-zxvf keepalived-1.4.2.tar.gz -C /usr/local/src

3安装依赖插件

yuminstall -y gcc openssl-devel popt-devel

4进入解压后的目录,进行配置,进行编译

cd/usr/local/src/keepalived-1.4.2

./configure --prefix=/usr/local/keepalived

5进行编译,完成后进行安装

make && make install

6运行前配置

cp/usr/local/src/keepalived-1.4.2/keepalived/etc/init.d/keepalived /etc/init.d/

mkdir /etc/keepalived

cp/usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/

cp/usr/local/src/keepalived-1.4.2/keepalived/etc/sysconfig/keepalived /etc/sysconfig/

cp/usr/local/keepalived/sbin/keepalived /usr/sbin/

7修改配置文件

vim/etc/keepalived/keepalived.conf

#修改内容如下
! Configuration File for keepalived
global_defs {
 notification_email {
 xlcocoon@foxmail.com
 }
 notification_email_from keepalived@showjoy.com
 smtp_server 127.0.0.1
 smtp_connect_timeout 30
 router_id LVS_DEVEL
 vrrp_skip_check_adv_addr
 vrrp_garp_interval 0
 vrrp_gna_interval 0
}
vrrp_instance VI_1 {
主机配MASTER,备机配BACKUP
state MASTER
#所在机器网卡
 interface ens33
virtual_router_id 51
#数值越大优先级越高
 priority 100
 advert_int 1
 authentication {
 auth_type PASS
 auth_pass 1111
 }
virtual_ipaddress {
#虚拟IP
 192.168.199.111
 } }
virtual_server 192.168.199.111 48066 {
 delay_loop 6
 lb_algo rr
 lb_kind NAT
 persistence_timeout 50
 protocol TCP
 real_server 192.168.199.174 48066 { HA的地址(主机)
 weight 1r
 TCP_CHECK {
 connect_timeout 3
 retry 3
 delay_before_retry 3
 } }
real_server 192.168.199.199 48600 {#HA地址(备机r)
 weight 1
 TCP_CHECK {
 connect_timeout 3
 nb_get_retry 3
 delay_before_retry 3
 }
 } }

8、 启动Keepalived;

同时启动备机上的HA

service keepalived start

9、 登录验证;

mysql -umycat -p123456 -h 192.168.199.111 -P 48066

192、 168.199.111:虚拟ip;



此时是:

HA隐藏mycat的ip

KeepAlive隐藏HA的ip

4 测试高可用

1关闭mycat

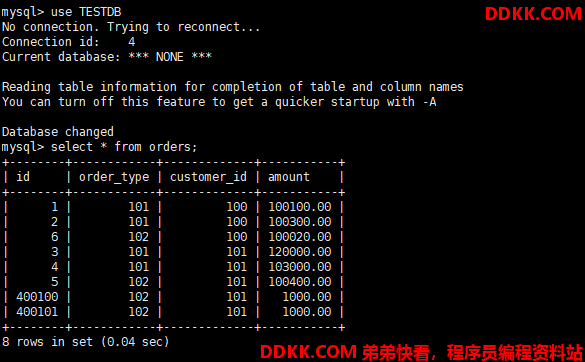

2通过虚拟ip查询数据

mysql -umycat -p123456 -h 192.168.199.111 -P 48066

mysql> select * from orders;
ERROR 2013 (HY000): Lost connection to MySQL server during query
mysql> select * from orders;
ERROR 2006 (HY000): MySQL server has gone away
No connection. Trying to reconnect...
Connection id:    2
Current database: TESTDB

+--------+------------+-------------+-----------+
| id     | order_type | customer_id | amount    |
+--------+------------+-------------+-----------+
|      1 |        101 |         100 | 100100.00 |
|      2 |        101 |         100 | 100300.00 |
|      6 |        102 |         100 | 100020.00 |
|      3 |        101 |         101 | 120000.00 |
|      4 |        101 |         101 | 103000.00 |
|      5 |        102 |         101 | 100400.00 |
| 400100 |        102 |         101 |   1000.00 |
| 400101 |        102 |         101 |   1000.00 |
+--------+------------+-------------+-----------+
8 rows in set (1.46 sec)
