概念

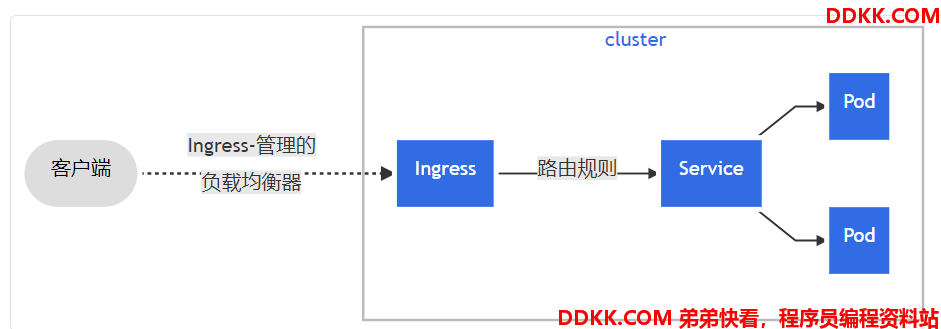

Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由。流量路由由 Ingress 资源上定义的规则控制。

可以将Ingress 配置为服务提供外部可访问的 URL、负载均衡流量、终止 SSL/TLS，以及提供基于名称的虚拟主机等能力。 Ingress 控制器通常负责通过负载均衡器来实现 Ingress，尽管它也可以配置边缘路由器或其他前端来帮助处理流量。

Ingress 不会公开任意端口或协议。将 HTTP 和 HTTPS 以外的服务公开到 Internet 时，通常使用 Service.Type=NodePort 或 Service.Type=LoadBalancer 类型的服务。

使用ingress-nginx提供互联网访问(参考kuboard官网)

ingress-nginx是使用NGINX作为反向代理和负载平衡器的Kubernetes的Ingress控制器。

1、安装NginxIngressController；

#
vim nginx-ingress.yaml
# 内容
apiVersion: v1
kind: Namespace
metadata:
  name: nginx-ingress

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress
  namespace: nginx-ingress

---
apiVersion: v1
kind: Secret
metadata:
  name: default-server-secret
  namespace: nginx-ingress
type: Opaque
data:
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN2akNDQWFZQ0NRREFPRjl0THNhWFhEQU5CZ2txaGtpRzl3MEJBUXNGQURBaE1SOHdIUVlEVlFRRERCWk8KUjBsT1dFbHVaM0psYzNORGIyNTBjbTlzYkdWeU1CNFhEVEU0TURreE1qRTRNRE16TlZvWERUSXpNRGt4TVRFNApNRE16TlZvd0lURWZNQjBHQTFVRUF3d1dUa2RKVGxoSmJtZHlaWE56UTI5dWRISnZiR3hsY2pDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUwvN2hIUEtFWGRMdjNyaUM3QlBrMTNpWkt5eTlyQ08KR2xZUXYyK2EzUDF0azIrS3YwVGF5aGRCbDRrcnNUcTZzZm8vWUk1Y2Vhbkw4WGM3U1pyQkVRYm9EN2REbWs1Qgo4eDZLS2xHWU5IWlg0Rm5UZ0VPaStlM2ptTFFxRlBSY1kzVnNPazFFeUZBL0JnWlJVbkNHZUtGeERSN0tQdGhyCmtqSXVuektURXUyaDU4Tlp0S21ScUJHdDEwcTNRYzhZT3ExM2FnbmovUWRjc0ZYYTJnMjB1K1lYZDdoZ3krZksKWk4vVUkxQUQ0YzZyM1lma1ZWUmVHd1lxQVp1WXN2V0RKbW1GNWRwdEMzN011cDBPRUxVTExSakZJOTZXNXIwSAo1TmdPc25NWFJNV1hYVlpiNWRxT3R0SmRtS3FhZ25TZ1JQQVpQN2MwQjFQU2FqYzZjNGZRVXpNQ0F3RUFBVEFOCkJna3Foa2lHOXcwQkFRc0ZBQU9DQVFFQWpLb2tRdGRPcEsrTzhibWVPc3lySmdJSXJycVFVY2ZOUitjb0hZVUoKdGhrYnhITFMzR3VBTWI5dm15VExPY2xxeC9aYzJPblEwMEJCLzlTb0swcitFZ1U2UlVrRWtWcitTTFA3NTdUWgozZWI4dmdPdEduMS9ienM3bzNBaS9kclkrcUI5Q2k1S3lPc3FHTG1US2xFaUtOYkcyR1ZyTWxjS0ZYQU80YTY3Cklnc1hzYktNbTQwV1U3cG9mcGltU1ZmaXFSdkV5YmN3N0NYODF6cFErUyt1eHRYK2VBZ3V0NHh3VlI5d2IyVXYKelhuZk9HbWhWNThDd1dIQnNKa0kxNXhaa2VUWXdSN0diaEFMSkZUUkk3dkhvQXprTWIzbjAxQjQyWjNrN3RXNQpJUDFmTlpIOFUvOWxiUHNoT21FRFZkdjF5ZytVRVJxbStGSis2R0oxeFJGcGZnPT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
  tls.key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBdi91RWM4b1JkMHUvZXVJTHNFK1RYZUprckxMMnNJNGFWaEMvYjVyYy9XMlRiNHEvClJOcktGMEdYaVN1eE9ycXgrajlnamx4NXFjdnhkenRKbXNFUkJ1Z1B0ME9hVGtIekhvb3FVWmcwZGxmZ1dkT0EKUTZMNTdlT1l0Q29VOUZ4amRXdzZUVVRJVUQ4R0JsRlNjSVo0b1hFTkhzbysyR3VTTWk2Zk1wTVM3YUhudzFtMApxWkdvRWEzWFNyZEJ6eGc2clhkcUNlUDlCMXl3VmRyYURiUzc1aGQzdUdETDU4cGszOVFqVUFQaHpxdmRoK1JWClZGNGJCaW9CbTVpeTlZTW1hWVhsMm0wTGZzeTZuUTRRdFFzdEdNVWozcGJtdlFmazJBNnljeGRFeFpkZFZsdmwKMm82MjBsMllxcHFDZEtCRThCay90elFIVTlKcU56cHpoOUJUTXdJREFRQUJBb0lCQVFDZklHbXowOHhRVmorNwpLZnZJUXQwQ0YzR2MxNld6eDhVNml4MHg4Mm15d1kxUUNlL3BzWE9LZlRxT1h1SENyUlp5TnUvZ2IvUUQ4bUFOCmxOMjRZTWl0TWRJODg5TEZoTkp3QU5OODJDeTczckM5bzVvUDlkazAvYzRIbjAzSkVYNzZ5QjgzQm9rR1FvYksKMjhMNk0rdHUzUmFqNjd6Vmc2d2szaEhrU0pXSzBwV1YrSjdrUkRWYmhDYUZhNk5nMUZNRWxhTlozVDhhUUtyQgpDUDNDeEFTdjYxWTk5TEI4KzNXWVFIK3NYaTVGM01pYVNBZ1BkQUk3WEh1dXFET1lvMU5PL0JoSGt1aVg2QnRtCnorNTZud2pZMy8yUytSRmNBc3JMTnIwMDJZZi9oY0IraVlDNzVWYmcydVd6WTY3TWdOTGQ5VW9RU3BDRkYrVm4KM0cyUnhybnhBb0dCQU40U3M0ZVlPU2huMVpQQjdhTUZsY0k2RHR2S2ErTGZTTXFyY2pOZjJlSEpZNnhubmxKdgpGenpGL2RiVWVTbWxSekR0WkdlcXZXaHFISy9iTjIyeWJhOU1WMDlRQ0JFTk5jNmtWajJTVHpUWkJVbEx4QzYrCk93Z0wyZHhKendWelU0VC84ajdHalRUN05BZVpFS2FvRHFyRG5BYWkyaW5oZU1JVWZHRXFGKzJyQW9HQkFOMVAKK0tZL0lsS3RWRzRKSklQNzBjUis3RmpyeXJpY05iWCtQVzUvOXFHaWxnY2grZ3l4b25BWlBpd2NpeDN3QVpGdwpaZC96ZFB2aTBkWEppc1BSZjRMazg5b2pCUmpiRmRmc2l5UmJYbyt3TFU4NUhRU2NGMnN5aUFPaTVBRHdVU0FkCm45YWFweUNweEFkREtERHdObit3ZFhtaTZ0OHRpSFRkK3RoVDhkaVpBb0dCQUt6Wis1bG9OOTBtYlF4VVh5YUwKMjFSUm9tMGJjcndsTmVCaWNFSmlzaEhYa2xpSVVxZ3hSZklNM2hhUVRUcklKZENFaHFsV01aV0xPb2I2NTNyZgo3aFlMSXM1ZUtka3o0aFRVdnpldm9TMHVXcm9CV2xOVHlGanIrSWhKZnZUc0hpOGdsU3FkbXgySkJhZUFVWUNXCndNdlQ4NmNLclNyNkQrZG8wS05FZzFsL0FvR0FlMkFVdHVFbFNqLzBmRzgrV3hHc1RFV1JqclRNUzRSUjhRWXQKeXdjdFA4aDZxTGxKUTRCWGxQU05rMXZLTmtOUkxIb2pZT2pCQTViYjhibXNVU1BlV09NNENoaFJ4QnlHbmR2eAphYkJDRkFwY0IvbEg4d1R0alVZYlN5T294ZGt5OEp0ek90ajJhS0FiZHd6NlArWDZDODhjZmxYVFo5MWpYL3RMCjF3TmRKS2tDZ1lCbyt0UzB5TzJ2SWFmK2UwSkN5TGhzVDQ5cTN3Zis2QWVqWGx2WDJ1VnRYejN5QTZnbXo5aCsKcDNlK2JMRUxwb3B0WFhNdUFRR0xhUkcrYlNNcjR5dERYbE5ZSndUeThXczNKY3dlSTdqZVp2b0ZpbmNvVlVIMwphdmxoTUVCRGYxSjltSDB5cDBwWUNaS2ROdHNvZEZtQktzVEtQMjJhTmtsVVhCS3gyZzR6cFE9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=

---
kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-config
  namespace: nginx-ingress
data:
  server-names-hash-bucket-size: "1024"
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nginx-ingress
rules:
- apiGroups:
  - ""
  resources:
  - services
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - get
  - list
  - watch
  - update
  - create
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - list
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - extensions
  resources:
  - ingresses
  verbs:
  - list
  - watch
  - get
- apiGroups:
  - "extensions"
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - k8s.nginx.org
  resources:
  - virtualservers
  - virtualserverroutes
  verbs:
  - list
  - watch
  - get

---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nginx-ingress
subjects:
- kind: ServiceAccount
  name: nginx-ingress
  namespace: nginx-ingress
roleRef:
  kind: ClusterRole
  name: nginx-ingress
  apiGroup: rbac.authorization.k8s.io

---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: nginx-ingress
  namespace: nginx-ingress
  annotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "9113"
spec:
  selector:
    matchLabels:
      app: nginx-ingress
  template:
    metadata:
      labels:
        app: nginx-ingress
    spec:
      serviceAccountName: nginx-ingress
      containers:
      - image: nginx/nginx-ingress:1.5.5
        name: nginx-ingress
        ports:
        - name: http
          containerPort: 80
          hostPort: 80
        - name: https
          containerPort: 443
          hostPort: 443
        - name: prometheus
          containerPort: 9113
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        args:
          - -nginx-configmaps=$(POD_NAMESPACE)/nginx-config
          - -default-server-tls-secret=$(POD_NAMESPACE)/default-server-secret
        - -v=3 Enables extensive logging. Useful for troubleshooting.
        - -report-ingress-status
        - -external-service=nginx-ingress
        - -enable-leader-election
          - -enable-prometheus-metrics
        - -enable-custom-resources

#

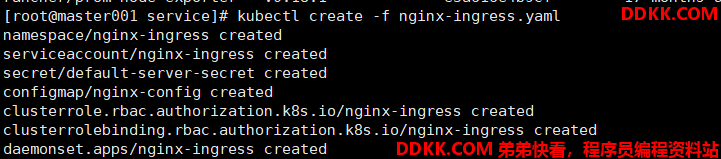

kubectl create -f nginx-ingress.yaml

1、创建nginx的deployment及service；

#
vim nginx.yaml
#
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
  labels:
    app: nginx
spec:
  selector:
    app: nginx
  ports:
  - name: nginx-port
    protocol: TCP
    port: 80
    nodePort: 32600
    targetPort: 80
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
#
kubectl create -f nginx.yaml

1、创建ingress；

#
vim nginx-i.yaml
#
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: my-ingress-for-nginx
spec:
  rules:
  - host: a.demo.kuboard.cn
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-service
          servicePort: 80
#
kubectl create -f nginx-i.yaml

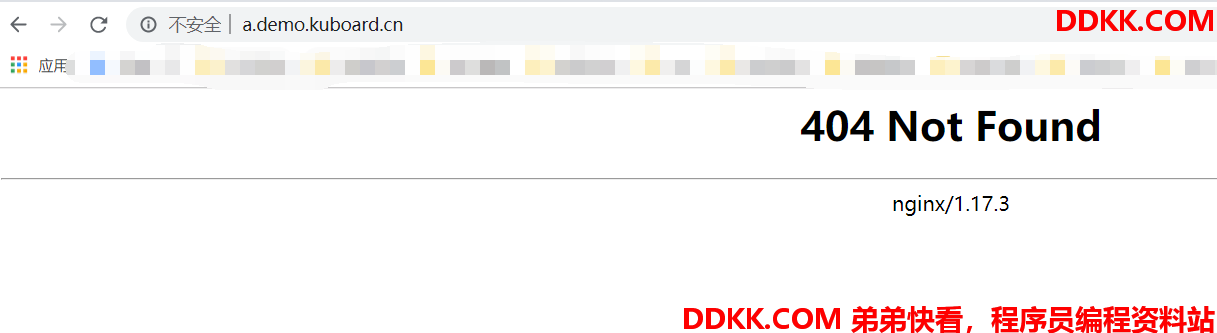

1、浏览器访问；
