SpringBoot 实战 - 集成 SpringSecurity

亲测可行，送给探索SpringBoot和SpringSecurtiy的新手们

0.页面展示

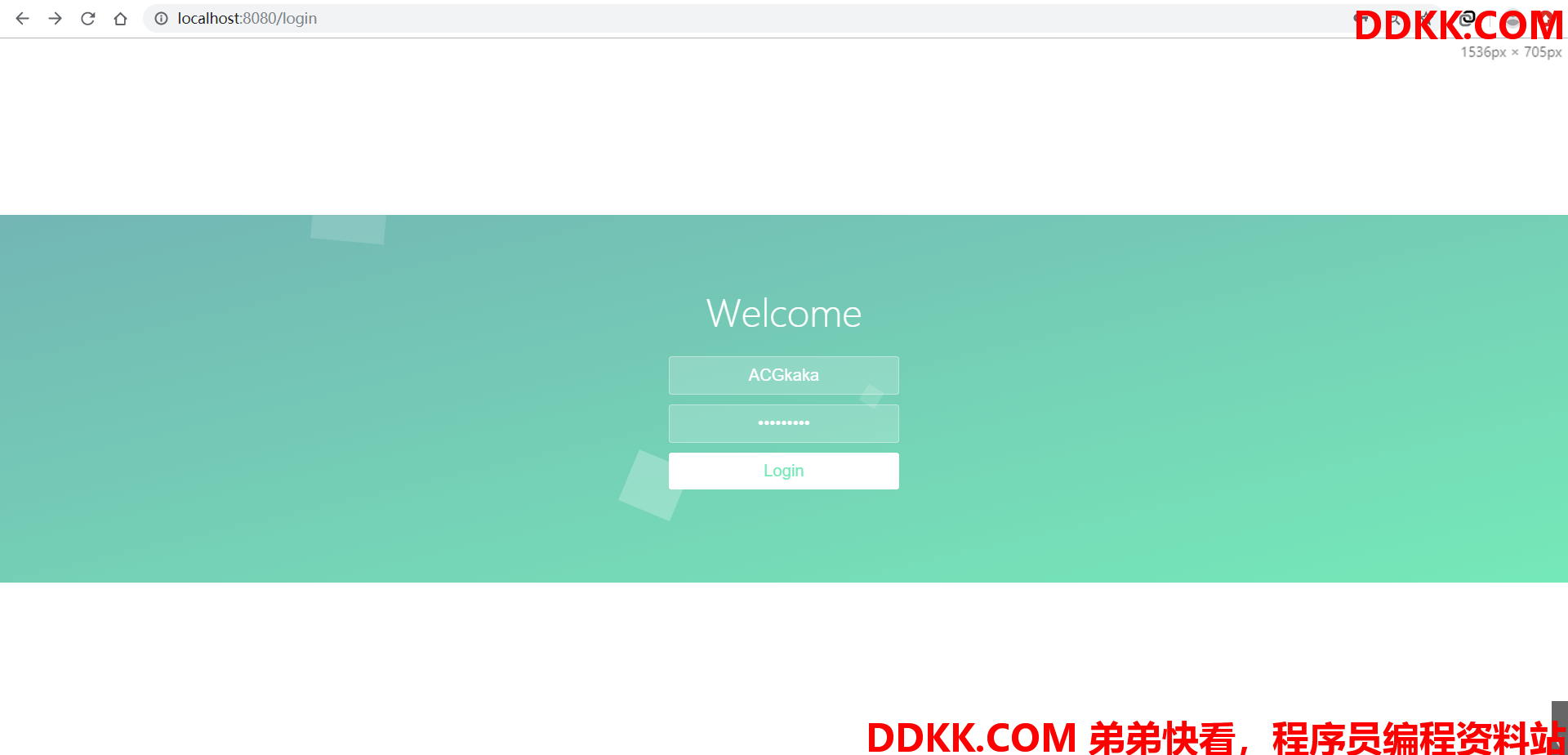

登录页

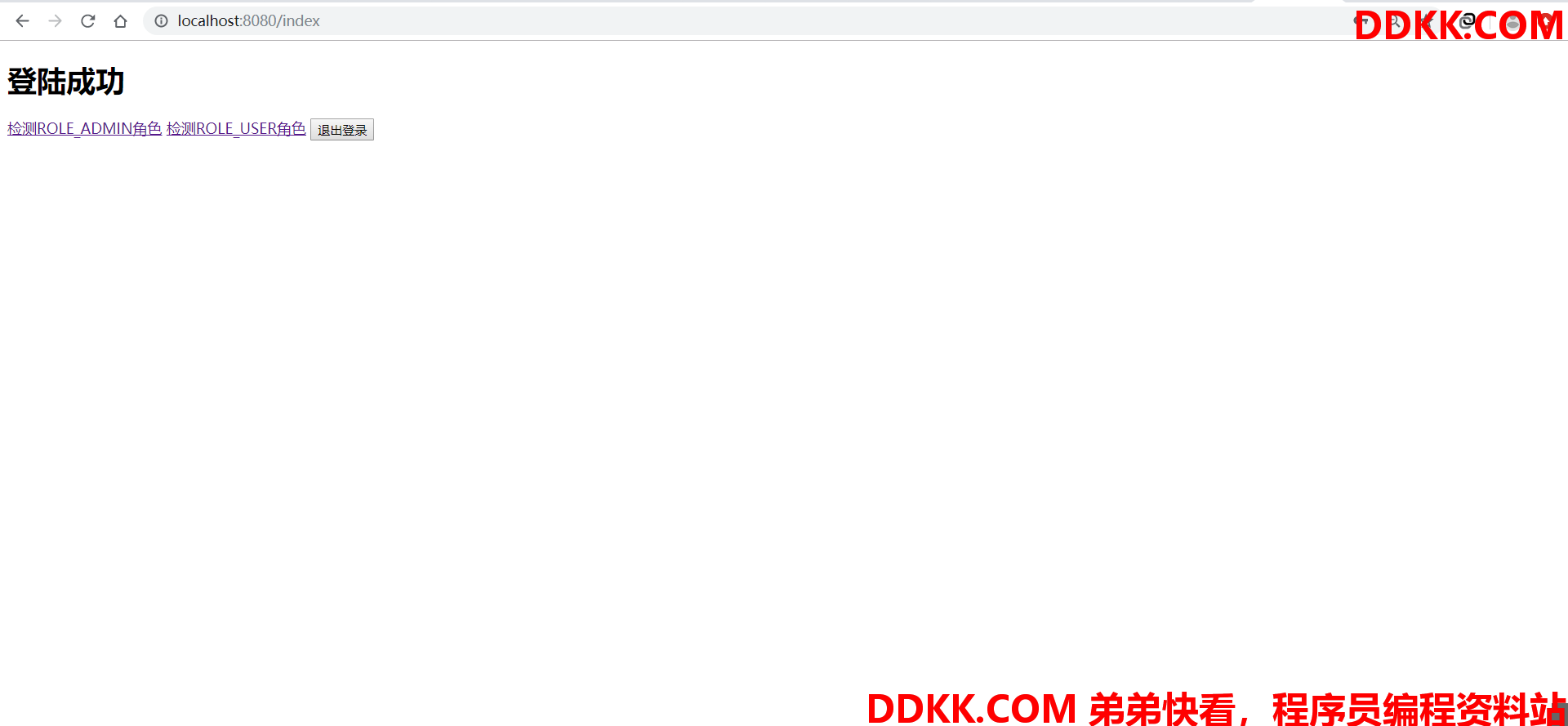

首页

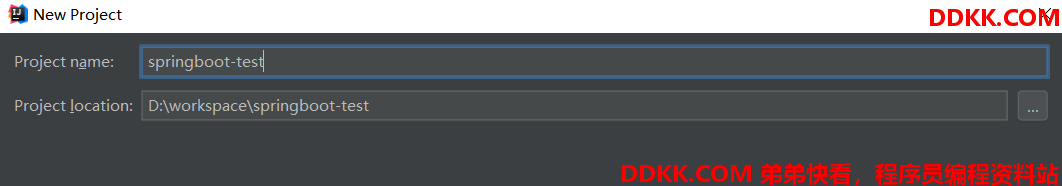

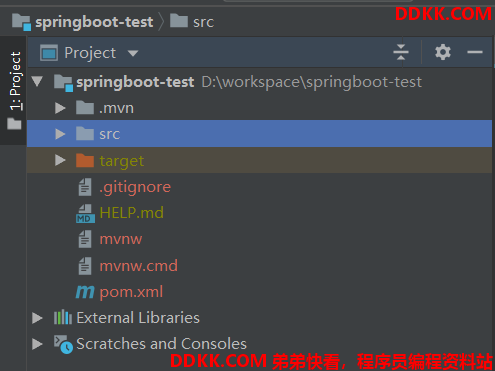

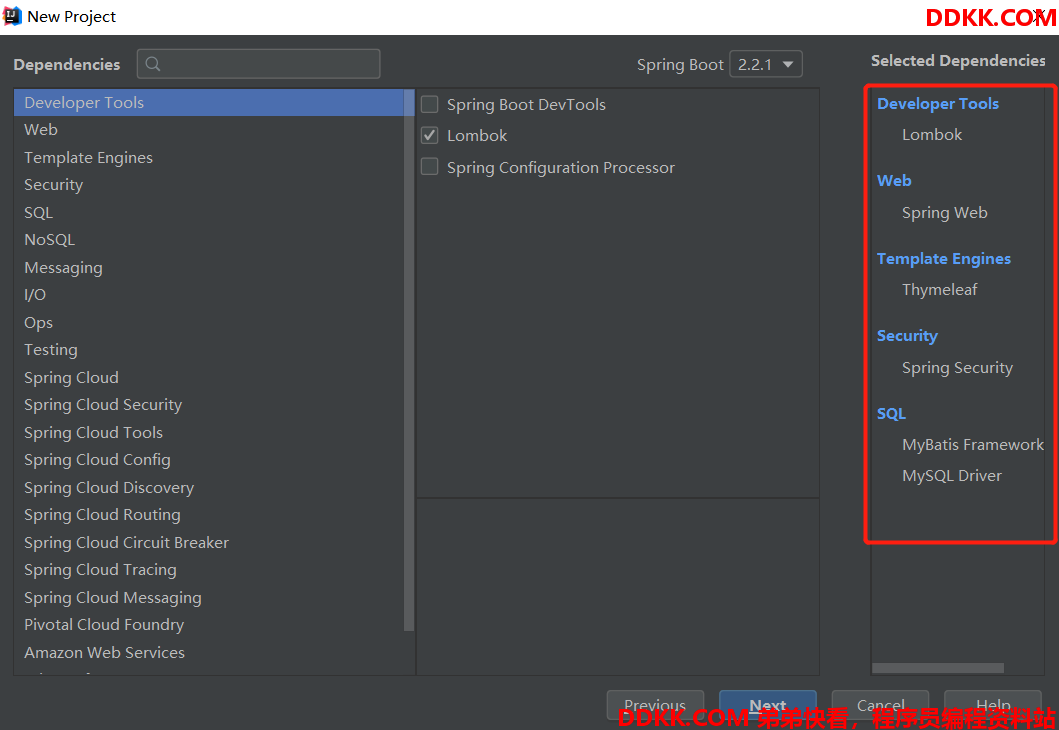

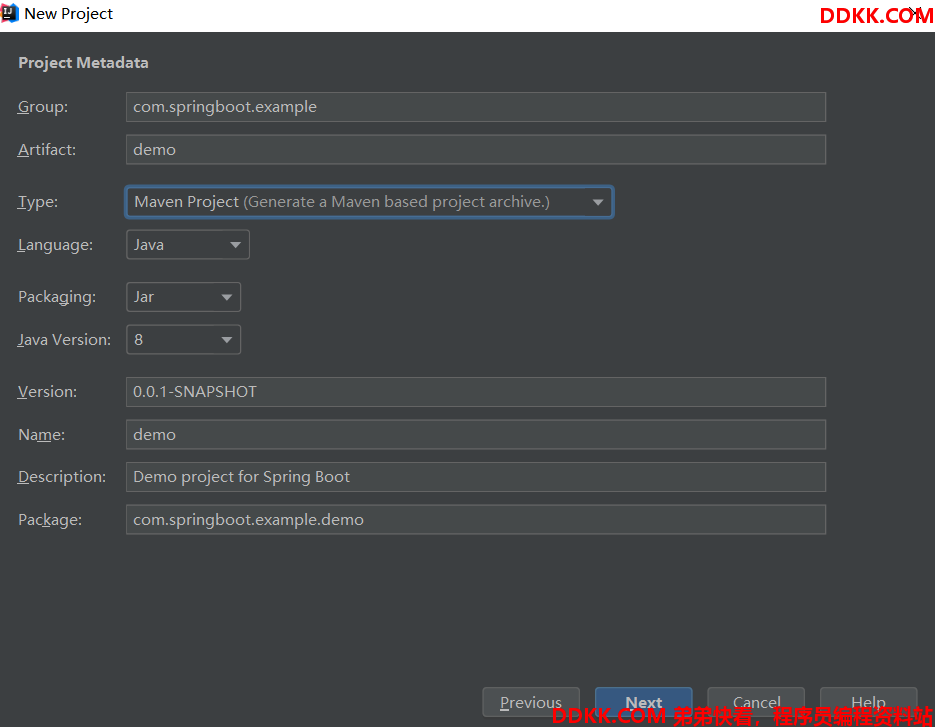

1.使用IDEA创建SpringBoot程序

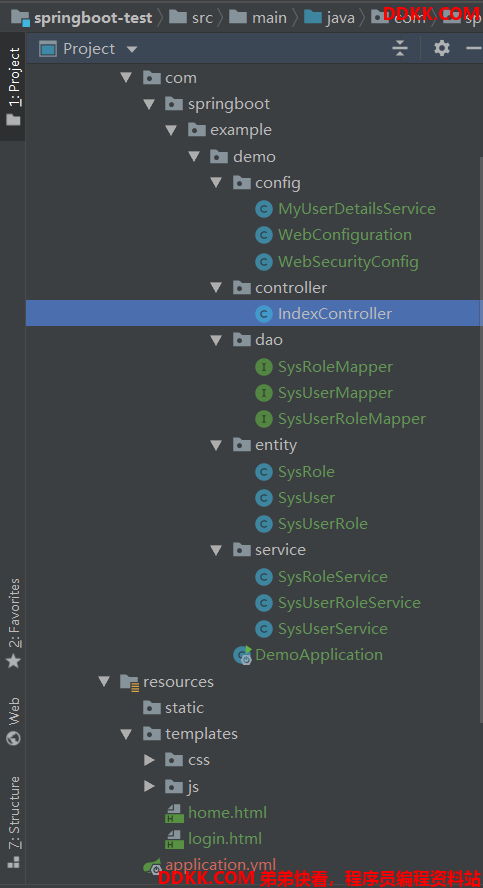

2.整体包结构

3.pom.xml

如果是按照第一步正常勾选之后的SpringBoot程序无需改动pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.springboot.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.1</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

4.数据库结构

create database my;
use my;

-- 创建用户表
CREATE TABLE sys_user (
    id int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
    username varchar(64) NOT NULL COMMENT '用户名',
    password varchar(64) NOT NULL COMMENT '密码',
    PRIMARY KEY (id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='用户表';

-- 创建角色表
CREATE TABLE sys_role (
    id int(11) NOT NULL COMMENT '主键',
    name varchar(64) NOT NULL COMMENT '角色名',
    PRIMARY KEY (id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='角色表';

-- 创建用户角色表
CREATE TABLE sys_user_role (
    user_id int(11) NOT NULL COMMENT '用户ID',
    role_id int(11) NOT NULL COMMENT '角色ID',
    PRIMARY KEY (user_id,role_id),
    KEY fk_role_id (role_id),
    CONSTRAINT fk_role_id FOREIGN KEY (role_id) REFERENCES sys_role (id) ON DELETE CASCADE ON UPDATE CASCADE,
    CONSTRAINT fk_user_id FOREIGN KEY (user_id) REFERENCES sys_user (id) ON DELETE CASCADE ON UPDATE CASCADE
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='用户角色表';
INSERT INTO sys_role VALUES ('1', 'ROLE_ADMIN');
INSERT INTO sys_role VALUES ('2', 'ROLE_USER');

INSERT INTO sys_user VALUES ('1', 'admin', '123456');
INSERT INTO sys_user VALUES ('2', 'test', '123456');

INSERT INTO sys_user_role VALUES ('1', '1');
INSERT INTO sys_user_role VALUES ('2', '2');

5.java源码

config

MyUserDetailsService

package com.springboot.example.demo.config;

import com.springboot.example.demo.entity.SysRole;
import com.springboot.example.demo.entity.SysUser;
import com.springboot.example.demo.entity.SysUserRole;
import com.springboot.example.demo.service.SysRoleService;
import com.springboot.example.demo.service.SysUserRoleService;
import com.springboot.example.demo.service.SysUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

/**
 * <p> @Title MyUserDetailsService
 * <p> @Description 系统用户认证配置
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 14:37
 */
@Service("userDetailsService")
public class MyUserDetailsService implements UserDetailsService {


    @Autowired
    private SysUserService userService;

    @Autowired
    private SysRoleService roleService;

    @Autowired
    private SysUserRoleService userRoleService;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {


        Collection<GrantedAuthority> authorities = new ArrayList<>();
        // 从数据库中取出用户信息
        SysUser user = userService.selectByName(username);

        // 判断用户是否存在
        if(user == null) {


            throw new UsernameNotFoundException("用户名不存在");
        }

        // 添加权限
        List<SysUserRole> userRoles = userRoleService.listByUserId(user.getId());
        for (SysUserRole userRole : userRoles) {


            SysRole role = roleService.selectById(userRole.getRoleId());
            authorities.add(new SimpleGrantedAuthority(role.getName()));
        }

        // 返回UserDetails实现类
        return new User(user.getUsername(), user.getPassword(), authorities);
    }
}

WebConfiguration

package com.springboot.example.demo.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * SpringBoot静态路径配置
 *
 * @author bask
 */
@Configuration
@Primary
public class WebConfiguration implements WebMvcConfigurer {



    /**
     * 访问外部文件配置
     */
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {


        registry.addResourceHandler("");
        WebMvcConfigurer.super.addResourceHandlers(registry);
    }
}

WebSecurityConfig

package com.springboot.example.demo.config;

import lombok.AllArgsConstructor;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.password.PasswordEncoder;

/**
 * <p> @Title WebSecurityConfig
 * <p> @Description Spring Security 配置
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 14:38
 */
@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
@AllArgsConstructor
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {



    private MyUserDetailsService userDetailsService;

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {


        auth.userDetailsService(userDetailsService).passwordEncoder(new PasswordEncoder() {


            @Override
            public String encode(CharSequence charSequence) {


                return charSequence.toString();
            }

            @Override
            public boolean matches(CharSequence charSequence, String s) {


                return s.equals(charSequence.toString());
            }
        });
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {


        http.authorizeRequests()
                // 如果有允许匿名的url，填在下面
                // .antMatchers().permitAll()
                // 其他所有请求需要身份认证
                .anyRequest().authenticated()
                .and()
                // 设置登陆页
                .formLogin().loginPage("/login")
                // 设置登陆成功页
                .successForwardUrl("/").permitAll()
                .failureForwardUrl("/login?error=用户名或密码不正确")
                // 自定义登陆用户名和密码参数，默认为username和password
                // .usernameParameter("username")
                // .passwordParameter("password")
                .and()
                .logout().permitAll();

        // 关闭CSRF跨域
        http.csrf().disable();
    }

    @Override
    public void configure(WebSecurity web) {


        web.ignoring().antMatchers("/js/**")
                .antMatchers("/css/**");
    }
}

controller

IndexController

package com.springboot.example.demo.controller;

import lombok.AllArgsConstructor;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Controller;
import org.springframework.stereotype.Repository;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * <p> @Title IndexController
 * <p> @Description 首页Controller
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/10/23 20:23
 */
@Controller
@AllArgsConstructor
public class IndexController {



    private static final Logger LOGGER = LoggerFactory.getLogger(IndexController.class);

    @RequestMapping("/")
    public String showHome() {


        String name = SecurityContextHolder.getContext().getAuthentication().getName();
        LOGGER.info("当前登陆用户：" + name);
        return "redirect:/index";
    }

    @RequestMapping("/index")
    public String index() {


        return "home";
    }

    @RequestMapping("/login")
    public String showLogin() {


        return "login";
    }
    @RequestMapping("/admin")
    @ResponseBody
    @PreAuthorize("hasRole('ROLE_ADMIN')")
    public String printAdmin() {


        return "如果你看见这句话，说明你有ROLE_ADMIN角色";
    }

    @RequestMapping("/user")
    @ResponseBody
    @PreAuthorize("hasRole('ROLE_USER')")
    public String printUser() {


        return "如果你看见这句话，说明你有ROLE_USER角色";
    }
}

dao

SysRoleMapper

package com.springboot.example.demo.dao;

import com.springboot.example.demo.entity.SysRole;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;

/**
 * <p> @Title SysUserRoleMapper
 * <p> @Description 系统角色Mapper
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 14:28
 */
@Mapper
public interface SysRoleMapper {



    /**
     * 根据角色ID查找角色
     *
     * @param id 角色ID
     * @return 角色
     */
    @Select("select * from sys_role where id ={id}")
    SysRole findById(Long id);
}

SysUserMapper

package com.springboot.example.demo.dao;

import com.springboot.example.demo.entity.SysUser;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;

import java.util.List;

/**
 * <p> @Title SysUserMapper
 * <p> @Description 系统用户Mapper
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 10:28
 */
@Mapper
public interface SysUserMapper {



    /**
     * 根据用户名查找用户
     *
     * @param username 用户名
     * @return 用户
     */
    @Select("select * from sys_user where username ={username}")
    SysUser findByName(String username);
}

SysUserRoleMapper

package com.springboot.example.demo.dao;

import com.springboot.example.demo.entity.SysUserRole;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;

import java.util.List;

/**
 * <p> @Title SysUserRoleMapper
 * <p> @Description 系统用户角色Mapper
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 14:28
 */
@Mapper
public interface SysUserRoleMapper {



    /**
     * 根据用户ID查找用户角色
     *
     * @param userId 用户ID
     * @return 用户角色
     */
    @Select("select * from sys_user_role where user_id ={userId}")
    List<SysUserRole> findByUserId(Long userId);
}

entity

SysRole

package com.springboot.example.demo.entity;

import lombok.Data;

/**
 * <p> @Title SysRole
 * <p> @Description 用户角色
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 10:23
 */
@Data
public class SysRole {



    /** 主键 */
    private Long id;

    /** 角色名 */
    private String name;
}

SysUser

package com.springboot.example.demo.entity;

import lombok.Data;

import java.io.Serializable;

/**
 * <p> @Title SysUser
 * <p> @Description 系统用户
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/23 10:49
 */
@Data
public class SysUser implements Serializable {



    /** 主键 */
    private Long id;

    /** 用户名. */
    private String username;

    /** 密码. */
    private String password;
}

SysUserRole

package com.springboot.example.demo.entity;

import lombok.Data;

/**
 * <p> @Title SysUserRole
 * <p> @Description 用户角色关系表
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 10:25
 */
@Data
public class SysUserRole {



    /** 用户ID */
    private Long userId;

    /** 角色ID */
    private Long roleId;
}

service

SysRoleService

package com.springboot.example.demo.service;

import com.springboot.example.demo.dao.SysRoleMapper;
import com.springboot.example.demo.entity.SysRole;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * <p> @Title SysRoleService
 * <p> @Description 系统角色Service
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 14:34
 */
@Service
public class SysRoleService {



    @Autowired
    private SysRoleMapper roleMapper;

    public SysRole selectById(Long id){


        return roleMapper.findById(id);
    }
}

SysUserRoleService

package com.springboot.example.demo.service;

import com.springboot.example.demo.dao.SysUserRoleMapper;
import com.springboot.example.demo.entity.SysUserRole;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * <p> @Title SysUserRoleService
 * <p> @Description 系统用户角色Service
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/27 14:35
 */
@Service
public class SysUserRoleService {



    @Autowired
    private SysUserRoleMapper userRoleMapper;

    public List<SysUserRole> listByUserId(Long userId) {


        return userRoleMapper.findByUserId(userId);
    }
}

SysUserService

package com.springboot.example.demo.service;

import com.springboot.example.demo.dao.SysUserMapper;
import com.springboot.example.demo.entity.SysUser;
import org.springframework.beans.factory.annotation.Autowired;

/**
 * <p> @Title SysUserService
 * <p> @Description 系统用户Service
 *
 * @author DDKK.COM 弟弟快看，程序员编程资料站
 * @date 2022/11/23 10:53
 */
@Service
public class SysUserService {



    @Autowired
    private SysUserMapper sysUserMapper;

    public SysUser selectByName(String username) {


        return sysUserMapper.findByName(username);
    }
}

DemoApplication

package com.springboot.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class DemoApplication {



    public static void main(String[] args) {


        SpringApplication.run(DemoApplication.class, args);
    }

}

6.resources源码

templates

home.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h1>登陆成功</h1>
<a href="/admin">检测ROLE_ADMIN角色</a>
<a href="/user">检测ROLE_USER角色</a>
<button onclick="window.location.href='/logout'">退出登录</button>
</body>
</html>

login.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>登陆</title>
</head>
<body>
    <center>
        <h1>登陆</h1>
        <form method="post" action="/login">
            <div>
                用户名：<input type="text" name="username">
            </div>
            <br/>
            <div>
                密  码：<input type="password" name="password">
            </div>
            <br/>
            <div>
                <button type="submit">立即登陆</button>
            </div>
        </form>
    </center>
</body>
</html>

application.yml

server:
  port: 8080
  servlet:
    context-path: / 项目路径

spring:
  mvc:
    view:
      prefix: /templates/
      suffix: .html
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/my?useUnicode=true&characterEncoding=utf-8&useSSL=true
    username: root
    password: root

#开启Mybatis下划线命名转驼峰命名
mybatis:
  configuration:
    map-underscore-to-camel-case: true

源码下载:
CSDN下载: //download.csdn.net/download/qq_33204709/12004398

漫漫学习路, 永无止境。。。

01、SpringBoot 实战 - 集成 SpringSecurity

0.页面展示

登录页

首页

1.使用IDEA创建SpringBoot程序

2.整体包结构

3.pom.xml

4.数据库结构

5.java源码

config

MyUserDetailsService

WebConfiguration

WebSecurityConfig

controller

IndexController

dao

SysRoleMapper

SysUserMapper

SysUserRoleMapper

entity

SysRole

SysUser

SysUserRole

service

SysRoleService

SysUserRoleService

SysUserService

DemoApplication

6.resources源码

templates

home.html

login.html

application.yml
