1. 简介
WebSocket：是一种网络传输协议，可在单个TCP连接上进行全双工通信，位于OSI模型的应用层。
- WebSocket 使得客户端和服务端之间的数据交换变得更加简单，允许服务端主动向客户端推送数据。
- 在 WebSocket API 中，浏览器和服务器只需一次握手，就可以创建持久性的连接，并进行双向数据传输。

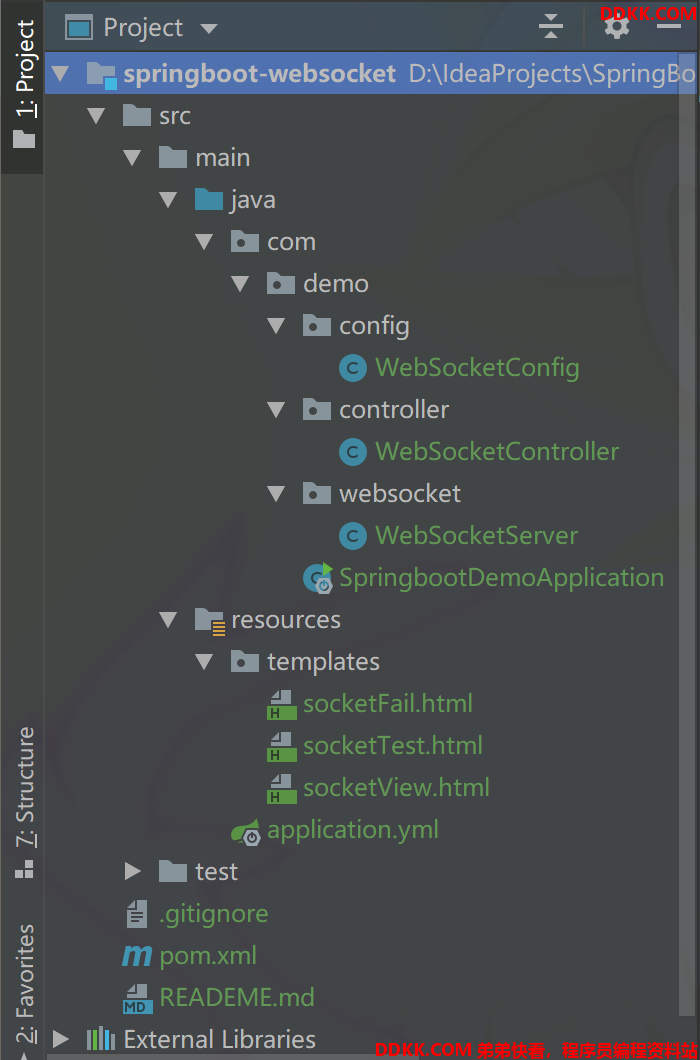

2. 项目结构
3. 项目地址
github：https://github.com/ACGkaka/SpringBootExamples/tree/main/springboot-websocket
本地测试： http:\\localhost:8080/websocket/socketTest
4. 配置
4.1 Maven
<!-- Websocket -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
</dependency>
<!-- thymeleaf -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
4.2 WebSocketConfig
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;
/**
* <p> @Title WebSocketConfig
* <p> @Description Websocket 配置类
*
* @author DDKK.COM 弟弟快看，程序员编程资料站
*/
@Configuration
public class WebSocketConfig {
@Bean
public ServerEndpointExporter serverEndPointExporter() {
return new ServerEndpointExporter();
}
}
5. Java 代码
5.1 WebSocketController.java
import com.demo.websocket.WebSocketServer;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
/**
* <p> @Title WebSocketController
* <p> @Description websocket controller
*
* @author DDKK.COM 弟弟快看，程序员编程资料站
* @date 2022/1/10 10:13
*/
@Slf4j
@Controller
@RequestMapping("/websocket")
public class WebSocketController {
/**
* 本地socket测试
*/
@GetMapping("/socketTest")
public String socketTest() {
return "socketTest";
}
/**
* 页面请求
*/
@GetMapping("/view/{socketId}")
public String socketView(@PathVariable String socketId, Model model) {
if (socketId == null || socketId.trim().length() == 0) {
return "socketFail";
}
model.addAttribute("socketId", socketId);
return "socketView";
}
/**
* 推送数据接口
*/
@GetMapping("/push/{socketId}")
public Map<String, Object> pushToMap(@PathVariable String socketId, String message) {
Map<String, Object> result = new HashMap<>();
try {
// 推送数据
WebSocketServer.sendInfo(message, socketId);
result.put("code", 200);
result.put("msg", "success");
} catch (IOException e) {
// 抛出异常
log.error(e.getMessage(), e);
result.put("code", 500);
result.put("msg", "推送数据失败：" + e.getMessage());
}
return result;
}
}
5.2 WebSocketServer.java
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.io.IOException;
import java.util.concurrent.CopyOnWriteArraySet;
/**
* <p> @Title WebSocketServer
* <p> @Description Websocket 服务器
*
* @author DDKK.COM 弟弟快看，程序员编程资料站
* @date 2022/1/10 10:02
*/
@Slf4j
@Component
@ServerEndpoint("/websocket/{sid}")
public class WebSocketServer {
/**
* 静态变量，用来记录当前在线连接数。应该把它设计成线程安全的。
*/
private static int onlineCount = 0;
/**
* concurrent包的线程安全Set，用来存放每个客户端对应的MyWebSocket对象。
*/
private static CopyOnWriteArraySet<WebSocketServer> webSocketSet = new CopyOnWriteArraySet<>();
/**
* 与某个客户端的连接会话，需要通过它来给客户端发送数据
*/
private Session session;
/**
* 接收sid
*/
private String sid = "";
/**
* 连接建立成功调用的方法
*/
@OnOpen
public void onOpen(Session session, @PathParam("sid") String sid) {
this.session = session;
webSocketSet.add(this); //加入set中
addOnlineCount(); //在线数加1
log.info("有新窗口开始监听:" + sid + ",当前在线人数为" + getOnlineCount());
this.sid = sid;
try {
sendMessage("连接成功");
} catch (IOException e) {
log.error("websocket IO异常");
}
}
/**
* 连接关闭调用的方法
*/
@OnClose
public void onClose() {
// 从set中删除
webSocketSet.remove(this);
// 在线数减1
subOnlineCount();
log.info("有一连接关闭！当前在线人数为" + getOnlineCount());
}
/**
* 收到客户端消息后调用的方法
*
* @param message 客户端发送过来的消息
*/
@OnMessage
public void onMessage(String message, Session session) {
log.info("收到来自窗口" + sid + "的信息:" + message);
//群发消息
for (WebSocketServer item : webSocketSet) {
try {
item.sendMessage(message);
} catch (IOException e) {
e.printStackTrace();
}
}
}
/**
* @param session
* @param error
*/
@OnError
public void onError(Session session, Throwable error) {
log.error("发生错误");
error.printStackTrace();
}
/**
* 实现服务器主动推送
*/
public void sendMessage(String message) throws IOException {
this.session.getBasicRemote().sendText(message);
}
/**
* 群发自定义消息
*/
public static void sendInfo(String message, @PathParam("sid") String sid) throws IOException {
log.info("推送消息到窗口" + sid + "，推送内容:" + message);
for (WebSocketServer item : webSocketSet) {
try {
//这里可以设定只推送给这个sid的，为null则全部推送
if (sid == null) {
item.sendMessage(message);
} else if (item.sid.equals(sid)) {
item.sendMessage(message);
}
} catch (IOException e) {
continue;
}
}
}
public static synchronized int getOnlineCount() {
return onlineCount;
}
public static synchronized void addOnlineCount() {
WebSocketServer.onlineCount++;
}
public static synchronized void subOnlineCount() {
WebSocketServer.onlineCount--;
}
public static CopyOnWriteArraySet<WebSocketServer> getWebSocketSet() {
return webSocketSet;
}
}

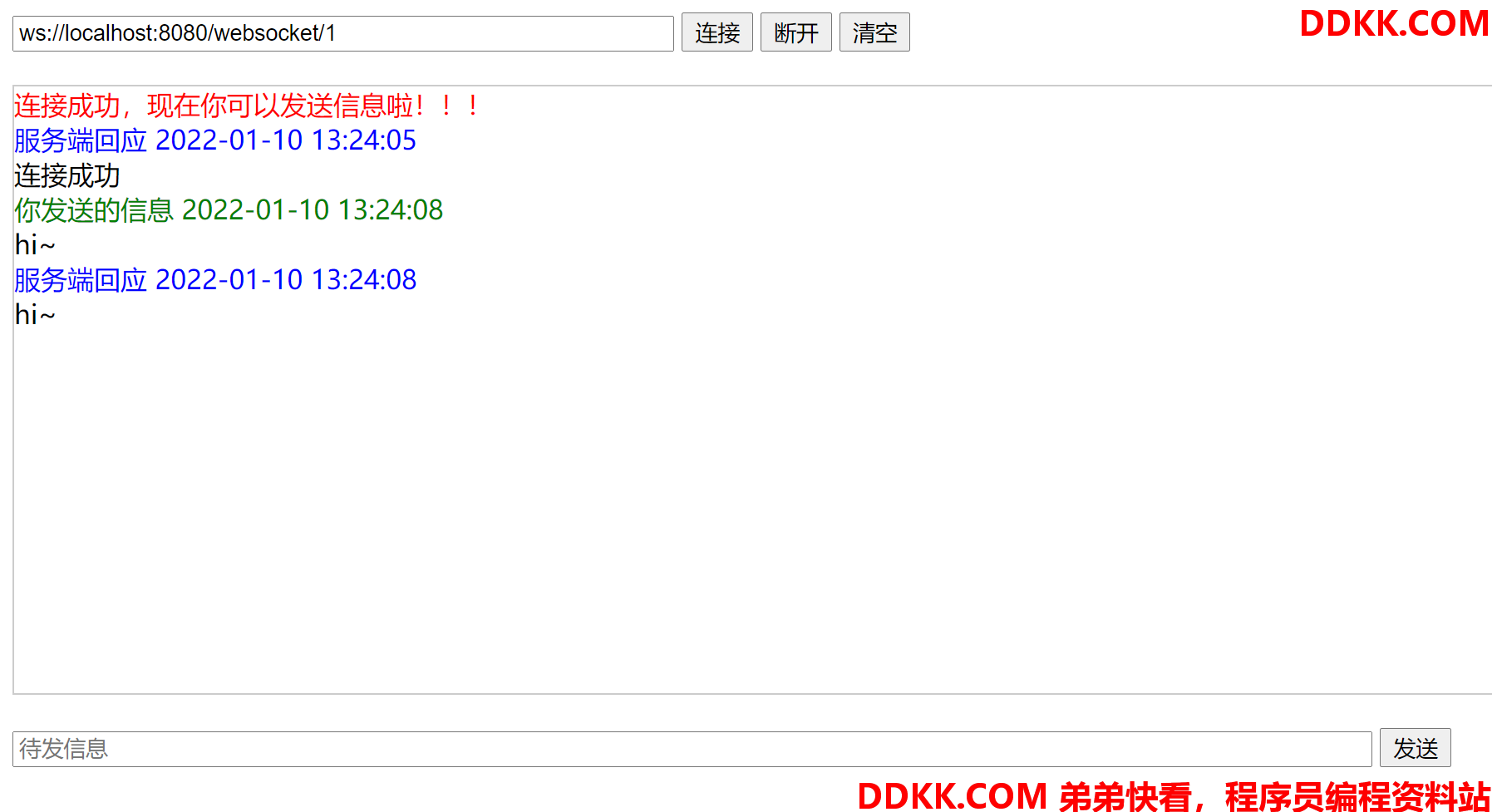

6. 本地socket测试
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8"/>
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>本地websocket测试</title>
<meta name="robots" content="all"/>
<meta name="keywords" content="本地,websocket,测试工具"/>
<meta name="description" content="本地,websocket,测试工具"/>
<style>
.btn-group {
display: inline-block;
}
</style>
</head>
<body>
<input type='text' value='ws://localhost:8080/websocket/1' class="form-control" style='width:390px;display:inline'
id='wsaddr'/>
<div class="btn-group">
<button type="button" class="btn btn-default" onclick='addsocket();'>连接</button>
<button type="button" class="btn btn-default" onclick='closesocket();'>断开</button>
<button type="button" class="btn btn-default" onclick='$("#wsaddr").val("")'>清空</button>
</div>
<div class="row">
<div id="output" style="border:1px solidccc;height:365px;overflow: auto;margin: 20px 0;"></div>
<input type="text" id='message' class="form-control" style='width:810px' placeholder="待发信息" onkeydown="en(event);">
<span class="input-group-btn">
<button class="btn btn-default" type="button" onclick="doSend();">发送</button>
</span>
</div>
</div>
</body>
<script src="https://code.jquery.com/jquery-3.1.1.min.js"></script>
<script language="javascript" type="text/javascript">
function formatDate(now) {
var year = now.getFullYear();
var month = now.getMonth() + 1;
var date = now.getDate();
var hour = now.getHours();
var minute = now.getMinutes();
var second = now.getSeconds();
return year + "-" + (month = month < 10 ? ("0" + month) : month) + "-" + (date = date < 10 ? ("0" + date) : date) +
" " + (hour = hour < 10 ? ("0" + hour) : hour) + ":" + (minute = minute < 10 ? ("0" + minute) : minute) + ":" + (
second = second < 10 ? ("0" + second) : second);
}
var output;
var websocket;
function init() {
output = document.getElementById("output");
testWebSocket();
}
function addsocket() {
var wsaddr = $("#wsaddr").val();
if (wsaddr == '') {
alert("请填写websocket的地址");
return false;
}
StartWebSocket(wsaddr);
}
function closesocket() {
websocket.close();
}
function StartWebSocket(wsUri) {
websocket = new WebSocket(wsUri);
websocket.onopen = function (evt) {
onOpen(evt)
};
websocket.onclose = function (evt) {
onClose(evt)
};
websocket.onmessage = function (evt) {
onMessage(evt)
};
websocket.onerror = function (evt) {
onError(evt)
};
}
function onOpen(evt) {
writeToScreen("<span style='color:red'>连接成功，现在你可以发送信息啦！！！</span>");
}
function onClose(evt) {
writeToScreen("<span style='color:red'>websocket连接已断开!!!</span>");
websocket.close();
}
function onMessage(evt) {
writeToScreen('<span style="color:blue">服务端回应 ' + formatDate(new Date()) + '</span><br/><span class="bubble">' +
evt.data + '</span>');
}
function onError(evt) {
writeToScreen('<span style="color: red;">发生错误:</span> ' + evt.data);
}
function doSend() {
var message = $("#message").val();
if (message == '') {
alert("请先填写发送信息");
$("#message").focus();
return false;
}
if (typeof websocket === "undefined") {
alert("websocket还没有连接，或者连接失败，请检测");
return false;
}
if (websocket.readyState == 3) {
alert("websocket已经关闭，请重新连接");
return false;
}
console.log(websocket);
$("#message").val('');
writeToScreen('<span style="color:green">你发送的信息 ' + formatDate(new Date()) + '</span><br/>' + message);
websocket.send(message);
}
function writeToScreen(message) {
var div = "<div class='newmessage'>" + message + "</div>";
var d = $("#output");
var d = d[0];
var doScroll = d.scrollTop == d.scrollHeight - d.clientHeight;
$("#output").append(div);
if (doScroll) {
d.scrollTop = d.scrollHeight - d.clientHeight;
}
}
function en(event) {
var evt = evt ? evt : (window.event ? window.event : null);
if (evt.keyCode == 13) {
doSend()
}
}
</script>
</html>
整理完毕，完结撒花~ 🌻
