15、Flink 实战 - Keyed State状态管理之ListState使用 ValueState实现

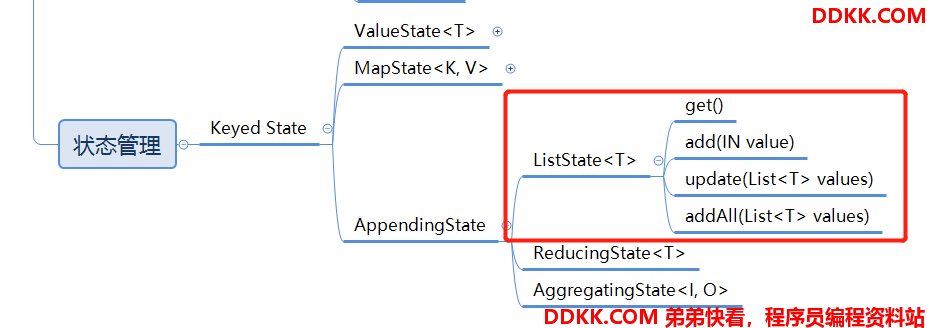

一、ListState的方法

  • get()方法获取值
  • add(IN value),addAll(List values)方法更新值
  • update(List values) 用新List 替换 原来的List
  • clear() 清空List,List还存在,但是没有元素


二、代码案例

1. 需求

记录每个人的历史操作信息,例如输入

1,login
1,buy something
1,logout
2,login
2,click book
1,login

要输出

(1,[login])
(1,[login, buy something])
(1,[login, buy something, logout])
(2,[login])
(2,[login, click book])
(1,[login, buy something, logout, login])

2. 主体

public class Test03_ListState {



    public static void main(String[] args) throws Exception {



        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);

        DataStreamSource<String> source = env.socketTextStream(BaseConstant.URL, BaseConstant.PORT);

        SingleOutputStreamOperator<Tuple2<String, String>> dataStream = source
                .map(new MapFunction<String, Tuple2<String, String>>() {



                    @Override
                    public Tuple2<String, String> map(String value) throws Exception {


                        String[] split = value.split(",");
                        if (split != null && split.length == 2) {


                            return Tuple2.of(split[0], split[1]);
                        }
                        return null;
                    }
                });
        dataStream
                .keyBy(t -> t.f0)
                .process(new MyKeyedProcessFunction())
                .print();

        env.execute();
    }
}

3. 处理方法

public static class MyKeyedProcessFunction extends KeyedProcessFunction<String, Tuple2<String, String>, Tuple2<String, List<String>>> {



    //之前的操作记录
    private transient ListState<String> listState;

    @Override
    public void open(Configuration parameters) throws Exception {


        super.open(parameters);

        ListStateDescriptor<String> recentOperatorsDescriptor = new ListStateDescriptor<String>(
                "recent-operator",
                String.class);

        listState = getRuntimeContext().getListState(recentOperatorsDescriptor);
    }

    @Override
    public void processElement(Tuple2<String, String> value, Context ctx, Collector<Tuple2<String, List<String>>> out) throws Exception {



        String action = value.f1;

        listState.add(action);

        Iterable<String> iterable = listState.get();
        ArrayList<String> events = new ArrayList<>();

        for (String actionName : iterable) {


            events.add(actionName);
        }

        out.collect(Tuple2.of(value.f0, events));

        listState.update(events);

    }
}

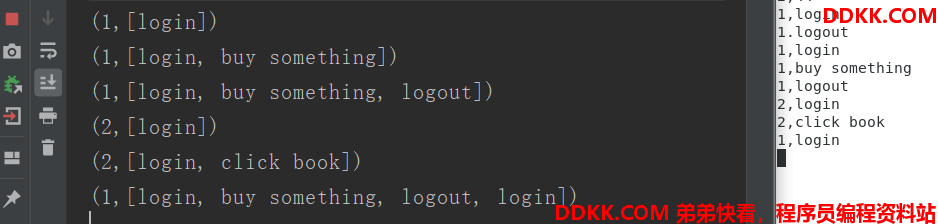

4. 运行结果



5. 用ValueState实现ListState

用ValueState实现ListState可以实现ListState,只要ValueState里装的是List

public static class MyKeyedProcessFunction extends KeyedProcessFunction<String, Tuple2<String, String>, Tuple2<String, List<String>>> {



    //之前的操作记录
    private transient ValueState<List<String>> listState;

    @Override
    public void open(Configuration parameters) throws Exception {


        super.open(parameters);

        ValueStateDescriptor<List<String>> recentOperatorsDescriptor = new ValueStateDescriptor<List<String>>(
                "recent-operator",
                TypeInformation.of(new TypeHint<List<String>>(){

     }));

        listState = getRuntimeContext().getState(recentOperatorsDescriptor);
    }

    @Override
    public void processElement(Tuple2<String, String> value, Context ctx, Collector<Tuple2<String, List<String>>> out) throws Exception {



        String action = value.f1;

        List<String> lst = listState.value();

        if (lst == null){


            lst = new ArrayList<>();
        }
        lst.add(action);

        listState.update(lst);

        out.collect(Tuple2.of(value.f0, listState.value()));
    }
}
