一、概述

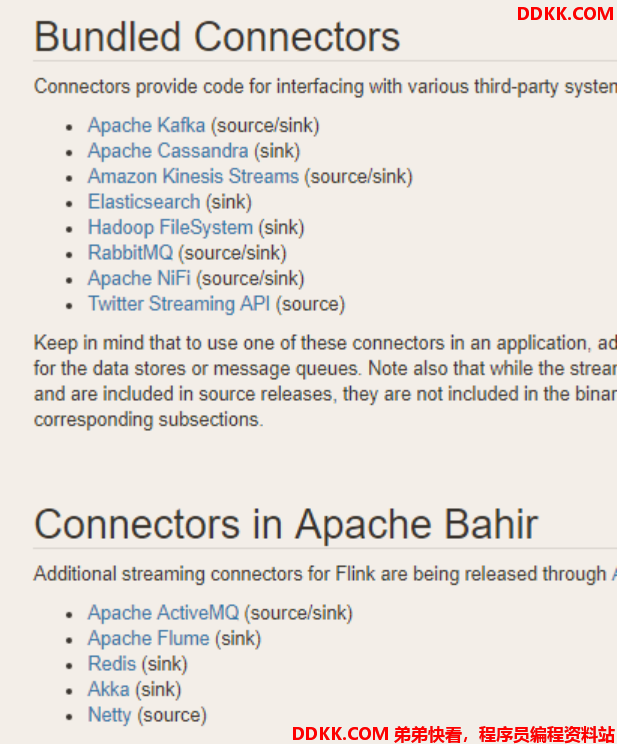

Flink输出主要通过sink完成，比如 dataStream.addSink(new MySink(XXX))。Flink集成了一些框架sink，官网Sink介绍
二、kafka sink
2.1、依赖
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-kafka-0.11_2.12</artifactId>
<version>1.10.1</version>
</dependency>
2.2、案例
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer011;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer011;
import java.util.Properties;
public class Sink_Kafka {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// kafka 配置
Properties properties = new Properties();
properties.setProperty("bootstrap.servers", "192.168.200.102:9092,192.168.200.102:9092,192.168.200.104:9092");
properties.setProperty("group.id", "flink-kafka-source");
properties.setProperty("key.deserializer",
"org.apache.kafka.common.serialization.StringDeserializer");
properties.setProperty("value.deserializer",
"org.apache.kafka.common.serialization.StringDeserializer");
properties.setProperty("auto.offset.reset", "latest");
DataStreamSource<String> inputDataStream = env.addSource(new FlinkKafkaConsumer011<String>(
"sensor",
new SimpleStringSchema(),
properties
));
String brokerlist = "192.168.200.102:9092,192.168.200.103:9092,192.168.200.104:9092";
String topic = "flink-kafka-sink";
inputDataStream.addSink(new FlinkKafkaProducer011<String>(brokerlist, topic, new SimpleStringSchema()));
env.execute();
}
}
三、redis sink
3.1、依赖
<dependency>
<groupId>org.apache.bahir</groupId>
<artifactId>flink-connector-redis_2.11</artifactId>
<version>1.0</version>
</dependency>
3.2、案例
import com.tan.flink.bean.SensorReading;
import com.tan.flink.source.SourceFromCustom;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.redis.RedisSink;
import org.apache.flink.streaming.connectors.redis.common.config.FlinkJedisPoolConfig;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisCommand;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisCommandDescription;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisMapper;
public class Sink_Redis {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
DataStreamSource<SensorReading> inputDataStream = env.addSource(new SourceFromCustom.CustomSource());
// 构建配置
FlinkJedisPoolConfig flinkJedisPoolConfig = new FlinkJedisPoolConfig.Builder()
.setHost("192.168.200.104")
.setPort(7003)
.build();
// 创建 RedisSink
inputDataStream.addSink(new RedisSink<>(flinkJedisPoolConfig, new CustomRedisSink()));
env.execute();
}
public static class CustomRedisSink implements RedisMapper<SensorReading> {
// 保存到 redis 的操作 比如 set hset ...
@Override
public RedisCommandDescription getCommandDescription() {
// 执行哈希 hset sensor sensor_id senor_temperature
return new RedisCommandDescription(RedisCommand.HSET, "sensor");
}
// 获取哈希的 key
@Override
public String getKeyFromData(SensorReading sensorReading) {
return sensorReading.getId();
}
// 获取哈希的 value
@Override
public String getValueFromData(SensorReading sensorReading) {
return sensorReading.getTemperature().toString();
}
}
}
四、ElasticSearch sink
4.1、依赖
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-elasticsearch6_2.12</artifactId>
<version>1.10.1</version>
</dependency>
4.2、案例
import com.tan.flink.bean.SensorReading;
import com.tan.flink.source.SourceFromCustom;
import org.apache.flink.api.common.functions.RuntimeContext;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.elasticsearch.ElasticsearchSinkFunction;
import org.apache.flink.streaming.connectors.elasticsearch.RequestIndexer;
import org.apache.flink.streaming.connectors.elasticsearch6.ElasticsearchSink;
import org.apache.http.HttpHost;
import org.elasticsearch.action.index.IndexRequest;
import org.elasticsearch.client.Requests;
import java.util.ArrayList;
import java.util.HashMap;
public class Sink_ElasticSearch {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
DataStreamSource<SensorReading> inputDataStream = env.addSource(new SourceFromCustom.CustomSource());
// 配置 es 主机
ArrayList<HttpHost> httpHosts = new ArrayList<>();
httpHosts.add(new HttpHost("192.168.200.102", 9200));
httpHosts.add(new HttpHost("192.168.200.103", 9200));
httpHosts.add(new HttpHost("192.168.200.104", 9200));
// 定义 es sink
inputDataStream.addSink(new ElasticsearchSink.Builder<SensorReading>(httpHosts, new CustomElasticSearchSink()).build());
env.execute();
}
public static class CustomElasticSearchSink implements ElasticsearchSinkFunction<SensorReading> {
@Override
public void process(SensorReading sensorReading, RuntimeContext runtimeContext, RequestIndexer requestIndexer) {
// 封装写入数据
HashMap<String, String> dataSource = new HashMap<>();
dataSource.put("id", sensorReading.getId());
dataSource.put("ts", sensorReading.getTimestamp().toString());
dataSource.put("temp", sensorReading.getTemperature().toString());
// 创建 request
IndexRequest indexRequest = Requests.indexRequest()
.index("sensor")
.type("doc")
.source(dataSource);
// 添加 request
requestIndexer.add(indexRequest);
}
}
}
五、自定义 sink （jdbc）
5.1、依赖
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.44</version>
</dependency>
5.2、案例
import com.tan.flink.bean.SensorReading;
import com.tan.flink.source.SourceFromCustom;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.RichSinkFunction;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
public class Sink_Custom_MySQL {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
DataStreamSource<SensorReading> inputDataStream = env.addSource(new SourceFromCustom.CustomSource());
inputDataStream.addSink(new CustomJdbcSink());
env.execute();
}
public static class CustomJdbcSink extends RichSinkFunction<SensorReading> {
Connection conn = null;
PreparedStatement insertStmt = null;
PreparedStatement updateStmt = null;
// open 主要是创建连接
@Override
public void open(Configuration parameters) throws Exception {
conn = DriverManager.getConnection("jdbc:mysql://192.168.200.103:3306/flink",
"root", "123456");
// 创建预编译器，有占位符，可传入参数
insertStmt = conn.prepareStatement("INSERT INTO sensor (id, temp) VALUES (?, ?)");
updateStmt = conn.prepareStatement("UPDATE sensor SET temp = ? WHERE id = ?");
}
// 调用连接，执行 sql
@Override
public void invoke(SensorReading value, Context context) throws Exception {
// 执行更新语句，注意不要留 super
updateStmt.setDouble(1, value.getTemperature());
updateStmt.setString(2, value.getId());
updateStmt.execute();
// 如果刚才 update 语句没有更新，那么插入
if (updateStmt.getUpdateCount() == 0) {
insertStmt.setString(1, value.getId());
insertStmt.setDouble(2, value.getTemperature());
insertStmt.execute();
}
}
@Override
public void close() throws Exception {
insertStmt.close();
updateStmt.close();
conn.close();
}
}
}
