5、Sentinel 整合 Nacos实现动态规则配置持久化、双向同步

1、为什么整合Nacos

默认情况下Sentinel配置的规则是储存的内存中,在重新Sentinel服务后,配置会显示,我们通过整合第三方中间件实现,配置的持久化,比如使用Nacos

我们要实现SentinelNacos的双向同步持久化,就需要对sentinel-dashboard的源码包进行修改。

2、效果演示

我们以流控规则为例,演示一个数据同步持久化的操作;

1、nacos同步到sentinel:

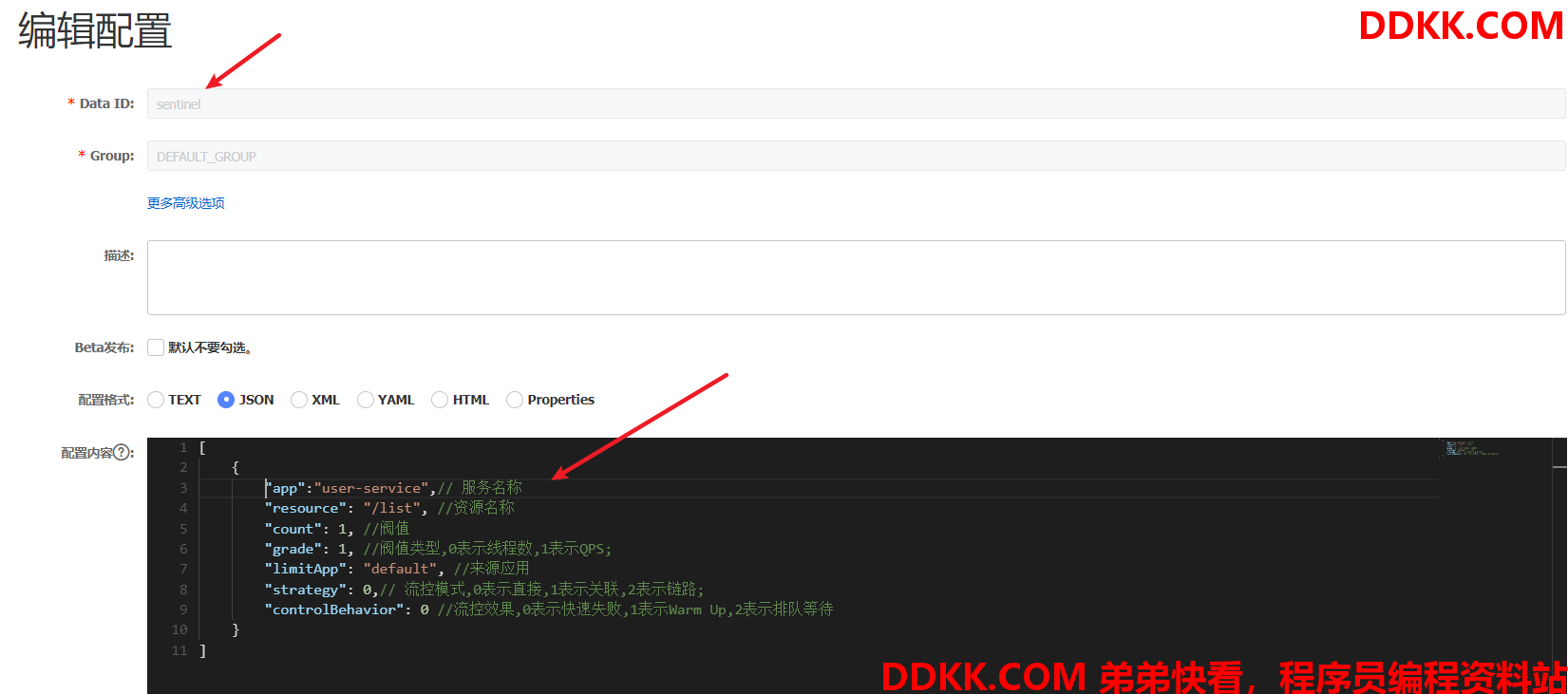

在nacos中,新增配置文件,文件的DataId为sentinel,内容为:

[
    {

    	"app":"user-service",// 服务名称
        "resource": "/list", //资源名称
        "count": 1, //阀值
        "grade": 1, //阀值类型,0表示线程数,1表示QPS;
        "limitApp": "default", //来源应用
        "strategy": 0,// 流控模式,0表示直接,1表示关联,2表示链路;
        "controlBehavior": 0 //流控效果,0表示快速失败,1表示Warm Up,2表示排队等待
    }
]

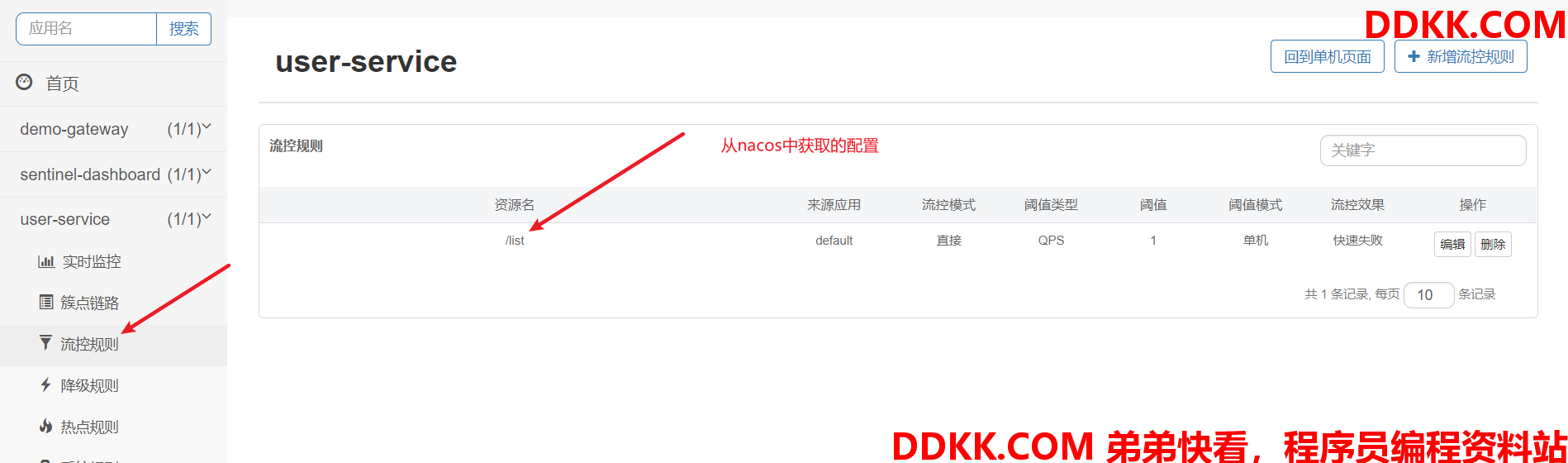

查看Sentinel控制台:数据已经实现了同步



2、sentinel同步到nacos:

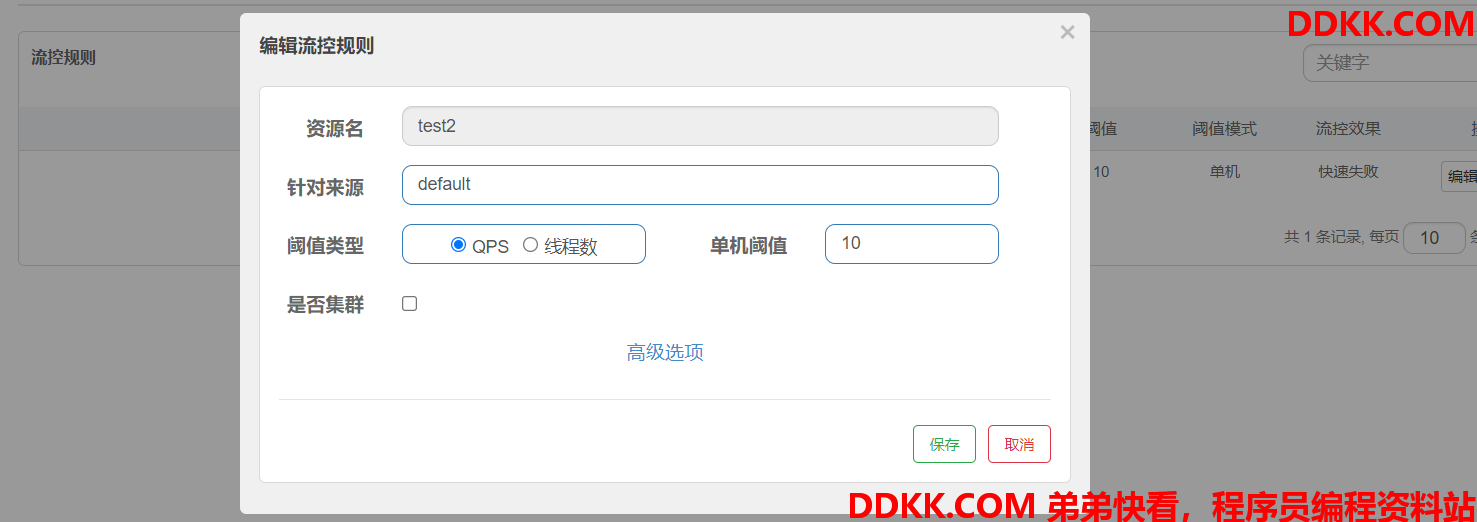

我们在sentinel控制台,建立任意流控规则,如下:

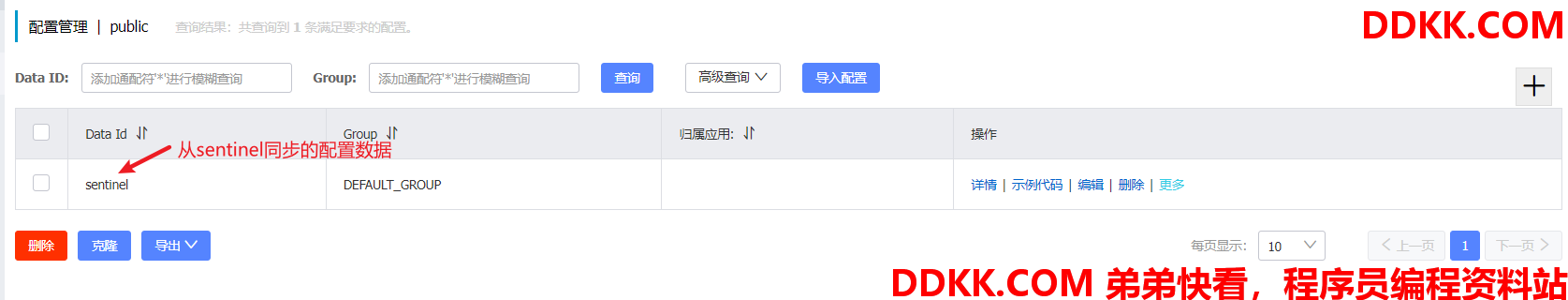

查看Nacos控制台:配置数据已经实现了同步


3、源码拉取

1、下载源码压缩包
Sentinel-github下载需要版本的压缩包,比如Sentinel-1.8.1.zip

2、加载源码

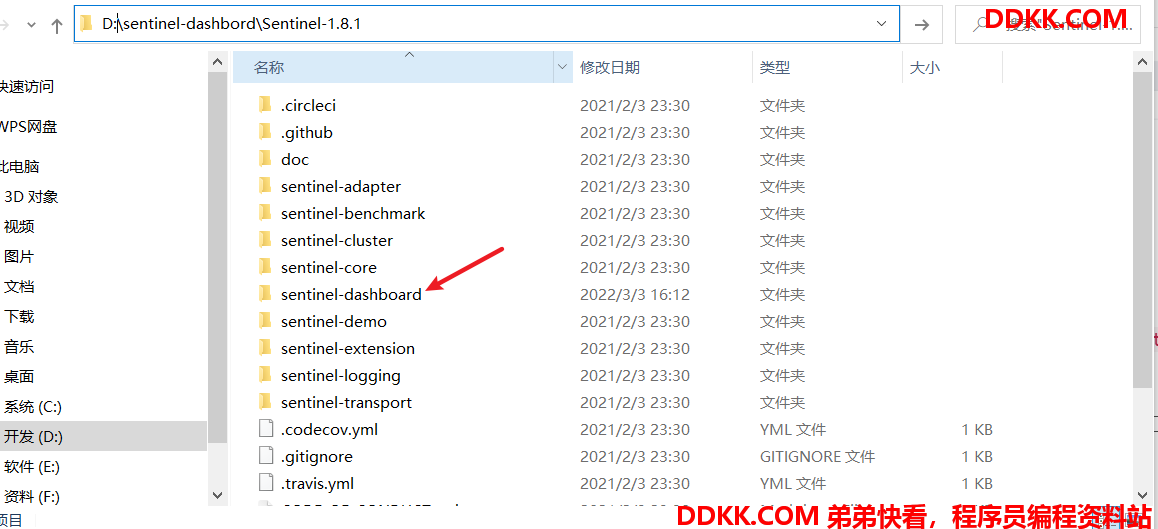

将下载好的Sentinel-1.8.1.zip解压,使用IDE工具,打开sentinel-dashboard工程


3、修改pom

sentinel-datasource-nacosscope标签注释掉

<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
    <!--<scope>test</scope>-->
</dependency>

3、创建公共配置

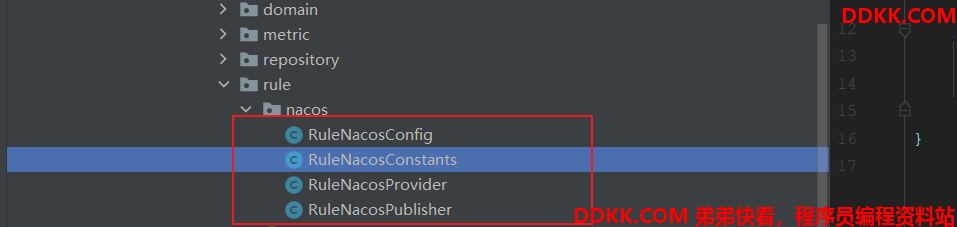

在进行规则代码修改之前需要创建Nacos配置文件,在com.alibaba.csp.sentinel.dashboard.rule包下创建nacos包,并且在包下创建四个类:RuleNacosConfigRuleNacosProviderRuleNacosPublisherRuleNacosConstants



RuleNacosConfig:

@Configuration
public class RuleNacosConfig{


    @Bean
    public ConfigService nacosConfigService() throws Exception {


        Properties properties = new Properties();
        properties.put(PropertyKeyConst.SERVER_ADDR, "112.15.11.18:8848");
        // properties.put(PropertyKeyConst.NAMESPACE, "xxx"); 命名空间
        // properties.put(PropertyKeyConst.USERNAME, "xxx"); 用户名
        // properties.put(PropertyKeyConst.PASSWORD, "xxx"); 密码
        return ConfigFactory.createConfigService(properties);
    }
}

RuleNacosProvider:

@Component
public class RuleNacosProvider {

    @Autowired
    private ConfigService configService;

    public String getRules(String dataId, String app) throws Exception {


        // 将服务名称设置为GroupId
        return configService.getConfig(dataId, app, 3000);
    }
}

RuleNacosPublisher:

@Component
public class RuleNacosPublisher {

    @Autowired
    private ConfigService configService;

    public void publish(String dataId, String app, String rules) throws Exception {


        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {


            return;
        }
        // 将服务名称设置为GroupId
        configService.publishConfig(dataId, app, rules);
    }
}

RuleNacosConstants :

public class RuleNacosConstants {

    public static final String FLOW_DATA_ID = "sentinel.rule.flow";
    public static final String DEGRADE_DATA_ID = "sentinel.rule.degrade";
    public static final String SYSTEM_DATA_ID = "sentinel.rule.system";
    public static final String PARAM_DATA_ID = "sentinel.rule.param";
    public static final String AUTHORITY_DATA_ID = "sentinel.rule.authority";
    public static final String GATEWAY_API_DATA_ID = "sentinel.rule.gateway.api";
    public static final String GATEWAY_FLOW_DATA_ID = "sentinel.rule.gateway.flow";
}

4、控制台规则配置

通过修改源码,实现流控规则、降级规则、热点规则、系统规则、授权规则的持久化操作;

4.1、流程规则

1、修改sidebar.html:

<!--将dashboard.flowV1 修改为dashboard.flow -->
<li ui-sref-active="active">
    <a ui-sref="dashboard.flowV1({app: entry.app})">
        <i class="glyphicon glyphicon-filter"></i>  流控规则
    </a>
</li>

<!--修改后代码-->
<li ui-sref-active="active">
    <a ui-sref="dashboard.flow({app: entry.app})">
        <i class="glyphicon glyphicon-filter"></i>  流控规则
    </a>
</li>

2、修改FlowControllerV2:

RuleNacosProviderRuleNacosPublisher注入到FlowControllerV2

// 修改位置如下:
@Autowired
@Qualifier("flowRuleDefaultProvider")
private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
@Autowired
@Qualifier("flowRuleDefaultPublisher")
private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

// 将上面代码修改为以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
List<FlowRuleEntity> rules = ruleProvider.getRules(app);
if (rules != null && !rules.isEmpty()) {


    for (FlowRuleEntity entity : rules) {


         entity.setApp(app);
         if (entity.getClusterConfig() != null && entity.getClusterConfig().getFlowId() != null) {


             entity.setId(entity.getClusterConfig().getFlowId());
          }
     }
}

// 将上面代码修改为以下代码:
String ruleStr = ruleProvider.getRules(RuleNacosConstants.FLOW_DATA_ID, app);
List<FlowRuleEntity> rules = new ArrayList<>();
if (ruleStr != null) {


    rules = JSON.parseArray(ruleStr, FlowRuleEntity.class);
    if (rules != null && !rules.isEmpty()) {


        for (FlowRuleEntity entity : rules) {


            entity.setApp(app);
        }
    }
 }

修改推送逻辑:

// 修改位置如下:
private void publishRules(/*@NonNull*/ String app) throws Exception {


    List<FlowRuleEntity> rules = repository.findAllByApp(app);
    rulePublisher.publish(app, rules);
}

// 将上面代码修改为以下代码:
private void publishRules(String app) {


  try {


       List<FlowRuleEntity> rules = repository.findAllByApp(app);
       String ruleStr = JSON.toJSONString(rules);
       rulePublisher.publish(RuleNacosConstants.FLOW_DATA_ID, app, ruleStr);
  } catch (Exception e) {


      e.printStackTrace();
  }
}

4.2、降级规则

修改DegradeController:
RuleNacosProviderRuleNacosPublisher注入到DegradeController

// 加入以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
List<DegradeRuleEntity> rules = sentinelApiClient.fetchDegradeRuleOfMachine(app, ip, port);

// 将上面代码修改为以下代码:
String ruleStr = ruleProvider.getRules(RuleNacosConstants.DEGRADE_DATA_ID, app);
List<DegradeRuleEntity> rules = new ArrayList<>();
if (ruleStr != null) {


    rules = JSON.parseArray(ruleStr, DegradeRuleEntity.class);
    if (rules != null && !rules.isEmpty()) {


       for (DegradeRuleEntity entity : rules) {


           entity.setApp(app);
       }
   }
}

修改推送逻辑:

// 1、修改位置如下:
private boolean publishRules(String app, String ip, Integer port) {


   List<DegradeRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
   return sentinelApiClient.setDegradeRuleOfMachine(app, ip, port, rules);
}

// 将上面代码修改为以下代码:
private void publishRules(String app) {


  try {


      List<DegradeRuleEntity> rules = repository.findAllByApp(app);
      String ruleStr = JSON.toJSONString(rules);
      rulePublisher.publish(RuleNacosConstants.DEGRADE_DATA_ID, app, ruleStr);
  } catch (Exception e) {


     e.printStackTrace();
  }
}
=======================================================================================

// 2、修改位置如下:有两处
if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {


     logger.warn("Publish degrade rules failed, app={}", entity.getApp());
}

// 将上面代码修改为以下代码:
publishRules(entity.getApp());
=======================================================================================

// 3、修改位置如下:
if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {


   logger.warn("Publish degrade rules failed, app={}", oldEntity.getApp());
}

// 将上面代码修改为以下代码:
publishRules(oldEntity.getApp());

4.3、热点规则

修改ParamRuleController:
RuleNacosProviderRuleNacosPublisher注入到ParamFlowRuleController

// 加入以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
return sentinelApiClient.fetchParamFlowRulesOfMachine(app, ip, port)
                .thenApply(repository::saveAll)
                .thenApply(Result::ofSuccess)
                .get();

// 将上面代码修改为以下代码:
String ruleStr = ruleProvider.getRules(RuleNacosConstants.PARAM_DATA_ID, app);
List<ParamFlowRuleEntity> rules = new ArrayList<>();
if (ruleStr != null) {


    rules = JSON.parseArray(ruleStr, ParamFlowRuleEntity.class);
    if (rules != null && !rules.isEmpty()) {


        for (ParamFlowRuleEntity entity : rules) {


           entity.setApp(app);
   		}
    }
}
rules = repository.saveAll(rules);
return Result.ofSuccess(rules);

修改推送逻辑:

// 1、修改位置如下:
private CompletableFuture<Void> publishRules(String app, String ip, Integer port) {


    List<ParamFlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
    return sentinelApiClient.setParamFlowRuleOfMachine(app, ip, port, rules);
}

// 将上面代码修改为以下代码:
private void publishRules(String app) {


   try {


       List<ParamFlowRuleEntity> rules = repository.findAllByApp(app);
       String ruleStr = JSON.toJSONString(rules);
       rulePublisher.publish(RuleNacosConstants.PARAM_DATA_ID, app, ruleStr);
   } catch (Exception e) {


     e.printStackTrace();
   }
}
=======================================================================================

// 2、修改位置如下:有两处
try {


   entity = repository.save(entity);
   publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get();
   return Result.ofSuccess(entity);
} catch (ExecutionException ex) {


	....
}
// 将上面代码修改为以下代码:
try {


   entity = repository.save(entity);
   publishRules(entity.getApp());
   return Result.ofSuccess(entity);
} catch (Exception ex) {


	....
}
=======================================================================================

// 3、修改位置如下:
try {


 	repository.delete(id);
    publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort()).get();
    return Result.ofSuccess(id);
} catch (ExecutionException ex) {


	....
}

// 将上面代码修改为以下代码:
try {


 	repository.delete(id);
    publishRules(oldEntity.getApp());
    return Result.ofSuccess(id);
} catch (Exception ex) {


	....
}

4.4、系统规则

修改SystemController:
RuleNacosProviderRuleNacosPublisher注入到SystemController

// 加入以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
List<SystemRuleEntity> rules = sentinelApiClient.fetchSystemRuleOfMachine(app, ip, port);

// 将上面代码修改为以下代码:
String ruleStr = ruleProvider.getRules(RuleNacosConstants.SYSTEM_DATA_ID, app);
List<SystemRuleEntity> rules = new ArrayList<>();
if (ruleStr != null) {


    rules = JSON.parseArray(ruleStr, SystemRuleEntity.class);
    if (rules != null && !rules.isEmpty()) {


        for (SystemRuleEntity entity : rules) {


             entity.setApp(app);
        }
    }
}

修改推送逻辑:

// 1、修改位置如下:
private boolean publishRules(String app, String ip, Integer port) {


   List<SystemRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
   return sentinelApiClient.setSystemRuleOfMachine(app, ip, port, rules);
}

// 将上面代码修改为以下代码:
private void publishRules(String app) {


  try {


       List<SystemRuleEntity> rules = repository.findAllByApp(app);
       String ruleStr = JSON.toJSONString(rules);
       rulePublisher.publish(RuleNacosConstants.SYSTEM_DATA_ID, app, ruleStr);
   } catch (Exception e) {


       e.printStackTrace();
  }
}
=======================================================================================

// 2、修改位置如下
if (!publishRules(app, ip, port)) {


    logger.warn("Publish system rules fail after rule add");
}

// 将上面代码修改为以下代码:
publishRules(entity.getApp());
=======================================================================================

// 3、修改位置如下
if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {


    logger.info("publish system rules fail after rule update");
}

// 将上面代码修改为以下代码:
publishRules(entity.getApp());
=======================================================================================

// 4、修改位置如下:
if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {


    logger.info("publish system rules fail after rule delete");
}

// 将上面代码修改为以下代码:
publishRules(oldEntity.getApp());

4.5、授权规则

修改AuthorityRuleController:
RuleNacosPublisherRuleNacosProvider注入到AuthorityRuleController

// 加入以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
List<AuthorityRuleEntity> rules = sentinelApiClient.fetchAuthorityRulesOfMachine(app, ip, port);

// 将上面代码修改为以下代码:
 String ruleStr = ruleProvider.getRules(RuleNacosConstants.AUTHORITY_DATA_ID, app);
List<AuthorityRuleEntity> rules = new ArrayList<>();
if (ruleStr != null) {


     rules = JSON.parseArray(ruleStr, AuthorityRuleEntity.class);
     if (rules != null && !rules.isEmpty()) {


         for (AuthorityRuleEntity entity : rules) {


              entity.setApp(app);
         }
    }
}


修改推送逻辑:

// 1、修改位置如下:
private boolean publishRules(String app, String ip, Integer port) {


    List<AuthorityRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
    return sentinelApiClient.setAuthorityRuleOfMachine(app, ip, port, rules);
}

// 将上面代码修改为以下代码:
private void publishRules(String app) {


   try {


       List<AuthorityRuleEntity> rules = repository.findAllByApp(app);
       String ruleStr = JSON.toJSONString(rules);
       rulePublisher.publish(RuleNacosConstants.AUTHORITY_DATA_ID, app, ruleStr);
   } catch (Exception e) {


       e.printStackTrace();
   }
}
=======================================================================================

// 2、修改位置如下:有两处
if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {


    logger.info("Publish authority rules failed after rule update");
}

// 将上面代码修改为以下代码:
publishRules(entity.getApp());
=======================================================================================

// 3、修改位置如下:
if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {


   logger.error("Publish authority rules failed after rule delete");
}

// 将上面代码修改为以下代码:
publishRules(oldEntity.getApp());

5、网关控制台规则配置

配置网关控制台规则,在启动网关时需要加上参数:-Dcsp.sentinel.app.type=1

5.1、API管理

修改GatewayApiController:
RuleNacosPublisherRuleNacosProvider注入到GatewayApiController

// 加入以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
List<ApiDefinitionEntity> apis = sentinelApiClient.fetchApis(app, ip, port).get();

// 将上面代码修改为以下代码:
String ruleStr = ruleProvider.getRules(RuleNacosConstants.GATEWAY_API_DATA_ID, app);
List<ApiDefinitionEntity> apis = new ArrayList<>();
if (ruleStr != null) {


    apis = JSON.parseArray(ruleStr, ApiDefinitionEntity.class);
    if (apis != null && !apis.isEmpty()) {


        for (ApiDefinitionEntity entity : apis) {


             entity.setApp(app);
        }
    }
}


修改推送逻辑:

// 1、修改位置如下:
private boolean publishApis(String app, String ip, Integer port) {


   List<ApiDefinitionEntity> apis = repository.findAllByMachine(MachineInfo.of(app, ip, port));
   return sentinelApiClient.modifyApis(app, ip, port, apis);
}

// 将上面代码修改为以下代码:
private void publishApi(String app) {


  try {


    	 List<ApiDefinitionEntity> apis= repository.findAllByApp(app);
    	 String ruleStr = JSON.toJSONString(apis);
    	 rulePublisher.publish(RuleNacosConstants.GATEWAY_API_DATA_ID, app, ruleStr);
     } catch (Exception e) {


         e.printStackTrace();
   }
}
=======================================================================================

// 2、修改位置如下
if (!publishApis(app, ip, port)) {


     logger.warn("publish gateway apis fail after add");
}

// 将上面代码修改为以下代码:
publishApi(entity.getApp());
=======================================================================================

// 3、修改位置如下
if (!publishApis(app, entity.getIp(), entity.getPort())) {


    logger.warn("publish gateway apis fail after update");
}

// 将上面代码修改为以下代码:
publishApi(entity.getApp());
=======================================================================================

// 4、修改位置如下:
if (!publishApis(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {


    logger.warn("publish gateway apis fail after delete");
}

// 将上面代码修改为以下代码:
publishApi(oldEntity.getApp());

5.2、流程规则

修改GatewayFlowRuleController:
RuleNacosPublisherRuleNacosProvider注入到GatewayFlowRuleController

// 加入以下代码:
@Autowired
private RuleNacosProvider ruleProvider;
@Autowired
private RuleNacosPublisher rulePublisher;

修改读取逻辑:

// 修改位置如下:
List<GatewayFlowRuleEntity> rules = sentinelApiClient.fetchGatewayFlowRules(app, ip, port).get();

// 将上面代码修改为以下代码:
String ruleStr = ruleProvider.getRules(RuleNacosConstants.GATEWAY_FLOW_DATA_ID, app);
List<GatewayFlowRuleEntity> rules = new ArrayList<>();
if (ruleStr != null) {


    rules = JSON.parseArray(ruleStr, GatewayFlowRuleEntity.class);
    if (rules != null && !rules.isEmpty()) {


       for (GatewayFlowRuleEntity entity : rules) {


           entity.setApp(app);
        }
    }
}

修改推送逻辑:

// 1、修改位置如下:
private boolean publishRules(String app, String ip, Integer port) {


   List<GatewayFlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
   return sentinelApiClient.modifyGatewayFlowRules(app, ip, port, rules);
}

// 将上面代码修改为以下代码:
private void publishRules(String app) {


  try {


      List<GatewayFlowRuleEntity> rules = repository.findAllByApp(app);
      String ruleStr = JSON.toJSONString(rules);
      rulePublisher.publish(RuleNacosConstants.GATEWAY_FLOW_DATA_ID, app, ruleStr);
   } catch (Exception e) {


      e.printStackTrace();
   }
}
=======================================================================================

// 2、修改位置如下
if (!publishRules(app, ip, port)) {


    logger.warn("publish gateway flow rules fail after add");
}

// 将上面代码修改为以下代码:
publishRules(entity.getApp());
=======================================================================================

// 3、修改位置如下
if (!publishRules(app, entity.getIp(), entity.getPort())) {


    logger.warn("publish gateway flow rules fail after update");
}
// 将上面代码修改为以下代码:
publishRules(entity.getApp());
=======================================================================================
// 4、修改位置如下:
if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {


    logger.warn("publish gateway flow rules fail after delete");
}

// 将上面代码修改为以下代码:
publishRules(oldEntity.getApp());

5.3、降级规则

使用的是控制台规则配置中的降级规则接口,无需在做操作,参考《4.2、降级规则》。

5.4、系统规则

使用的是控制台规则配置中的降级规则接口,无需在做操作,参考《4.4、系统规则》。

6、打包部署

进入到sentinel-dashboard所在目的,通过mvn clean install package -DskipTests=true进行打包。

部署jar参考:
《Linux搭建Sentinel 控制台环境》
《Docker搭建Sentinel 控制台环境》

7、源码包下载

对于上述修改的代码,源码下载地址:

链接:https://pan.baidu.com/s/1wgGxEGL4M3cDZO_LKTvw6A?pwd=1234
提取码:1234

将下载的ControllerNacos配置代码直接拷贝到源码中即可使用。
