1.调用服务提供者



代码如下:

@RestController
public class BuyController {


	@Autowired
	private RestTemplate restTemplate;

	@GetMapping("buy/{name}/{count}")
	@SentinelResource(value = "buy", fallback = "buyFallback", blockHandler = "buyBlock")
	public ResponseEntity<String> buy(@PathVariable String name, @PathVariable Integer count) {


		if (count >= 20) {


			throw new IllegalArgumentException("购买数量过多");
		}
		if ("miband".equalsIgnoreCase(name)) {


			throw new NullPointerException("已售罄");
		}
		Map<String, Object> params = new HashMap<>(2);
		params.put("name", name);
		params.put("count", count);
		return ResponseEntity.ok(this.restTemplate.getForEntity("http://sentinel-provider/goods/buy/{name}/{count}", String.class, params).getBody());
	}

	// 异常回退
	public ResponseEntity<String> buyFallback(@PathVariable String name,@PathVariable Integer count, Throwable throwable) {


		return ResponseEntity.ok( String.format("【进入 fallback 方法】购买%d 份%s 失败,%s", count,name, throwable.getMessage()));
	}

	// sentinel 回退
	public ResponseEntity<String> buyBlock(@PathVariable String name,@PathVariable Integer count, BlockException e) {


		return ResponseEntity.ok(String.format("【进入 blockHandler 方法】购买%d份%s 失败,当前购买人数过多,请稍后再试", count, name));
	}
}

2.添加配置文件

新建配置文件:



内容如下:

server:
	port: 8083
spring:
	application:
		name: sentinel-consumer
	cloud:
		nacos:
			discovery:
				server-addr: localhost:8848
			sentinel:
				transport:
					dashboard: localhost:8080
					port: 8719

3.添加启动类

@SpringBootApplication
@EnableDiscoveryClient
public class SentinelConsumerApplication {


	public static void main(String[] args) {


		SpringApplication.run(SentinelConsumerApplication.class ,args) ;
	}

	@LoadBalanced
	@Bean
	public RestTemplate restTemplate(){


		return new RestTemplate() ;
	}
}

4.启动测试

4.1 启动软件

在启动之前,必须保证这些软件已经启动:

  • Nacos-Server
  • Sentinel-Dashboard
  • Sentinel-provider

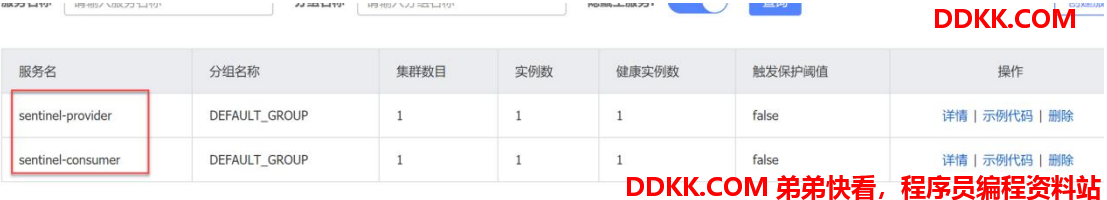

  • 准备就绪后,启动 sentine-consumer:

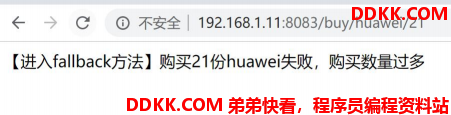

访问接口测试:

http://192.168.1.11:8083/buy/huawei/1

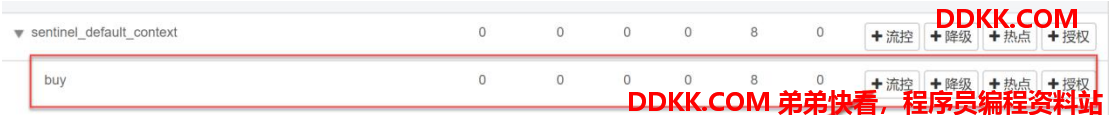

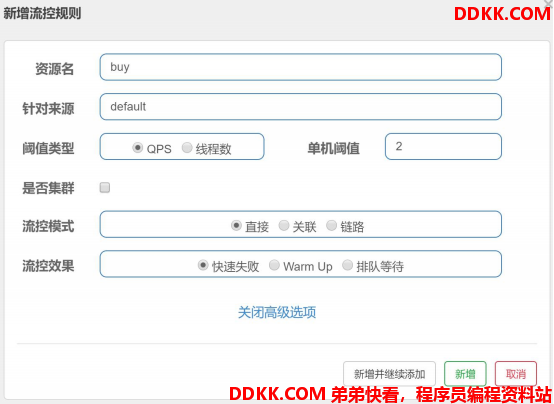

4.2 添加流控的规则





当访问该资源,QPS 超过 2 时,抛出异常

测试:

http://192.168.1.11:8083/buy/huawei/1
