版本

基于rocketmq-all-4.3.1版本;

ConsumeQueue

1、 每个ConsumeQueue都有一个queueId,queueId的值为0到TopicConfig配置的队列数量比如某个Topic的消费队列数量为4,那么四个ConsumeQueue的queueId就分别为0、1、2、3;
2、 ConsumerQueue相当于CommitLog的索引文件,消费者消费时会先从ConsumerQueue中查找消息在CommitLog中的offset,再去CommitLog中找原始消息数据如果某个消息只在CommitLog中有数据,没在ConsumerQueue中,则消费者无法消费;
3、 Consumequeue类对应的是每个topic和queuId下面的所有文件.默认存储路径是**$HOME/store/consumequeue/{topic}/{queueId}/{fileName},每个文件由30w条数据组成,单个文件的大小是30wx20Byte**;
4、 每一个ConsumeQueue存储的格式为commitLogOffset(8B)+size(4B)+tagHashCode(8B),总共20B存tag是为了在Consumer取到消息offset后先根据tag做一次过滤,剩下的才需要到CommitLog中取消息详情;
5、 ConsumeQueue核心属性;

public class ConsumeQueue {


   private final DefaultMessageStore defaultMessageStore;
   //映射文件队列,管理ConsumeQueue
   private final MappedFileQueue mappedFileQueue;
   // 消息topic
   private final String topic;
   // 消息队列Id
   private final int queueId;
   //指定大小的缓冲,记录的大小是20byte的固定大小
   private final ByteBuffer byteBufferIndex;
   //保存的路径
   private final String storePath;
   //映射文件的大小
   private final int mappedFileSize;
   //最后一个消息对应的物理偏移量  也就是在CommitLog中的偏移量
   private long maxPhysicOffset = -1;
   //最小的逻辑偏移量 在ConsumeQueue中的最小偏移量
   private volatile long minLogicOffset = 0;
   //ConsumeQueue的扩展文件
   private ConsumeQueueExt consumeQueueExt = null;
}

6、 构造方法;

public ConsumeQueue(
    final String topic,
    final int queueId,
    final String storePath,
    final int mappedFileSize,
    final DefaultMessageStore defaultMessageStore) {


    this.storePath = storePath;
    this.mappedFileSize = mappedFileSize;
    this.defaultMessageStore = defaultMessageStore;

    this.topic = topic;
    this.queueId = queueId;
    //存储路径${this.storePath}/{topic}/{queueId}/{fileName}
    String queueDir = this.storePath
        + File.separator + topic
        + File.separator + queueId;

    this.mappedFileQueue = new MappedFileQueue(queueDir, mappedFileSize, null);
    //分配一个存储单元大小(20B)的缓冲区
    this.byteBufferIndex = ByteBuffer.allocate(CQ_STORE_UNIT_SIZE);
    //是否启用消息队列的扩展存储
    if (defaultMessageStore.getMessageStoreConfig().isEnableConsumeQueueExt()) {


        this.consumeQueueExt = new ConsumeQueueExt(
            topic,
            queueId,
            StorePathConfigHelper.getStorePathConsumeQueueExt(defaultMessageStore.getMessageStoreConfig().getStorePathRootDir()),
            defaultMessageStore.getMessageStoreConfig().getMappedFileSizeConsumeQueueExt(),
            defaultMessageStore.getMessageStoreConfig().getBitMapLengthConsumeQueueExt()
        );
    }
}

加载(load)

1、 Broker启动时,调用load加载ConsumeQueue加载直接委托mappedFileQueue进行加载;

public boolean load() {


    boolean result = this.mappedFileQueue.load();
    log.info("load consume queue " + this.topic + "-" + this.queueId + " " + (result ? "OK" : "Failed"));
    //扩展存储存在则加载
    if (isExtReadEnable()) {


        result &= this.consumeQueueExt.load();
    }
    return result;
}

恢复(recover)

1、 Broker启动时会尝试恢复ConsumeQueue文件;

  • 如果文件个数大于3个就从倒数第三个文件开始恢复,否则从第一个开始
  • 循环遍历文件中的的所有数据,按照20个字节读取。知道全部读取完成
  • 删除有效offset之后的文件

2、 源码;

public void recover() {


    final List<MappedFile> mappedFiles = this.mappedFileQueue.getMappedFiles();
    if (!mappedFiles.isEmpty()) {


        //如果文件列表大于3就从倒数第3个开始,否则从第一个开始
        int index = mappedFiles.size() - 3;
        if (index < 0)
            index = 0;
        //获取consumeQueue单个文件的大小
        int mappedFileSizeLogics = this.mappedFileSize;
        //获取index对应的映射文件
        MappedFile mappedFile = mappedFiles.get(index);
        ByteBuffer byteBuffer = mappedFile.sliceByteBuffer();
        //映射文件的起始偏移量(也是文件名)
        long processOffset = mappedFile.getFileFromOffset();
        long mappedFileOffset = 0;
        long maxExtAddr = 1;
        while (true) {


            //遍历文件中的所有数据(20个字节一次遍历)
            for (int i = 0; i < mappedFileSizeLogics; i += CQ_STORE_UNIT_SIZE) {


                long offset = byteBuffer.getLong();
                int size = byteBuffer.getInt();
                long tagsCode = byteBuffer.getLong();
                //顺序解析,每个数据单元隔20个字节,如果offset跟size大于0则表示有效
                if (offset >= 0 && size > 0) {


                    //正常数据的大小
                    mappedFileOffset = i + CQ_STORE_UNIT_SIZE;
                    //设置最大的物理偏移量
                    this.maxPhysicOffset = offset;
                    if (isExtAddr(tagsCode)) {


                        maxExtAddr = tagsCode;
                    }
                } else {


                    log.info("recover current consume queue file over,  " + mappedFile.getFileName() + " "
                        + offset + " " + size + " " + tagsCode);
                    break;
                }
            }
            //文件加载完毕
            if (mappedFileOffset == mappedFileSizeLogics) {


                index++;
                // 完成加载跳出循环
                if (index >= mappedFiles.size()) {



                    log.info("recover last consume queue file over, last mapped file "
                        + mappedFile.getFileName());
                    break;
                } else {


                    //下一个文件,继续循环读取
                    mappedFile = mappedFiles.get(index);
                    byteBuffer = mappedFile.sliceByteBuffer();
                    processOffset = mappedFile.getFileFromOffset();
                    mappedFileOffset = 0;
                    log.info("recover next consume queue file, " + mappedFile.getFileName());
                }
            } else {


                log.info("recover current consume queue queue over " + mappedFile.getFileName() + " "
                    + (processOffset + mappedFileOffset));
                break;
            }
        }
        // 最后一个文件的起始偏移量+正常数据的长度
        processOffset += mappedFileOffset;
        //设置flush和commit偏移量位置
        this.mappedFileQueue.setFlushedWhere(processOffset);
        this.mappedFileQueue.setCommittedWhere(processOffset);
        //删除有效的 offset 之后的文件(后面的是无效的,需要删除掉)
        this.mappedFileQueue.truncateDirtyFiles(processOffset);
        //如果有扩展文件,则恢复扩展文件
        if (isExtReadEnable()) {


            this.consumeQueueExt.recover();
            log.info("Truncate consume queue extend file by max {}", maxExtAddr);
            this.consumeQueueExt.truncateByMaxAddress(maxExtAddr);
        }
    }
}

追加分发的消息(putMessagePositionInfoWrapper)

1、 分发的消息通过putMessagePositionInfoWrapper方法追加;

  • 判断消息队列是否可写,是否开启写ConsumeQueue扩展文件默认false
  • 将消息写入缓存区MappedFile中
  • 如果追加成功,则更新checkpoint的时间戳

2、 putMessagePositionInfoWrapper源码;

public void putMessagePositionInfoWrapper(DispatchRequest request) {


    final int maxRetries = 30;
    //判断ConsumeQueue是否可写
    boolean canWrite = this.defaultMessageStore.getRunningFlags().isCQWriteable();
    for (int i = 0; i < maxRetries && canWrite; i++) {


        long tagsCode = request.getTagsCode();
        //是否开启写ConsumeQueue扩展文件,默认false
        //bloom过滤器先记录消息的bitMap,这样consumer来读取消息时先通过bloom过滤器判断是否有符合过滤条件的消息
        if (isExtWriteEnable()) {


            ConsumeQueueExt.CqExtUnit cqExtUnit = new ConsumeQueueExt.CqExtUnit();
            cqExtUnit.setFilterBitMap(request.getBitMap());
            cqExtUnit.setMsgStoreTime(request.getStoreTimestamp());
            cqExtUnit.setTagsCode(request.getTagsCode());

            long extAddr = this.consumeQueueExt.put(cqExtUnit);
            if (isExtAddr(extAddr)) {


                tagsCode = extAddr;
            } else {


                log.warn("Save consume queue extend fail, So just save tagsCode! {}, topic:{}, queueId:{}, offset:{}", cqExtUnit,
                    topic, queueId, request.getCommitLogOffset());
            }
        }
        //写入缓冲区
        boolean result = this.putMessagePositionInfo(request.getCommitLogOffset(),
            request.getMsgSize(), tagsCode, request.getConsumeQueueOffset());
        //如果更新成功,则更新checkpoint文件
        if (result) {


            this.defaultMessageStore.getStoreCheckpoint().setLogicsMsgTimestamp(request.getStoreTimestamp());
            return;
        } else {


            // XXX: warn and notify me
            log.warn("[BUG]put commit log position info to " + topic + ":" + queueId + " " + request.getCommitLogOffset()
                + " failed, retry " + i + " times");

            try {


                Thread.sleep(1000);
            } catch (InterruptedException e) {


                log.warn("", e);
            }
        }
    }

    // XXX: warn and notify me
    log.error("[BUG]consume queue can not write, {} {}", this.topic, this.queueId);
    this.defaultMessageStore.getRunningFlags().makeLogicsQueueError();
}

private boolean putMessagePositionInfo(final long offset, final int size, final long tagsCode,
    final long cqOffset) {



    //maxPhysicOffset记录了上一次ConsumeQueue更新的消息在CommitLog中的偏移量
    // 如果消息已经被处理,则直接返回true
    if (offset <= this.maxPhysicOffset) {


        return true;
    }

    this.byteBufferIndex.flip();
    //20byte
    this.byteBufferIndex.limit(CQ_STORE_UNIT_SIZE);
    this.byteBufferIndex.putLong(offset);//写入消息偏移量
    this.byteBufferIndex.putInt(size);//写入消息长度
    this.byteBufferIndex.putLong(tagsCode);//写入tag hashcode
    //cqOffset为ConsumerQueue中记录了偏移量总数
    final long expectLogicOffset = cqOffset * CQ_STORE_UNIT_SIZE;
    //获取ConsumeQueue当前对应的MappedFile,ConsumeQueue本身也是通过MappedFileQueue来管理的
    MappedFile mappedFile = this.mappedFileQueue.getLastMappedFile(expectLogicOffset);
    if (mappedFile != null) {


        //对于新建的文件,填充0来预热PageCache
        if (mappedFile.isFirstCreateInQueue() && cqOffset != 0 && mappedFile.getWrotePosition() == 0) {


            this.minLogicOffset = expectLogicOffset;
            this.mappedFileQueue.setFlushedWhere(expectLogicOffset);
            this.mappedFileQueue.setCommittedWhere(expectLogicOffset);
            this.fillPreBlank(mappedFile, expectLogicOffset);
            log.info("fill pre blank space " + mappedFile.getFileName() + " " + expectLogicOffset + " "
                + mappedFile.getWrotePosition());
        }

        if (cqOffset != 0) {


            long currentLogicOffset = mappedFile.getWrotePosition() + mappedFile.getFileFromOffset();
            //说明已经处理过
            if (expectLogicOffset < currentLogicOffset) {


                log.warn("Build  consume queue repeatedly, expectLogicOffset: {} currentLogicOffset: {} Topic: {} QID: {} Diff: {}",
                    expectLogicOffset, currentLogicOffset, this.topic, this.queueId, expectLogicOffset - currentLogicOffset);
                return true;
            }

            if (expectLogicOffset != currentLogicOffset) {


                LOG_ERROR.warn(
                    "[BUG]logic queue order maybe wrong, expectLogicOffset: {} currentLogicOffset: {} Topic: {} QID: {} Diff: {}",
                    expectLogicOffset,
                    currentLogicOffset,
                    this.topic,
                    this.queueId,
                    expectLogicOffset - currentLogicOffset
                );
            }
        }
        //更新物理偏移量,追加到MappedFile。如果appendMessage追加失败了,等下次继续追加,所以这里可以直接给maxPhysicOffset赋值,不用关心是否追加成功
        this.maxPhysicOffset = offset;
        return mappedFile.appendMessage(this.byteBufferIndex.array());
    }
    return false;
}

private void fillPreBlank(final MappedFile mappedFile, final long untilWhere) {


    ByteBuffer byteBuffer = ByteBuffer.allocate(CQ_STORE_UNIT_SIZE);
    byteBuffer.putLong(0L);
    byteBuffer.putInt(Integer.MAX_VALUE);
    byteBuffer.putLong(0L);

    int until = (int) (untilWhere % this.mappedFileQueue.getMappedFileSize());
    for (int i = 0; i < until; i += CQ_STORE_UNIT_SIZE) {


        mappedFile.appendMessage(byteBuffer.array());
    }
}

ReputMessageService

1、 ReputMessageService是一个服务线程,用于ConsumeQueue持久化,它是DefaultMessageStore的内部类此服务线程主要运行doReput方法每间隔1ms执行一次;

public void run() {


    DefaultMessageStore.log.info(this.getServiceName() + " service started");

    while (!this.isStopped()) {


        try {


            Thread.sleep(1);
            this.doReput();
        } catch (Exception e) {


            DefaultMessageStore.log.warn(this.getServiceName() + " service has exception. ", e);
        }
    }

    DefaultMessageStore.log.info(this.getServiceName() + " service end");
}

2、 doReput大致步骤;

  • 获取CommitLog在reputFromOffset处存储的可以被处理的消息(可能在不同的MappedFile中)
  • 循环遍历这些消息,并将每个消息相关数据转换为DispatchRequest
  • 分发DispatchRequest到CommitLogDispatcher中执行

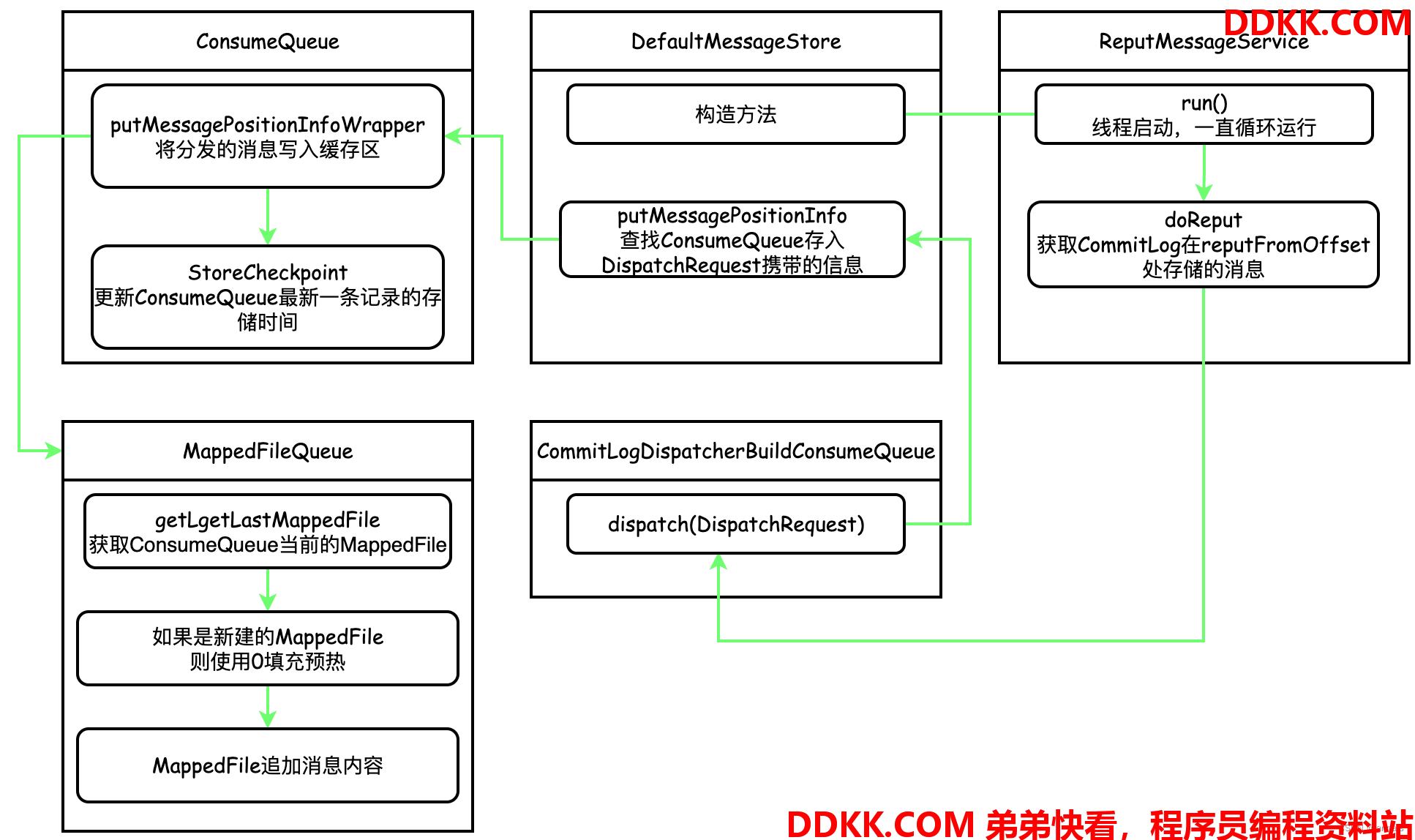

3、 doReput流程图;



CommitLogDispatcher

1、 CommitLogDispatcherCommitLog日志消息分发器,主要用来生成ConsumerQueueIndexFile此接口有三个实现;

  • CommitLogDispatcherBuildConsumeQueue 处理ConsumeQueue的生成
  • CommitLogDispatcherBuildIndex处理IndexFile的生成
  • CommitLogDispatcherCalcBitMap 处理计算bit Map

2、 CommitLogDispatcherBuildConsumeQueue源码只处理TRANSACTION_NOT_TYPETRANSACTION_COMMIT_TYPE这两种消息这两种消息一种是非事务消息,即普通消息一种是事务已经确切提交的消息;

class CommitLogDispatcherBuildConsumeQueue implements CommitLogDispatcher {



    @Override
    public void dispatch(DispatchRequest request) {


        final int tranType = MessageSysFlag.getTransactionValue(request.getSysFlag());
        switch (tranType) {


            case MessageSysFlag.TRANSACTION_NOT_TYPE:
            case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
                DefaultMessageStore.this.putMessagePositionInfo(request);
                break;
            case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
            case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
                break;
        }
    }
}
public void putMessagePositionInfo(DispatchRequest dispatchRequest) {


    //根据主题与队列获取对应的ConsumeQueue
    ConsumeQueue cq = this.findConsumeQueue(dispatchRequest.getTopic(), dispatchRequest.getQueueId());
    cq.putMessagePositionInfoWrapper(dispatchRequest);
}
