17、RocketMQ 源码解析 - 消费者启动

版本声明

基于rocketmq-all-4.3.1版本;

消费模式

1、 消费组;

  • 一个消费组可以包含多个Consumer,一个消费组可以订阅多个Topic
  • 消费组之间有集群和广播两种消费模式,集群模式下,Topic中的同一条消息只允许被其中一个Consumer消费。广播模式下,Topic中的同一条消息可以被集群中的所有Consumer消费。

2、 消费模式;

  • 拉模式:消息到达Broker后,Consumer主动发起拉取请求
  • 推模式:消息达到Broker后,由Broker推送给Consumer。RocketMQ中推模式的实现是基于拉模式,即一个拉取任务完成后开始下一个拉取任务

3、 集群模式下,多个Consumer需要对消息队列进行负载均衡一个消息队列同时只允许被一个Consumer消费,一个Consumer可以消费多个消息队列;

推模式消费

1、 DefaultMQPushConsumer是推模式核心入口类,主要委托DefaultMQPushConsumerImpl实现相关功能RocketMQ并没有真正实现推模式,而是Consumer主动向消息服务器拉取消息,RocketMQ推模式是循环向Broker端发送消息拉取请求;
2、 DefaultMQPushConsumer核心属性如下;

public class DefaultMQPushConsumer extends ClientConfig implements MQPushConsumer {



  	//委托类,大部分操作都是委托DefaultMQPushConsumerImpl
    protected final transient DefaultMQPushConsumerImpl defaultMQPushConsumerImpl;
		//消费组
    private String consumerGroup;
		// 消息消费模式,分为集群模式、广播模式,默认为集群模式。
    private MessageModel messageModel = MessageModel.CLUSTERING;
  	/**
  	第一次消费时指定消费策略
  	CONSUME_FROM_LAST_OFFSET:此处分为两种情况,如果磁盘消息未过期且未被删除,则从最小偏移量开始消费。如果磁盘已过期并被删除,则从最大偏移量开始消费。
    CONSUME_FROM_FIRST_OFFSET:从队列当前最小偏移量开始消费。
    CONSUME_FROM_TIMESTAMP:从消费者指定时间戳开始消费。
    如果从消息进度服务OffsetStore读取到MessageQueue中的偏移量不小于0,则使用读取到的偏移量拉取消息,只有在读到的偏移量小于0时,上述策略才会生效。
  	**/
    private ConsumeFromWhere consumeFromWhere = ConsumeFromWhere.CONSUME_FROM_LAST_OFFSET;
    private String consumeTimestamp = UtilAll.timeMillisToHumanString3(System.currentTimeMillis() - (1000 * 60 * 30));

  	// 集群模式下消息队列的负载策略
    private AllocateMessageQueueStrategy allocateMessageQueueStrategy;
		// 订阅信息
    private Map<String /* topic */, String /* sub expression */> subscription = new HashMap<String, String>();
		// 消息业务监听器。
    private MessageListener messageListener;
		// 消息消费进度存储器。
    private OffsetStore offsetStore;
		// 费者最小线程数
    private int consumeThreadMin = 20;
		// 消费者最大线程数
    private int consumeThreadMax = 64;
    private long adjustThreadPoolNumsThreshold = 100000;

    //并发消息消费时处理队列最大跨度
    private int consumeConcurrentlyMaxSpan = 2000;
		//每1000次流控后打印流控日志
    private int pullThresholdForQueue = 1000;

    private int pullThresholdSizeForQueue = 100;

    private int pullThresholdForTopic = -1;

    private int pullThresholdSizeForTopic = -1;

		// 推模式下拉取任务的间隔时间
    private long pullInterval = 0;

		//消息并发消费时一次消费消息的条数
    private int consumeMessageBatchMaxSize = 1;

   	//每次消息拉取的条数
    private int pullBatchSize = 32;

   	// 是否每次拉取消息都更新订阅信息,默认为false。
    private boolean postSubscriptionWhenPull = false;

    /**
     * Whether the unit of subscription group
     */
    private boolean unitMode = false;

		// 最大消费重试次数
    private int maxReconsumeTimes = -1;

  	// 延迟将该队列的消息提交到消费者线程的等待时间,默认延迟1s
    private long suspendCurrentQueueTimeMillis = 1000;

		// 息消费超时时间
    private long consumeTimeout = 15;

启动流程

1、 DefaultMQPushConsumer启动就是委托DefaultMQPushConsumerImpl来实现的;

@Override
public void start() throws MQClientException {


    this.defaultMQPushConsumerImpl.start();
}

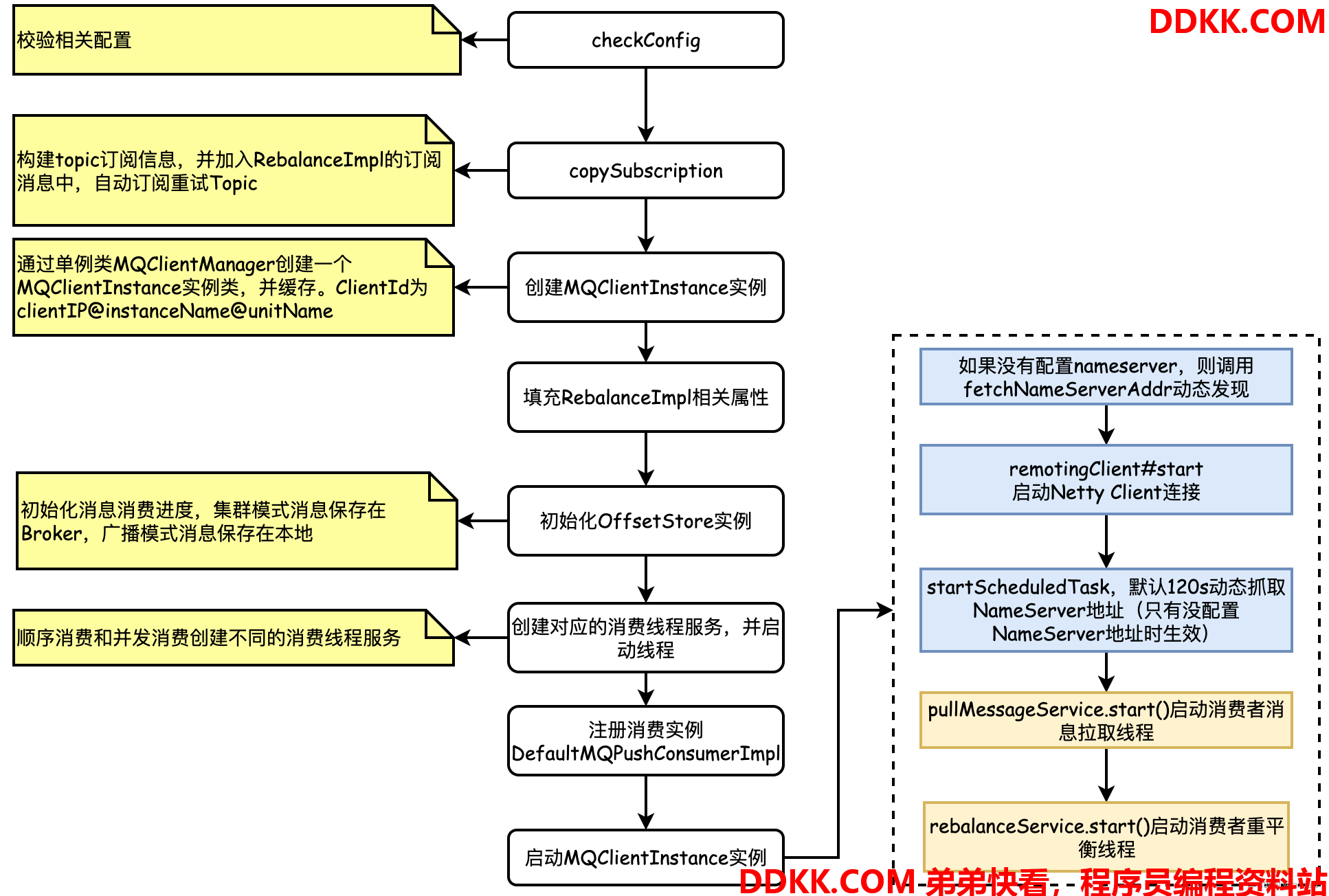

2、 DefaultMQPushConsumerImpl启动流程图;



1、 启动源码;

public synchronized void start() throws MQClientException {


switch (this.serviceState) {


    case CREATE_JUST:
        log.info("the consumer [{}] start beginning. messageModel={}, isUnitMode={}", this.defaultMQPushConsumer.getConsumerGroup(),
            this.defaultMQPushConsumer.getMessageModel(), this.defaultMQPushConsumer.isUnitMode());
        this.serviceState = ServiceState.START_FAILED;
        //1. 检查配置
        this.checkConfig();
        //2. 构建订阅SubscriptionData信息,并加入到RebalanceImpl的订阅消息中
        this.copySubscription();

        if (this.defaultMQPushConsumer.getMessageModel() == MessageModel.CLUSTERING) {


            this.defaultMQPushConsumer.changeInstanceNameToPID();
        }
        //3. 实例化MQClientInstance
        this.mQClientFactory = MQClientManager.getInstance().getAndCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);
        //4. 设置reblance属性
        this.rebalanceImpl.setConsumerGroup(this.defaultMQPushConsumer.getConsumerGroup());
        this.rebalanceImpl.setMessageModel(this.defaultMQPushConsumer.getMessageModel());
        this.rebalanceImpl.setAllocateMessageQueueStrategy(this.defaultMQPushConsumer.getAllocateMessageQueueStrategy());
        this.rebalanceImpl.setmQClientFactory(this.mQClientFactory);
        //5. 设置pullAPIWrapper的消息过滤Hook
        this.pullAPIWrapper = new PullAPIWrapper(
            mQClientFactory,
            this.defaultMQPushConsumer.getConsumerGroup(), isUnitMode());
        this.pullAPIWrapper.registerFilterMessageHook(filterMessageHookList);
        //6.
        if (this.defaultMQPushConsumer.getOffsetStore() != null) {


            this.offsetStore = this.defaultMQPushConsumer.getOffsetStore();
        } else {


            switch (this.defaultMQPushConsumer.getMessageModel()) {


                case BROADCASTING:
                    //如果是广播模式则消费进度保存在本地
                    this.offsetStore = new LocalFileOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
                    break;
                case CLUSTERING:
                    //集群模式消费进度保存在服务端
                    this.offsetStore = new RemoteBrokerOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
                    break;
                default:
                    break;
            }
            this.defaultMQPushConsumer.setOffsetStore(this.offsetStore);
        }
        this.offsetStore.load();

        // 顺序消费和并发消费,创建对应的消费线程服务
        if (this.getMessageListenerInner() instanceof MessageListenerOrderly) {


            this.consumeOrderly = true;
            this.consumeMessageService =
                new ConsumeMessageOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
        } else if (this.getMessageListenerInner() instanceof MessageListenerConcurrently) {


            this.consumeOrderly = false;
            this.consumeMessageService =
                new ConsumeMessageConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
        }

        this.consumeMessageService.start();
        // 向MQClientInstance注册消费者实例
        boolean registerOK = mQClientFactory.registerConsumer(this.defaultMQPushConsumer.getConsumerGroup(), this);
        if (!registerOK) {


            this.serviceState = ServiceState.CREATE_JUST;
            this.consumeMessageService.shutdown();
            throw new MQClientException("The consumer group[" + this.defaultMQPushConsumer.getConsumerGroup()
                + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
                null);
        }
        // 启动MQClientInstance实例
        mQClientFactory.start();
        log.info("the consumer [{}] start OK.", this.defaultMQPushConsumer.getConsumerGroup());
        this.serviceState = ServiceState.RUNNING;
        break;
    case RUNNING:
    case START_FAILED:
    case SHUTDOWN_ALREADY:
        throw new MQClientException("The PushConsumer service state not OK, maybe started once, "
            + this.serviceState
            + FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
            null);
    default:
        break;
}

2、 检查配置;

private void checkConfig() throws MQClientException {


    /**
     * 1. 消费组名称不能为空
     * 2. 消费组名称必须符合正则表达式**^[%|a-zA-Z0-9_-]+$
     * 3. 消费组名称不能大于255
     */
    Validators.checkGroup(this.defaultMQPushConsumer.getConsumerGroup());
    //为什么又检查一遍?
    if (null == this.defaultMQPushConsumer.getConsumerGroup()) {


        throw new MQClientException(
            "consumerGroup is null"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
    //消费组名称不能等于DEFAULT_CONSUMER
    if (this.defaultMQPushConsumer.getConsumerGroup().equals(MixAll.DEFAULT_CONSUMER_GROUP)) {


        throw new MQClientException(
            "consumerGroup can not equal "
                + MixAll.DEFAULT_CONSUMER_GROUP
                + ", please specify another one."
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
    //消费模式不能为空,集群或者广播,默认是集群模式
    if (null == this.defaultMQPushConsumer.getMessageModel()) {


        throw new MQClientException(
            "messageModel is null"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
    //默认从上一个CONSUME_FROM_LAST_OFFSET
    if (null == this.defaultMQPushConsumer.getConsumeFromWhere()) {


        throw new MQClientException(
            "consumeFromWhere is null"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
    //第一次启动,默认从半小时前消费
    Date dt = UtilAll.parseDate(this.defaultMQPushConsumer.getConsumeTimestamp(), UtilAll.YYYYMMDDHHMMSS);
    if (null == dt) {


        throw new MQClientException(
            "consumeTimestamp is invalid, the valid format is yyyyMMddHHmmss,but received "
                + this.defaultMQPushConsumer.getConsumeTimestamp()
                + " " + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL), null);
    }

    // allocateMessageQueueStrategy
    if (null == this.defaultMQPushConsumer.getAllocateMessageQueueStrategy()) {


        throw new MQClientException(
            "allocateMessageQueueStrategy is null"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    // subscription
    if (null == this.defaultMQPushConsumer.getSubscription()) {


        throw new MQClientException(
            "subscription is null"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    // messageListener
    if (null == this.defaultMQPushConsumer.getMessageListener()) {


        throw new MQClientException(
            "messageListener is null"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
    //顺序消费监听
    boolean orderly = this.defaultMQPushConsumer.getMessageListener() instanceof MessageListenerOrderly;
    //并发消费监听
    boolean concurrently = this.defaultMQPushConsumer.getMessageListener() instanceof MessageListenerConcurrently;
    if (!orderly && !concurrently) {


        throw new MQClientException(
            "messageListener must be instanceof MessageListenerOrderly or MessageListenerConcurrently"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    // consumeThreadMin  最小消费线程数量只能在[1,1000]之间,默认20
    if (this.defaultMQPushConsumer.getConsumeThreadMin() < 1
        || this.defaultMQPushConsumer.getConsumeThreadMin() > 1000) {


        throw new MQClientException(
            "consumeThreadMin Out of range [1, 1000]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    // consumeThreadMax  最大消费线程数量只能在[1,1000]之间,默认64
    if (this.defaultMQPushConsumer.getConsumeThreadMax() < 1 || this.defaultMQPushConsumer.getConsumeThreadMax() > 1000) {


        throw new MQClientException(
            "consumeThreadMax Out of range [1, 1000]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    // consumeThreadMin can't be larger than consumeThreadMax
    if (this.defaultMQPushConsumer.getConsumeThreadMin() > this.defaultMQPushConsumer.getConsumeThreadMax()) {


        throw new MQClientException(
            "consumeThreadMin (" + this.defaultMQPushConsumer.getConsumeThreadMin() + ") "
                + "is larger than consumeThreadMax (" + this.defaultMQPushConsumer.getConsumeThreadMax() + ")",
            null);
    }

    //偏移量最大的消息与偏移量最小的消息跨度设置只能在[1,65535],默认2000
    // consumeConcurrentlyMaxSpan
    if (this.defaultMQPushConsumer.getConsumeConcurrentlyMaxSpan() < 1
        || this.defaultMQPushConsumer.getConsumeConcurrentlyMaxSpan() > 65535) {


        throw new MQClientException(
            "consumeConcurrentlyMaxSpan Out of range [1, 65535]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    //队列级别的流控阈值,默认每个消息队列缓存1000条消息,设置范围[1,65535]
    // pullThresholdForQueue
    if (this.defaultMQPushConsumer.getPullThresholdForQueue() < 1 || this.defaultMQPushConsumer.getPullThresholdForQueue() > 65535) {


        throw new MQClientException(
            "pullThresholdForQueue Out of range [1, 65535]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    //topic级别的流控,默认-1(无限制),设置范围[1,6553500],如果设置为有限值,则根据pullThresholdForTopic来计算并覆盖pullThresholdForQueue的配置
    // pullThresholdForTopic
    if (this.defaultMQPushConsumer.getPullThresholdForTopic() != -1) {


        if (this.defaultMQPushConsumer.getPullThresholdForTopic() < 1 || this.defaultMQPushConsumer.getPullThresholdForTopic() > 6553500) {


            throw new MQClientException(
                "pullThresholdForTopic Out of range [1, 6553500]"
                    + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
                null);
        }
    }

    //在队列级别限制消息大小,每个队列最多缓存100MB(默认)的消息,设置范围[1,1024].
    // pullThresholdSizeForQueue
    if (this.defaultMQPushConsumer.getPullThresholdSizeForQueue() < 1 || this.defaultMQPushConsumer.getPullThresholdSizeForQueue() > 1024) {


        throw new MQClientException(
            "pullThresholdSizeForQueue Out of range [1, 1024]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
    //在topic级别限制消息大小,默认-1表示不限制,设置范围[1,102400].
    if (this.defaultMQPushConsumer.getPullThresholdSizeForTopic() != -1) {


        // pullThresholdSizeForTopic
        if (this.defaultMQPushConsumer.getPullThresholdSizeForTopic() < 1 || this.defaultMQPushConsumer.getPullThresholdSizeForTopic() > 102400) {


            throw new MQClientException(
                "pullThresholdSizeForTopic Out of range [1, 102400]"
                    + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
                null);
        }
    }

    //推模式下,消息拉取的时间间隔,默认0,配置范围[0,65535]
    // pullInterval
    if (this.defaultMQPushConsumer.getPullInterval() < 0 || this.defaultMQPushConsumer.getPullInterval() > 65535) {


        throw new MQClientException(
            "pullInterval Out of range [0, 65535]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    //消息并发消费时,一次消费的消息条数,默认值为1,配置返回[1,1024]
    // consumeMessageBatchMaxSize
    if (this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize() < 1
        || this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize() > 1024) {


        throw new MQClientException(
            "consumeMessageBatchMaxSize Out of range [1, 1024]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }

    //每次消息拉取所拉取的条数,默认32,配置范围[1,1024]
    // pullBatchSize
    if (this.defaultMQPushConsumer.getPullBatchSize() < 1 || this.defaultMQPushConsumer.getPullBatchSize() > 1024) {


        throw new MQClientException(
            "pullBatchSize Out of range [1, 1024]"
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
            null);
    }
}

拉模式消费

1、 DefaultMQPullConsumer是拉模式核心入口类,主要委托DefaultMQPullConsumerImpl实现相关功能拉模式启动通过MQPullConsumerScheduleService来进行调度;
2、 DefaultMQPushConsumer是推模式核心入口类,主要委托DefaultMQPushConsumerImpl实现相关功能RocketMQ并没有真正实现推模式,而是Consumer主动向消息服务器拉取消息,RocketMQ推模式是循环向Broker端发送消息拉取请求;

启动流程

1、 DefaultMQPullConsumer委托DefaultMQPullConsumerImpl启动;

@Override
public void start() throws MQClientException {


    this.defaultMQPullConsumerImpl.start();
}

2、 DefaultMQPullConsumerImpl启动流程与DefaultMQPushConsumerImpl几乎一样,不再赘述;

配置参数总结

1、 消费组名称规则;

  • 消费组(consumerGroup)名称不能为空
  • 消费组(consumerGroup)名称必须符合正则表达式**1+$**
  • 消费组(consumerGroup)名称不能大于255
  • 消费组名称不能等于DEFAULT_CONSUMER

2、 消费模式;

  • 集群模式(默认)
  • 广播模式

3、 consumeFromWhere:如果从消费进度OffsetStore读取到的MessageQueue中的偏移量小于0时,采取以下的配置策略;

  • CONSUME_FROM_LAST_OFFSET:从队列当前最大偏移量开始消费(默认配置)
  • CONSUME_FROM_FIRST_OFFSET:从队列当前最小偏移量开始消费
  • CONSUME_FROM_TIMESTAMP:从Consumer启动时间戳开始消费

4、 消费线程;

  • 最小消费线程数量只能在[1,1000]之间,默认20
  • 最大消费线程数量只能在[1,1000]之间,默认64

5、 偏移量:偏移量最大的消息与偏移量最小的消息跨度设置只能在[1,65535],默认2000;
6、 队列级别的流控阈值,默认每个消息队列缓存1000条消息,设置范围[1,65535];
7、 topic级别的流控,默认-1(无限制),设置范围[1,6553500],如果设置为有限值,则根据pullThresholdForTopic来计算并覆盖pullThresholdForQueue的配置;
8、 在队列级别限制消息大小,每个队列最多缓存100MB(默认)的消息,设置范围[1,1024].;
9、 在topic级别限制消息大小,默认-1表示不限制,设置范围[1,102400].;
10、 推模式下,消息拉取的时间间隔,默认0,配置范围[0,65535];
11、 消息并发消费时,一次消费的消息条数,默认值为1,配置返回[1,1024];
12、 每次消息拉取所拉取的条数,默认32,配置范围[1,1024];

1、 %|a-zA-Z0-9_-↩︎;
