二、Docker 安装

1、下载镜像文件

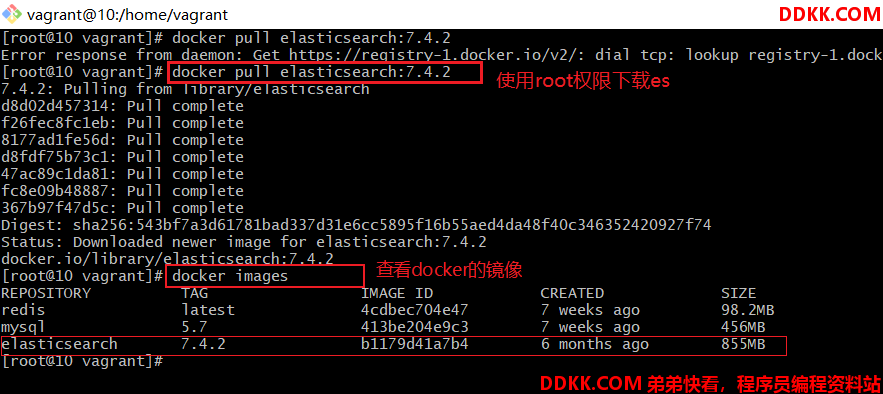

下载elasticsearch

docker pull elasticsearch:7.4.2 存储和检索数据

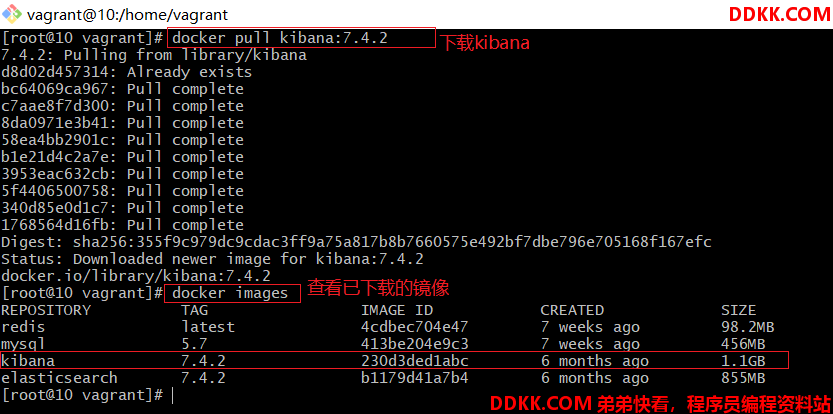

下载kibana

docker pull kibana:7.4.2 可视化检索数据



注意:elasticsearch 要和 kibana 的版本保持一致!

2、创建实例

1. ElasticSearch

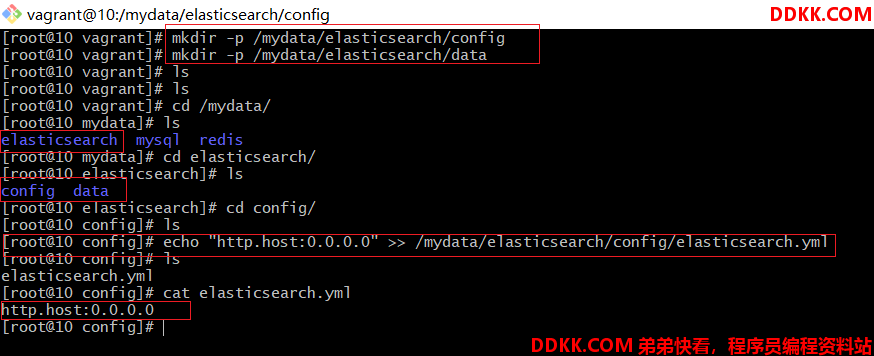

mkdir -p /mydata/elasticsearch/config 在mydata文件夹下创建es的config文件夹,将docker中es的配置挂载在外部,当我们在linux虚拟机中修改es的配置文件时,就会同时修改docker中的es的配置
mkdir -p /mydata/elasticsearch/data在mydata文件夹下创建es的data文件夹
echo "http.host:0.0.0.0" >> /mydata/elasticsearch/config/elasticsearch.yml [http.host:0.0.0.0]允许任何远程机器访问es,并将其写入es的配置文件中

chmod -R 777 /mydata/elasticsearch/ 保证权限问题

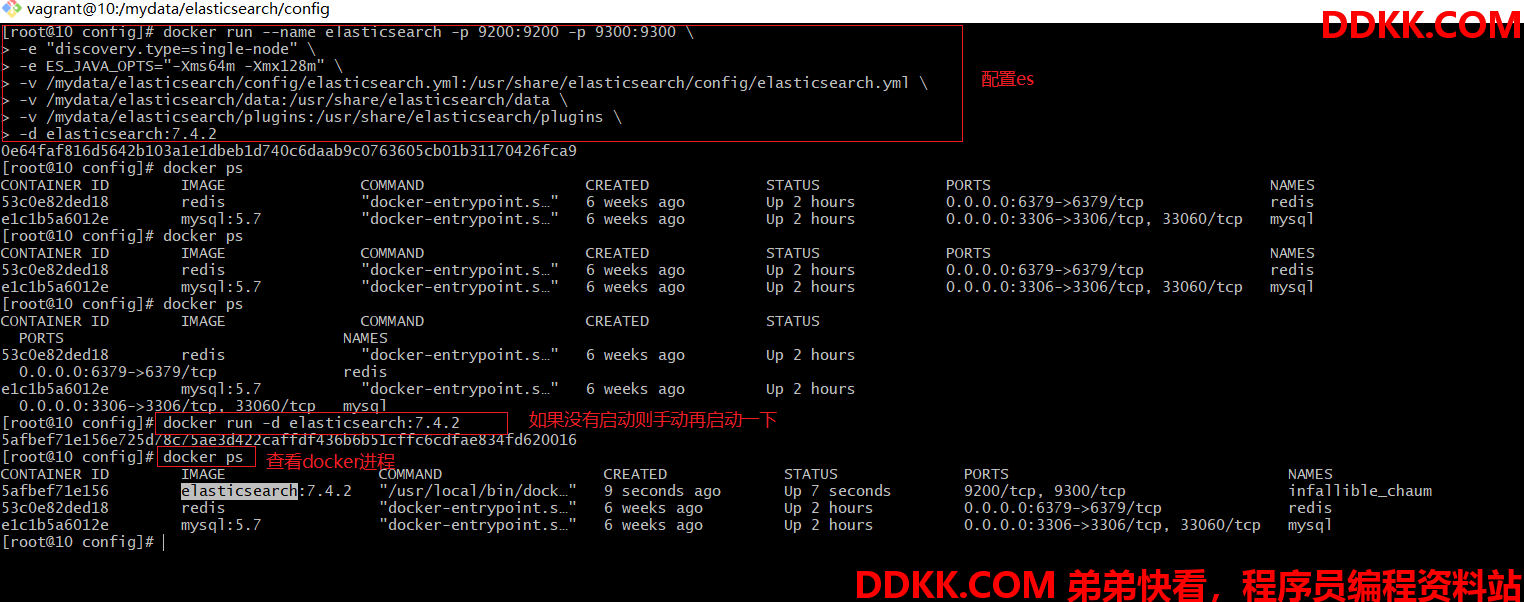

docker run --name elasticsearch -p 9200:9200 -p 9300:9300 \
-e "discovery.type=single-node" \
-e ES_JAVA_OPTS="-Xms64m -Xmx128m" \
-v /mydata/elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml \
-v /mydata/elasticsearch/data:/usr/share/elasticsearch/data \
-v /mydata/elasticsearch/plugins:/usr/share/elasticsearch/plugins \
-d elasticsearch:7.4.2

# docker run --name elasticsearch 创建一个es容器并起一个名字;
# -p 9200:9200 将linux的9200端口映射到docker容器的9200端口,用来给es发送http请求
# -p 9300:9300 9300是es在分布式集群状态下节点之间的通信端口  \ 换行符
# -e 指定一个参数,当前es以单节点模式运行
# *注意,ES_JAVA_OPTS非常重要,指定开发时es运行时的最小和最大内存占用为64M和128M,否则就会占用全部可用内存
# -v 挂载命令,将虚拟机中的路径和docker中的路径进行关联
# -d 后台启动服务



安装完elasticsearch 后我们来启动一下,会发现使用docker ps命令查看启动的容器时没有找到我们的 es,这是因为目前 es 的配置文件的权限导致的,因此我们还需要修改一下 es 的配置文件的权限:

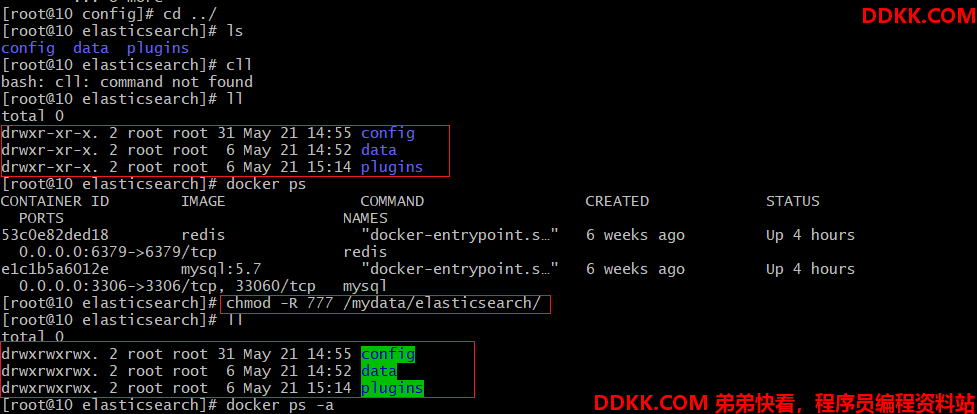

[root@10 config]# cd ../
[root@10 elasticsearch]# ls
config  data  plugins
[root@10 elasticsearch]# cll
bash: cll: command not found
[root@10 elasticsearch]# ll
total 0
drwxr-xr-x. 2 root root 31 May 21 14:55 config
drwxr-xr-x. 2 root root  6 May 21 14:52 data
drwxr-xr-x. 2 root root  6 May 21 15:14 plugins
[root@10 elasticsearch]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                               NAMES
53c0e82ded18        redis               "docker-entrypoint.s…"   6 weeks ago         Up 4 hours          0.0.0.0:6379->6379/tcp              redis
e1c1b5a6012e        mysql:5.7           "docker-entrypoint.s…"   6 weeks ago         Up 4 hours          0.0.0.0:3306->3306/tcp, 33060/tcp   mysql
[root@10 elasticsearch]# chmod -R 777 /mydata/elasticsearch/
[root@10 elasticsearch]# ll
total 0
drwxrwxrwx. 2 root root 31 May 21 14:55 config
drwxrwxrwx. 2 root root  6 May 21 14:52 data
drwxrwxrwx. 2 root root  6 May 21 15:14 plugins



修改完文件权限后,我们使用docker start elasticsearch再次启动 es,使用docker ps命令查看后发现容器还是没有启动,这是问什么呢?
我们使用docker logs elasticsearch看一下 es 的启动日志:

[root@10 elasticsearch]# docker logs elasticsearch
OpenJDK 64-Bit Server VM warning: Option UseConcMarkSweepGC was deprecated in version 9.0 and will likely be removed in a future release.
2020-05-21 15:14:13,179 main ERROR No Log4j 2 configuration file found. Using default configuration (logging only errors to the console), or user programmatically provided configurations. Set system property 'log4j2.debug' to show Log4j 2 internal initialization logging. See https://logging.apache.org/log4j/2.x/manual/configuration.html for instructions on how to configure Log4j 2
Exception in thread "main" SettingsException[Failed to load settings from [elasticsearch.yml]]; nested: ParsingException[Failed to parse object: expecting token of type [START_OBJECT] but found [VALUE_STRING]];
        at org.elasticsearch.common.settings.Settings$Builder.loadFromStream(Settings.java:1097)
        at org.elasticsearch.common.settings.Settings$Builder.loadFromPath(Settings.java:1070)
        at org.elasticsearch.node.InternalSettingsPreparer.prepareEnvironment(InternalSettingsPreparer.java:83)
        at org.elasticsearch.cli.EnvironmentAwareCommand.createEnv(EnvironmentAwareCommand.java:95)
        at org.elasticsearch.cli.EnvironmentAwareCommand.execute(EnvironmentAwareCommand.java:86)
        at org.elasticsearch.cli.Command.mainWithoutErrorHandling(Command.java:125)
        at org.elasticsearch.cli.Command.main(Command.java:90)
        at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:115)
        at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:92)
Caused by: ParsingException[Failed to parse object: expecting token of type [START_OBJECT] but found [VALUE_STRING]]
        at org.elasticsearch.common.xcontent.XContentParserUtils.ensureExpectedToken(XContentParserUtils.java:78)
        at org.elasticsearch.common.settings.Settings.fromXContent(Settings.java:617)
        at org.elasticsearch.common.settings.Settings.access$400(Settings.java:82)

上述错误是由于我之前配置elasticsearch.yml文件的时候k-v键值对配置错误导致的,查看 yml 文件会发现我配置的内容是这样的:

http.host:0.0.0.0

而实际上k-v键值对之间应该有空格,注意 yml 配置文件中key: value格式冒号后面要跟一个空格。否则就会导致上面的错误。
因此需要修改一下elasticsearch.yml文件,修改为:

http.host: 0.0.0.0

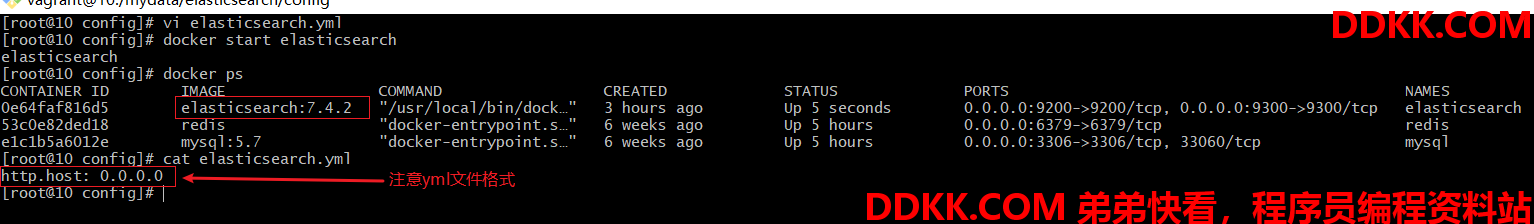

修改并保存之后再次使用docker start elasticsearch启动 es,使用docker ps命令产看后可以看到我的 es 容器已经启动起来了:

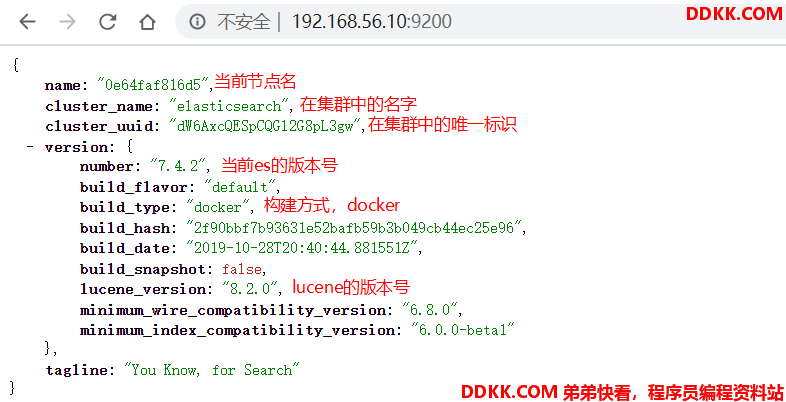

在浏览器地址栏访问http://192.168.56.10:9200/,可以看到 es 启动成功后返回类似下面的数据:


注意192.168.56.10是我的linux虚拟机的地址,读者需要根据自己的虚拟机地址来进行访问
