23、Netty 基础 之 Protobuf1、

一、Protobuf基本介绍

1、 Protobuf是Google发布的开源项目,全称GoogleProtobufBuffers,是一种轻便高效的结构化数据存储格式,可以用于结构化数据串行化,或者说序列化它很适合做数据存储或RPC数据交换格式;

2、 参考文档;

https://developers.google.cn/protocol-buffers/docs/proto

3、 Protobuf是以message的方式来管理数据的;

4、支持跨平台、跨语言,即【客户端和服务端可以是不同的语言编写的】(支持目前绝大多数语言,例如C++、C#、Java、Python等)

5、 目前很多公司从http+json->tcp+protobuf;

6、 高性能,高可靠性;

7、 使用protobuf编译器能自动生成代码;

Protobuf是将类的定义使用.proto文件进行描述。
说明,在idea中编写.proto文件时,会自动提示是否下载.ptotot编写插件,可以让语法高亮。

8、 然后通过protoc.exe编译器根据.proto自动生成.java文件;

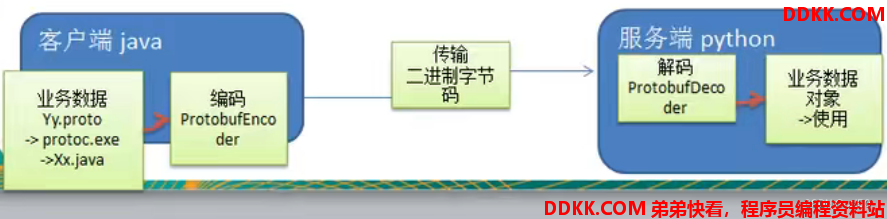

9、 protobuf使用示意图;



二、Protobuf入门案例—生成类

1、 客户端可以发送一个StudentPOJO对象到服务器(通过Protobuf编码);
2、 服务端能接收StudentPOJO对象,并显示信息(通过Protobuf解码);
3、 代码;

三、netty中使用Protobuf的步骤

1、 pom文件添加依赖;

<dependency>
    <groupId>com.google.protobuf</groupId>
    <artifactId>protobuf-java</artifactId>
    <version>3.21.12</version>
</dependency>

2、 建立Student.proto文件;

syntax = "proto3"; //协议版本
option java_outer_classname = "StudentPOJO"; //生成的外部类名,同时也是生成的xx.java名称

//protobuf使用message的形式来管理数据的
message Student { //会在StudentPOJO外部类,生成一个内部类Student,它是真正发送的POJO对象
	int32 id = 1; //Student类中有一个属性,名字为id,类型为int32(protobuf类型)
	//1不代表值,而是代表属性的序号

	string name = 2; //第二个属性

}

3、 编译proto文件;

C:\Users\user\Downloads\protoc-21.12-win32\bin>protoc.exe --java_out=. Student.proto
生成文件StudentPOJO.java

// Generated by the protocol buffer compiler.  DO NOT EDIT!
// source: Student.proto

public final class StudentPOJO {
  private StudentPOJO() {}
  public static void registerAllExtensions(
      com.google.protobuf.ExtensionRegistryLite registry) {
  }

  public static void registerAllExtensions(
      com.google.protobuf.ExtensionRegistry registry) {
    registerAllExtensions(
        (com.google.protobuf.ExtensionRegistryLite) registry);
  }
  public interface StudentOrBuilder extends
      // @@protoc_insertion_point(interface_extends:Student)
      com.google.protobuf.MessageOrBuilder {

    /**
     * <pre>
     *Student类中有一个属性,名字为id,类型为int32(protobuf类型)
     * </pre>
     *
     * <code>int32 id = 1;</code>
     * @return The id.
     */
    int getId();

    /**
     * <pre>
     *第二个属性
     * </pre>
     *
     * <code>string name = 2;</code>
     * @return The name.
     */
    java.lang.String getName();
    /**
     * <pre>
     *第二个属性
     * </pre>
     *
     * <code>string name = 2;</code>
     * @return The bytes for name.
     */
    com.google.protobuf.ByteString
        getNameBytes();
  }
  /**
   * <pre>
   *protobuf使用message的形式来管理数据的
   * </pre>
   *
   * Protobuf type {@code Student}
   */
  public static final class Student extends
      com.google.protobuf.GeneratedMessageV3 implements
      // @@protoc_insertion_point(message_implements:Student)
      StudentOrBuilder {
  private static final long serialVersionUID = 0L;
    // Use Student.newBuilder() to construct.
    private Student(com.google.protobuf.GeneratedMessageV3.Builder<?> builder) {
      super(builder);
    }
    private Student() {
      name_ = "";
    }

    @java.lang.Override
    @SuppressWarnings({"unused"})
    protected java.lang.Object newInstance(
        UnusedPrivateParameter unused) {
      return new Student();
    }

    @java.lang.Override
    public final com.google.protobuf.UnknownFieldSet
    getUnknownFields() {
      return this.unknownFields;
    }
    public static final com.google.protobuf.Descriptors.Descriptor
        getDescriptor() {
      return StudentPOJO.internal_static_Student_descriptor;
    }

    @java.lang.Override
    protected com.google.protobuf.GeneratedMessageV3.FieldAccessorTable
        internalGetFieldAccessorTable() {
      return StudentPOJO.internal_static_Student_fieldAccessorTable
          .ensureFieldAccessorsInitialized(
              StudentPOJO.Student.class, StudentPOJO.Student.Builder.class);
    }

    public static final int ID_FIELD_NUMBER = 1;
    private int id_ = 0;
    /**
     * <pre>
     *Student类中有一个属性,名字为id,类型为int32(protobuf类型)
     * </pre>
     *
     * <code>int32 id = 1;</code>
     * @return The id.
     */
    @java.lang.Override
    public int getId() {
      return id_;
    }

    public static final int NAME_FIELD_NUMBER = 2;
    @SuppressWarnings("serial")
    private volatile java.lang.Object name_ = "";
    /**
     * <pre>
     *第二个属性
     * </pre>
     *
     * <code>string name = 2;</code>
     * @return The name.
     */
    @java.lang.Override
    public java.lang.String getName() {
      java.lang.Object ref = name_;
      if (ref instanceof java.lang.String) {
        return (java.lang.String) ref;
      } else {
        com.google.protobuf.ByteString bs =
            (com.google.protobuf.ByteString) ref;
        java.lang.String s = bs.toStringUtf8();
        name_ = s;
        return s;
      }
    }
    /**
     * <pre>
     *第二个属性
     * </pre>
     *
     * <code>string name = 2;</code>
     * @return The bytes for name.
     */
    @java.lang.Override
    public com.google.protobuf.ByteString
        getNameBytes() {
      java.lang.Object ref = name_;
      if (ref instanceof java.lang.String) {
        com.google.protobuf.ByteString b =
            com.google.protobuf.ByteString.copyFromUtf8(
                (java.lang.String) ref);
        name_ = b;
        return b;
      } else {
        return (com.google.protobuf.ByteString) ref;
      }
    }

    private byte memoizedIsInitialized = -1;
    @java.lang.Override
    public final boolean isInitialized() {
      byte isInitialized = memoizedIsInitialized;
      if (isInitialized == 1) return true;
      if (isInitialized == 0) return false;

      memoizedIsInitialized = 1;
      return true;
    }

    @java.lang.Override
    public void writeTo(com.google.protobuf.CodedOutputStream output)
                        throws java.io.IOException {
      if (id_ != 0) {
        output.writeInt32(1, id_);
      }
      if (!com.google.protobuf.GeneratedMessageV3.isStringEmpty(name_)) {
        com.google.protobuf.GeneratedMessageV3.writeString(output, 2, name_);
      }
      getUnknownFields().writeTo(output);
    }

    @java.lang.Override
    public int getSerializedSize() {
      int size = memoizedSize;
      if (size != -1) return size;

      size = 0;
      if (id_ != 0) {
        size += com.google.protobuf.CodedOutputStream
          .computeInt32Size(1, id_);
      }
      if (!com.google.protobuf.GeneratedMessageV3.isStringEmpty(name_)) {
        size += com.google.protobuf.GeneratedMessageV3.computeStringSize(2, name_);
      }
      size += getUnknownFields().getSerializedSize();
      memoizedSize = size;
      return size;
    }

    @java.lang.Override
    public boolean equals(final java.lang.Object obj) {
      if (obj == this) {
       return true;
      }
      if (!(obj instanceof StudentPOJO.Student)) {
        return super.equals(obj);
      }
      StudentPOJO.Student other = (StudentPOJO.Student) obj;

      if (getId()
          != other.getId()) return false;
      if (!getName()
          .equals(other.getName())) return false;
      if (!getUnknownFields().equals(other.getUnknownFields())) return false;
      return true;
    }

    @java.lang.Override
    public int hashCode() {
      if (memoizedHashCode != 0) {
        return memoizedHashCode;
      }
      int hash = 41;
      hash = (19 * hash) + getDescriptor().hashCode();
      hash = (37 * hash) + ID_FIELD_NUMBER;
      hash = (53 * hash) + getId();
      hash = (37 * hash) + NAME_FIELD_NUMBER;
      hash = (53 * hash) + getName().hashCode();
      hash = (29 * hash) + getUnknownFields().hashCode();
      memoizedHashCode = hash;
      return hash;
    }

    public static StudentPOJO.Student parseFrom(
        java.nio.ByteBuffer data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static StudentPOJO.Student parseFrom(
        java.nio.ByteBuffer data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static StudentPOJO.Student parseFrom(
        com.google.protobuf.ByteString data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static StudentPOJO.Student parseFrom(
        com.google.protobuf.ByteString data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static StudentPOJO.Student parseFrom(byte[] data)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data);
    }
    public static StudentPOJO.Student parseFrom(
        byte[] data,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws com.google.protobuf.InvalidProtocolBufferException {
      return PARSER.parseFrom(data, extensionRegistry);
    }
    public static StudentPOJO.Student parseFrom(java.io.InputStream input)
        throws java.io.IOException {
      return com.google.protobuf.GeneratedMessageV3
          .parseWithIOException(PARSER, input);
    }
    public static StudentPOJO.Student parseFrom(
        java.io.InputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return com.google.protobuf.GeneratedMessageV3
          .parseWithIOException(PARSER, input, extensionRegistry);
    }
    public static StudentPOJO.Student parseDelimitedFrom(java.io.InputStream input)
        throws java.io.IOException {
      return com.google.protobuf.GeneratedMessageV3
          .parseDelimitedWithIOException(PARSER, input);
    }
    public static StudentPOJO.Student parseDelimitedFrom(
        java.io.InputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return com.google.protobuf.GeneratedMessageV3
          .parseDelimitedWithIOException(PARSER, input, extensionRegistry);
    }
    public static StudentPOJO.Student parseFrom(
        com.google.protobuf.CodedInputStream input)
        throws java.io.IOException {
      return com.google.protobuf.GeneratedMessageV3
          .parseWithIOException(PARSER, input);
    }
    public static StudentPOJO.Student parseFrom(
        com.google.protobuf.CodedInputStream input,
        com.google.protobuf.ExtensionRegistryLite extensionRegistry)
        throws java.io.IOException {
      return com.google.protobuf.GeneratedMessageV3
          .parseWithIOException(PARSER, input, extensionRegistry);
    }

    @java.lang.Override
    public Builder newBuilderForType() { return newBuilder(); }
    public static Builder newBuilder() {
      return DEFAULT_INSTANCE.toBuilder();
    }
    public static Builder newBuilder(StudentPOJO.Student prototype) {
      return DEFAULT_INSTANCE.toBuilder().mergeFrom(prototype);
    }
    @java.lang.Override
    public Builder toBuilder() {
      return this == DEFAULT_INSTANCE
          ? new Builder() : new Builder().mergeFrom(this);
    }

    @java.lang.Override
    protected Builder newBuilderForType(
        com.google.protobuf.GeneratedMessageV3.BuilderParent parent) {
      Builder builder = new Builder(parent);
      return builder;
    }
    /**
     * <pre>
     *protobuf使用message的形式来管理数据的
     * </pre>
     *
     * Protobuf type {@code Student}
     */
    public static final class Builder extends
        com.google.protobuf.GeneratedMessageV3.Builder<Builder> implements
        // @@protoc_insertion_point(builder_implements:Student)
        StudentPOJO.StudentOrBuilder {
      public static final com.google.protobuf.Descriptors.Descriptor
          getDescriptor() {
        return StudentPOJO.internal_static_Student_descriptor;
      }

      @java.lang.Override
      protected com.google.protobuf.GeneratedMessageV3.FieldAccessorTable
          internalGetFieldAccessorTable() {
        return StudentPOJO.internal_static_Student_fieldAccessorTable
            .ensureFieldAccessorsInitialized(
                StudentPOJO.Student.class, StudentPOJO.Student.Builder.class);
      }

      // Construct using StudentPOJO.Student.newBuilder()
      private Builder() {

      }

      private Builder(
          com.google.protobuf.GeneratedMessageV3.BuilderParent parent) {
        super(parent);

      }
      @java.lang.Override
      public Builder clear() {
        super.clear();
        bitField0_ = 0;
        id_ = 0;
        name_ = "";
        return this;
      }

      @java.lang.Override
      public com.google.protobuf.Descriptors.Descriptor
          getDescriptorForType() {
        return StudentPOJO.internal_static_Student_descriptor;
      }

      @java.lang.Override
      public StudentPOJO.Student getDefaultInstanceForType() {
        return StudentPOJO.Student.getDefaultInstance();
      }

      @java.lang.Override
      public StudentPOJO.Student build() {
        StudentPOJO.Student result = buildPartial();
        if (!result.isInitialized()) {
          throw newUninitializedMessageException(result);
        }
        return result;
      }

      @java.lang.Override
      public StudentPOJO.Student buildPartial() {
        StudentPOJO.Student result = new StudentPOJO.Student(this);
        if (bitField0_ != 0) { buildPartial0(result); }
        onBuilt();
        return result;
      }

      private void buildPartial0(StudentPOJO.Student result) {
        int from_bitField0_ = bitField0_;
        if (((from_bitField0_ & 0x00000001) != 0)) {
          result.id_ = id_;
        }
        if (((from_bitField0_ & 0x00000002) != 0)) {
          result.name_ = name_;
        }
      }

      @java.lang.Override
      public Builder clone() {
        return super.clone();
      }
      @java.lang.Override
      public Builder setField(
          com.google.protobuf.Descriptors.FieldDescriptor field,
          java.lang.Object value) {
        return super.setField(field, value);
      }
      @java.lang.Override
      public Builder clearField(
          com.google.protobuf.Descriptors.FieldDescriptor field) {
        return super.clearField(field);
      }
      @java.lang.Override
      public Builder clearOneof(
          com.google.protobuf.Descriptors.OneofDescriptor oneof) {
        return super.clearOneof(oneof);
      }
      @java.lang.Override
      public Builder setRepeatedField(
          com.google.protobuf.Descriptors.FieldDescriptor field,
          int index, java.lang.Object value) {
        return super.setRepeatedField(field, index, value);
      }
      @java.lang.Override
      public Builder addRepeatedField(
          com.google.protobuf.Descriptors.FieldDescriptor field,
          java.lang.Object value) {
        return super.addRepeatedField(field, value);
      }
      @java.lang.Override
      public Builder mergeFrom(com.google.protobuf.Message other) {
        if (other instanceof StudentPOJO.Student) {
          return mergeFrom((StudentPOJO.Student)other);
        } else {
          super.mergeFrom(other);
          return this;
        }
      }

      public Builder mergeFrom(StudentPOJO.Student other) {
        if (other == StudentPOJO.Student.getDefaultInstance()) return this;
        if (other.getId() != 0) {
          setId(other.getId());
        }
        if (!other.getName().isEmpty()) {
          name_ = other.name_;
          bitField0_ |= 0x00000002;
          onChanged();
        }
        this.mergeUnknownFields(other.getUnknownFields());
        onChanged();
        return this;
      }

      @java.lang.Override
      public final boolean isInitialized() {
        return true;
      }

      @java.lang.Override
      public Builder mergeFrom(
          com.google.protobuf.CodedInputStream input,
          com.google.protobuf.ExtensionRegistryLite extensionRegistry)
          throws java.io.IOException {
        if (extensionRegistry == null) {
          throw new java.lang.NullPointerException();
        }
        try {
          boolean done = false;
          while (!done) {
            int tag = input.readTag();
            switch (tag) {
              case 0:
                done = true;
                break;
              case 8: {
                id_ = input.readInt32();
                bitField0_ |= 0x00000001;
                break;
              } // case 8
              case 18: {
                name_ = input.readStringRequireUtf8();
                bitField0_ |= 0x00000002;
                break;
              } // case 18
              default: {
                if (!super.parseUnknownField(input, extensionRegistry, tag)) {
                  done = true; // was an endgroup tag
                }
                break;
              } // default:
            } // switch (tag)
          } // while (!done)
        } catch (com.google.protobuf.InvalidProtocolBufferException e) {
          throw e.unwrapIOException();
        } finally {
          onChanged();
        } // finally
        return this;
      }
      private int bitField0_;

      private int id_ ;
      /**
       * <pre>
       *Student类中有一个属性,名字为id,类型为int32(protobuf类型)
       * </pre>
       *
       * <code>int32 id = 1;</code>
       * @return The id.
       */
      @java.lang.Override
      public int getId() {
        return id_;
      }
      /**
       * <pre>
       *Student类中有一个属性,名字为id,类型为int32(protobuf类型)
       * </pre>
       *
       * <code>int32 id = 1;</code>
       * @param value The id to set.
       * @return This builder for chaining.
       */
      public Builder setId(int value) {

        id_ = value;
        bitField0_ |= 0x00000001;
        onChanged();
        return this;
      }
      /**
       * <pre>
       *Student类中有一个属性,名字为id,类型为int32(protobuf类型)
       * </pre>
       *
       * <code>int32 id = 1;</code>
       * @return This builder for chaining.
       */
      public Builder clearId() {
        bitField0_ = (bitField0_ & ~0x00000001);
        id_ = 0;
        onChanged();
        return this;
      }

      private java.lang.Object name_ = "";
      /**
       * <pre>
       *第二个属性
       * </pre>
       *
       * <code>string name = 2;</code>
       * @return The name.
       */
      public java.lang.String getName() {
        java.lang.Object ref = name_;
        if (!(ref instanceof java.lang.String)) {
          com.google.protobuf.ByteString bs =
              (com.google.protobuf.ByteString) ref;
          java.lang.String s = bs.toStringUtf8();
          name_ = s;
          return s;
        } else {
          return (java.lang.String) ref;
        }
      }
      /**
       * <pre>
       *第二个属性
       * </pre>
       *
       * <code>string name = 2;</code>
       * @return The bytes for name.
       */
      public com.google.protobuf.ByteString
          getNameBytes() {
        java.lang.Object ref = name_;
        if (ref instanceof String) {
          com.google.protobuf.ByteString b =
              com.google.protobuf.ByteString.copyFromUtf8(
                  (java.lang.String) ref);
          name_ = b;
          return b;
        } else {
          return (com.google.protobuf.ByteString) ref;
        }
      }
      /**
       * <pre>
       *第二个属性
       * </pre>
       *
       * <code>string name = 2;</code>
       * @param value The name to set.
       * @return This builder for chaining.
       */
      public Builder setName(
          java.lang.String value) {
        if (value == null) { throw new NullPointerException(); }
        name_ = value;
        bitField0_ |= 0x00000002;
        onChanged();
        return this;
      }
      /**
       * <pre>
       *第二个属性
       * </pre>
       *
       * <code>string name = 2;</code>
       * @return This builder for chaining.
       */
      public Builder clearName() {
        name_ = getDefaultInstance().getName();
        bitField0_ = (bitField0_ & ~0x00000002);
        onChanged();
        return this;
      }
      /**
       * <pre>
       *第二个属性
       * </pre>
       *
       * <code>string name = 2;</code>
       * @param value The bytes for name to set.
       * @return This builder for chaining.
       */
      public Builder setNameBytes(
          com.google.protobuf.ByteString value) {
        if (value == null) { throw new NullPointerException(); }
        checkByteStringIsUtf8(value);
        name_ = value;
        bitField0_ |= 0x00000002;
        onChanged();
        return this;
      }
      @java.lang.Override
      public final Builder setUnknownFields(
          final com.google.protobuf.UnknownFieldSet unknownFields) {
        return super.setUnknownFields(unknownFields);
      }

      @java.lang.Override
      public final Builder mergeUnknownFields(
          final com.google.protobuf.UnknownFieldSet unknownFields) {
        return super.mergeUnknownFields(unknownFields);
      }
      // @@protoc_insertion_point(builder_scope:Student)
    }

    // @@protoc_insertion_point(class_scope:Student)
    private static final StudentPOJO.Student DEFAULT_INSTANCE;
    static {
      DEFAULT_INSTANCE = new StudentPOJO.Student();
    }

    public static StudentPOJO.Student getDefaultInstance() {
      return DEFAULT_INSTANCE;
    }

    private static final com.google.protobuf.Parser<Student>
        PARSER = new com.google.protobuf.AbstractParser<Student>() {
      @java.lang.Override
      public Student parsePartialFrom(
          com.google.protobuf.CodedInputStream input,
          com.google.protobuf.ExtensionRegistryLite extensionRegistry)
          throws com.google.protobuf.InvalidProtocolBufferException {
        Builder builder = newBuilder();
        try {
          builder.mergeFrom(input, extensionRegistry);
        } catch (com.google.protobuf.InvalidProtocolBufferException e) {
          throw e.setUnfinishedMessage(builder.buildPartial());
        } catch (com.google.protobuf.UninitializedMessageException e) {
          throw e.asInvalidProtocolBufferException().setUnfinishedMessage(builder.buildPartial());
        } catch (java.io.IOException e) {
          throw new com.google.protobuf.InvalidProtocolBufferException(e)
              .setUnfinishedMessage(builder.buildPartial());
        }
        return builder.buildPartial();
      }
    };

    public static com.google.protobuf.Parser<Student> parser() {
      return PARSER;
    }

    @java.lang.Override
    public com.google.protobuf.Parser<Student> getParserForType() {
      return PARSER;
    }

    @java.lang.Override
    public StudentPOJO.Student getDefaultInstanceForType() {
      return DEFAULT_INSTANCE;
    }

  }

  private static final com.google.protobuf.Descriptors.Descriptor
    internal_static_Student_descriptor;
  private static final
    com.google.protobuf.GeneratedMessageV3.FieldAccessorTable
      internal_static_Student_fieldAccessorTable;

  public static com.google.protobuf.Descriptors.FileDescriptor
      getDescriptor() {
    return descriptor;
  }
  private static  com.google.protobuf.Descriptors.FileDescriptor
      descriptor;
  static {
    java.lang.String[] descriptorData = {
      "\n\rStudent.proto\"#\n\007Student\022\n\n\002id\030\001 \001(\005\022\014" +
      "\n\004name\030\002 \001(\tB\rB\013StudentPOJOb\006proto3"
    };
    descriptor = com.google.protobuf.Descriptors.FileDescriptor
      .internalBuildGeneratedFileFrom(descriptorData,
        new com.google.protobuf.Descriptors.FileDescriptor[] {
        });
    internal_static_Student_descriptor =
      getDescriptor().getMessageTypes().get(0);
    internal_static_Student_fieldAccessorTable = new
      com.google.protobuf.GeneratedMessageV3.FieldAccessorTable(
        internal_static_Student_descriptor,
        new java.lang.String[] { "Id", "Name", });
  }

  // @@protoc_insertion_point(outer_class_scope)
}

四、从客户端发送一个Student对象给服务端

1、 NettyClient.java添加ProtobufEncoder;

package netty.protobuf;

import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.protobuf.ProtobufEncoder;

public class NettyClient {

	public static void main(String[] args) throws Exception {

		//客户端需要一个事件循环组
		EventLoopGroup group = new NioEventLoopGroup();

		try {
			//创建客户端的启动对象
			//注意客户端使用的是Bootstrap
			Bootstrap bootstrap = new Bootstrap();

			//设置相关参数
			bootstrap.group(group) //设置线程组
				.channel(NioSocketChannel.class) //设置客户端通道的实现类
				.handler(new ChannelInitializer<SocketChannel>() {

					@Override
					protected void initChannel(SocketChannel ch) throws Exception {
						ChannelPipeline pipeline = ch.pipeline();
						//在pipeline中加入ProtobufEncoder
						pipeline.addLast("encoder", new ProtobufEncoder());
						//加入自己的处理器
						pipeline.addLast(new NettyClientHandler());
					}

				});

			System.out.println("...客户端 is ready...");

			//启动客户端去连接服务器端
			//ChannelFuture涉及到netty的异步模型
			ChannelFuture cf = bootstrap.connect("127.0.0.1", 6668).sync();

			//对关闭通道进行监听
			cf.channel().closeFuture().sync();
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			//优雅的关闭
			group.shutdownGracefully();
		}

	}
}

2、 NettyClientHandler.java添加发送student对象;

package netty.protobuf;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.util.CharsetUtil;

public class NettyClientHandler extends ChannelInboundHandlerAdapter {

	//当通道就绪时,就会触发该方法
	@Override
	public void channelActive(ChannelHandlerContext ctx) throws Exception {
		//发送一个Student对象到服务器
		StudentPOJO.Student student = StudentPOJO.Student.newBuilder().setId(10).setName("张三").build();
		ctx.writeAndFlush(student);

	}

	//当通道有读取事件时会触发
	@Override
	public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
		ByteBuf buf = (ByteBuf) msg;
		System.out.println("服务器回复的消息:" + buf.toString(CharsetUtil.UTF_8));
		System.out.println("服务器的地址:" + ctx.channel().remoteAddress());
	}

	@Override
	public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
		cause.printStackTrace();
		ctx.close();
	}
}

3、 NettyServer.java添加ProtobufDecoder;

package netty.protobuf;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.protobuf.ProtobufDecoder;

public class NettyServer {
	public static void main(String[] args) throws Exception {

		//创建BossGroup和WorkerGroup
		//说明
		//1. 创建两个线程组bossGroup和workerGroup
		//2. bossGroup它只是处理连接请求,真正的与客户端业务处理会交给workerGroup去完成
		//3. 两个都是无限循环
		EventLoopGroup bossGroup = new NioEventLoopGroup(1);
		EventLoopGroup workerGroup = new NioEventLoopGroup(8);

		try {
			//创建服务器端的启动对象,配置启动参数
			ServerBootstrap bootstrap = new ServerBootstrap();

			//使用链式编程来进行设置
			bootstrap.group(bossGroup, workerGroup) //设置两个线程组
				.channel(NioServerSocketChannel.class) //使用NioServerSocketChannel作为服务器的通道实现
				.childHandler(new ChannelInitializer<SocketChannel>() { //创建一个通道初始化对象
					//给pipeline设置处理器
					@Override
					protected void initChannel(SocketChannel ch) throws Exception {

						ChannelPipeline pipeline = ch.pipeline();
						//在pipeline加入ProtobufDecoder
						//指定对哪种对象进行解码
						pipeline.addLast("decoder", new ProtobufDecoder(StudentPOJO.Student.getDefaultInstance()));
						//向管道的最后增加一个处理器
						pipeline.addLast(new NettyChannelHandler());

					};
				}); //给我们的workerGroup的EventLoop对应的管道设置处理器

			//bossGroup参数
			bootstrap.option(ChannelOption.SO_BACKLOG, 1024); //设置线程队列等待连接的个数

			//workerGroup参数
			bootstrap.childOption(ChannelOption.SO_KEEPALIVE, true); //设置保持活动连接状态

			System.out.println("...服务器 is ready...");

			//绑定一个端口并且同步,生成了一个ChannelFuture对象
			//启动服务器并绑定端口
			ChannelFuture cf = bootstrap.bind(6668).sync();

			//对关闭通道进行监听
			cf.channel().closeFuture().sync();
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			System.out.println("Shutdown Netty Server...");
			//优雅的关闭
			workerGroup.shutdownGracefully();
			bossGroup.shutdownGracefully();
			System.out.println("Shutdown Netty Server Success!");
		}

	}
}

4、 NettyChannelHandler.java添加读取student对象;

package netty.protobuf;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.util.CharsetUtil;

/**
 * 说明
 * 1. 我们自定义一个Handler,需要继承netty规定好的某个HandlerAdapter(规范)
 * 2. 这时我们自定义一个Handler,才能称之为Handler
 *
 */
public class NettyChannelHandler extends ChannelInboundHandlerAdapter {

	//读取数据的事件(这里我们可以读取客户端发送的消息)
	/*
	 * 1. ChannelHandlerContext ctx:上下文对象,含有管道pipeline,通道channel,地址
	 * 2. Object msg:就是客户端发送的数据,默认是Object
	 * 3. 通道读写数据,管道处理数据
	 */
	@Override
	public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
		//读取从客户端发送的StudentPOJO.Student
		StudentPOJO.Student student = (StudentPOJO.Student)msg;
		System.out.println("客户端发送的数据 id=" + student.getId() + " name=" + student.getName());

	}

	//数据读取完毕
	//这个方法会在channelRead读完后触发
	@Override
	public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
		//把数据写到缓冲区,并且刷新缓冲区,是write + flush
		//一般来讲,我们对这个发送的数据进行编码
		ctx.channel().writeAndFlush(Unpooled.copiedBuffer("hello,客户端~", CharsetUtil.UTF_8));

	}

	//处理异常,一般是需要关闭通道
	@Override
	public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
		ctx.channel().close();
	}
}

五、执行

1、 服务端日志;

...服务器 is ready...
客户端发送的数据 id=10 name=张三

2、 客户端日志;

...客户端 is ready...
服务器回复的消息:hello,客户端~
服务器的地址:/127.0.0.1:6668
