14、Nginx 实战:LNMP架构模式进阶

一、搭建LNMP

1.官方源安装nginx

1.配置官方源
[root@web01 ~]# vim /etc/yum.repos.d/nginx.repo
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true

2.yum安装依赖
[root@web01 ~]# yum install -y gcc gcc-c++ autoconf pcre pcre-devel make automake wget httpd-tools vim tree

3.yum安装nginx
[root@web01 ~]# yum install -y nginx

4.配置nginx
[root@web01 ~]# vim /etc/nginx/nginx.conf
user  www;
... ...
http {
	... ...
    client_max_body_size 200m;
    ... ...
}

5.创建用户
[root@web01 ~]# groupadd www -g 666
[root@web01 ~]# useradd www -u 666 -g 666 -s /sbin/nologin -M

6.启动并加入开机自启
[root@web01 ~]# systemctl start nginx
[root@web01 ~]# systemctl enable nginx

7.验证
[root@web01 ~]# ps -ef | grep nginx

2.安装php

1.上传PHP安装包
[root@web01 ~]# mkdir /package
[root@web01 ~]# cd /package/
[root@web01 /package]# rz

2.解压安装包
[root@web01 /package]# tar xf php.tar.gz

3.卸载旧版本PHP
[root@web01 /package]# yum remove php-mysql-5.4 php php-fpm php-common

4..安装新版本PHP
[root@web01 /package]# yum localinstall -y *.rpm

5.配置
[root@web01 ~]# vim /etc/php-fpm.d/www.conf
user = www
group = www

[root@web01 ~]# vim /etc/php.ini
post_max_size = 100M
upload_max_filesize = 100M

#如果nginx和php不在一台机器,需要额外配置
[root@web01 ~]# vim /etc/php-fpm.d/www.conf
listen = 172.16.1.7:9000
listen.allowed_clients = 172.16.1.8

6.启动并加入开机自启
[root@web01 ~]# systemctl start php-fpm
[root@web01 ~]# systemctl enable php-fpm

3.安装mariadb-server

1.安装mariadb-server
[root@web01 ~]# yum install -y mariadb-server

2.启动并加入开机自启
[root@web01 ~]# systemctl start mariadb
[root@web01 ~]# systemctl enable mariadb

3.连接验证
[root@web01 ~]# mysql

4.设置登录密码
[root@web01 ~]# mysqladmin -uroot password 'Linhd@123'

5.使用密码登录
[root@web01 ~]# mysql -u root -pLinhd@123

二、搭建WordPress、知乎、edusoho

1.上传代码包

[root@web01 ~]# mkdir /code
[root@web01 ~]# cd /code/
[root@web01 /code]# rz
[root@web01 /code]# ll
total 86372
-rw-r--r-- 1 root root 68889387 Aug 26 21:41 edusoho-8.3.36.tar.gz
-rw-r--r-- 1 root root  8451194 Aug 26 21:40 WeCenter_3-2-1.zip
-rw-r--r-- 1 root root 11098483 Mar 22 22:41 wordpress-5.0.3-zh_CN.tar.gz

2.解压

[root@web01 /code]# tar xf edusoho-8.3.36.tar.gz
[root@web01 /code]# tar xf wordpress-5.0.3-zh_CN.tar.gz
[root@web01 /code]# yum install -y unzip
[root@web01 /code]# unzip WeCenter_3-2-1.zip
[root@web01 /code]# mv WeCenter_3-2-1 zh

3.授权代码

[root@web01 /code]# chown -R www.www /code/

4.配置nginx

1)wordpress的nginx配置

[root@web01 /code]# vim /etc/nginx/conf.d/linux.blog.com.conf
server {
    listen 80;
    server_name linux.blog.com;
    root /code/wordpress;

    location / {
        index index.php;
    }

    location ~* \.php$ {
        fastcgi_pass 127.0.0.1:9000;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        include fastcgi_params;
    }
}

2)wecenter的nginx配置

[root@web01 /code]# vim /etc/nginx/conf.d/linux.zh.com.conf
server {
    listen 80;
    server_name linux.zh.com;
    root /code/zh;

    location / {
        index index.php;
    }

    location ~* \.php$ {
        fastcgi_pass 127.0.0.1:9000;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        include fastcgi_params;
    }
}

3)edusoho的nginx配置

server {
    listen 80;
    server_name linux.edu.com;
    root /code/edusoho/web;

    location / {
        index app.php;
        try_files $uri @rewriteapp;
    }

    location @rewriteapp {
        rewrite ^(.*)$ /app.php/$1 last;
    }

    location ~ ^/udisk {
        internal;
        root /var/www/edusoho/app/data/;
    }

    location ~ ^/(app|app_dev)\.php(/|$) {
        fastcgi_pass   127.0.0.1:9000;
        fastcgi_split_path_info ^(.+\.php)(/.*)$;
        include fastcgi_params;
        fastcgi_param  SCRIPT_FILENAME    $document_root$fastcgi_script_name;
        fastcgi_param  HTTPS              off;
        fastcgi_param HTTP_X-Sendfile-Type X-Accel-Redirect;
        fastcgi_param HTTP_X-Accel-Mapping /udisk=/code/edusoho/app/data/udisk;
        fastcgi_buffer_size 128k;
        fastcgi_buffers 8 128k;
    }

    配置设置图片格式文件
    location ~* \.(jpg|jpeg|gif|png|ico|swf)$ {
        过期时间为3年
        expires 3y;
        关闭日志记录
        access_log off;
        关闭gzip压缩,减少CPU消耗,因为图片的压缩率不高。
        gzip off;
    }

    配置css/js文件
    location ~* \.(css|js)$ {
        access_log off;
        expires 3y;
    }

    禁止用户上传目录下所有.php文件的访问,提高安全性
    location ~ ^/files/.*\.(php|php5)$ {
        deny all;
    }

    以下配置允许运行.php的程序,方便于其他第三方系统的集成。
    location ~ \.php$ {
        [改] 请根据实际php-fpm运行的方式修改
        fastcgi_pass   127.0.0.1:9000;
        fastcgi_split_path_info ^(.+\.php)(/.*)$;
        include fastcgi_params;
        fastcgi_param  SCRIPT_FILENAME    $document_root$fastcgi_script_name;
        fastcgi_param  HTTPS              off;
    }
}

5.配置本地hosts文件

10.0.0.7 linux.blog.com
10.0.0.7 linux.zh.com
10.0.0.7 linux.edu.com

6.重启访问测试

#检查配置
[root@web01 /code]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
#重启
[root@web01 /code]# systemctl restart nginx

7.数据库建库

[root@web01 /code]# mysql -uroot -pLinhd@123
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 8
Server version: 5.5.65-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| test               |
+--------------------+
4 rows in set (0.01 sec)

MariaDB [(none)]> create database wordpress;
Query OK, 1 row affected (0.00 sec)

MariaDB [(none)]> create database zh;
Query OK, 1 row affected (0.00 sec)

8.根据页面提示操作

http://linux.blog.com
http://linux.zh.com
http://linux.edu.com

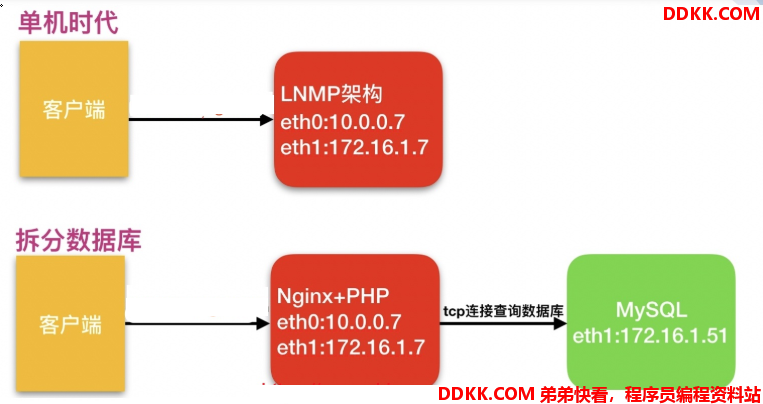

三、拆分数据库

1.为什么要拆分数据库

由于单台服务器运行LNMP架构会导致网站访问缓慢,当内存被占满时,很容易导致系统出现oom从而kill掉MySQL数据库,所以要将web和数据库进行独立部署。



2.数据库拆分解决问题

1.缓解网站压力
2.增强数据库读写性能
3.提高用户访问速度

3.环境准备

主机 IP 服务
web01 172.16.1.7 nginx、php
db01 172.16.1.51 mariadb

4.在新的服务器上搭建数据库(盖新房子)

[root@db01 ~]# yum install -y mariadb-server

5.配置启动(装修)

[root@db01 ~]# systemctl start mariadb
[root@db01 ~]# systemctl enable mariadb

6.配置密码(换锁)

[root@db01 ~]# mysqladmin -uroot password "Linhd@123"

7.连接测试(尝试居住)

#本机连接
[root@db01 ~]# mysql -uroot -pLinhd@123

#远程连接测试
[root@web01 ~]# mysql -uroot -pLinhd@123 -h172.16.1.51
ERROR 1130 (HY000): Host '172.16.1.7' is not allowed to connect to this MariaDB server

mysql 			#命令
-u				#指定用户
root 			#数据库用户
-p				#指定密码
Linhd@123 		#数据库用户的密码
-h				#指定主机
172.16.1.51		#远端数据库的主机地址

8.授权远程连接数据库(想办法住)

#连接数据库
[root@db01 ~]# mysql -uroot -pLinhd@123

#授权
MariaDB [(none)]> grant all on *.* to root@'172.16.1.%' identified by '123456';
Query OK, 0 rows affected (0.00 sec)

grant 				#授权命令
all 				#所有权限
on 					#在...上
*.* 				#所有库.所有表
to 					#给...
root@'172.16.1.%' 	 用户   root@'172.16.1.%'   root用户通过172.16.1.0-255连接都允许
identified 			#指定密码
by 					#是
'123456';			#密码

9.再次远程连接(再尝试居住)

[root@web01 ~]# mysql -uroot -p123456 -h172.16.1.51
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 5
Server version: 5.5.65-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| test               |
+--------------------+
4 rows in set (0.00 sec)

10.旧库数据导出(打包般出家门)

[root@web01 ~]# mysqldump -uroot -pLinhd@123 -B wordpress > /tmp/wordpress.sql
[root@web01 ~]# mysqldump -uroot -pLinhd@123 -B zh > /tmp/zh.sql
[root@web01 ~]# mysqldump -uroot -pLinhd@123 -B edusoho > /tmp/edu.sql

11.将数据推送至新库(搬到新家门口)

[root@web01 ~]# scp /tmp/*.sql 172.16.1.51:/tmp

12.将数据导入新库(把物品搬到新家里面)

1)方式一:库外导入

[root@db01 ~]# mysql -uroot -pLinhd@123 < /tmp/wordpress.sql
[root@db01 ~]# mysql -uroot -pLinhd@123 < /tmp/zh.sql
[root@db01 ~]# mysql -uroot -pLinhd@123 < /tmp/edu.sql

2)方式二:库内读取

MariaDB [wordpress]> source /tmp/wordpress.sql;
MariaDB [wordpress]> source /tmp/zh.sql;
MariaDB [wordpress]> source /tmp/edu.sql;

3)方式三:传送门

[root@web01 ~]# mysql -uroot -p123456 -h172.16.1.51 < /tmp/wordpress.sql
[root@web01 ~]# mysql -uroot -p123456 -h172.16.1.51 < /tmp/zh.sql
[root@web01 ~]# mysql -uroot -p123456 -h172.16.1.51 < /tmp/edu.sql

13.查看数据迁移完成(有没有忘记物品)

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| edusoho            |
| mysql              |
| performance_schema |
| test               |
| wordpress          |
| zh                 |
+--------------------+
7 rows in set (0.00 sec)

14.修改项目的数据库地址(告诉亲戚新住址)

1)wordpress数据库地址

[root@web01 ~]# vim /code/wordpress/wp-config.php
/** WordPress数据库的名称 */
define('DB_NAME', 'wordpress');

/** MySQL数据库用户名 */
define('DB_USER', 'root');

/** MySQL数据库密码 */
define('DB_PASSWORD', '123456');

/** MySQL主机 */
define('DB_HOST', '172.16.1.51');

2)wecenter数据库地址

[root@web01 ~]# vim /code/zh/system/config/database.php
<?php

$config['charset'] = 'utf8';^M
$config['prefix'] = 'aws_';^M
$config['driver'] = 'MySQLi';^M
$config['master'] = array (
  'charset' => 'utf8',
  'host' => '172.16.1.51',
  'username' => 'root',
  'password' => '123456',
  'dbname' => 'zh',
);^M
$config['slave'] = false;^M

3)edusoho数据库地址

[root@web01 ~]# vim /code/edusoho/app/config/parameters.yml
parameters:
    database_driver: pdo_mysql
    database_host: 172.16.1.51
    database_port: 3306
    database_name: edusoho
    database_user: root
    database_password: '123456'

#edusoho修改后需要清除cache缓存
[root@web01 ~]# rm -rf /code/edusoho/app/cache/*

15.停止旧库

[root@web01 ~]# systemctl stop mariadb

16.访问页面测试

linux.blog.com
linux.zh.com
linux.edu.com

四、扩展web服务器

1.配置官方源

[root@web03 ~]# vim /etc/yum.repos.d/nginx.repo
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true

2.yum安装依赖

[root@web03 ~]# yum install -y gcc gcc-c++ autoconf pcre pcre-devel make automake wget httpd-tools vim tree

3.yum安装nginx

[root@web03 ~]# yum install -y nginx

4.配置nginx

[root@web01 ~]# scp -r /etc/nginx/.* 172.16.1.9:/etc/nginx/

5.创建用户

[root@web03 ~]# groupadd www -g 666
[root@web03 ~]# useradd www -u 666 -g 666 -s /sbin/nologin -M

6.启动并加入开机自启

[root@web03 ~]# systemctl start nginx
[root@web03 ~]# systemctl enable nginx

#验证
[root@web01 ~]# ps -ef | grep nginx

7.上传php安装包

[root@web03 ~]# mkdir /package
[root@web03 ~]# cd /package/
[root@web03 /package]# rz

8.解压安装包

[root@web03 /package]# tar xf php.tar.gz

9.卸载旧版本PHP

[root@web03 /package]# yum remove php-mysql-5.4 php php-fpm php-common

10.安装新版本PHP

[root@web03 /package]# yum localinstall -y *.rpm

11.配置

[root@web01 ~]# scp /etc/php-fpm.d/www.conf 172.16.1.9:/etc/php-fpm.d/
[root@web01 ~]# scp /etc/php.ini  172.16.1.9:/etc/

12.启动并加入开机自启

[root@web03 ~]# systemctl start php-fpm
[root@web03 ~]# systemctl enable php-fpm

13.同步站点目录文件

#web01打包
[root@web01 ~]# tar zcf code.tar.gz /code
[root@web01 ~]# scp -r code.tar.gz 172.16.1.9:/

#web03解压
[root@web03 ~]# cd /
[root@web03 /]# tar xf code.tar.gz

14.授权站点目录

[root@web03 ~]# chown -R www.www /code/

15.配置本地hosts

#10.0.0.7 www.zuoye.com linux.blog.com linux.zh.com linux.edu.com
10.0.0.9 www.zuoye.com linux.blog.com linux.zh.com linux.edu.com

16.访问测试

#问题:
web01上传的图片,web02看不到
web02上传的图片,web01看不到

五、文件共享

1.搭建nfs服务端

1)安装

[root@nfs ~]# yum install -y rpcbind nfs-utils

2)规划目录

1.wordpress文件目录:
[root@nfs ~]# mkdir /data/wp -p

2.zh文件目录:
[root@nfs ~]# mkdir /data/zh -p

3.edu文件目录:
[root@nfs ~]# mkdir /data/edu -p

3)配置NFS

[root@nfs ~]# vim /etc/exports
/data/wp 172.16.1.0/24(rw,sync,all_squash,anonuid=666,anongid=666)
/data/zh 172.16.1.0/24(rw,sync,all_squash,anonuid=666,anongid=666)
/data/edu 172.16.1.0/24(rw,sync,all_squash,anonuid=666,anongid=666)

4)创建用户

[root@nfs ~]# groupadd www -g 666
[root@nfs ~]# useradd www -u 666 -g 666

5)授权

[root@nfs ~]# chown -R www.www /data/

6)启动服务

[root@nfs ~]# systemctl start rpcbind nfs
[root@nfs ~]# systemctl enable rpcbind nfs

7)查看配置是否正确

[root@nfs ~]# cat /var/lib/nfs/etab
/data/edu	172.16.1.0/24(rw,sync,wdelay,hide,nocrossmnt,secure,root_squash,all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=666,anongid=666,sec=sys,rw,secure,root_squash,all_squash)
/data/zh	172.16.1.0/24(rw,sync,wdelay,hide,nocrossmnt,secure,root_squash,all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=666,anongid=666,sec=sys,rw,secure,root_squash,all_squash)
/data/wp	172.16.1.0/24(rw,sync,wdelay,hide,nocrossmnt,secure,root_squash,all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=666,anongid=666,sec=sys,rw,secure,root_squash,all_squash)

2.搭建nfs客户端

1)安装nfs

[root@web01 ~]# yum install -y rpcbind nfs-utils
[root@web03 ~]# yum install -y rpcbind nfs-utils

2)启动rpcbind

[root@web01 ~]# systemctl start rpcbind
[root@web03 ~]# systemctl start rpcbind

3)查看挂载点

[root@web01 ~]# showmount -e 172.16.1.31
Export list for 172.16.1.31:
/data/edu 172.16.1.0/24
/data/zh  172.16.1.0/24
/data/wp  172.16.1.0/24

4)先推送目录下文件

[root@web01 ~]# scp -r /code/wordpress/wp-content/uploads/* 172.16.1.31:/data/wp/
[root@web03 ~]# scp -r /code/wordpress/wp-content/uploads/* 172.16.1.31:/data/wp/

[root@web01 ~]# scp -r /code/zh/uploads/* 172.16.1.31:/data/zh/
[root@web03 ~]# scp -r /code/zh/uploads/* 172.16.1.31:/data/zh/

5)挂载

[root@web01 ~]# mount -t nfs 172.16.1.31:/data/wp /code/wordpress/wp-content/uploads
[root@web01 ~]# mount -t nfs 172.16.1.31:/data/zh /code/zh/uploads
[root@web03 ~]# mount -t nfs 172.16.1.31:/data/wp /code/wordpress/wp-content/uploads
[root@web03 ~]# mount -t nfs 172.16.1.31:/data/zh /code/zh/uploads

[root@web01 ~]# df -h
172.16.1.31:/data/wp   98G  1.9G   96G   2% /code/wordpress/wp-content/uploads
172.16.1.31:/data/zh   98G  1.9G   96G   2% /code/zh/uploads

六、七、LNMP+数据库+nfs+实时备份

1.需求

1.搭建两台nginx
2.数据库单独部署
3.搭建博客和知乎
4.文件实现共享

2.环境准备

主机 角色 IP
webo1 ngixn服务器 10.0.0.7
web02 nginx服务器 10.0.0.8
db01 数据库服务器 10.0.0.51
nfs01 文件共享服务器 10.0.0.61
backup 备份服务器 10.0.0.41

3.web01搭建nginx服务器

1.配置官方源
[root@web01 ~]# vim /etc/yum.repos.d/nginx.repo
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true

2.安装依赖包
[root@web01 ~]# yum install -y gcc gcc-c++ autoconf pcre pcre-devel make automake wget httpd-tools vim tree

3.安装nginx
[root@web01 ~]# yum -y install  nginx

4.配置nginx
[root@web01 ~]# vim /etc/nginx/nginx.conf
user  www;
worker_processes  1;
error_log  /var/log/nginx/error.log warn;
pid        /var/run/nginx.pid;

events {
    worker_connections  1024;
}

http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;
    sendfile        on;
   tcp_nopush     on;
    client_max_body_size 200m;
    keepalive_timeout  65;
   gzip  on;
    include /etc/nginx/conf.d/*.conf;
}

5.创建统一用户
[root@web01 ~]# groupadd www -g 666
[root@web01 ~]# useradd www -u 666 -g 666

6.启动服务并设置开机自启
[root@web01 ~]# systemctl  start nginx
[root@web01 ~]# systemctl  enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.

4.web02搭建nginx服务器

1.配置官方源
[root@web02 ~]# vim /etc/yum.repos.d/nginx.repo
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true

2.安装依赖
[root@web02 ~]# yum install -y gcc gcc-c++ autoconf pcre pcre-devel make automake wget httpd-tools vim tree

3.安装nginx
[root@web02 ~]# yum -y install  nginx

4.配置nginx
[root@web02 ~]# vim /etc/nginx/nginx.conf
user  www;
worker_processes  1;
error_log  /var/log/nginx/error.log warn;
pid        /var/run/nginx.pid;

events {
    worker_connections  1024;
}

http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;
    sendfile        on;
   tcp_nopush     on;
    client_max_body_size 200m;
    keepalive_timeout  65;
   gzip  on;
    include /etc/nginx/conf.d/*.conf;
}

5.创建统一用户
[root@web02 ~]# groupadd www -g 666
[root@web02 ~]# useradd www -u 666 -g 666

6.启动服务并设置开机自启
[root@web02 ~]# systemctl start nginx
[root@web02 ~]# systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.

5.web01配置PHP

1.上传源码包
[root@web01 ~]# mkdir /package
[root@web01 ~]# cd /package/
[root@web01 /package]# rz
[root@web01 /package]# ll
total 19424
-rw-r--r-- 1 root root 19889622 2020-08-27 16:29 php.tar.gz

2.解压源码包
[root@web01 /package]# tar xf php.tar.gz

3.安装php
[root@web01 /package]# yum -y localinstall  *.rpm

4.配置php
[root@web01 /package]# vim /etc/php-fpm.d/www.conf
user = www
group = www

[root@web01 /package]# vim /etc/php.ini
post_max_size = 200M
upload_max_filesize = 200M

5.启动PHP并设置开机自启
[root@web01 /package]# systemctl start php-fpm.service
[root@web01 /package]# systemctl enable php-fpm.service
Created symlink from /etc/systemd/system/multi-user.target.wants/php-fpm.service to /usr/lib/systemd/system/php-fpm.service.

6.web02配置PHP

1.上传源码包
[root@web02 ~]# mkdir /package
[root@web02 ~]# cd /package/
[root@web02 ~]# rz
[root@web02 /package]# ll
total 19424
-rw-r--r-- 1 root root 19889622 2020-08-27 16:42 php.tar.gz

2.解压源码包
[root@web02 /package]# tar xf php.tar.gz

3.安装php
[root@web02 /package]# yum -y localinstall  *.rpm

4.配置php
[root@web02 /package]# vim /etc/php-fpm.d/www.conf
user = www
group = www

[root@web02 /package]# vim /etc/php.ini
post_max_size = 200M
upload_max_filesize = 200M

5.启动PHP并设置开机自启
[root@web02 /package]# systemctl  start php-fpm.service
[root@web02 /package]# systemctl  enable php-fpm.service
Created symlink from /etc/systemd/system/multi-user.target.wants/php-fpm.service to /usr/lib/systemd/system/php-fpm.service.

7.webo1安装mariadb-server

1.安装数据库
[root@web01 ~]# yum -y install mariadb-server.x86_64

2.启动数据库并设置开机自启
[root@web01 ~]# systemctl start mariadb.service
[root@web01 ~]# systemctl enable mariadb.service
Created symlink from /etc/systemd/system/multi-user.target.wants/mariadb.service to /usr/lib/systemd/system/mariadb.service.

3.设置数据库密码
[root@web01 ~]# mysqladmin  -uroot password  root

4.验证数据库密码
[root@web01 ~]# mysql -uroot -proot
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 3
Server version: 5.5.65-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>

5.创建数据库
MariaDB [(none)]> create database  wordpress;
Query OK, 1 row affected (0.00 sec)

MariaDB [(none)]> create database  zh;
Query OK, 1 row affected (0.00 sec)

8.web01安装WordPress、知乎、eduSOHO

1)新建目录

[root@web01 /package]# mkdir /code

2)上传源代码

[root@web01 /code]# rz -be
[root@web01 /code]# ll
total 86372
-rw-r--r-- 1 root root 68889387 2020-08-27 17:04 1_edusoho-8.3.36.tar.gz
-rw-r--r-- 1 root root  8451194 2020-08-27 17:04 WeCenter_3-2-1.zip
-rw-r--r-- 1 root root 11098483 2020-08-27 17:04 wordpress-5.0.3-zh_CN.tar.gz

3)安装WordPress

1.配置nginx站点目录
[root@web01 /code]# vim  /etc/nginx/conf.d/linux.wordpress.com.conf
server {
    listen 80;
    server_name linux.wordpress.com;

location / {
    root /code/wordpress;
    index index.php;
 }

location ~* \.php$ {
    root /code/wordpress;
    fastcgi_pass 127.0.0.1:9000;
    fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
    include fastcgi_params;
    }
}

2.检查服务并重启
[root@web01 /package]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@web01 /package]# systemctl  restart nginx

3.解压源码包
[root@web01 /code]# tar xf wordpress-5.0.3-zh_CN.tar.gz

4)安装知乎

1.配置nginx站点目录
[root@web01 /code]# vim /etc/nginx/conf.d/linux.zh.com.conf
server {
    listen 80;
    server_name linux.zh.com;
    root /code/zh;
    index index.php;

location ~* \.php$ {
    fastcgi_pass 127.0.0.1:9000;
    fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
    include fastcgi_params;
 }

}

2.检查服务并重启
[root@web01 /code]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@web01 /code]# !sy
systemctl  restart nginx

3.解压源码包
[root@web01 /code]# unzip WeCenter_3-2-1.zip
[root@web01 /code]# mv WeCenter_3-2-1 zh

5)安装eduSOHO

1.配置nginx站点目录
[root@web01 /code]# vim /etc/nginx/conf.d/linux.edu.com.conf
server {
    listen 80;
    server_name linux.edu.com;
    root /code/edusoho/web;

    location / {
        index app.php;
        try_files $uri @rewriteapp;
    }

    location @rewriteapp {
        rewrite ^(.*)$ /app.php/$1 last;
    }

    location ~ ^/udisk {
        internal;
        root /var/www/edusoho/app/data/;
    }

    location ~ ^/(app|app_dev)\.php(/|$) {
        fastcgi_pass   127.0.0.1:9000;
        fastcgi_split_path_info ^(.+\.php)(/.*)$;
        include fastcgi_params;
        fastcgi_param  SCRIPT_FILENAME    $document_root$fastcgi_script_name;
        fastcgi_param  HTTPS              off;
        fastcgi_param HTTP_X-Sendfile-Type X-Accel-Redirect;
        fastcgi_param HTTP_X-Accel-Mapping /udisk=/code/edusoho/app/data/udisk;
        fastcgi_buffer_size 128k;
        fastcgi_buffers 8 128k;
    }

    配置设置图片格式文件
    location ~* \.(jpg|jpeg|gif|png|ico|swf)$ {
        过期时间为3年
        expires 3y;
        关闭日志记录
        access_log off;
        关闭gzip压缩,减少CPU消耗,因为图片的压缩率不高。
        gzip off;
    }

    配置css/js文件
    location ~* \.(css|js)$ {
        access_log off;
        expires 3y;
    }

    禁止用户上传目录下所有.php文件的访问,提高安全性
    location ~ ^/files/.*\.(php|php5)$ {
        deny all;
    }

    以下配置允许运行.php的程序,方便于其他第三方系统的集成。
    location ~ \.php$ {
        [改] 请根据实际php-fpm运行的方式修改
        fastcgi_pass   127.0.0.1:9000;
        fastcgi_split_path_info ^(.+\.php)(/.*)$;
        include fastcgi_params;
        fastcgi_param  SCRIPT_FILENAME    $document_root$fastcgi_script_name;
        fastcgi_param  HTTPS              off;
    }
}

2.检查服务并重启
[root@web01 /code]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@web01 /code]# systemctl  restart nginx
3.解压源码包
[root@web01 /code]# tar xf 1_edusoho-8.3.36.tar.gz
[root@web01 /code]# mv WeCenter_3-2-1 zh

6)授权目录

[root@web01 /code]# chown -R www:www /code/

7)配置本地hosts

C:\Windows\System32\drivers\etc\hosts

10.0.0.7	linux.wordpress.com
10.0.0.7	linux.zh.com
10.0.0.7	linux.edusoho.com

8)web02安装mariadb-server

1.安装数据库
[root@web02 ~]# yum -y install mariadb-server.x86_64

2.启动数据库并设置开机自启
[root@web02 ~]# systemctl start mariadb.service
[root@web02 ~]# systemctl enable mariadb.service
Created symlink from /etc/systemd/system/multi-user.target.wants/mariadb.service to /usr/lib/systemd/system/mariadb.service.

3.设置数据库密码
[root@web02 ~]# mysqladmin  -uroot password  root

4.验证数据库密码
[root@web02 ~]# mysql -uroot -proot
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 3
Server version: 5.5.65-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>

5.创建数据库
MariaDB [(none)]> create database  wordpress;
Query OK, 1 row affected (0.00 sec)

MariaDB [(none)]> create database  zh;
Query OK, 1 row affected (0.00 sec)

9)web02安装wordpress、知乎、eduSOHO

1.新建目录
[root@web02 /package]# mkdir /code

2.webo1复制文件到web02
[root@web02 /package]# scp -r root@172.16.1.7:/code/* /code/
[root@web02 /code]# scp -r root@172.16.1.7:/etc/nginx/conf.d/* /etc/nginx/conf.d/
root@172.16.1.7's password:
linux.edu.com.conf                                                                     100% 1806     1.1MB/s   00:00
linux.wordpress.com.conf                                                               100%  312    51.4KB/s   00:00
linux.zh.com.conf                                                                      100%  292   124.9KB/s   00:00

3.解压源码包并给目录授权
#删除源安装文件
[root@web02 /code]# rm -rf zh/
[root@web02 /code]# rm -rf edusoho/
[root@web02 /code]# rm -rf wordpress/
#重新解压安装包
[root@web02 /code]# tar xf 1_edusoho-8.3.36.tar.gz
[root@web02 /code]# tar xf 1_edusoho-8.3.36.tar.gz
[root@web02 /code]# unzip WeCenter_3-2-1.zip
#授权目录
[root@web02 /code]# chown  -R www:www /code/
4.配置本地hosts文件
C:\Windows\System32\drivers\etc\hosts
10.0.0.8	linux.edusoho.com
10.0.0.8	linux.wordpress.com
10.0.0.8	linux.zh.com

10)分离数据库

1.db01安装数据库
[root@db01 ~]# yum -y install mariadb-server.x86_64

2.启动数据库并设置开机自启
[root@db01 ~]# systemctl start mariadb.service
[root@db01 ~]# systemctl enable mariadb.service
Created symlink from /etc/systemd/system/multi-user.target.wants/mariadb.service to /usr/lib/systemd/system/mariadb.service.

3.设置数据库密码
[root@db01 ~]# mysqladmin  -uroot password  root

4.验证数据库密码
[root@db01 ~]# mysql -uroot -proot
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 3
Server version: 5.5.65-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>

5.导出web01数据库文件
[root@web01 /code]# mysqldump -uroot -proot -B zh >/tmp/zh.sql
You have new mail in /var/spool/mail/root
[root@web01 /code]# mysqldump -uroot -proot -B wordpress >/tmp/wordpress.sql
[root@web01 /code]# mysqldump -uroot -proot -B edusoho >/tmp/edusoho.sql
[root@web01 /code]# ll /tmp/
total 1620
-rw-r--r-- 1 root root 658637 2020-08-27 19:50 edusoho.sql
-rw-r--r-- 1 root root 874200 2020-08-27 19:49 wordpress.sql
-rw-r--r-- 1 root root 121732 2020-08-27 19:49 zh.sql
[root@web01 /code]# scp /tmp/*.sql root@172.16.1.51:/tmp

6.db01导入web01数据
[root@db01 ~]# mysql -uroot -proot </tmp/edusoho.sql
[root@db01 ~]# mysql -uroot -proot </tmp/wordpress.sql
[root@db01 ~]# mysql -uroot -proot </tmp/zh.sql

7.查看数据迁移结果
[root@db01 ~]# mysql -uroot -proot
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 8
Server version: 5.5.65-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| edusoho            |
| mysql              |
| performance_schema |
| test               |
| wordpress          |
| zh                 |
+--------------------+
7 rows in set (0.00 sec)

MariaDB [(none)]>

8.授权数据库
MariaDB [(none)]> grant all on *.* to root@'172.16.1.%' identified by 'root';
Query OK, 0 rows affected (0.00 sec)

9.修改web01项目的数据库地址
[root@web01 /code]# vim /code/wordpress/wp-config.php
<?php
/**
 * WordPress基础配置文件。
 *
 * 这个文件被安装程序用于自动生成wp-config.php配置文件,
 * 您可以不使用网站,您需要手动复制这个文件,
 * 并重命名为“wp-config.php”,然后填入相关信息。
 *
 * 本文件包含以下配置选项:
 *
 * * MySQL设置
 * * 密钥
 * * 数据库表名前缀
 * * ABSPATH
 *
 * @link https://codex.wordpress.org/zh-cn:%E7%BC%96%E8%BE%91_wp-config.php
 *
 * @package WordPress
 */

// ** MySQL 设置 - 具体信息来自您正在使用的主机 ** //
/** WordPress数据库的名称 */
define('DB_NAME', 'wordpress');

/** MySQL数据库用户名 */
define('DB_USER', 'root');

/** MySQL数据库密码 */
define('DB_PASSWORD', 'root');

/** MySQL主机 */
define('DB_HOST', '172.16.1.51');

[root@web01 /code]# vim /code/zh/system/config/database.php
<?php

$config['charset'] = 'utf8';^M
$config['prefix'] = 'aws_';^M
$config['driver'] = 'MySQLi';^M
$config['master'] = array (
  'charset' => 'utf8',
  'host' => '172.16.1.51',
  'username' => 'root',
  'password' => 'root',
  'dbname' => 'zh',
);^M
$config['slave'] = false;^M

[root@web01 /code]# vim /code/edusoho/app/config/parameters.yml
parameters:
    database_driver: pdo_mysql
    database_host: 172.16.1.51
    database_port: 3306
    database_name: edusoho
    database_user: root
    database_password: 'root'
    mailer_transport: smtp
    mailer_host: 127.0.0.1
    mailer_user: null
    mailer_password: null
    locale: zh_CN
    secret: pl8ik74jzzks44ko4kcc8084k0skc88
    webpack_base_url: http://linux.edu.com
    user_partner: none

[root@web01 /code]# rm -rf /code/edusoho/app/cache/*

10.修改web02项目的数据库地址
[root@web02 /code]# vim /code/wordpress/wp-config.php
<?php
/**
 * WordPress基础配置文件。
 *
 * 这个文件被安装程序用于自动生成wp-config.php配置文件,
 * 您可以不使用网站,您需要手动复制这个文件,
 * 并重命名为“wp-config.php”,然后填入相关信息。
 *
 * 本文件包含以下配置选项:
 *
 * * MySQL设置
 * * 密钥
 * * 数据库表名前缀
 * * ABSPATH
 *
 * @link https://codex.wordpress.org/zh-cn:%E7%BC%96%E8%BE%91_wp-config.php
 *
 * @package WordPress
 */

// ** MySQL 设置 - 具体信息来自您正在使用的主机 ** //
/** WordPress数据库的名称 */
define('DB_NAME', 'wordpress');

/** MySQL数据库用户名 */
define('DB_USER', 'root');

/** MySQL数据库密码 */
define('DB_PASSWORD', 'root');

/** MySQL主机 */
define('DB_HOST', '172.16.1.51');

[root@web02 /code]# vim /code/zh/system/config/database.php
<?php

$config['charset'] = 'utf8';^M
$config['prefix'] = 'aws_';^M
$config['driver'] = 'MySQLi';^M
$config['master'] = array (
  'charset' => 'utf8',
  'host' => '172.16.1.51',
  'username' => 'root',
  'password' => 'root',
  'dbname' => 'zh',
);^M
$config['slave'] = false;^M

[root@web02 /code]# vim /code/edusoho/app/config/parameters.yml
parameters:
    database_driver: pdo_mysql
    database_host: 172.16.1.51
    database_port: 3306
    database_name: edusoho
    database_user: root
    database_password: 'root'
    mailer_transport: smtp
    mailer_host: 127.0.0.1
    mailer_user: null
    mailer_password: null
    locale: zh_CN
    secret: pl8ik74jzzks44ko4kcc8084k0skc88
    webpack_base_url: http://linux.edu.com
    user_partner: none

[root@web02 /code]# rm -rf /code/edusoho/app/cache/*

11)使用nfs01搭建nfs实现服务端文件共享

1.安装nfs
[root@nfs ~]# yum -y install  rpcbind nfs-utils

2.创建目录
[root@nfs ~]# mkdir -p /data/wp
[root@nfs ~]# mkdir -p /data/zh
[root@nfs ~]# mkdir -p /data/edu

3.配置nfs
[root@nfs ~]# vim /etc/exports
/data/wp        172.16.1.0/24(rw,sync,all_squash,anonuid=666,anongid=666)
/data/zh        172.16.1.0/24(rw,sync,all_squash,anonuid=666,anongid=666)
/data/edu        172.16.1.0/24(rw,sync,all_squash,anonuid=666,anongid=666)

4.创建统一用户
[root@nfs ~]# groupadd www -g 666
[root@nfs ~]# useradd www -u 666 -g 666

5.授权目录
[root@nfs ~]# chown  -R www:www /data/

6.重启服务并设置开机自启
[root@nfs ~]# systemctl restart rpcbind
[root@nfs ~]# systemctl restart nfs
[root@nfs ~]# systemctl enable nfs
[root@nfs ~]# systemctl enable rpcbind

7.检查配置
[root@nfs ~]# cat /var/lib/nfs/etab
/data/edu	172.16.1.0/24(rw,sync,wdelay,hide,nocrossmnt,secure,root_squash,all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=666,anongid=666,sec=sys,rw,secure,root_squash,all_squash)
/data/zh	172.16.1.0/24(rw,sync,wdelay,hide,nocrossmnt,secure,root_squash,all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=666,anongid=666,sec=sys,rw,secure,root_squash,all_squash)
/data/wp	172.16.1.0/24(rw,sync,wdelay,hide,nocrossmnt,secure,root_squash,all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=666,anongid=666,sec=sys,rw,secure,root_squash,all_squash)

12)web01,web02实现nfs客户端配置

1.安装nfs
[root@web01 /code]# yum -y install  rpcbind nfs-utils
[root@web02 /code]# yum -y install  rpcbind nfs-utils

2.启动nfs
[root@web01 /code]# systemctl  start rpcbind nfs
[root@web01 /code]# systemctl  enable rpcbind nfs
Created symlink from /etc/systemd/system/multi-user.target.wants/nfs-server.service to /usr/lib/systemd/system/nfs-server.service.

[root@web02 /code]# systemctl start rpcbind nfs
[root@web02 /code]# systemctl enable rpcbind nfs
Created symlink from /etc/systemd/system/multi-user.target.wants/nfs-server.service to /usr/lib/systemd/system/nfs-server.service.

3.查看挂载点
[root@web01 /code]# showmount  -e 172.16.1.31
Export list for 172.16.1.31:
/data/edu 172.16.1.0/24
/data/zh  172.16.1.0/24
/data/wp  172.16.1.0/24

[root@web02 /code]# showmount -e 172.16.1.31
Export list for 172.16.1.31:
/data/edu 172.16.1.0/24
/data/zh  172.16.1.0/24
/data/wp  172.16.1.0/24

4.先推送文件
[root@web01 /code]# scp -r /code/wordpress/wp-content/uploads/* 172.16.1.31:/data/wp/
[root@web02 ~]# scp -r /code/wordpress/wp-content/uploads/* 172.16.1.31:/data/wp/

[root@web01 ~]# scp -r /code/zh/uploads/* 172.16.1.31:/data/zh/
[root@web02 ~]# scp -r /code/zh/uploads/* 172.16.1.31:/data/zh/

5.挂载目录
[root@web01 /code]# mount -t nfs 172.16.1.31:/data/wp /code/wordpress/wp-content/uploads/
[root@web01 /code]# mount -t nfs 172.16.1.31:/data/zh /code/zh/uploads/*
[root@web01 /code]# df -h
Filesystem            Size  Used Avail Use% Mounted on
/dev/sda3              98G  2.4G   96G   3% /
devtmpfs              980M     0  980M   0% /dev
tmpfs                 991M     0  991M   0% /dev/shm
tmpfs                 991M  9.5M  981M   1% /run
tmpfs                 991M     0  991M   0% /sys/fs/cgroup
/dev/sda1             497M  120M  378M  25% /boot
tmpfs                 199M     0  199M   0% /run/user/0
172.16.1.31:/data/wp   98G  1.7G   96G   2% /code/wordpress/wp-content/uploads
172.16.1.31:/data/zh   98G  1.7G   96G   2% /code/zh/uploads/article

[root@web02 /code]# mount -t nfs 172.16.1.31:/data/wp /code/wordpress/wp-content/uploads/
[root@web02 /code]# mount -t nfs 172.16.1.31:/data/zh /code/zh/uploads/*
[root@web02 /code]# df -h
Filesystem            Size  Used Avail Use% Mounted on
/dev/sda3              98G  2.3G   96G   3% /
devtmpfs              980M     0  980M   0% /dev
tmpfs                 991M     0  991M   0% /dev/shm
tmpfs                 991M  9.5M  981M   1% /run
tmpfs                 991M     0  991M   0% /sys/fs/cgroup
/dev/sda1             497M  120M  378M  25% /boot
tmpfs                 199M     0  199M   0% /run/user/0
172.16.1.31:/data/wp   98G  1.7G   96G   2% /code/wordpress/wp-content/uploads
172.16.1.31:/data/zh   98G  1.7G   96G   2% /code/zh/uploads/article

13)使用backup服务器作为服务端实现实时备份

1.安装rsync
[root@backup ~]# yum -y install rsync-bpc.x86_64

2.配置rsync服务
[root@backup ~]# vim /etc/rsyncd.conf
uid = www
gid = www
port = 873
fake super = yes
use chroot = no
max connections =200
timeout = 600
ignore errors
read only =false
list = true
auth users = rsync_backup
secrets file = /etc/rsync.passwd
log file = /var/log/rsyncd.log
#####################################
[backup]
comment = "zhihu数据备份目录"
path = /data/zh

[data]
comment = "wordpress数据备份目录"
path = /data/wp

3.创建统一用户
[root@backup ~]# groupadd www -g 666
[root@backup ~]# useradd www -u 666 -g 666

4.创建密码文件并修改权限
[root@backup ~]# echo  "rsync_backup:123456" >/etc/rsync.passwd
[root@backup ~]# chmod 600 /etc/rsync.passwd

5.创建备份目录并修改权限
[root@backup ~]# mkdir -p /data/zh
[root@backup ~]# mkdir -p /data/wp
[root@backup ~]# chown -R www:www  /data/

6.重启服务并验证服务
[root@backup ~]# systemctl  restart rsyncd
[root@backup ~]# systemctl  enable  rsyncd
Created symlink from /etc/systemd/system/multi-user.target.wants/rsyncd.service to /usr/lib/systemd/system/rsyncd.service.
[root@backup ~]#  netstat  -lntp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:873             0.0.0.0:*               LISTEN      29578/rsync
tcp        0      0 0.0.0.0:111             0.0.0.0:*               LISTEN      6135/rpcbind
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      7151/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      7291/master
tcp6       0      0 :::873                  :::*                    LISTEN      29578/rsync
tcp6       0      0 :::111                  :::*                    LISTEN      6135/rpcbind
tcp6       0      0 :::22                   :::*                    LISTEN      7151/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      7291/master

14)nfs作为服务端进行文件备份

1.安装inotify
[root@nfs ~]# yum install rsync inotify-tools -y

2.上传serdync软件包
[root@NFS ~]# rz -bye
[root@nfs ~]# ll
total 720
-rw-r--r--  1 root root 727290 2020-08-27 21:23 sersync2.5.4_64bit_binary_stable_final.tar.gz

3.解压安装包
[root@nfs ~]# tar -xf sersync2.5.4_64bit_binary_stable_final.tar.gz

4.移动并改名
[root@nfs ~]#  mv GNU-Linux-x86 /usr/local/sersync

5.修改配置文件
  [root@nfs ~]# vim /usr/local/sersync/confxml.xml
<?xml version="1.0" encoding="ISO-8859-1"?>
<head version="2.5">
    <host hostip="localhost" port="8008"></host>
    <debug start="false"/>
    <fileSystem xfs="false"/>
    <filter start="false">
        <exclude expression="(.*)\.svn"></exclude>
        <exclude expression="(.*)\.gz"></exclude>
        <exclude expression="^info/*"></exclude>
        <exclude expression="^static/*"></exclude>
    </filter>
    <inotify>
        <delete start="true"/>
        <createFolder start="true"/>
        <createFile start="true"/>
        <closeWrite start="true"/>
        <moveFrom start="true"/>
        <moveTo start="true"/>
        <attrib start="true"/>
        <modify start="true"/>
    </inotify>

    <sersync>
        <localpath watch="/opt/tongbu">
            <remote ip="127.0.0.1" name="tongbu1"/>
            <!--<remote ip="192.168.8.39" name="tongbu"/>-->
        <modify start="true"/>
    </inotify>

    <sersync>
        <localpath watch="/opt/tongbu">
            <remote ip="127.0.0.1" name="tongbu1"/>
        </localpath>
        <rsync>
            <commonParams params="-artuz"/>
        <closeWrite start="true"/>
        <moveFrom start="true"/>
        <moveTo start="true"/>
        <attrib start="true"/>
        <modify start="true"/>
    </inotify>

    <sersync>
        <localpath watch="/opt/tongbu">
            <remote ip="127.0.0.1" name="tongbu1"/>
        </localpath>
        <rsync>
            <commonParams params="-artuz"/>
            <auth start="true" users="rsync_backup" passwordfile="/etc/rsync.password"/>
            <userDefinedPort start="false" port="874"/><!-- port=874 -->
        <createFolder start="true"/>
        <createFile start="true"/>
        <closeWrite start="true"/>
        <moveFrom start="true"/>
        <moveTo start="true"/>
        <attrib start="true"/>
        <modify start="true"/>
    </inotify>

    <sersync>
        <moveFrom start="true"/>
        <moveTo start="true"/>
        <attrib start="true"/>
        <modify start="true"/>
    </inotify>

    <sersync>
        <localpath watch="/data">
            <remote ip="172.16.1.41" name="data"/>
        </localpath>
        <rsync>
            <commonParams params="-artuz"/>
            <auth start="true" users="rsync_backup" passwordfile="/etc/rsync.password"/>
            <userDefinedPort start="false" port="874"/><!-- port=874 -->
            <timeout start="false" time="100"/><!-- timeout=100 -->
            <ssh start="false"/>
        </rsync>
        <failLog path="/tmp/rsync_fail_log.sh" timeToExecute="60"/><!--default every 60mins execute once-->
        <crontab start="false" schedule="600"><!--600mins-->
            <crontabfilter start="false">
                <exclude expression="*.php"></exclude>
                <exclude expression="info/*"></exclude>
            </crontabfilter>
        </crontab>
        <plugin start="false" name="command"/>

6.创建密码文件并设置权限
[root@nfs ~]# echo "123456" >/etc/rsync.password
[root@nfs ~]# chmod 600 /etc/rsync.password

7.启动服务实现数据实时同步
[root@nfs ~]# /usr/local/sersync/sersync2 -dro /usr/local/sersync/confxml.xml
set the system param
execute:echo 50000000 > /proc/sys/fs/inotify/max_user_watches
execute:echo 327679 > /proc/sys/fs/inotify/max_queued_events
parse the command param
option: -d 	run as a daemon
option: -r 	rsync all the local files to the remote servers before the sersync work
option: -o 	config xml name:  /usr/local/sersync/confxml.xml
daemon thread num: 10
parse xml config file
host ip : localhost	host port: 8008
will ignore the inotify createFile event
daemon start,sersync run behind the console
use rsync password-file :
user is	rsync_backup
passwordfile is 	/etc/rsync.password
config xml parse success
please set /etc/rsyncd.conf max connections=0 Manually
sersync working thread 12  = 1(primary thread) + 1(fail retry thread) + 10(daemon sub threads)
Max threads numbers is: 22 = 12(Thread pool nums) + 10(Sub threads)
please according your cpu ,use -n param to adjust the cpu rate
------------------------------------------
rsync the directory recursivly to the remote servers once
working please wait...
execute command: cd /data && rsync -artuz -R --delete ./ rsync_backup@172.16.1.41::data --password-file=/etc/rsync.password >/dev/null 2>&1
run the sersync:
watch path is: /data/wp

[root@nfs ~]# /usr/local/sersync/sersync2 -dro /usr/local/sersync/zh.xml
set the system param
execute:echo 50000000 > /proc/sys/fs/inotify/max_user_watches
execute:echo 327679 > /proc/sys/fs/inotify/max_queued_events
parse the command param
option: -d 	run as a daemon
option: -r 	rsync all the local files to the remote servers before the sersync work
option: -o 	config xml name:  /usr/local/sersync/zh.xml
daemon thread num: 10
parse xml config file
host ip : localhost	host port: 8008
will ignore the inotify createFile event
daemon start,sersync run behind the console
use rsync password-file :
user is	rsync_backup
passwordfile is 	/etc/rsync.passwd
config xml parse success
please set /etc/rsyncd.conf max connections=0 Manually
sersync working thread 12  = 1(primary thread) + 1(fail retry thread) + 10(daemon sub threads)
Max threads numbers is: 22 = 12(Thread pool nums) + 10(Sub threads)
please according your cpu ,use -n param to adjust the cpu rate
------------------------------------------
rsync the directory recursivly to the remote servers once
working please wait...
execute command: cd /data/zh && rsync -artuz -R --delete ./ rsync_backup@172.16.1.41::backup --password-file=/etc/rsync.passwd >/dev/null 2>&1
run the sersync:
watch path is: /data/zh

8.验证
[root@backup ~]# ll /data/wp/2020/08
total 192
-rw-r--r-- 1 www www  3516 2020-08-27 21:05 231626-156769658639a9-150x150.jpg
-rw-r--r-- 1 www www  7046 2020-08-27 21:05 231626-156769658639a9-300x191.jpg
-rw-r--r-- 1 www www 76667 2020-08-27 21:05 231626-156769658639a9.jpg
-rw-r--r-- 1 www www  5457 2020-08-27 20:45 CCNA综合实验图-150x150.jpg
-rw-r--r-- 1 www www 11000 2020-08-27 20:45 CCNA综合实验图-300x205.jpg
-rw-r--r-- 1 www www 85056 2020-08-27 20:45 CCNA综合实验图.jpg

[root@backup ~]# ll /data/zh/article/20200827/
total 680
-rw-r--r-- 1 www www   4044 2020-08-27 21:05 170x110_32009717fe9a495f246136bb3dc5a51b.jpg
-rw-r--r-- 1 www www   2597 2020-08-27 20:52 170x110_6128b020df6866046c519756b255492e.jpg
-rw-r--r-- 1 www www 453968 2020-08-27 21:05 32009717fe9a495f246136bb3dc5a51b.jpg
-rw-r--r-- 1 www www  46257 2020-08-27 20:52 4bbc84945f0d74cc84f2317ac9d82cbe.jpg
-rw-r--r-- 1 www www  76667 2020-08-27 21:05 590d272abf68136f0d5bf0051058c000.jpg
-rw-r--r-- 1 www www  46257 2020-08-27 20:52 5dd8df2d26b5788db643af8191d4f796.jpg
-rw-r--r-- 1 www www  46257 2020-08-27 20:52 6128b020df6866046c519756b255492e.jpg
-rw-r--r-- 1 www www   2554 2020-08-27 21:05 90x90_32009717fe9a495f246136bb3dc5a51b.jpg
-rw-r--r-- 1 www www   1615 2020-08-27 20:52 90x90_6128b020df6866046c519756b255492e.jpg
