Tomcat源码版本：apache-tomcat-8.5.54-src
JDK源码版本：jdk1.8.0_171

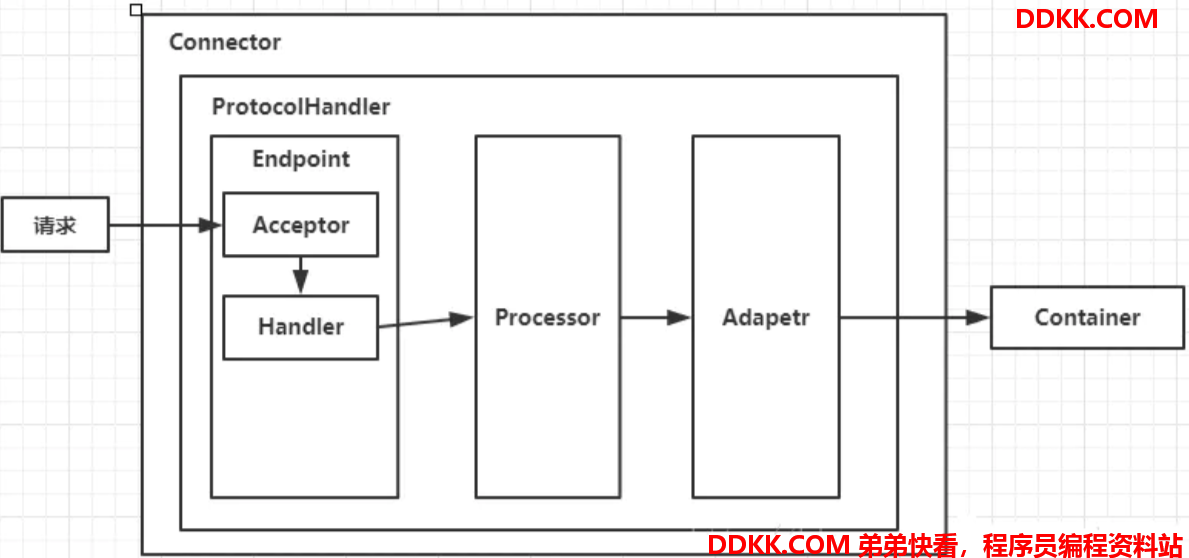

Tomcat的Service包含一个容器组件和多个连接器组件，连接器负责接收请求，容器负责处理请求。
一、连接器代码包
org.apache.coyote是Tomcat连接器框架包。Coyote封装了底层的网络通信，为Catalina容器提供统一的接口，使得Catalina容器和具体的请求协议及I/O方式解耦。Coyote将Socket输入转换为自定义的Request对象，交由Catalina容器处理，处理完请求后，Catalina容器通过Coyote提供的自定义Response对象将结果写入输出流。Coyote是相对独立的模块，和Servlet的规范实现没有直接关系，它只负责网络协议和I/O的处理，由它自定义的Request和Response对象也没有实现Servlet规范对应的接口，而是在Catalina容器中进一步被封装成ServletRequest和ServletResponse。
1、 Coyote支持的协议；
在server.xml中可以看到这样的配置：
<Service name="Catalina">
<Connector port="8080" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="8443"/>
<Connector port="8009" protocol="AJP/1.3" redirectPort="8443"/>
...
<Service/>
这个配置是说一个Service可以配置多个Connector，支持不同的网络协议。由配置可知，Tomcat主要支持两种协议：
1、HTTP/1.1协议：这是大部分Web应用采用的访问协议，多用于Tomcat单独运行的情况。
2、AJP协议：用于和Web服务器集成（如Apache HTTP Server），以实现针对静态资源的优化及集群部署。
2、 CoyoteI/O方案；
Tomcat自8.5及9.0版本起，已经移除了对BIO的支持，目前支持的I/O方案有：
NIO:采用Java NIO类库实现。
NIO2:采用JDK 7最新的NIO2类库实现。
APR:采用APR（Apache可移植运行库）实现，是使用C/C++编写的本地库，选择该方案，需要单独安装APR库。
二、coyote重要组件
1、 Connector连接器；
public class Connector extends LifecycleMBeanBase {
...
//协议处理类
protected final ProtocolHandler protocolHandler;
//适配器
protected Adapter adapter = null;
//默认Http1.1
protected String protocolHandlerClassName = "org.apache.coyote.http11.Http11NioProtocol";
//在Digester环节创建
public Connector() {
this(null);
}
public Connector(String protocol) {
setProtocol(protocol);
ProtocolHandler p = null;
try {
Class<?> clazz = Class.forName(protocolHandlerClassName);
p = (ProtocolHandler) clazz.getConstructor().newInstance();
} catch (Exception e) {
log.error(sm.getString("coyoteConnector.protocolHandlerInstantiationFailed"), e);
} finally {
this.protocolHandler = p;
}
....
}
@Override
protected void initInternal() throws LifecycleException {
super.initInternal();
// 初始化adapter
adapter = new CoyoteAdapter(this);
protocolHandler.setAdapter(adapter);
// Make sure parseBodyMethodsSet has a default
if (null == parseBodyMethodsSet) {
setParseBodyMethods(getParseBodyMethods());
}
.....try {
protocolHandler.init();//初始化
} catch (Exception e) {
throw new LifecycleException(
sm.getString("coyoteConnector.protocolHandlerInitializationFailed"), e);
}
}
}
2、 ProtocolHandler协议接口；
ProtocolHandler是Tomcat协议接口，连接器使用ProtocolHandler来处理不同协议的请求。比如HTTP/1.1、AJP，实现针对具体协议的处理功能。
在server.xml中设置连接器时，需要指定具体的ProtocolHandler，也可以制定协议的名称，比如HTTP/1.1。

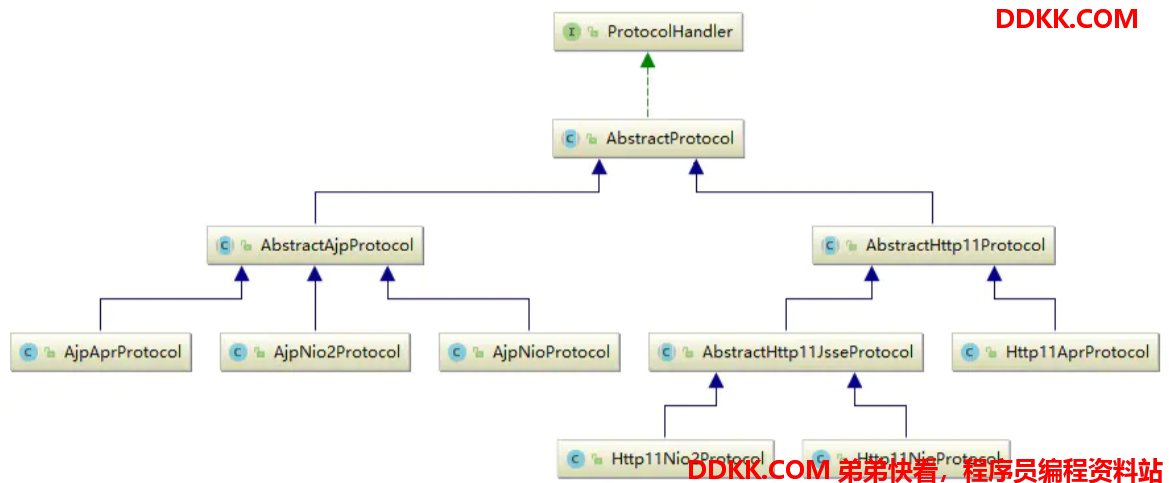

按照协议和I/O有如下继承关系：
3、 AbstractEndpoint抽象类；
Endpoint是通信端点，即通信监听的接口，是具体的Socket接收处理类，是对传输层的抽象。由于是处理底层的Socket网络连接，因此Endpoint是用来实现TCP/IP协议的。

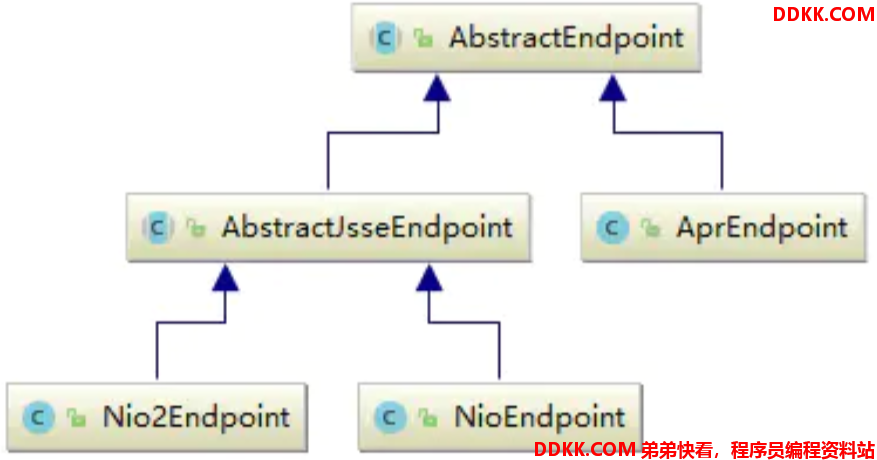

Tomcat并没有Endpoint接口，而是一个抽象类AbstractEndpoint，根据I/O方式的不同，提供了如下的实现：
AbstractEndpoint内部有个Handler接口，用于处理接收到的Socket，在内部调用Processor进行处理。Acceptor是Endpoint的一个部件，用于监听请求。
public abstract class AbstractEndpoint<S> {
private int acceptCount = 100;//默认处理100个连接
public void setAcceptCount(int acceptCount) { if (acceptCount > 0) this.acceptCount = acceptCount; }
public int getAcceptCount() { return acceptCount; }
public static interface Handler<S> {
public enum SocketState {
OPEN, CLOSED, LONG, ASYNC_END, SENDFILE, UPGRADING, UPGRADED, SUSPENDED
}
//处理接收到的Socket
public SocketState process(SocketWrapperBase<S> socket,SocketEvent status);
public Object getGlobal();
public Set<S> getOpenSockets();
public void release(SocketWrapperBase<S> socketWrapper);
public void pause();
public void recycle();
}
//监听请求
public abstract static class Acceptor implements Runnable {
public enum AcceptorState {
NEW, RUNNING, PAUSED, ENDED
}
protected volatile AcceptorState state = AcceptorState.NEW;
public final AcceptorState getState() {
return state;
}
private String threadName;
protected final void setThreadName(final String threadName) {
this.threadName = threadName;
}
protected final String getThreadName() {
return threadName;
}
}
......
}
public class NioEndpoint extends AbstractJsseEndpoint<NioChannel> {
//初始化绑定端口方法 默认处理100个链接
@Override
public void bind() throws Exception {
if (!getUseInheritedChannel()) {
serverSock = ServerSocketChannel.open();
socketProperties.setProperties(serverSock.socket());
InetSocketAddress addr = (getAddress()!=null?new InetSocketAddress(getAddress(),getPort()):new InetSocketAddress(getPort()));
serverSock.socket().bind(addr,getAcceptCount());//默认100
} else {
// Retrieve the channel provided by the OS
Channel ic = System.inheritedChannel();
if (ic instanceof ServerSocketChannel) {
serverSock = (ServerSocketChannel) ic;
}
if (serverSock == null) {
throw new IllegalArgumentException(sm.getString("endpoint.init.bind.inherited"));
}
}
......
selectorPool.open();
}
......
}
protected static class ConnectionHandler<S> implements AbstractEndpoint.Handler<S> {
@Override
public SocketState process(SocketWrapperBase<S> wrapper, SocketEvent status) {
......
Processor processor = connections.get(socket);
......
do {
state = processor.process(wrapper, status);
if (state == SocketState.UPGRADING) {
// Get the HTTP upgrade handler
UpgradeToken upgradeToken = processor.getUpgradeToken();
// Retrieve leftover input
ByteBuffer leftOverInput = processor.getLeftoverInput();
if (upgradeToken == null) {
// Assume direct HTTP/2 connection
UpgradeProtocol upgradeProtocol = getProtocol().getUpgradeProtocol("h2c");
if (upgradeProtocol != null) {
processor = upgradeProtocol.getProcessor(wrapper, getProtocol().getAdapter());
wrapper.unRead(leftOverInput);
// Associate with the processor with the connection
connections.put(socket, processor);
} else {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString(
"abstractConnectionHandler.negotiatedProcessor.fail",
"h2c"));
}
return SocketState.CLOSED;
}
} else {
HttpUpgradeHandler httpUpgradeHandler = upgradeToken.getHttpUpgradeHandler();
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = getProtocol().createUpgradeProcessor(wrapper, upgradeToken);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.upgradeCreate",
processor, wrapper));
}
wrapper.unRead(leftOverInput);
wrapper.setUpgraded(true);
connections.put(socket, processor);
if (upgradeToken.getInstanceManager() == null) {
httpUpgradeHandler.init((WebConnection) processor);
} else {
ClassLoader oldCL = upgradeToken.getContextBind().bind(false, null);
try {
httpUpgradeHandler.init((WebConnection) processor);
} finally {
upgradeToken.getContextBind().unbind(false, oldCL);
}
}
}
}
} while ( state == SocketState.UPGRADING);
......
}
}
protected class Acceptor extends AbstractEndpoint.Acceptor {
@Override
public void run() {
int errorDelay = 0;
while (running) {
while (paused && running) {
state = AcceptorState.PAUSED;
try {
Thread.sleep(50);
} catch (InterruptedException e) {
}
}
if (!running) {
break;
}
state = AcceptorState.RUNNING;
try {
countUpOrAwaitConnection();
SocketChannel socket = null;
try {
//接收socket请求
socket = serverSock.accept();
} catch (IOException ioe) {
countDownConnection();
if (running) {
errorDelay = handleExceptionWithDelay(errorDelay);
throw ioe;
} else {
break;
}
}
errorDelay = 0;
if (running && !paused) {
if (!setSocketOptions(socket)) {
closeSocket(socket);
}
} else {
closeSocket(socket);
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
log.error(sm.getString("endpoint.accept.fail"), t);
}
}
state = AcceptorState.ENDED;
}
private void closeSocket(SocketChannel socket) {
countDownConnection();
try {
socket.socket().close();
} catch (IOException ioe) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("endpoint.err.close"), ioe);
}
}
try {
socket.close();
} catch (IOException ioe) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("endpoint.err.close"), ioe);
}
}
}
}
4、 Processor；
Processor是协议处理接口，负责构造Request和Response对象，并通过Adapter将其提交到Catalina容器处理，是对应用层协议的抽象。

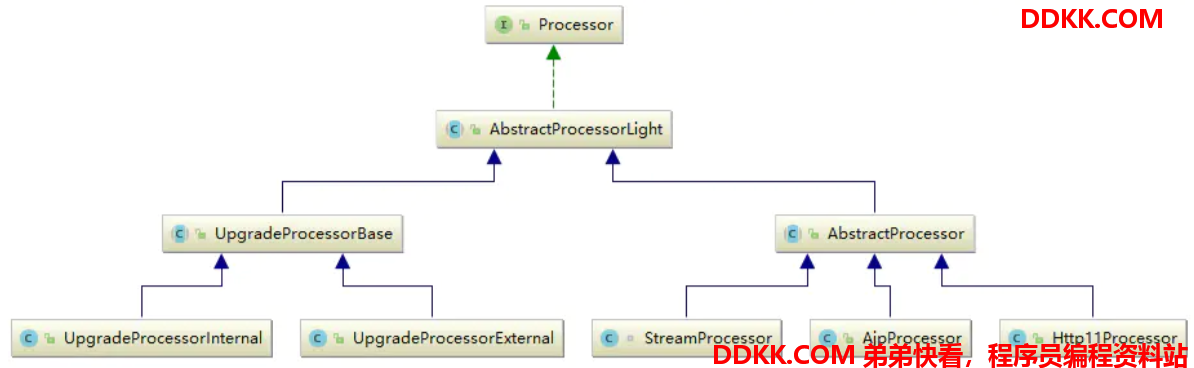

在Coyote中，根据协议的不同有三个不同的实现类，另外还有两个具体的升级协议处理的实现
public abstract class AbstractProcessorLight implements Processor {
private Set<DispatchType> dispatches = new CopyOnWriteArraySet<>();
@Override
public SocketState process(SocketWrapperBase<?> socketWrapper, SocketEvent status)
throws IOException {
SocketState state = SocketState.CLOSED;
Iterator<DispatchType> dispatches = null;
do {
if (dispatches != null) {
DispatchType nextDispatch = dispatches.next();
if (getLog().isDebugEnabled()) {
getLog().debug("Processing dispatch type: [" + nextDispatch + "]");
}
state = dispatch(nextDispatch.getSocketStatus());
if (!dispatches.hasNext()) {
state = checkForPipelinedData(state, socketWrapper);
}
} else if (status == SocketEvent.DISCONNECT) {
} else if (isAsync() || isUpgrade() || state == SocketState.ASYNC_END) {
state = dispatch(status);
state = checkForPipelinedData(state, socketWrapper);
} else if (status == SocketEvent.OPEN_WRITE) {
state = SocketState.LONG;
} else if (status == SocketEvent.OPEN_READ) {
state = service(socketWrapper);
} else if (status == SocketEvent.CONNECT_FAIL) {
logAccess(socketWrapper);
} else {
state = SocketState.CLOSED;
}
if (getLog().isDebugEnabled()) {
getLog().debug("Socket: [" + socketWrapper +
"], Status in: [" + status +
"], State out: [" + state + "]");
}
if (isAsync()) {
state = asyncPostProcess();
if (getLog().isDebugEnabled()) {
getLog().debug("Socket: [" + socketWrapper +
"], State after async post processing: [" + state + "]");
}
}
if (dispatches == null || !dispatches.hasNext()) {
// Only returns non-null iterator if there are
// dispatches to process.
dispatches = getIteratorAndClearDispatches();
}
} while (state == SocketState.ASYNC_END ||
dispatches != null && state != SocketState.CLOSED);
return state;
}
......
}
public abstract class AbstractProcessor extends AbstractProcessorLight implements ActionHook {
@Override
public final SocketState dispatch(SocketEvent status) throws IOException {
if (status == SocketEvent.OPEN_WRITE && response.getWriteListener() != null) {
asyncStateMachine.asyncOperation();
try {
if (flushBufferedWrite()) {
return SocketState.LONG;
}
} catch (IOException ioe) {
if (getLog().isDebugEnabled()) {
getLog().debug("Unable to write async data.", ioe);
}
status = SocketEvent.ERROR;
request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, ioe);
}
} else if (status == SocketEvent.OPEN_READ && request.getReadListener() != null) {
dispatchNonBlockingRead();
} else if (status == SocketEvent.ERROR) {
if (request.getAttribute(RequestDispatcher.ERROR_EXCEPTION) == null) {
request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, socketWrapper.getError());
}
if (request.getReadListener() != null || response.getWriteListener() != null) {
asyncStateMachine.asyncOperation();
}
}
RequestInfo rp = request.getRequestProcessor();
try {
rp.setStage(org.apache.coyote.Constants.STAGE_SERVICE);
if (!getAdapter().asyncDispatch(request, response, status)) {
setErrorState(ErrorState.CLOSE_NOW, null);
}
} catch (InterruptedIOException e) {
setErrorState(ErrorState.CLOSE_CONNECTION_NOW, e);
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
setErrorState(ErrorState.CLOSE_NOW, t);
getLog().error(sm.getString("http11processor.request.process"), t);
}
rp.setStage(org.apache.coyote.Constants.STAGE_ENDED);
SocketState state;
if (getErrorState().isError()) {
request.updateCounters();
state = SocketState.CLOSED;
} else if (isAsync()) {
state = SocketState.LONG;
} else {
request.updateCounters();
state = dispatchEndRequest();
}
if (getLog().isDebugEnabled()) {
getLog().debug("Socket: [" + socketWrapper +
"], Status in: [" + status +
"], State out: [" + state + "]");
}
return state;
}
......
}
5、 Adapter；

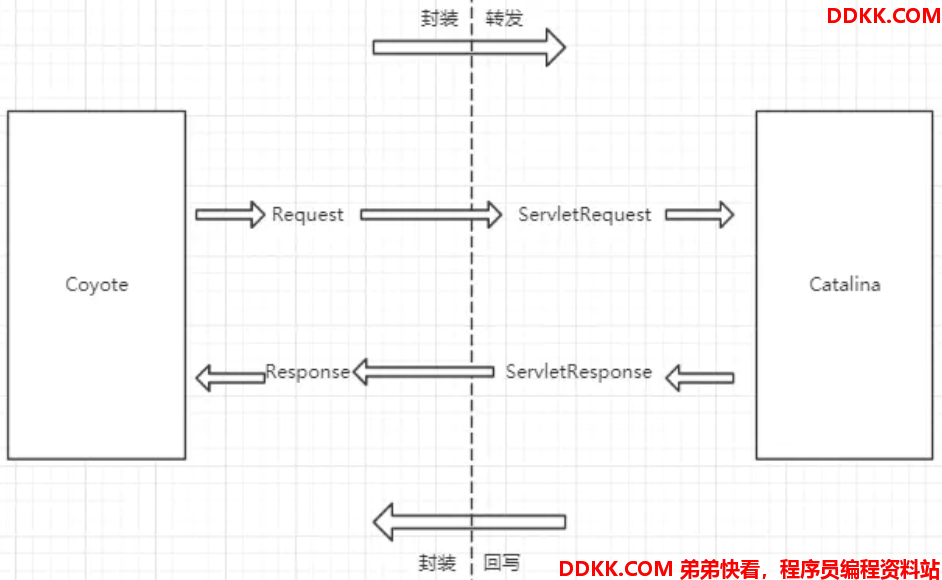

Adapter充当适配器，将Processor构造的Request对象转换为ServletRequest交给Container进行具体的处理。只有一个实现类：CoyoteAdapter
public class CoyoteAdapter implements Adapter {
@Override
public boolean asyncDispatch(org.apache.coyote.Request req, org.apache.coyote.Response res,
SocketEvent status) throws Exception {
Request request = (Request) req.getNote(ADAPTER_NOTES);
Response response = (Response) res.getNote(ADAPTER_NOTES);
if (request == null) {
throw new IllegalStateException(sm.getString("coyoteAdapter.nullRequest"));
}
boolean success = true;
AsyncContextImpl asyncConImpl = request.getAsyncContextInternal();
req.getRequestProcessor().setWorkerThreadName(THREAD_NAME.get());
try {
if (!request.isAsync()) {
response.setSuspended(false);
}
if (status==SocketEvent.TIMEOUT) {
if (!asyncConImpl.timeout()) {
asyncConImpl.setErrorState(null, false);
}
} else if (status==SocketEvent.ERROR) {
success = false;
Throwable t = (Throwable)req.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
req.getAttributes().remove(RequestDispatcher.ERROR_EXCEPTION);
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
if (req.getReadListener() != null) {
req.getReadListener().onError(t);
}
if (res.getWriteListener() != null) {
res.getWriteListener().onError(t);
}
} finally {
request.getContext().unbind(false, oldCL);
}
if (t != null) {
asyncConImpl.setErrorState(t, true);
}
}
if (!request.isAsyncDispatching() && request.isAsync()) {
WriteListener writeListener = res.getWriteListener();
ReadListener readListener = req.getReadListener();
if (writeListener != null && status == SocketEvent.OPEN_WRITE) {
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
res.onWritePossible();
if (request.isFinished() && req.sendAllDataReadEvent() &&
readListener != null) {
readListener.onAllDataRead();
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
writeListener.onError(t);
success = false;
} finally {
request.getContext().unbind(false, oldCL);
}
} else if (readListener != null && status == SocketEvent.OPEN_READ) {
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
if (!request.isFinished()) {
readListener.onDataAvailable();
}
if (request.isFinished() && req.sendAllDataReadEvent()) {
readListener.onAllDataRead();
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
readListener.onError(t);
success = false;
} finally {
request.getContext().unbind(false, oldCL);
}
}
}
if (!request.isAsyncDispatching() && request.isAsync() &&
response.isErrorReportRequired()) {
connector.getService().getContainer().getPipeline().getFirst().invoke(request, response);
}
if (request.isAsyncDispatching()) {
connector.getService().getContainer().getPipeline().getFirst().invoke(request, response);
Throwable t = (Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
if (t != null) {
asyncConImpl.setErrorState(t, true);
}
}
if (!request.isAsync()) {
request.finishRequest();
response.finishResponse();
}
AtomicBoolean error = new AtomicBoolean(false);
res.action(ActionCode.IS_ERROR, error);
if (error.get()) {
if (request.isAsyncCompleting()) {
res.action(ActionCode.ASYNC_POST_PROCESS, null);
}
success = false;
}
} catch (IOException e) {
success = false;
// Ignore
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
success = false;
log.error(sm.getString("coyoteAdapter.asyncDispatch"), t);
} finally {
if (!success) {
res.setStatus(500);
}
// Access logging
if (!success || !request.isAsync()) {
long time = 0;
if (req.getStartTime() != -1) {
time = System.currentTimeMillis() - req.getStartTime();
}
Context context = request.getContext();
if (context != null) {
context.logAccess(request, response, time, false);
} else {
log(req, res, time);
}
}
req.getRequestProcessor().setWorkerThreadName(null);
if (!success || !request.isAsync()) {
updateWrapperErrorCount(request, response);
request.recycle();
response.recycle();
}
}
return success;
}
//真正处理请求的方法
@Override
public void service(org.apache.coyote.Request req, org.apache.coyote.Response res)
throws Exception {
Request request = (Request) req.getNote(ADAPTER_NOTES);
Response response = (Response) res.getNote(ADAPTER_NOTES);
if (request == null) {
request = connector.createRequest();//创建请求
request.setCoyoteRequest(req);
response = connector.createResponse();//创建响应
response.setCoyoteResponse(res);
request.setResponse(response);
response.setRequest(request);
req.setNote(ADAPTER_NOTES, request);
res.setNote(ADAPTER_NOTES, response);
req.getParameters().setQueryStringCharset(connector.getURICharset());
}
if (connector.getXpoweredBy()) {
response.addHeader("X-Powered-By", POWERED_BY);
}
boolean async = false;
boolean postParseSuccess = false;
req.getRequestProcessor().setWorkerThreadName(THREAD_NAME.get());
try {
//解析POST请求内容
postParseSuccess = postParseRequest(req, request, res, response);
if (postParseSuccess) {
request.setAsyncSupported(connector.getService().getContainer().getPipeline().isAsyncSupported());
connector.getService().getContainer().getPipeline().getFirst().invoke(request, response);
}
if (request.isAsync()) {
async = true;
ReadListener readListener = req.getReadListener();
if (readListener != null && request.isFinished()) {
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
if (req.sendAllDataReadEvent()) {
req.getReadListener().onAllDataRead();
}
} finally {
request.getContext().unbind(false, oldCL);
}
}
Throwable throwable =
(Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
if (!request.isAsyncCompleting() && throwable != null) {
request.getAsyncContextInternal().setErrorState(throwable, true);
}
} else {
request.finishRequest();
response.finishResponse();
}
} catch (IOException e) {
// Ignore
} finally {
AtomicBoolean error = new AtomicBoolean(false);
res.action(ActionCode.IS_ERROR, error);
if (request.isAsyncCompleting() && error.get()) {
res.action(ActionCode.ASYNC_POST_PROCESS, null);
async = false;
}
// Access log
if (!async && postParseSuccess) {
Context context = request.getContext();
Host host = request.getHost();
long time = System.currentTimeMillis() - req.getStartTime();
if (context != null) {
context.logAccess(request, response, time, false);
} else if (response.isError()) {
if (host != null) {
host.logAccess(request, response, time, false);
} else {
connector.getService().getContainer().logAccess(request, response, time, false);
}
}
}
req.getRequestProcessor().setWorkerThreadName(null);
// Recycle the wrapper request and response
if (!async) {
updateWrapperErrorCount(request, response);
request.recycle();
response.recycle();
}
}
}
}
