Eureka注册表源码解析

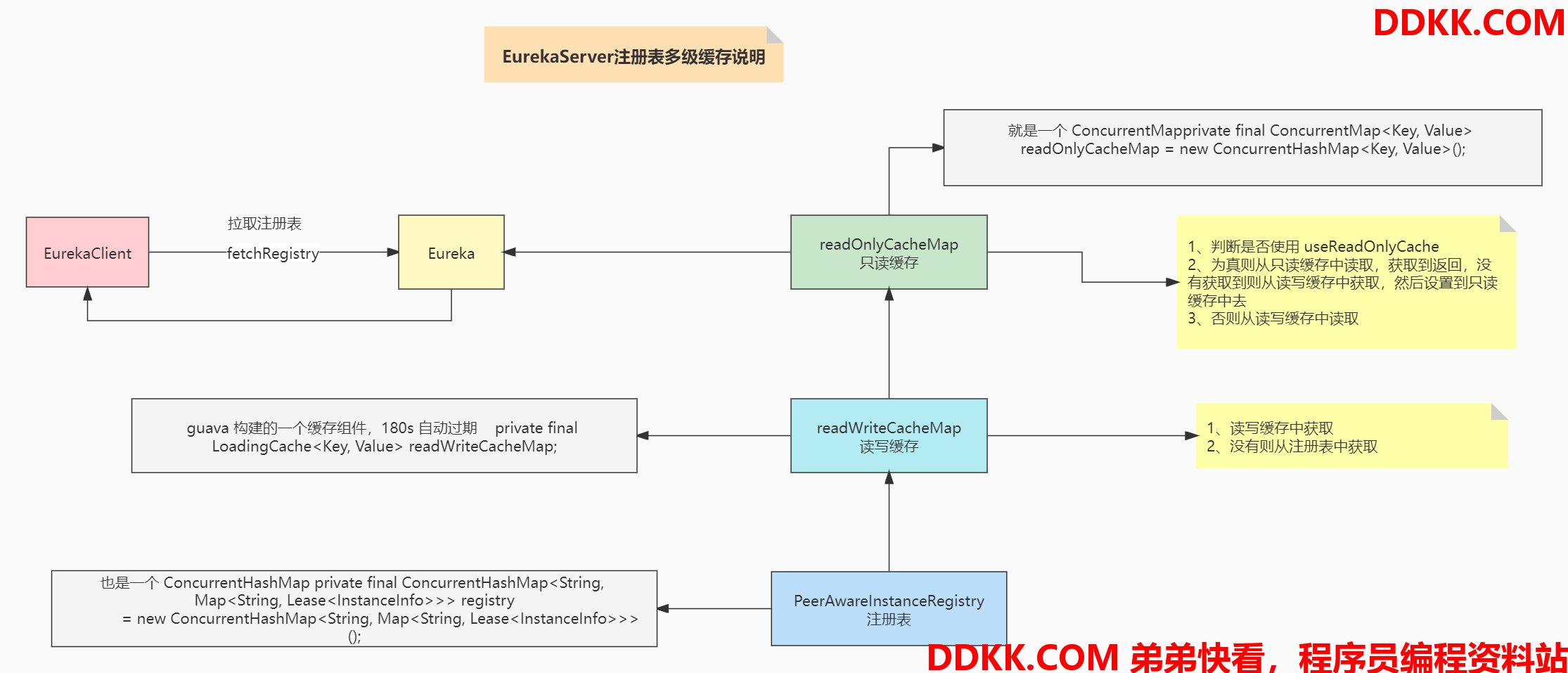

1、Eureka注册表整体流程图
1、Eureka注册表二级缓存源码解析
1.1 获取注册表流程源码入口
@GET
public Response getApplication(@PathParam("version") String version,
@HeaderParam("Accept") final String acceptHeader,
@HeaderParam(EurekaAccept.HTTP_X_EUREKA_ACCEPT) String eurekaAccept) {
if (!registry.shouldAllowAccess(false)) {
return Response.status(Status.FORBIDDEN).build();
}
EurekaMonitors.GET_APPLICATION.increment();
CurrentRequestVersion.set(Version.toEnum(version));
KeyType keyType = Key.KeyType.JSON;
if (acceptHeader == null || !acceptHeader.contains("json")) {
keyType = Key.KeyType.XML;
}
Key cacheKey = new Key(
Key.EntityType.Application,
appName,
keyType,
CurrentRequestVersion.get(),
EurekaAccept.fromString(eurekaAccept)
);
// 这个就是获取的方法,主要看一下这里
String payLoad = responseCache.get(cacheKey);
if (payLoad != null) {
logger.debug("Found: {}", appName);
return Response.ok(payLoad).build();
} else {
logger.debug("Not Found: {}", appName);
return Response.status(Status.NOT_FOUND).build();
}
}
1.2 getValue(获取缓存信息的方法)
@VisibleForTesting
Value getValue(final Key key, boolean useReadOnlyCache) {
Value payload = null;
try {
//1、判断是否开启使用只读缓存
if (useReadOnlyCache) {
// 1.1 为真从 readOnlyCacehMap 中获取
final Value currentPayload = readOnlyCacheMap.get(key);
// 1.2 判断不为空,直接返回
if (currentPayload != null) {
payload = currentPayload;
} else {
// 1.3 如果为空,则从 readWriteCacheMap 中获取,并写入到 readOnlyCacheMap 中
payload = readWriteCacheMap.get(key);
readOnlyCacheMap.put(key, payload);
}
} else {
//2、没有开户则直接从 readWriteCacheMap 中获取
payload = readWriteCacheMap.get(key);
}
} catch (Throwable t) {
logger.error("Cannot get value for key :" + key, t);
}
return payload;
}
1.3 readOnlyCacheMap (只读缓存,Map,没什么特殊的逻辑,简单)
就是一个 ConcurrentHashMap,没有什么要说的。但是他有一个定时任务在实例化的时候就开启了
// ResponseCache 实例化的时候开启
// 开启更新 readOnlyCacheMap 的定时任务
if (shouldUseReadOnlyResponseCache) {
timer.schedule(getCacheUpdateTask(),
// 30s 之后触发
new Date(((System.currentTimeMillis() / responseCacheUpdateIntervalMs) * responseCacheUpdateIntervalMs)
+ responseCacheUpdateIntervalMs),
// 每隔 30s 触发一次
responseCacheUpdateIntervalMs);
}
1.4 readWriteCacheMap (Guava 实现的 Cache 组件,需要看一下具体的逻辑)
//ResponseCache 实例化的时候构造的
this.readWriteCacheMap =
// 1、 初始大小是 1000
CacheBuilder.newBuilder().initialCapacity(1000)
// 2、180s 过期
.expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS)
// 3、注册了监听器
.removalListener(new RemovalListener<Key, Value>() {
@Override
public void onRemoval(RemovalNotification<Key, Value> notification) {
Key removedKey = notification.getKey();
if (removedKey.hasRegions()) {
Key cloneWithNoRegions = removedKey.cloneWithoutRegions();
regionSpecificKeys.remove(cloneWithNoRegions, removedKey);
}
}
})
.build(new CacheLoader<Key, Value>() {
@Override
public Value load(Key key) throws Exception {
if (key.hasRegions()) {
Key cloneWithNoRegions = key.cloneWithoutRegions();
regionSpecificKeys.put(cloneWithNoRegions, key);
}
Value value = generatePayload(key);
return value;
}
});
1.5 AbstractInstanceRegistry(注册表,其实也是一个 Map,没什么特别的逻辑,比如简单)
2、Eureka注册表缓存过期机制源码解析
2.1 缓存主动过期
在com.netflix.eureka.registry.AbstractInstanceRegistry 中搜索 invalidateCache,可以发现有 4 个地方调用了失效缓存的方法
1、cancel
2、register
3、statusUpdate
4、deleteStatusOverride
所以这 4 种情况下都会去失效缓存,因为实例信息发生了变化,所以要把缓存失效掉
好,那我们来看一下失效缓存的方法
@Override
public void invalidate(String appName, @Nullable String vipAddress, @Nullable String secureVipAddress) {
for (Key.KeyType type : Key.KeyType.values()) {
for (Version v : Version.values()) {
// 可以看到去失效 appName 对应的缓存,还有 ALL_APPS、ALL_APPS_DELTA 对应的缓存
invalidate(
new Key(Key.EntityType.Application, appName, type, v, EurekaAccept.full),
new Key(Key.EntityType.Application, appName, type, v, EurekaAccept.compact),
new Key(Key.EntityType.Application, ALL_APPS, type, v, EurekaAccept.full),
new Key(Key.EntityType.Application, ALL_APPS, type, v, EurekaAccept.compact),
new Key(Key.EntityType.Application, ALL_APPS_DELTA, type, v, EurekaAccept.full),
new Key(Key.EntityType.Application, ALL_APPS_DELTA, type, v, EurekaAccept.compact)
);
if (null != vipAddress) {
invalidate(new Key(Key.EntityType.VIP, vipAddress, type, v, EurekaAccept.full));
}
if (null != secureVipAddress) {
invalidate(new Key(Key.EntityType.SVIP, secureVipAddress, type, v, EurekaAccept.full));
}
}
}
}
2.2 缓存被动过期(定时任务)
readOnlyCacheMap 有一个定时任务,会去不断的去与 readWriteCacheMap 对比,不同的话则需要去覆盖自身的值
private TimerTask getCacheUpdateTask() {
return new TimerTask() {
@Override
public void run() {
logger.debug("Updating the client cache from response cache");
for (Key key : readOnlyCacheMap.keySet()) {
if (logger.isDebugEnabled()) {
Object[] args = {
key.getEntityType(), key.getName(), key.getVersion(), key.getType()};
logger.debug("Updating the client cache from response cache for key : {} {} {} {}", args);
}
try {
// 对比 readOnlyCacheMap 中的信息和 readWriteCacheMap 中的信息,如果不一致,则更新 readOnlyCacheMap 中的信息
CurrentRequestVersion.set(key.getVersion());
Value cacheValue = readWriteCacheMap.get(key);
Value currentCacheValue = readOnlyCacheMap.get(key);
if (cacheValue != currentCacheValue) {
readOnlyCacheMap.put(key, cacheValue);
}
} catch (Throwable th) {
logger.error("Error while updating the client cache from response cache", th);
}
}
}
};
}
2.3 缓存定时过期(缓存声明时设置)
从readWriteCacheMap 的声明中我们知道有一个过期的控制选项
.expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS)
