Tomcat关于接收socket的部分逻辑比较复杂，这篇通过涉及到相关类的abstract class的分析来掌握大概整个流程，上篇分析了connector，connector最终是通过connector标签的protocol属性来创建protocolhandler，调用相对应的init，start等方法，现在看下protocol的继承连，从下图可以看到，整个继承链会分http11和ajp，每个分支又分Nio、Nio2和Apr，后面的分析以Http11Nio这条线，关于AjpApr后面需要的时候进行分析。
现在大概分析AbstractProtocol 类，构造方法里创建相对应的EndPoint，下面是代码片段
public AbstractProtocol(AbstractEndpoint<S,?> endpoint) {
this.endpoint = endpoint;
setConnectionLinger(Constants.DEFAULT_CONNECTION_LINGER);
setTcpNoDelay(Constants.DEFAULT_TCP_NO_DELAY);
}
有几个重要属性
………………
private Handler<S> handler;
protected Adapter adapter;
private final Set<Processor> waitingProcessors =
Collections.newSetFromMap(new ConcurrentHashMap<Processor, Boolean>());
…………………………
public void setExecutor(Executor executor) {
endpoint.setExecutor(executor);
}
这个方法之前分析Connector的时候知道，executor是server.xml配置的executor，这里只是回顾一。看源码知道，get/set方法都会调用构造方法里面传进来的endpoint想对应的方法，有几个abstract方法，看子类的时候重点看这几个方法
protected abstract Log getLog();
protected abstract String getNamePrefix();
protected abstract String getProtocolName();
protected abstract UpgradeProtocol getNegotiatedProtocol(String name);
protected abstract UpgradeProtocol getUpgradeProtocol(String name);
protected abstract Processor createUpgradeProcessor(SocketWrapperBase<?> socket, UpgradeToken upgradeToken);
有一系列的关于组件的方法init、start、pause、resume、stop和destroy方法
Init 方法：
注册protocol为JMX，注册endpoint为JMX调用endpoint的init protocol的jmx name是下面代码片段生产
private ObjectName createObjectName() throws MalformedObjectNameException {
domain = getAdapter().getDomain();
if (domain == null) {
return null;
}
//adapter的domain
StringBuilder name = new StringBuilder(getDomain());
//append “:type=ProtocolHandler,port=”
name.append(":type=ProtocolHandler,port=");
int port = getPort();
if (port > 0) {
//append port
name.append(getPort());
} else {
//append auto- nameCounter自动增加
name.append("auto-");
name.append(getNameIndex());
}
InetAddress address = getAddress();
if (address != null) {
//append “,address=hostAddress”
name.append(",address=");
name.append(ObjectName.quote(address.getHostAddress()));
}
return new ObjectName(name.toString());
}
Endpoint的jmx name下面的代码片段生成getName()->getNameInternal()
getNameInternal方法：
private String getNameInternal() {
//子类覆写getNamePrefix()方法
StringBuilder name = new StringBuilder(getNamePrefix());
name.append('-');
if (getAddress() != null) {
name.append(getAddress().getHostAddress());
name.append('-');
}
int port = getPort();
if (port == 0) {
name.append("auto-");
name.append(getNameIndex());
port = getLocalPort();
if (port != -1) {
name.append('-');
name.append(port);
}
} else {
name.append(port);
}
return name.toString();
}
Start 方法：
public void start() throws Exception {
if (getLog().isInfoEnabled()) {
getLog().info(sm.getString("abstractProtocolHandler.start", getNameInternal()));
}
//调用endpoint的start方法
endpoint.start();
//goto AsyncTimeout分析
asyncTimeout = new AsyncTimeout();
//启动AsyncTimeout的thread
Thread timeoutThread = new Thread(asyncTimeout, getNameInternal() + "-AsyncTimeout");
int priority = endpoint.getThreadPriority();
if (priority < Thread.MIN_PRIORITY || priority > Thread.MAX_PRIORITY) {
priority = Thread.NORM_PRIORITY;
}
timeoutThread.setPriority(priority);
timeoutThread.setDaemon(true);
timeoutThread.start();
}
AsyncTimeout分析：
protected class AsyncTimeout implements Runnable {
private volatile boolean asyncTimeoutRunning = true;
public void run() {
while (asyncTimeoutRunning) {
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
}
long now = System.currentTimeMillis();
//循环执行processor.timeoutAsync
for (Processor processor : waitingProcessors) {
processor.timeoutAsync(now);
}
//如果endpoint pause并且asyncTimeoutRunning为true
while (endpoint.isPaused() && asyncTimeoutRunning) {
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
// Ignore
}
}
}
}
//protocol的stop方法调用
protected void stop() {
asyncTimeoutRunning = false;
// Timeout any pending async request
for (Processor processor : waitingProcessors) {
processor.timeoutAsync(-1);
}
}
}
其他的方法基本上都是调用endpoint相对应的方法。
AbstractEndpoint 类：
下面看AbstractEndpoint类上面分析知道protocol会调用endpoint相对应的方法init、start方法等，init、start方法会调用abstract bind方法，start方法调用abstract startInternal方法，stop方法会调用abstract unbind方法，调用stopInternal方法。
public final void init() throws Exception {
if (bindOnInit) {
//调用bind方法，子类覆写
bind();
bindState = BindState.BOUND_ON_INIT;
}
}
public final void start() throws Exception {
if (bindState == BindState.UNBOUND) {
bind();
bindState = BindState.BOUND_ON_START;
}
//回调startInternal方法，子类覆写
startInternal ();
}
public void resume() {
if (running) {
paused = false;
}
}
public void pause() {
if (running && !paused) {
paused = true;
//停止接收connection
unlockAccept();
//子类设置赋值的handler
getHandler().pause();
}
}
public final void stop() throws Exception {
//调用stopInternal方法，子类覆写
stopInternal();
if (bindState == BindState.BOUND_ON_START) {
unbind();
bindState = BindState.UNBOUND;
}
}
public final void destroy() throws Exception {
if (bindState == BindState.BOUND_ON_INIT) {、
//调用unbind方法，子类覆写
unbind();
bindState = BindState.UNBOUND;
}
}
还要关注几个方法：
initializeConnectionLatch方法子类调用控制连接数
protected LimitLatch initializeConnectionLatch() {
if (maxConnections==-1) return null;
if (connectionLimitLatch==null) {
//maxConnection默认是10000，实例化LimitLatch控制连接数
connectionLimitLatch = new LimitLatch(getMaxConnections());
}
return connectionLimitLatch;
}
destroySocket方法调用子类覆写的closeSocket：
protected void destroySocket(U socket) {
closeSocket(socket);
}
processSocket方法：
public boolean processSocket(SocketWrapperBase<S> socketWrapper,
SocketEvent event, boolean dispatch) {
try {
if (socketWrapper == null) {
return false;
}
SocketProcessorBase<S> sc = processorCache.pop();
if (sc == null) {
//子类覆写createSocketProcessor创建Processor
sc = createSocketProcessor(socketWrapper, event);
} else {
//不为null调用rest
sc.reset(socketWrapper, event);
}
Executor executor = getExecutor();
if (dispatch && executor != null) {
//如果server.xml配置了executor，会把processor给execute
executor.execute(sc);
} else {
//没有配置的话直接调用run
sc.run();
}
} catch (RejectedExecutionException ree) {
getLog().warn(sm.getString("endpoint.executor.fail", socketWrapper) , ree);
return false;
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
getLog().error(sm.getString("endpoint.process.fail"), t);
return false;
}
return true;
}
startAcceptorThreads方法：
protected final void startAcceptorThreads() {
//默认是acceptorThreadCount是1
int count = getAcceptorThreadCount();
acceptors = new ArrayList<>(count);
for (int i = 0; i < count; i++) {
//创建Acceptor的thread，goto分析Acceptor
Acceptor<U> acceptor = new Acceptor<>(this);
String threadName = getName() + "-Acceptor-" + i;
acceptor.setThreadName(threadName);
acceptors.add(acceptor);
Thread t = new Thread(acceptor, threadName);
t.setPriority(getAcceptorThreadPriority());
t.setDaemon(getDaemon());
t.start();
}
}
分析Acceptor：
public void run() {
int errorDelay = 0;
while (endpoint.isRunning()) {
//endpoint running一直执行
while (endpoint.isPaused() && endpoint.isRunning()) {
state = AcceptorState.PAUSED;
try {
Thread.sleep(50);
} catch (InterruptedException e) {
}
}
if (!endpoint.isRunning()) {
break;
}
state = AcceptorState.RUNNING;
try {
//线程执行到这个如果超过10000，将wait
endpoint.countUpOrAwaitConnection();
U socket = null;
try {
//调用Endpoint子类覆写的serverSocketAccept
socket = endpoint.serverSocketAccept();
} catch (Exception ioe) {
endpoint.countDownConnection();
if (endpoint.isRunning()) {
// Introduce delay if necessary
errorDelay = handleExceptionWithDelay(errorDelay);
// re-throw
throw ioe;
} else {
break;
}
}
errorDelay = 0;
// Configure the socket
if (endpoint.isRunning() && !endpoint.isPaused()) {
//调用endpoint子类覆写的setSocketOptions，配置socket
if (!endpoint.setSocketOptions(socket)) {
endpoint.closeSocket(socket);
}
} else {
endpoint.destroySocket(socket);
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
String msg = sm.getString("endpoint.accept.fail");
// APR specific.
// Could push this down but not sure it is worth the trouble.
if (t instanceof Error) {
Error e = (Error) t;
if (e.getError() == 233) {
// Not an error on HP-UX so log as a warning
// so it can be filtered out on that platform
// See bug 50273
log.warn(msg, t);
} else {
log.error(msg, t);
}
} else {
log.error(msg, t);
}
}
}
state = AcceptorState.ENDED;
}
几个抽象方法：
protected abstract InetSocketAddress getLocalAddress() throws IOException;
protected abstract SocketProcessorBase<S> createSocketProcessor(
SocketWrapperBase<S> socketWrapper, SocketEvent event);
public abstract void bind() throws Exception;
public abstract void unbind() throws Exception;
public abstract void startInternal() throws Exception;
public abstract void stopInternal() throws Exception;
protected abstract Log getLog();
protected abstract U serverSocketAccept() throws Exception;
protected abstract boolean setSocketOptions(U socket);
protected abstract void closeSocket(U socket);
protected abstract SSLHostConfig.Type getSslConfigType();
protected abstract void createSSLContext(SSLHostConfig sslHostConfig) throws Exception;
protected abstract void releaseSSLContext(SSLHostConfig sslHostConfig);
AbstractJsseEndpoint 类：
会覆写getSslConfigType、createSSLContext和releaseSSLContext方法，关于ssl操作，这个分析ssl的时候再分析
NioEndpoint类：
看上面覆写的几个abstract方法
a)serverSocketAccept方法，AbstractEndpoint父类startAcceptorThreads方法启动线程Acceptor的时候调用，startAcceptorThreads在子类startInternal方法中被调用.
…………..
private ServerSocketChannel serverSock = null;
…………..
//这个方法虽然小但很重要，因为acceptor是调用他得到跟客户端通信的channel
protected SocketChannel serverSocketAccept() throws Exception {
//对于NioEndpoint子类，父类范型U是SocketChannel
return serverSock.accept();
}
b)setSocketOptions方法，AbstractEndpoint父类startAcceptorThreads方法启动线程Acceptor的时候调用，这个方法是设置serverSocketAccept得到的socket.对于NioEndpoint来说是SocketChannel.
protected boolean setSocketOptions(SocketChannel socket) {
try {
//设置SocketChannel 为非阻塞模式，就是说与客户端的读写操作将是select模式的
socket.configureBlocking(false);
//获得跟这个channel相关联的socket
Socket sock = socket.socket();
// SocketProperties类设置socket的各个属性，具体属性后面分析
socketProperties.setProperties(sock);
//从nioChannels缓存中取NioChannel
NioChannel channel = nioChannels.pop();
if (channel == null) {
SocketBufferHandler bufhandler = new SocketBufferHandler(
socketProperties.getAppReadBufSize(),
socketProperties.getAppWriteBufSize(),
socketProperties.getDirectBuffer());
if (isSSLEnabled()) {
channel = new SecureNioChannel(socket, bufhandler, selectorPool, this);
} else {
channel = new NioChannel(socket, bufhandler);
}
} else {
channel.setIOChannel(socket);
channel.reset();
}
//将channel注册到Poller中，goto分析Poller
getPoller0().register(channel);
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
try {
log.error("",t);
} catch (Throwable tt) {
ExceptionUtils.handleThrowable(tt);
}
// Tell to close the socket
return false;
}
return true;
}
分析Poller：看源码，知道它也将作为一个线程启动，大致上来说，Poller就是处理跟client通信的入口，会调用其它对象来具体处理，先看下跟Poller相关的类PollerEvent，看代码发现PollerEvent主要是对之前创建的socketChannel register
OP_READ
public void run() {
………….
socket.getIOChannel().register(
socket.getPoller().getSelector(), SelectionKey.OP_READ, socketWrapper);
……………….
}
再来看Poller，先看Poller的register方法，register方法主要是创建跟当前channel相关的PollerEvent，再看Poller的主要方法run(粗略分析，细节后面可以分析)
run{
while(true){
a.调用PollerEvent的run方法，进行OP_READ事件的注册
b.selector.selectXXX
c.selector. selectedKeys
d.调用processKey 处理这个client发送过来的信息,从这里开始跟Engine的valve衔接上（后面会总结这个处理流程）
close break
}
}
c)Bind方法，protocolhandler.init的时候调用：
public void bind() throws Exception {
//NIO ServerSocketChannel
serverSock = ServerSocketChannel.open();
//AbstractEndPoint定义的socketProperties,设置socket的属性
socketProperties.setProperties(serverSock.socket());
//创建address
InetSocketAddress addr = (getAddress()!=null?new InetSocketAddress(getAddress(),getPort()):new InetSocketAddress(getPort()));
//socket bind到adress，输入请求连接队列的最大长度默认是100
serverSock.socket().bind(addr,getAcceptCount());
//这里设置blocking为true，调用accept方法的时候依然会阻塞blocking
serverSock.configureBlocking(true);
// Initialize thread count defaults for acceptor, poller
if (acceptorThreadCount == 0) {
acceptorThreadCount = 1;
}
if (pollerThreadCount <= 0) {
//minimum one poller thread
pollerThreadCount = 1;
}
stopLatch = new CountDownLatch(pollerThreadCount);
//实例化ssl会调用父类的createSSLContext
initialiseSsl();
//调用NioSelectorPool的open方法，goto分析NioSelectorPool
selectorPool.open();
}
分析NioSelectorPool：
NioSelectorPool.open->NioBlockingSelector.open(selector)-> BlockPoller.start
d)startInternal方法：
public void startInternal() throws Exception {
if (!running) {
running = true;
paused = false;
//创建processorCache、eventCache和nioChannels缓存
processorCache = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getProcessorCache());
eventCache = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getEventCache());
nioChannels = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getBufferPool());
if ( getExecutor() == null ) {
//server.xml没有配置executor则创建
createExecutor();
}
//调用父类的initializeConnectionLatch方法，设置该EndPoint接收的最大连接数是10000（默认）
initializeConnectionLatch();
//启动Poller
pollers = new Poller[getPollerThreadCount()];
for (int i=0; i<pollers.length; i++) {
pollers[i] = new Poller();
Thread pollerThread = new Thread(pollers[i], getName() + "-ClientPoller-"+i);
pollerThread.setPriority(threadPriority);
pollerThread.setDaemon(true);
pollerThread.start();
}
//调用父类的startAcceptorThreads方法，启动accptor线程
startAcceptorThreads();
}
}
Unbind方法和stopInternal方法主要处理清理资源的操作，这里不具体分析.
总结：tomcat对socket处理明显的体现了模板模式，父类体现主流程，子类覆盖abstract方法来处理差异性，关于tomcat对socket的具体处理上涉及到几个主要的类NioChannel、NioSocketWrapper、Acceptor线程、Poller线程、SocketProcessor、ConnectionHandler、Processor(Http11Processor)以及AbstractEndPoint一系列的EndPoint.，还有就是一系列对EndPoint的包装Handler.
系统启动的时候会首先调用子类的bind方法来进行开始监听前的处理工作，对于Nio来说就是ServerSocketChannel.open等.然后子类的startInternal方法会首先启动Poller线程（Nio），其次启动Acceptor线程，Acceptor线程负责的是接受客户端的连接，然后将socketChannel传递给Poller(register方法)，Poller则是处理跟客户端请求的入口,对这个流程简单的进行了一个梳理，后面会去分析tomcat处理socket的各个类以达到学习的目的.
NIOEndPoint.startInternal->Poller->NIOEndPoint.processKey->
NIOEndPoint.createSocketProcessor() 得到SocketProcessor 调用run->ConnectionHandler.process->Http11Processor.service->CoyoteAdapter.service(request, response);->connector.getService().getContainer().getPipeline().getFirst().invoke(request, response);
这里的CoyoteAdapter是衔接tomcat引擎和tomcat处理请求的类，这个要单独分析。
另外一条线是
sartInternal ->Acceptor(调用poller的register方法，给poller加工socket，注册read事件)
有个知识点记一下，socketChannl.register的时候可以给attachment

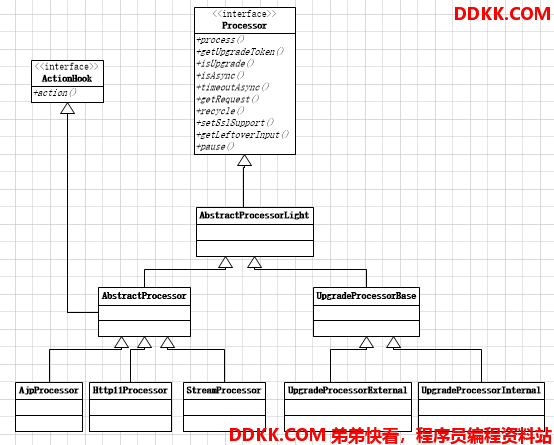

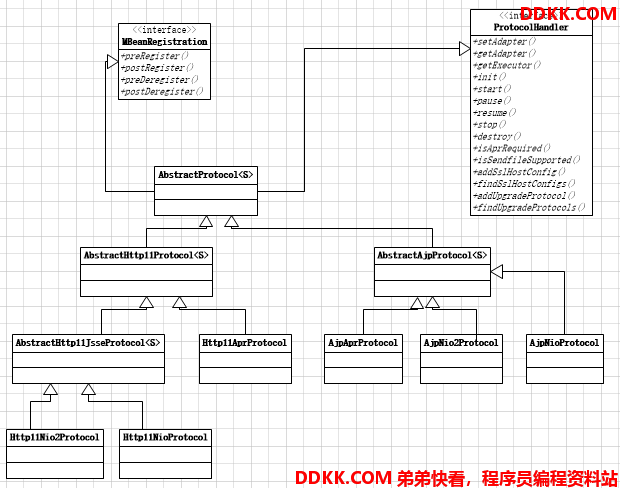

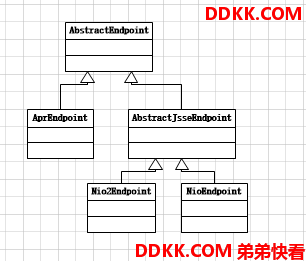

下面相关类的UML图
