一、前言

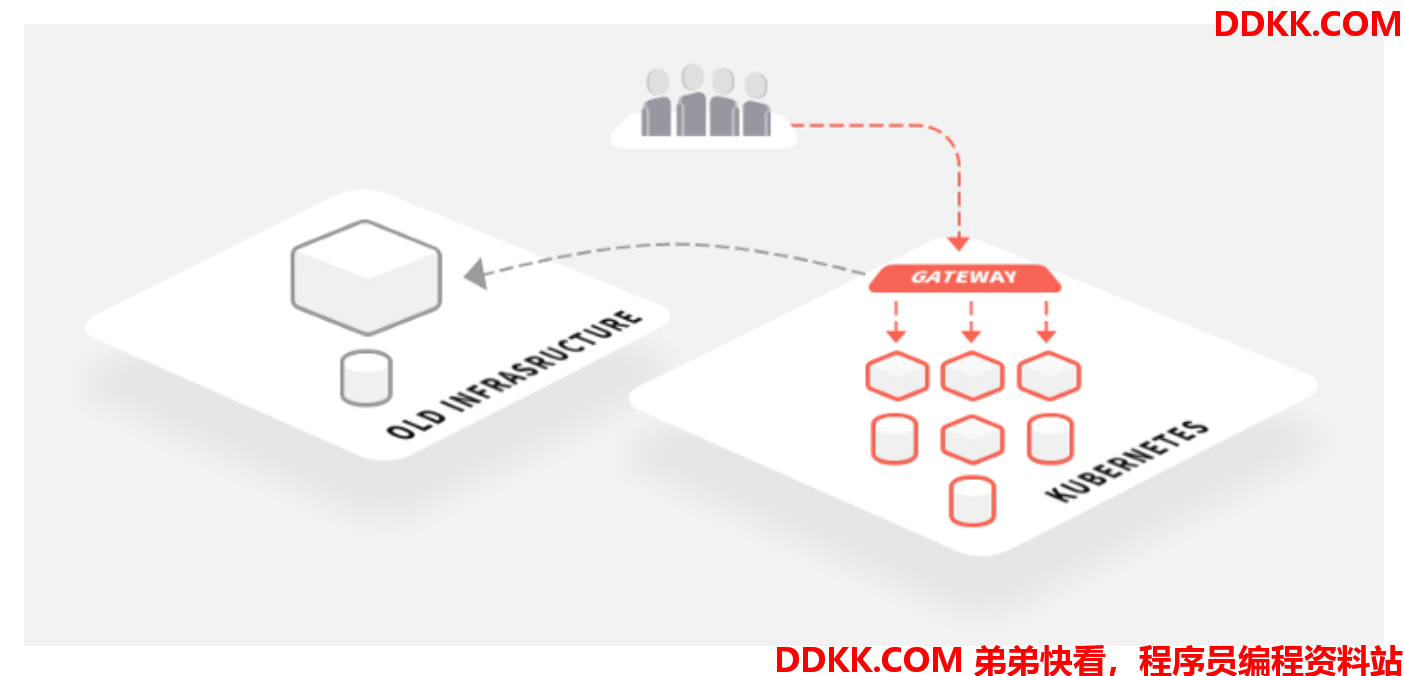

ambassador除了可以对Kubernetes上的gRPC服务进行负载均衡,还可以对外部gRPC服务进行负载均衡。这其中关键的一步是将外部gRPC服务注册为Kubernetes的service。



二、部署外部服务并注册到Kubernetes

2.1 部署外部服务

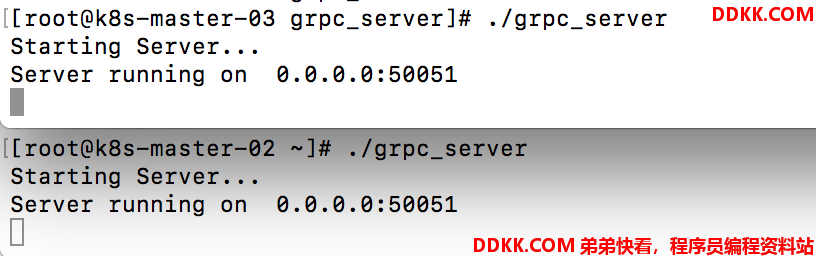

将文章《十九:使用Ingress Nginx暴露Kubernetes上的gRPC服务》里面的grpc_server服务分别部署在172.3.0.11(k8s-master-03.novalocal)和172.3.0.17(k8s-master-02.novalocal)两个机器上



2.2 将外部服务部署到Kubernetes

external-grpcserver.yaml

apiVersion: v1
kind: Service
metadata:
  name: external-grpc
spec:
  ports:
  - port: 50051
    targetPort: 50051
    protocol: TCP
---
apiVersion: v1
kind: Endpoints
metadata:
  name: external-grpc
subsets:
  - addresses:
    - ip: 172.3.0.11
    - ip: 172.3.0.17
    ports:
    - port: 50051
      protocol: TCP

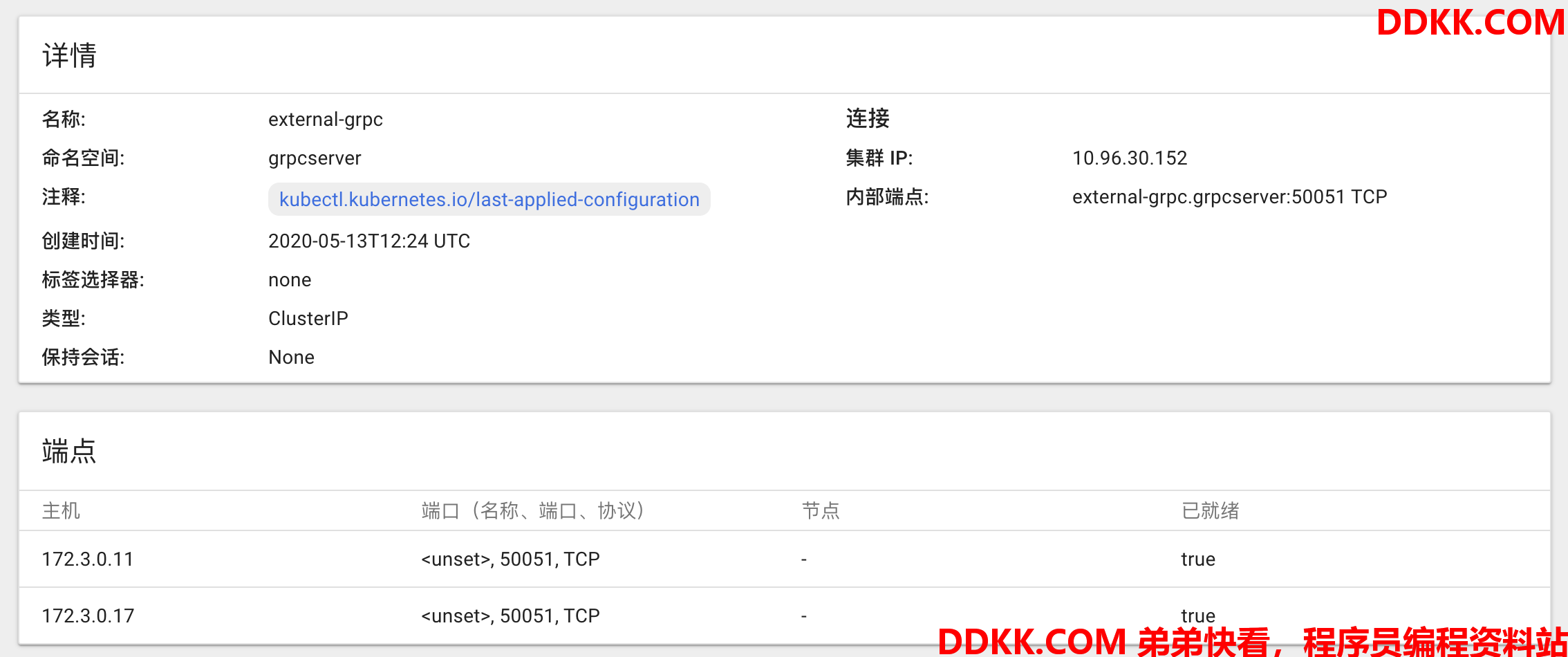

部署结果:



三、通过ambassador暴露gRPC服务

3.1 配置ambassador服务发现和负载均衡

相较于基于etcd的客户端服务发现和负载均衡方案,类似于Ingress Nginx和ambassador的方案做到了负载均衡器所要达到的两大效果:

  • 后端服务的发现和状态维护
  • 负载均衡策略
  • gRPC的七层负载均衡

ambassador-external-grpc.yaml

---
apiVersion: getambassador.io/v2
kind: KubernetesEndpointResolver
metadata:
  name: grpcserver-endpoint-resolver
---
apiVersion: getambassador.io/v2
kind: Mapping
metadata:
  name: external-grpcserver
spec:
  grpc: true
  prefix: /greet.GrpcService/
  rewrite: /greet.GrpcService/
  service: external-grpc.grpcserver:50051
  resolver: grpcserver-endpoint-resolver
  load_balancer:
    policy: round_robin

部署之后的ambassador控制面状态如下:

Ambassador Route Table:

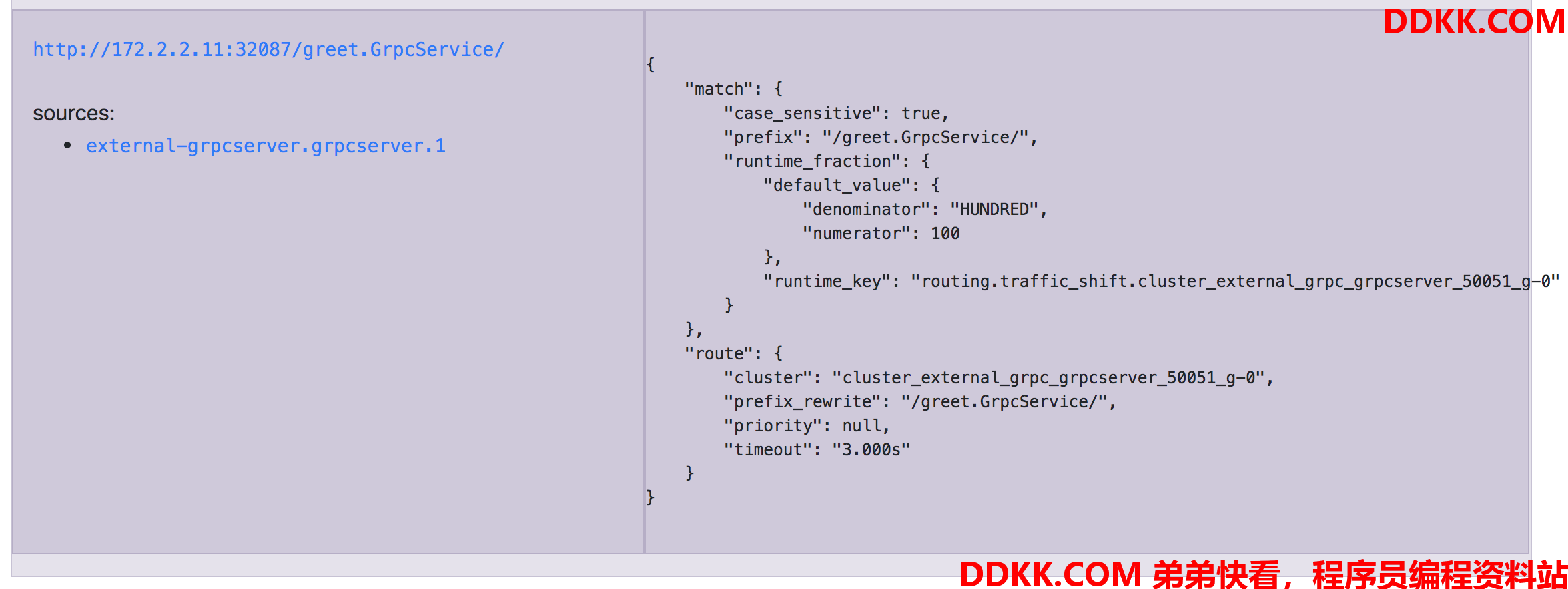

Currently active Envoy Routes:

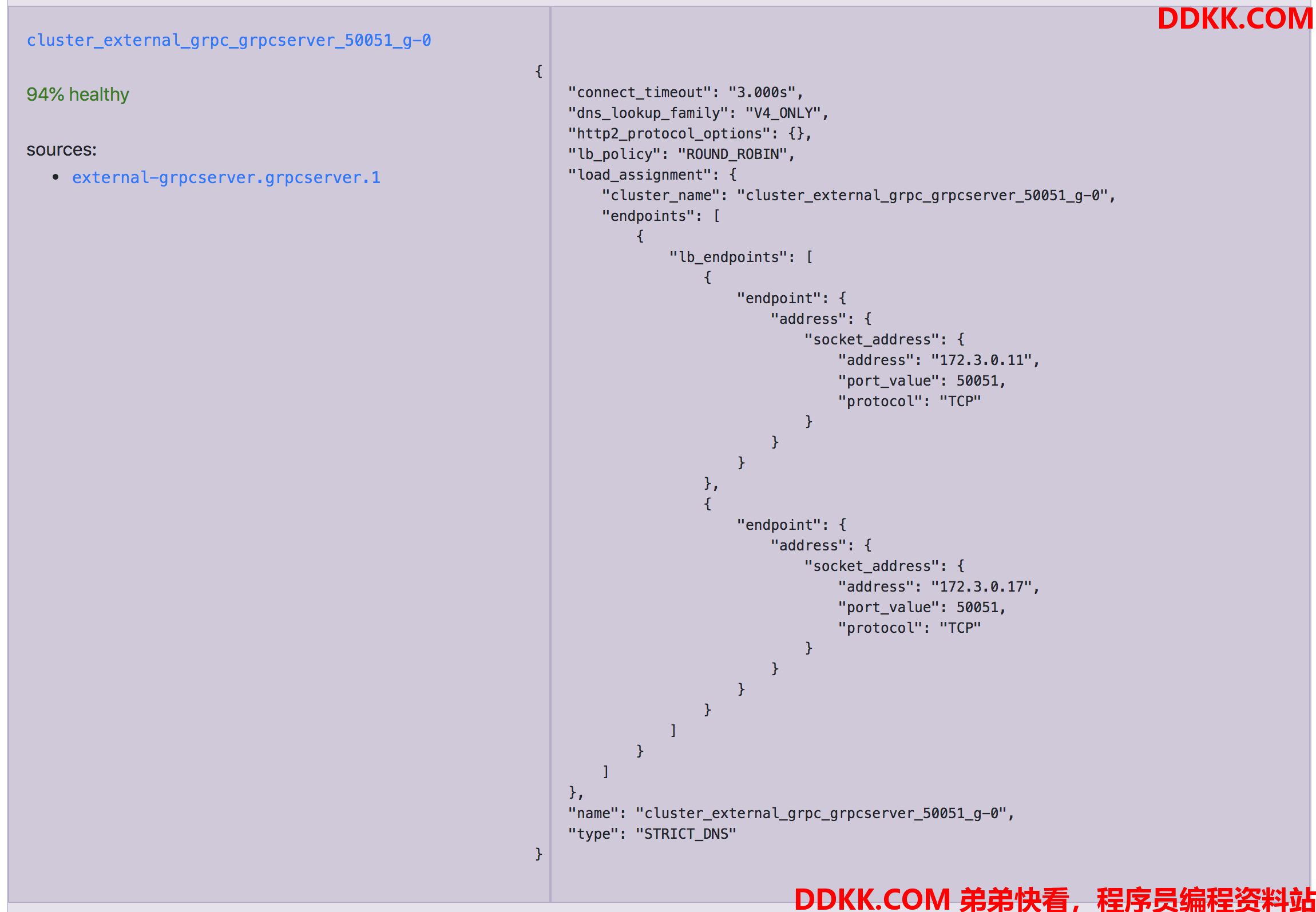

Currently active Envoy Clusters:

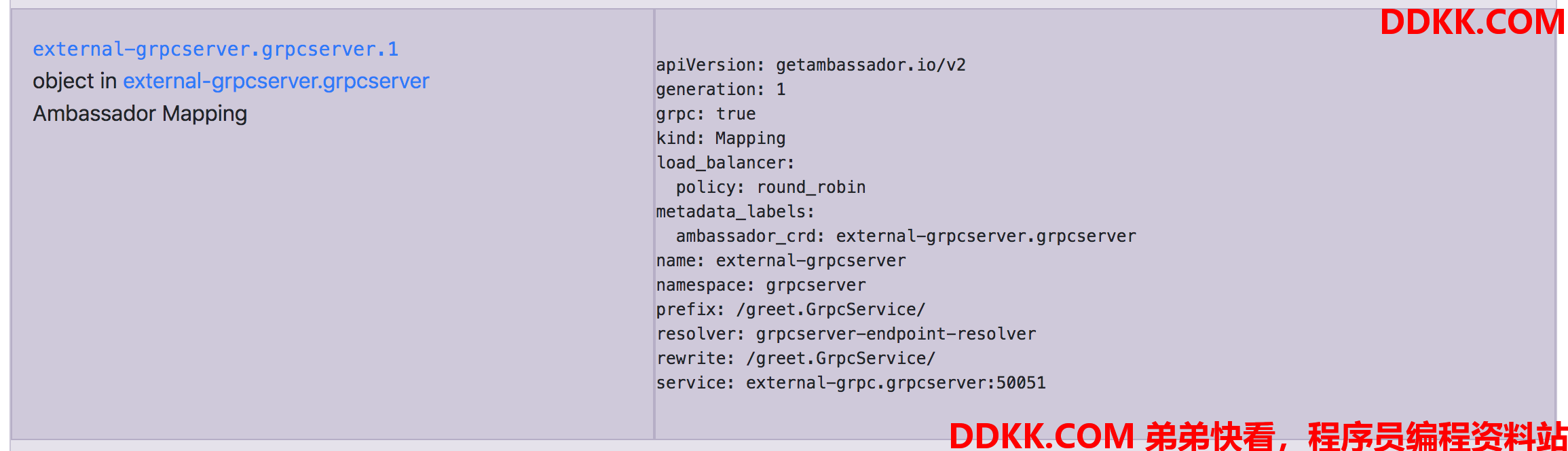

YAML input documents — these are what Ambassador is currently reading for its configuration:

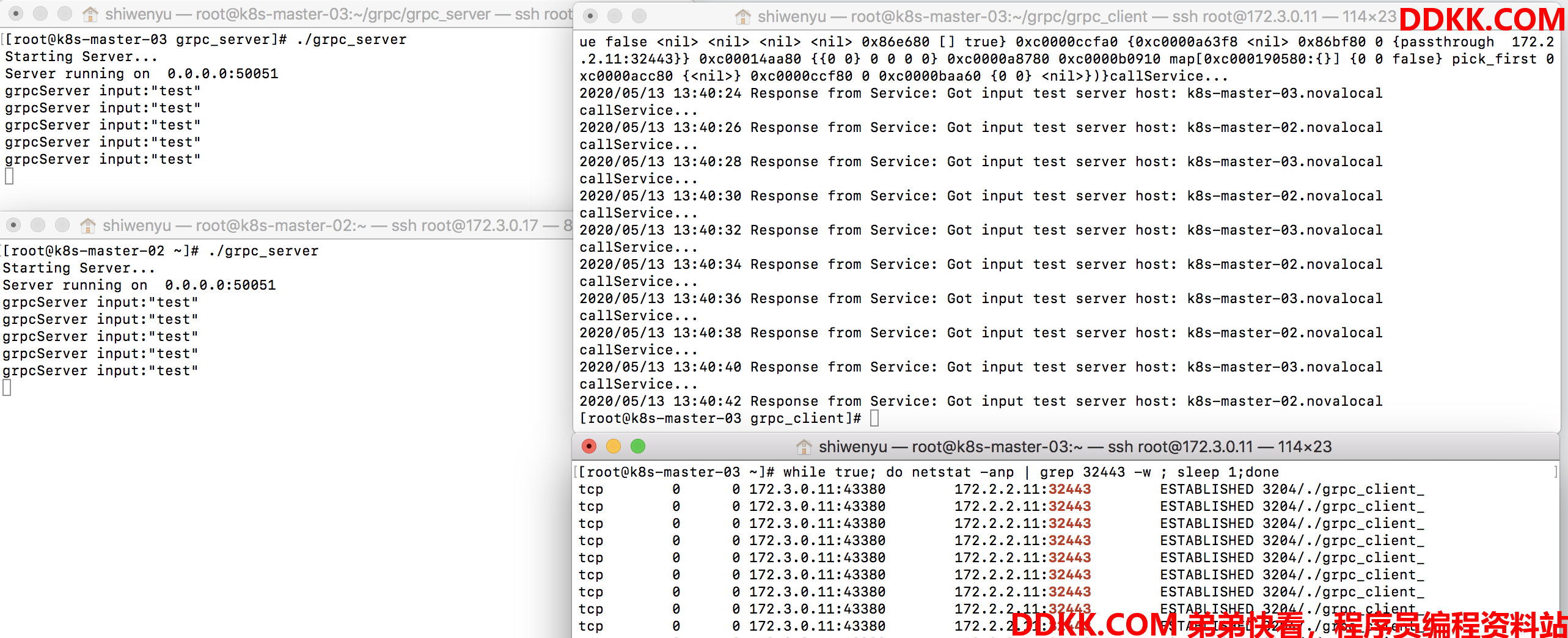

3.2 通过长连接访问服务



成功实现长连接负载均衡

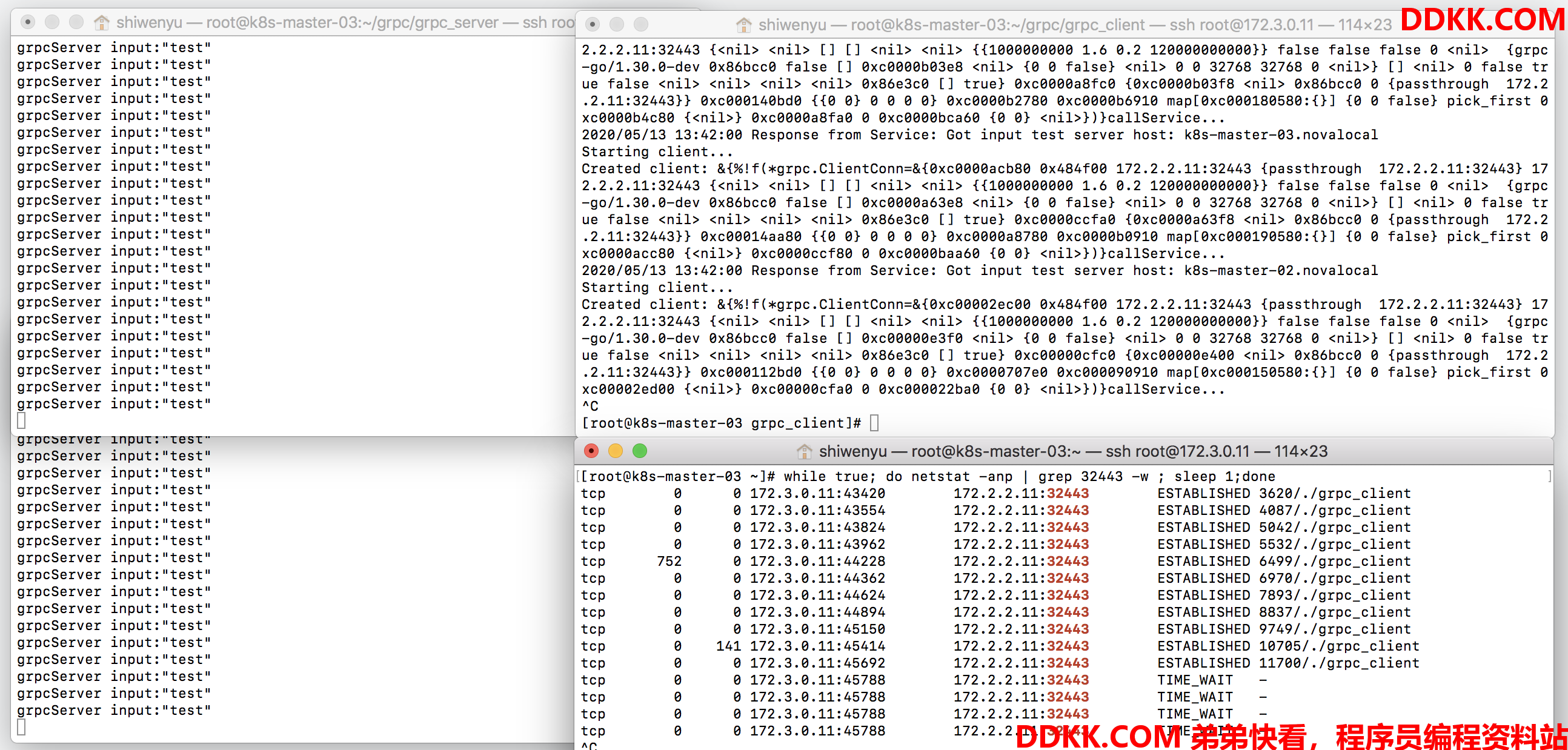

3.3 通过短连接访问服务



占用了大量端口,gRPC服务被轮流访问到
