一、前言

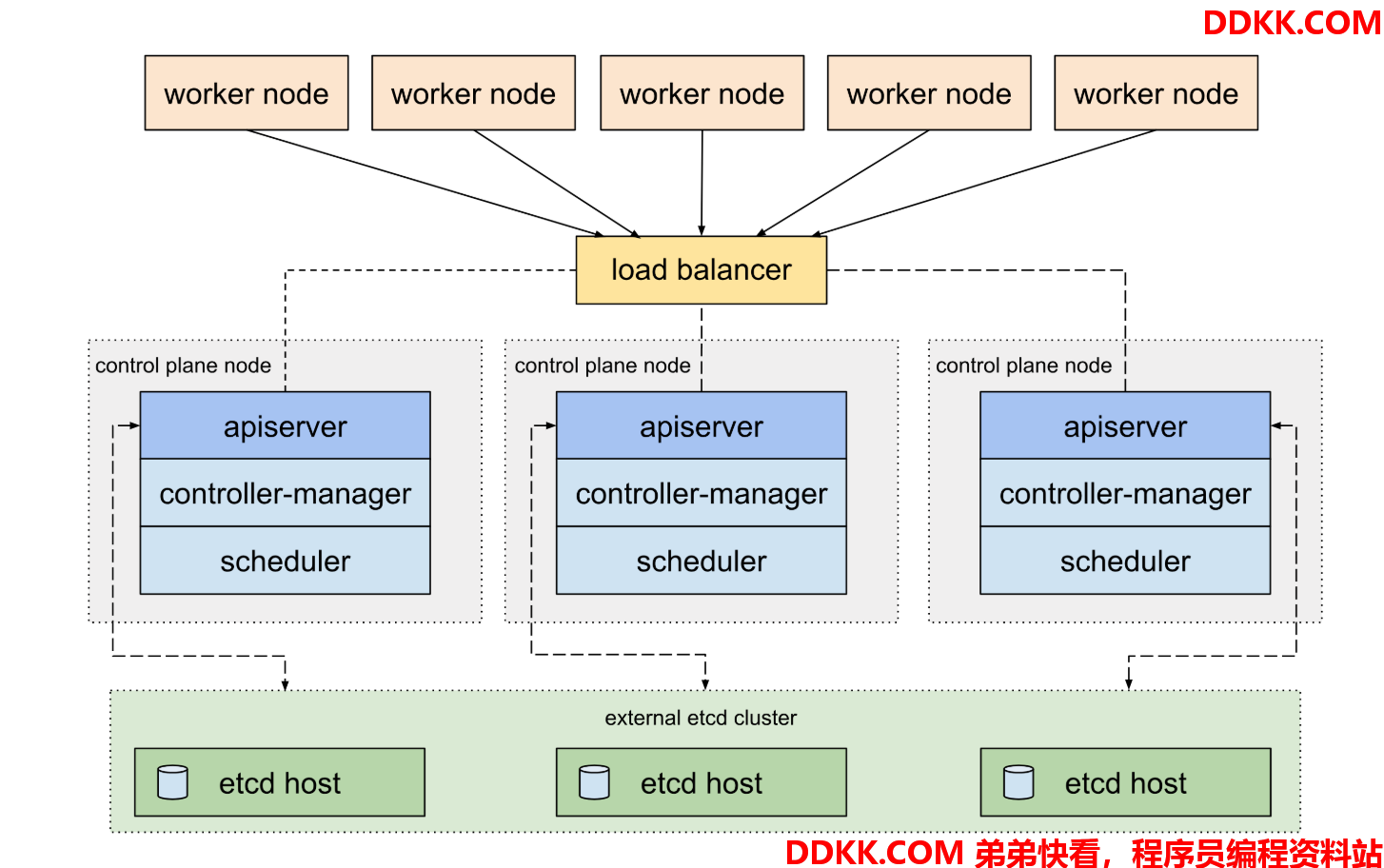

高可用的Kubernetes集群会有3个master节点，运行3个APIServer实例，这三个APIServer实例可以挂载再同一个负载均衡器后端，实现高可用。
二、测试集群主机准备
2.1 测试环境主机角色分配
3 kubernetes masters
192.168.56.101 (k8s-master-01)
192.168.56.102 (k8s-master-02)
192.168.56.103 (k8s-master-03)
1 kubernetes node
192.168.56.111 (k8s-node-01)
1 load balancer for 3 API servers
192.168.56.100
1 etcd cluster with 3 etcd servers running in 192.168.56.101/102/103
etcd集群的安装参看文章《四：基于虚拟机部署安全加密的etcd集群》
2.2 安全和DNS准备
systemctl stop firewalld
systemctl disable firewalld
SELINUX=disabled
setenforce 0
/etc/ssh/sshd_config
UseDNS no
2.3 集群证书准备
k8s-root-ca-csr.json
{
"CN": "kubernetes",
"key": {
"algo": "rsa",
"size": 4096
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
k8s-gencert.json
{
"signing": {
"default": {
"expiry": "87600h"
},
"profiles": {
"kubernetes": {
"usages": [
"signing",
"key encipherment",
"server auth",
"client auth"
],
"expiry": "87600h"
}
}
}
}
kubernetes-csr.json
{
"CN": "kubernetes",
"hosts": [
"127.0.0.1",
"10.254.0.1",
"192.168.56.101",
"192.168.56.100",
"192.168.56.104",
"192.168.56.105",
"192.168.56.106",
"192.168.56.102",
"192.168.56.103",
"192.168.56.111",
"192.168.56.112",
"192.168.56.113",
"192.168.56.114",
"192.168.56.115",
"192.168.56.116",
"192.168.56.117",
"localhost",
"kubernetes",
"kubernetes.default",
"kubernetes.default.svc",
"kubernetes.default.svc.cluster",
"kubernetes.default.svc.cluster.local",
"k8s-master-01",
"k8s-master-02",
"k8s-master-03",
"k8s-master-04",
"k8s-master-05",
"k8s-master-06",
"k8s-node-01",
"k8s-node-02",
"k8s-node-03",
"k8s-node-04",
"k8s-node-05",
"k8s-node-06",
"k8s-node-07"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
kube-proxy-csr.json
{
"CN": "system:kube-proxy",
"hosts": [],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Shanghai",
"L": "Shanghai",
"O": "k8s",
"OU": "System"
}
]
}
生成不同组建(kubernetes，admin，kube-proxy)使用的证书和key
cfssl gencert --initca=true k8s-root-ca-csr.json | cfssljson --bare k8s-root-ca
for targetName in kubernetes admin kube-proxy; do
cfssl gencert --ca k8s-root-ca.pem --ca-key k8s-root-ca-key.pem --config k8s-gencert.json --profile kubernetes $targetName-csr.json | cfssljson --bare $targetName
done
openssl x509 -in kubernetes.pem -text
[root@k8s-tools k8s-ca]# ls -l
-rw-r--r--. 1 root root 1013 Oct 31 00:31 admin.csr
-rw-r--r--. 1 root root 231 Oct 30 02:56 admin-csr.json
-rw-------. 1 root root 1675 Oct 31 00:31 admin-key.pem
-rw-r--r--. 1 root root 1753 Oct 31 00:31 admin.pem
-rw-r--r--. 1 root root 292 Oct 30 02:53 k8s-gencert.json
-rw-r--r--. 1 root root 1695 Oct 31 00:31 k8s-root-ca.csr
-rw-r--r--. 1 root root 210 Oct 30 02:53 k8s-root-ca-csr.json
-rw-------. 1 root root 3243 Oct 31 00:31 k8s-root-ca-key.pem
-rw-r--r--. 1 root root 2057 Oct 31 00:31 k8s-root-ca.pem
-rw-r--r--. 1 root root 1013 Oct 31 00:31 kube-proxy.csr
-rw-r--r--. 1 root root 232 Oct 30 02:56 kube-proxy-csr.json
-rw-------. 1 root root 1679 Oct 31 00:31 kube-proxy-key.pem
-rw-r--r--. 1 root root 1753 Oct 31 00:31 kube-proxy.pem
-rw-r--r--. 1 root root 1622 Oct 31 00:31 kubernetes.csr
-rw-r--r--. 1 root root 1202 Oct 31 00:31 kubernetes-csr.json
-rw-------. 1 root root 1675 Oct 31 00:31 kubernetes-key.pem
-rw-r--r--. 1 root root 2334 Oct 31 00:31 kubernetes.pem
2.4 生成token和kubeconfig
要确保生成的kubeconfig里面带有APIServer 前端LB的地址
server: https://192.168.56.100:6443
export BOOTSTRAP_TOKEN=$(head -c 16 /dev/urandom | od -An -t x | tr -d ' ')
cat > token.csv <<EOF
${BOOTSTRAP_TOKEN},kubelet-bootstrap,10001,"system:kubelet-bootstrap"
EOF
每个节点kubelet连接APIServer LB使用的bootstrap.kubeconfig
export KUBE_APISERVER="https://192.168.56.100:6443"address of LB
# 设置集群参数
kubectl config set-cluster kubernetes \
--certificate-authority=k8s-root-ca.pem \
--embed-certs=true \
--server=${KUBE_APISERVER} \
--kubeconfig=bootstrap.kubeconfig
# 设置客户端认证参数
kubectl config set-credentials kubelet-bootstrap \
--token=${BOOTSTRAP_TOKEN} \
--kubeconfig=bootstrap.kubeconfig
# 设置上下文参数
kubectl config set-context default \
--cluster=kubernetes \
--user=kubelet-bootstrap \
--kubeconfig=bootstrap.kubeconfig
# 设置默认上下文
kubectl config use-context default --kubeconfig=bootstrap.kubeconfig
每个节点kube-proxy连接APIServer LB使用的kube-proxy.kubeconfig
# 设置集群参数
kubectl config set-cluster kubernetes \
--certificate-authority=k8s-root-ca.pem \
--embed-certs=true \
--server=${KUBE_APISERVER} \
--kubeconfig=kube-proxy.kubeconfig
# 设置客户端认证参数
kubectl config set-credentials kube-proxy \
--client-certificate=kube-proxy.pem \
--client-key=kube-proxy-key.pem \
--embed-certs=true \
--kubeconfig=kube-proxy.kubeconfig
# 设置上下文参数
kubectl config set-context default \
--cluster=kubernetes \
--user=kube-proxy \
--kubeconfig=kube-proxy.kubeconfig
# 设置默认上下文
kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig
三、集群安装过程
3.1 将安装所需要的RPM和证书文件同步到各个节点
-rw-r--r--. 1 root root 219 Oct 30 05:15 install.sh
-rw-r--r--. 1 root root 41872 Oct 30 04:56 kubernetes-1.10.3-1.el7.x86_64.rpm
-rw-r--r--. 1 root root 28983340 Oct 30 04:58 kubernetes-client-1.10.3-1.el7.x86_64.rpm
-rw-r--r--. 1 root root 20025212 Oct 30 04:58 kubernetes-kubeadm-1.10.3-1.el7.x86_64.rpm
-rw-r--r--. 1 root root 49244240 Oct 30 04:57 kubernetes-master-1.10.3-1.el7.x86_64.rpm
-rw-r--r--. 1 root root 28641836 Oct 30 04:57 kubernetes-node-1.10.3-1.el7.x86_64.rpm
-rw-r--r--. 1 root root 21887636 Oct 30 04:57 kubernetes-unit-test-1.10.3-1.el7.x86_64.rpm
将RPM送到各个master节点
for IP in seq 101 102 103; do
ssh root@192.168.56.$IP mkdir ~/k8s-rpm
scp kubernetes*.rpm root@192.168.56.$IP:~/k8s-rpm;
ssh root@192.168.56.$IP yum install -y docker conntrack-tools socat
ssh root@192.168.56.$IP rpm -ivh ~/k8s-rpm/kubernetes*.rpm
done
将证书文件送到各个master节点
for IP in seq 101 102 103; do
ssh root@192.168.56.$IP mkdir /etc/kubernetes/ssl
scp *.pem root@192.168.56.$IP:/etc/kubernetes/ssl
scp *.kubeconfig root@192.168.56.$IP:/etc/kubernetes
scp token.csv root@192.168.56.$IP:/etc/kubernetes
ssh root@192.168.56.$IP chown -R kube:kube /etc/kubernetes/ssl
done
生成日志目录
for IP in seq 101 102 103; do
ssh root@192.168.56.$IP mkdir /var/log/kube-audit
ssh root@192.168.56.$IP chown -R kube:kube /var/log/kube-audit
ssh root@192.168.56.$IP chmod -R 755 /var/log/kube-audit
done
3.2 安装master节点
/etc/kubernetes/config 修改/加入如下字段：
KUBE_LOGTOSTDERR="--logtostderr=true"
KUBE_LOG_LEVEL="--v=2"
KUBE_ALLOW_PRIV="--allow-privileged=true"
KUBE_MASTER="--master=http://127.0.0.1:8080”
/etc/kubernetes/apiserver修改/加入如下字段：
KUBE_API_ADDRESS="--advertise-address=192.168.56.10{1|2|3} --insecure-bind-address=127.0.0.1 --bind-address=192.168.56.10{1|2|3}"
KUBE_API_PORT="--insecure-port=8080 --secure-port=6443"
KUBE_ETCD_SERVERS="--etcd-servers=https://192.168.56.101:2379,https://192.168.56.102:2379,https://192.168.56.103:2379"
KUBE_SERVICE_ADDRESSES="--service-cluster-ip-range=10.254.0.0/16"
KUBE_ADMISSION_CONTROL="--admission-control=NamespaceLifecycle,LimitRanger,SecurityContextDeny,ServiceAccount,ResourceQuota"
KUBE_API_ARGS="--authorization-mode=RBAC \
--runtime-config=rbac.authorization.k8s.io/v1beta1 \
--anonymous-auth=false \
--kubelet-https=true \
--enable-bootstrap-token-auth=true \
--token-auth-file=/etc/kubernetes/token.csv \
--service-node-port-range=30000-50000 \
--tls-cert-file=/etc/kubernetes/ssl/kubernetes.pem \
--tls-private-key-file=/etc/kubernetes/ssl/kubernetes-key.pem \
--client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
--service-account-key-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
--etcd-quorum-read=true \
--storage-backend=etcd3 \
--etcd-cafile=/etc/kubernetes/ssl/ca.pem \
--etcd-certfile=/etc/kubernetes/ssl/client.pem \
--etcd-keyfile=/etc/kubernetes/ssl/client-key.pem \
--enable-swagger-ui=true \
--apiserver-count=3 \
--audit-log-maxage=30 \
--audit-log-maxbackup=3 \
--audit-log-maxsize=100 \
--audit-log-path=/var/log/kube-audit/audit.log \
--event-ttl=1h \
--external-hostname=k8s-master-01"
/etc/kubernetes/controller-manager 修改/加入如下字段：
KUBE_CONTROLLER_MANAGER_ARGS="--address=0.0.0.0 \
--service-cluster-ip-range=10.254.0.0/16 \
--cluster-name=kubernetes \
--cluster-signing-cert-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
--cluster-signing-key-file=/etc/kubernetes/ssl/k8s-root-ca-key.pem \
--service-account-private-key-file=/etc/kubernetes/ssl/k8s-root-ca-key.pem \
--root-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
--experimental-cluster-signing-duration=87600h0m0s \
--leader-elect=true \
--node-monitor-grace-period=40s \
--node-monitor-period=5s \
--pod-eviction-timeout=5m0s"
/etc/kubernetes/scheduler 修改/加入如下字段：
KUBE_SCHEDULER_ARGS="--leader-elect=true --address=0.0.0.0"
启动master节点上的服务(apiserver/scheduler/controller manager)
systemctl daemon-reload
systemctl start kube-apiserver
systemctl start kube-controller-manager
systemctl start kube-scheduler
systemctl enable kube-apiserver
systemctl enable kube-controller-manager
systemctl enable kube-scheduler
查看服务状态
kubectl get cs
NAME STATUS MESSAGE ERROR
scheduler Healthy ok
controller-manager Healthy ok
etcd-0 Healthy {"health":"true"}
etcd-1 Healthy {"health":"true"}
etcd-2 Healthy {"health":"true"}
3.3 配置APIServer的负载均衡
配置nginx
# 创建配置目录
mkdir -p /etc/nginx
# 写入代理配置
cat << EOF >> /etc/nginx/nginx.conf
error_log stderr notice;
worker_processes auto;
events {
multi_accept on;
use epoll;
worker_connections 1024;
}
stream {
upstream kube_apiserver {
least_conn;
server 192.168.56.101:6443;
server 192.168.56.102:6443;
server 192.168.56.103:6443;
}
server {
listen 0.0.0.0:6443;
proxy_pass kube_apiserver;
proxy_timeout 10m;
proxy_connect_timeout 1s;
}
}
EOF
# 更新权限
chmod +r /etc/nginx/nginx.conf
启动nginx代理服务
at << EOF >> /etc/systemd/system/nginx-proxy.service
[Unit]
Description=kubernetes apiserver docker wrapper
Wants=docker.socket
After=docker.service
[Service]
User=root
PermissionsStartOnly=true
ExecStart=/usr/bin/docker run -p 6443:6443 \\
-v /etc/nginx:/etc/nginx \\
--name nginx-proxy \\
--net=host \\
--restart=on-failure:5 \\
--memory=512M \\
nginx:1.13.3-alpine
ExecStartPre=-/usr/bin/docker rm -f nginx-proxy
ExecStop=/usr/bin/docker stop nginx-proxy
Restart=always
RestartSec=15s
TimeoutStartSec=30s
[Install]
WantedBy=multi-user.target
EOF
安装成系统服务
systemctl daemon-reload
systemctl start nginx-proxy
systemctl enable nginx-proxy
3.4 安装工作节点
Send RPMs
for IP in 111; do
ssh root@192.168.56.$IP mkdir ~/k8s-rpm
scp kubernetes-node-1.10.3-1.el7.x86_64.rpm root@192.168.56.$IP:~/k8s-rpm/
scp kubernetes-client-1.10.3-1.el7.x86_64.rpm root@192.168.56.$IP:~/k8s-rpm/
ssh root@192.168.56.$IP yum install -y docker conntrack-tools socat
ssh root@192.168.56.$IP rpm -ivh ~/k8s-rpm/kubernetes*.rpm
done
Send Certificates
for IP in 111; do
ssh root@192.168.56.$IP mkdir /etc/kubernetes/ssl
scp *.pem root@192.168.56.$IP:/etc/kubernetes/ssl
scp *.kubeconfig root@192.168.56.$IP:/etc/kubernetes/
scp token.csv root@192.168.56.$IP:/etc/kubernetes/
ssh root@192.168.56.$IP chown -R kube:kube /etc/kubernetes/ssl
done
修改配置文件如下
cat /etc/kubernetes/config | grep -v ^#
KUBE_LOGTOSTDERR="--logtostderr=true"
KUBE_LOG_LEVEL="--v=2"
KUBE_ALLOW_PRIV="--allow-privileged=true"
cat /etc/kubernetes/kubelet | grep -v ^#
KUBELET_ADDRESS="--address=192.168.56.111"
KUBELET_HOSTNAME="--hostname-override=k8s-node-01"
KUBELET_ARGS="--cgroup-driver=systemd \
--cluster-dns=10.254.0.2 \
--network-plugin=cni \
--fail-swap-on=false \
--resolv-conf=/etc/resolv.conf \
--experimental-bootstrap-kubeconfig=/etc/kubernetes/bootstrap.kubeconfig \
--kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
--cert-dir=/etc/kubernetes/ssl \
--cluster-domain=cluster.local. \
--hairpin-mode promiscuous-bridge \
--serialize-image-pulls=false \
--pod-infra-container-image=gcr.io/google_containers/pause-amd64:3.0"
cat /etc/kubernetes/proxy | grep -v ^#
KUBE_PROXY_ARGS="--bind-address=192.168.56.111 \
--hostname-override=k8s-node-01 \
--kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig \
--cluster-cidr=10.254.0.0/16"
配置ClusterRoleBinding
由于kubelet 采用了 TLS Bootstrapping，所有根绝 RBAC 控制策略，kubelet 使用的用户 kubelet-bootstrap 是不具备任何访问 API 权限的，这是需要预先在集群内创建 ClusterRoleBinding 授予其 system:node-bootstrapper Role
kubectl delete clusterrolebindings kubelet-node-clusterbinding
kubectl create clusterrolebinding kubelet-node-clusterbinding --clusterrole=system:node --group=system:nodes
Test node connection to API server LB
kubectl --server https://192.168.56.100:6443 --certificate-authority /etc/kubernetes/ssl/k8s-root-ca.pem --client-certificate /etc/kubernetes/ssl/admin.pem --client-key /etc/kubernetes/ssl/admin-key.pem get cs
NAME STATUS MESSAGE ERROR
controller-manager Healthy ok
scheduler Healthy ok
etcd-0 Healthy {"health":"true"}
etcd-2 Healthy {"health":"true"}
etcd-1 Healthy {"health":"true"}
Enable node service
systemctl daemon-reload
systemctl start kubelet
systemctl enable kubelet
systemctl start kube-proxy
systemctl enable kube-proxy
由于采用了 TLS Bootstrapping，所以 kubelet 启动后不会立即加入集群，而是进行证书申请，此时只需要在 master 允许其证书申请即可：
# 查看 csr
[root@k8s-master-01 ssl]$ kubectl get csr
NAME AGE REQUESTOR CONDITION
node-csr-D-LrT1abA4-gBUuM0tumV0UZ34vu7Gk8R6t3QO19iqU 49s kubelet-bootstrap Pending
# 签发证书
[root@k8s-master-01 ssl]$ kubectl certificate approve node-csr-D-LrT1abA4-gBUuM0tumV0UZ34vu7Gk8R6t3QO19iqU
certificatesigningrequest.certificates.k8s.io "node-csr-D-LrT1abA4-gBUuM0tumV0UZ34vu7Gk8R6t3QO19iqU” approved
# 查看 node
kubectl get node
NAME STATUS ROLES AGE VERSION
k8s-node-01 Ready <none> 10s v1.10.3
测试从其它节点用手kubectl访问APIServer LB
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem get node
NAME STATUS ROLES AGE VERSION
k8s-node-01 Ready <none> 2h v1.10.3
3.6 在节点安装Calico CNI
Addin node /etc/kubernetes/kubelet --network-plugin=cni
wget https://docs.projectcalico.org/v3.3/getting-started/kubernetes/installation/hosted/calico.yaml
wget https://docs.projectcalico.org/v3.3/getting-started/kubernetes/installation/rbac.yaml
sed -i 's@.*etcd_endpoints:.*@\ \ etcd_endpoints:\ \"https://192.168.56.101:2379,https://192.168.56.102:2379,https://192.168.56.103:2379\"@gi' calico.yaml
export ETCD_CERT=cat /root/etcd-ca/client.pem | base64 | tr -d '\n'
export ETCD_KEY=cat /root/etcd-ca/client-key.pem | base64 | tr -d '\n'
export ETCD_CA=cat /root/etcd-ca/ca.pem | base64 | tr -d '\n'
sed -i "s@.*etcd-cert:.*@\ \ etcd-cert:\ ${ETCD_CERT}@gi" calico.yaml
sed -i "s@.*etcd-key:.*@\ \ etcd-key:\ ${ETCD_KEY}@gi" calico.yaml
sed -i "s@.*etcd-ca:.*@\ \ etcd-ca:\ ${ETCD_CA}@gi" calico.yaml
sed -i 's@.*etcd_ca:.*@\ \ etcd_ca:\ "/calico-secrets/etcd-ca"@gi' calico.yaml
sed -i 's@.*etcd_cert:.*@\ \ etcd_cert:\ "/calico-secrets/etcd-cert"@gi' calico.yaml
sed -i 's@.*etcd_key:.*@\ \ etcd_key:\ "/calico-secrets/etcd-key"@gi' calico.yaml
sed -i 's@192.168.0.0/16@10.254.64.0/18@gi' calico.yaml
根据环境情况修改配置如下：
Set POD IP range
# The default IPv4 pool to create on startup if none exists. Pod IPs will be
# chosen from this range. Changing this value after installation will have
# no effect. This should fall within --cluster-cidr.
- name: CALICO_IPV4POOL_CIDR
value: "10.254.64.0/18”
Also determine if to use IPIP
# Enable IPIP
- name: CALICO_IPV4POOL_IPIP
value: "always"
部署calico
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem create -f calico.yaml
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem apply -f rbac.yaml
查看部署结果
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem get pods -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-64b4dd5f65-b8kk9 0/1 Running 0 6s
calico-node-r7cqs 1/2 Running 0 6s
3.7 再加入一个节点
192.168.56.112 (k8s-node-02)
Send RPMs
for IP in 112; do
ssh root@192.168.56.$IP mkdir ~/k8s-rpm
scp kubernetes-node-1.10.3-1.el7.x86_64.rpm root@192.168.56.$IP:~/k8s-rpm/
scp kubernetes-client-1.10.3-1.el7.x86_64.rpm root@192.168.56.$IP:~/k8s-rpm/
ssh root@192.168.56.$IP yum install -y docker conntrack-tools socat
ssh root@192.168.56.$IP rpm -ivh ~/k8s-rpm/kubernetes*.rpm
done
Send Certificates
for IP in 112; do
ssh root@192.168.56.$IP mkdir /etc/kubernetes/ssl
scp *.pem root@192.168.56.$IP:/etc/kubernetes/ssl
scp *.kubeconfig root@192.168.56.$IP:/etc/kubernetes/
scp token.csv root@192.168.56.$IP:/etc/kubernetes/
ssh root@192.168.56.$IP chown -R kube:kube /etc/kubernetes/ssl
done
Config files
cat /etc/kubernetes/config | grep -v ^#
KUBE_LOGTOSTDERR="--logtostderr=true"
KUBE_LOG_LEVEL="--v=2"
KUBE_ALLOW_PRIV="--allow-privileged=true"
cat /etc/kubernetes/kubelet | grep -v ^#
KUBELET_ADDRESS="--address=192.168.56.111"
KUBELET_HOSTNAME="--hostname-override=k8s-node-01"
KUBELET_ARGS="--cgroup-driver=systemd \
--cluster-dns=10.254.0.2 \
--fail-swap-on=false \
--network-plugin=cni \
--resolv-conf=/etc/resolv.conf \
--experimental-bootstrap-kubeconfig=/etc/kubernetes/bootstrap.kubeconfig \
--kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
--cert-dir=/etc/kubernetes/ssl \
--cluster-domain=cluster.local. \
--hairpin-mode promiscuous-bridge \
--serialize-image-pulls=false \
--pod-infra-container-image=gcr.io/google_containers/pause-amd64:3.0"
cat /etc/kubernetes/proxy | grep -v ^#
KUBE_PROXY_ARGS="--bind-address=192.168.56.111 \
--hostname-override=k8s-node-01 \
--kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig \
--cluster-cidr=10.254.0.0/16"
Enable node service
systemctl daemon-reload
systemctl start kubelet
systemctl enable kubelet
systemctl start kube-proxy
systemctl enable kube-proxy
kubectl get csr
NAME AGE REQUESTOR CONDITION
node-csr-Vnv0E_XSEV3iunGtRsqdqJiSCamgJPB5ErjRxs2E-LI 37s kubelet-bootstrap Pending
kubectl certificate approve node-csr-Vnv0E_XSEV3iunGtRsqdqJiSCamgJPB5ErjRxs2E-LI
kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-node-01 Ready <none> 4h v1.10.3
k8s-node-02 Ready <none> 4m v1.10.3
kubectl get pods --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-64b4dd5f65-b8kk9 1/1 Running 0 28m
kube-system calico-node-h5lr6 2/2 Running 7 6m
kube-system calico-node-r7cqs 2/2 Running 0 28m
3.8 安装CoreDNS
配置如下
wget https://raw.githubusercontent.com/coredns/deployment/master/kubernetes/coredns.yaml.sed
SERVICE_CIDR=${1:-10.254.0.0/16}
POD_CIDR=${2:-10.254.64.0/18}
CLUSTER_DNS_IP=${3:-10.254.0.2}
CLUSTER_DOMAIN=${4:-cluster.local}
YAML_TEMPLATE=${5:-pwd/coredns.yaml.sed}
Runbellow to generate configure file
sed -e s/CLUSTER_DNS_IP/$CLUSTER_DNS_IP/g -e s/CLUSTER_DOMAIN/$CLUSTER_DOMAIN/g -e s?SERVICE_CIDR?$SERVICE_CIDR?g -e s?POD_CIDR?$POD_CIDR?g $YAML_TEMPLATE > coredns.yaml
Change more configures as bellow
Corefile: |
.:53 {
errors
health
kubernetes cluster.local {
pods insecure
upstream
fallthrough in-addr.arpa ip6.arpa
}
prometheus :9153
proxy . /etc/resolv.conf
cache 30
loop
reload
loadbalance
}
进行部署
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem apply -f coredns.yaml
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE
default demo-deployment-7c687dbbfd-jxvnw 1/1 Running 0 17m 10.254.66.8 k8s-node-02
default demo-deployment-7c687dbbfd-l4pzv 1/1 Running 0 17m 10.254.95.250 k8s-node-01
default demo-deployment-7c687dbbfd-pjz9q 1/1 Running 0 17m 10.254.95.251 k8s-node-01
default demo-deployment-7c687dbbfd-xzb6b 1/1 Running 0 17m 10.254.95.249 k8s-node-01
kube-system calico-kube-controllers-64b4dd5f65-5r6sj 1/1 Running 0 17m 10.0.2.15 k8s-node-01
kube-system calico-node-bdv8q 2/2 Running 0 17m 10.0.2.15 k8s-node-01
kube-system calico-node-v4d25 2/2 Running 0 17m 10.0.2.15 k8s-node-02
kube-system coredns-794cc4cddd-jt4jf 1/1 Running 0 1m 10.254.66.15 k8s-node-02
kube-system coredns-794cc4cddd-k5n88 1/1 Running 0 1m 10.254.95.253 k8s-node-01
测试部署结果
[root@k8s-master-01 coredns]# kubectl exec -it demo-deployment-7c687dbbfd-l4pzv bash
bash-4.4# ping kubernetes
PING kubernetes (10.254.0.1): 56 data bytes
^C
--- kubernetes ping statistics ---
3 packets transmitted, 0 packets received, 100% packet loss
bash-4.4# exit
exit
command terminated with exit code 1
四、验证集群可用性
demo-deploy.yml
kind: Deployment
metadata:
name: demo-deployment
spec:
replicas: 4
template:
metadata:
labels:
app: demo
spec:
containers:
- name: demo
image: mritd/demo
ports:
- containerPort: 80
进行部署
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem apply -f demo.deploy.yml
查看部署结果
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE
demo-deployment-7c687dbbfd-4n2kh 1/1 Running 0 2m 10.254.66.6 k8s-node-02
demo-deployment-7c687dbbfd-fbc7n 1/1 Running 0 2m 10.254.95.244 k8s-node-01
demo-deployment-7c687dbbfd-j2rfr 1/1 Running 0 2m 10.254.95.245 k8s-node-01
demo-deployment-7c687dbbfd-plvnv 1/1 Running 0 2m 10.254.95.237 k8s-node-01
访问服务
# 查看网络连通性
kubectl --server https://192.168.56.100:6443 --certificate-authority /root/k8s-ca/k8s-root-ca.pem --client-certificate /root/k8s-ca/admin.pem --client-key /root/k8s-ca/admin-key.pem exec -it demo-deployment-7c687dbbfd-fbc7n bash
bash-4.4# ping 10.254.95.244
PING 10.254.95.244 (10.254.95.244): 56 data bytes
64 bytes from 10.254.95.244: seq=0 ttl=64 time=0.147 ms
64 bytes from 10.254.95.244: seq=1 ttl=64 time=0.091 ms
^C
--- 10.254.95.244 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.091/0.119/0.147 ms
# 访问HTTP服务
bash-4.4# curl 10.254.95.244
<!DOCTYPE html>
<html lang="zh">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Running!</title>
<style type="text/css">
body {
width: 100%;
min-height: 100%;
background: linear-gradient(to bottom,fff 0,b8edff 50%,83dfff 100%);
background-attachment: fixed;
}
</style>
</head>
<body class=" hasGoogleVoiceExt">
<div align="center">
<h1>Your container is running!</h1>
<img src="./docker.png" alt="docker">
</div>
</body>
