一、前言
service mesh是为复杂微服务系统提供基础设施服务的方法，支持Kubernetes的service mesh实现包括文章《十八：使用helm安装istio》和《二十三：Service Mesh之在Kubernetes部署Istio进行service mesh》介绍的Istio以及本文要介绍的Linkerd2。
Linkerd可以在不进行任何入侵性改动的情况下，为部署在Kubernetes的微服务提供可调试性、可观测性、可靠性和安全性等能力。Linkerd主要包含UI、控制面和数据面三大组建。
根据众多测评的结果，普遍认为Linkerd2在数据面基于Rust编写的linkerd-proxy的性能要比Istio的Envoy好：
结论：
与裸金属相比，在常规条件下，Linkerd 和 Istio 的开销都算是可以接受的。当进入高负载状态时，相对于 Istio，Linkerd 能够提供更高的 RPS，并且使用更少的资源。
结论：
对于这种综合的工作负载，Istio的Envoy代理使用的CPU比Linkerd多了50%以上。Linkerd的控制平面使用了Istio的一小部分，尤其是在考虑“核心”组件时。
结论：
In this experiment, both the Linkerd2-meshed setup and Istio-meshed setup experienced higher latency and lower throughput, when compared with the baseline setup. The latency incurred in the Istio-meshed setup was higher than that observed in the Linkerd2-meshed setup. The Linkerd2-meshed setup was able to handle higher HTTP and GRPC ping throughput than the Istio-meshed setup.
二、Linkerd2架构
2.1 架构

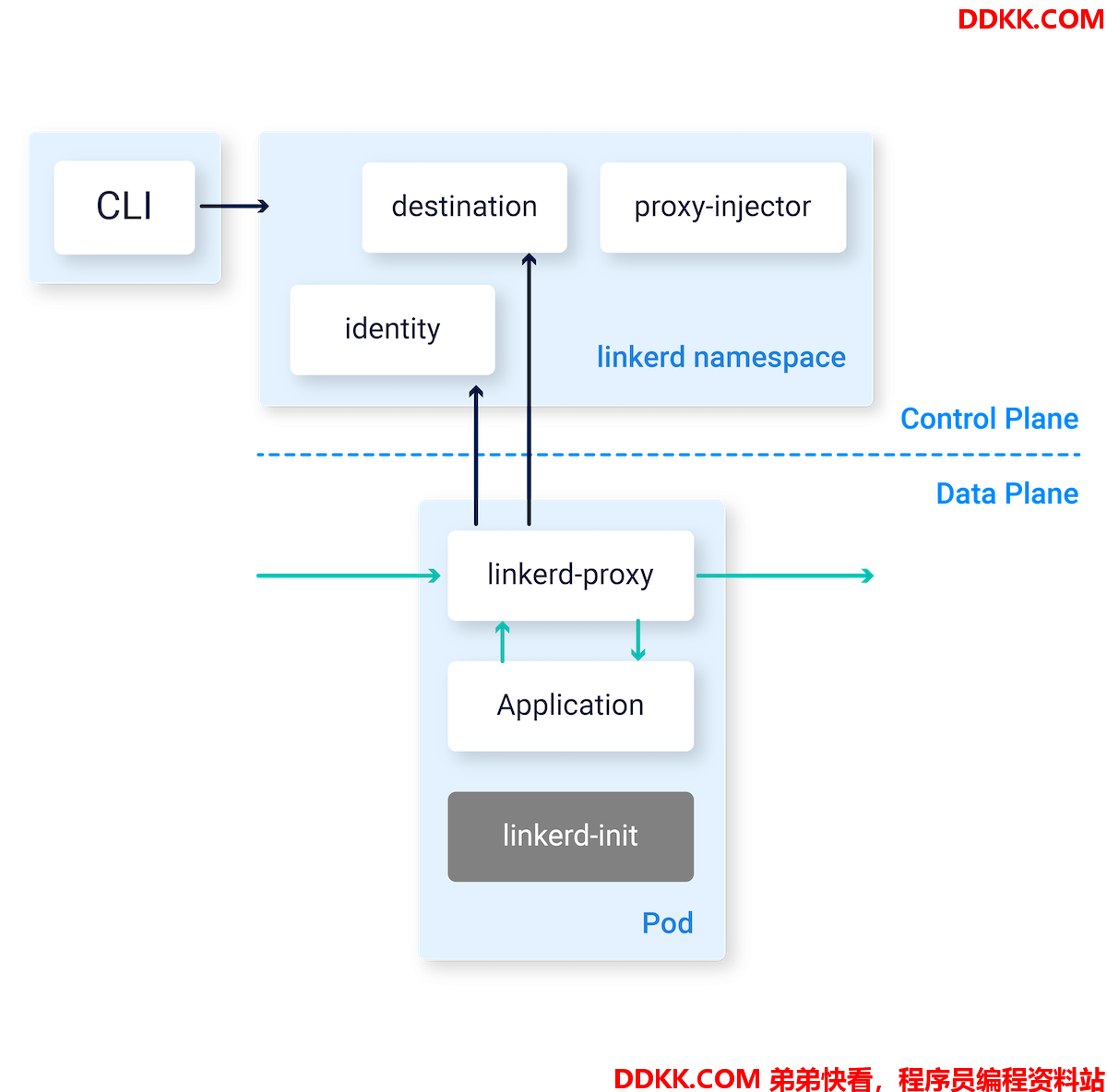

Linkerd架构由控制面和数据面组成：
1、 控制面主要的工作包括遥测数据汇总、提供API、配置数据面proxy等，模块包括Controller(提供API服务)、Destination(proxy配置和路由)、Identity(安全控制/mTLS)、ProxyInjector(是一个Kubernetes准入控制器，在业务POD内部注入Linkerd数据面相关的sidecar)、ServiceProfileValidator(服务配置验证准入控制器)、Tap(具体服务的proxy的数据流观测)、Web(dashboard)、监控套件(Prometheus和Grafana)；
2、 数据面主要的工作是使用sidecard进行业务容器数据流的代理，由linkerd-init和proxy两个模块组成；linkerd-init进行iptables的配置，所配置的规则包括任何目的地为PODIP的数据都会先被转发到proxy的4143端口，任何从POD外出的数据包都会先被转发到4140端口；proxy是用Rust编写的轻量级透明代理，作为业务POD的sidecar对进出POD的流量进行拦截，可以无入侵的对HTTP、HTTP/2、WebSocket和任何TCP协议进行透明代理，自动的延迟感知的七层负载均衡，自动的四层非HTTP流量负载均衡，按需进行数据流TAP分析；
2.2 工作原理
Linkerd通过在业务POD中安装轻量级的透明代理sidecar进行业务POD的服务接入，这些sidecar代理随后会自动对进出POD的流量进行处理。这些轻量级的进程会向控制面发送测量的metrics并且从控制面接受控制信息。
在部署服务的时候，可以通过在部署的Kubernetes的spec文件里面加入如下annonation来声明接入到Linkerd的Service Mesh中：
linkerd.io/inject: enabled
对于所有的标注了这个label的部署，linkerd-inject准入控制器会在部署的时候将数据面的proxy作为sidecar注入到业务POD里面:
三、部署Linkerd
参考：
3.1 安装CLI
curl -sL https://run.linkerd.io/install | sh
export PATH=$PATH:$HOME/.linkerd2/bin
linkerd version
Client version: stable-2.7.1
Server version: unavailable
3.2 验证Kubernetes集群状态
linkerd check --pre
kubernetes-api
--------------
√ can initialize the client
√ can query the Kubernetes API
kubernetes-version
------------------
× is running the minimum Kubernetes API version
Kubernetes is on version [1.11.5], but version [1.13.0] or more recent is required
see https://linkerd.io/checks/#k8s-version for hints
× is running the minimum kubectl version
kubectl is on version [1.11.3], but version [1.13.0] or more recent is required
see https://linkerd.io/checks/#kubectl-version for hints
pre-kubernetes-setup
--------------------
× control plane namespace does not already exist
The "linkerd" namespace already exists
see https://linkerd.io/checks/#pre-ns for hints
× can create non-namespaced resources
√ can create ServiceAccounts
√ can create Services
√ can create Deployments
√ can create CronJobs
√ can create ConfigMaps
√ can create Secrets
√ can read Secrets
√ no clock skew detected
pre-kubernetes-capability
-------------------------
√ has NET_ADMIN capability
√ has NET_RAW capability
linkerd-version
---------------
√ can determine the latest version
√ cli is up-to-date
Status check results are ×
3.3. 安装Linkerd
linkerd install | kubectl apply -f -

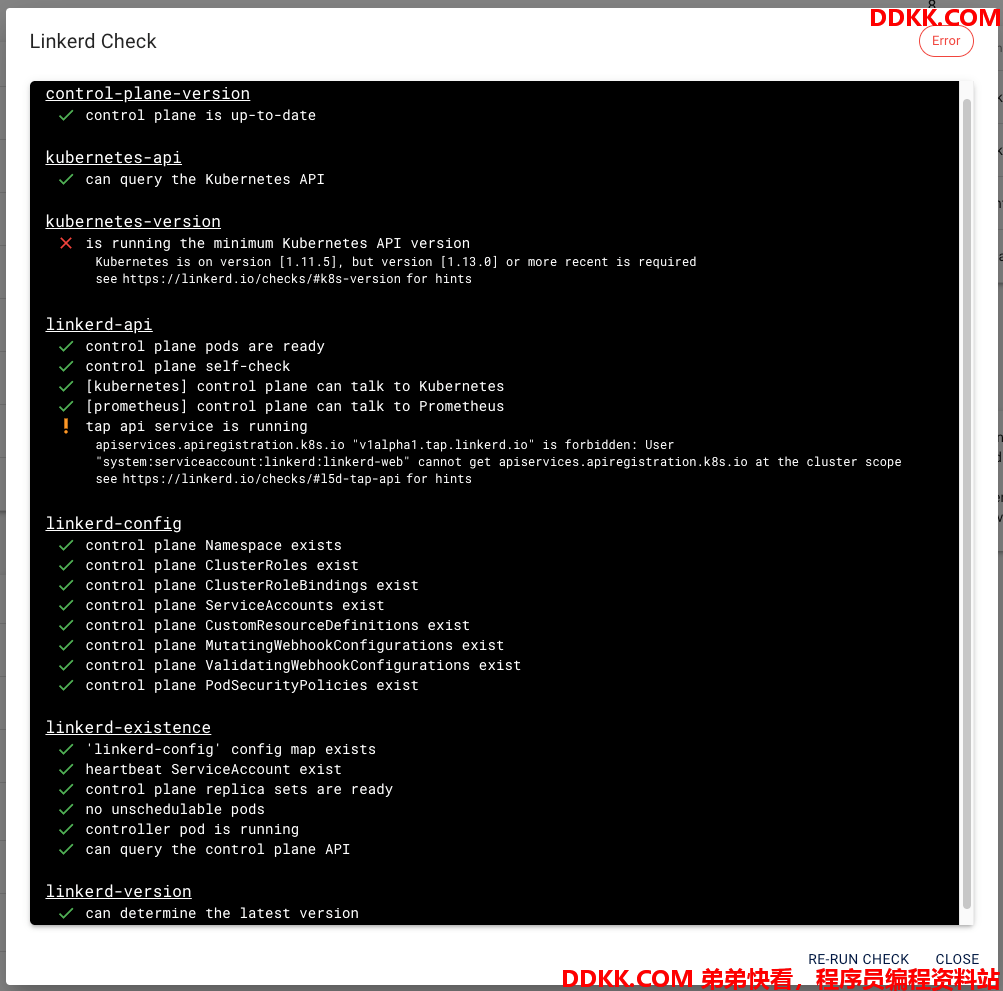

3.4 安装后的check
服务的安装情况 deployment：

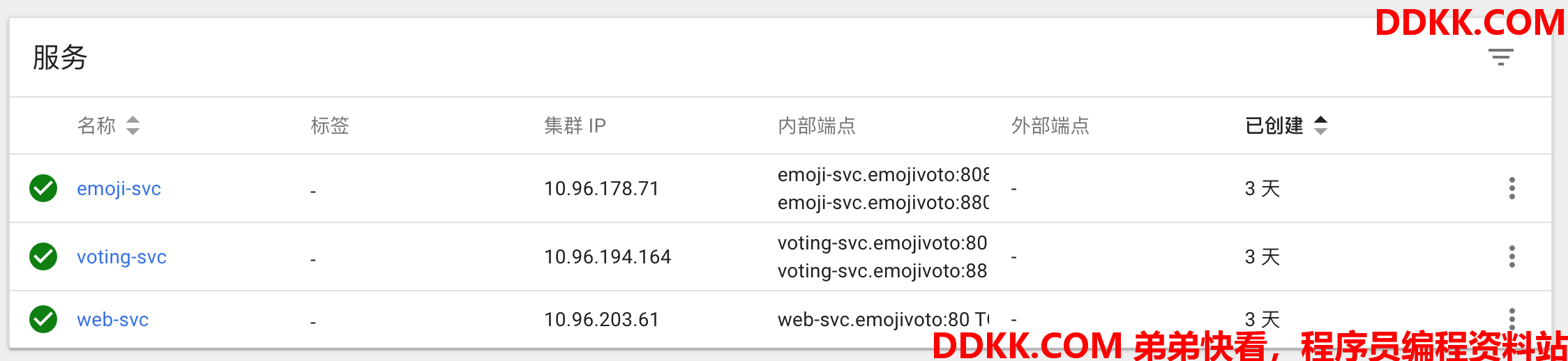

service:
四、部署服务
4.1 修改yaml进行Linkerd注入和部署
这里部署这个服务系统emojivoto来进行演示，这个系统的构成如下：

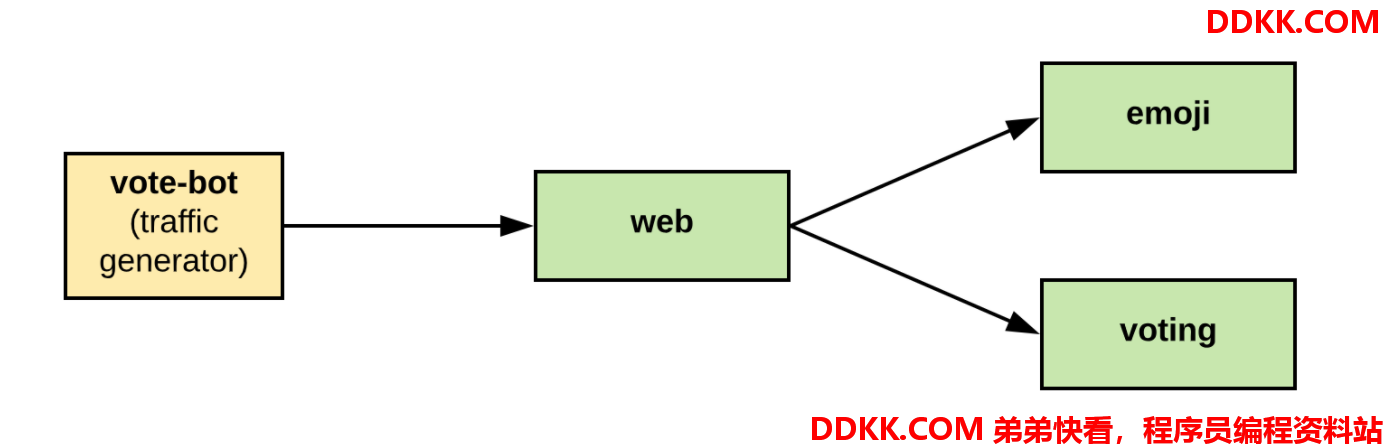

web服务提供REST API，emoji服务通过gRPC提供emoji的查找和list操作，voting服务通过gRPC提供投票和结果排名服务，vote-bot会自动进行投票模拟。在服务中，投票选举🍩会失败，vote-bot选择🍩的概率是15%，所以结果里面回头15%左右的请求失败。
部署之前需要进行Linkerd的注入操作：
cat emojivoto.yml | linkerd inject - > emojivoto-inject.yml

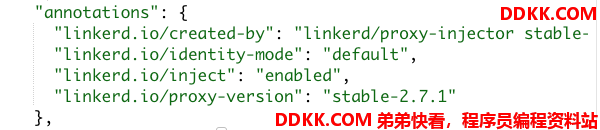

注入之后的yml如下，会加入linkerd.io/inject: enabled的注释：
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app.kubernetes.io/name: emoji
app.kubernetes.io/part-of: emojivoto
app.kubernetes.io/version: v10
name: emoji
namespace: emojivoto
spec:
replicas: 1
selector:
matchLabels:
app: emoji-svc
template:
metadata:
annotations:
linkerd.io/inject: enabled
labels:
app: emoji-svc
spec:
containers:
- env:
- name: GRPC_PORT
value: "8080"
- name: PROM_PORT
value: "8801"
image: buoyantio/emojivoto-emoji-svc:v10
name: emoji-svc
ports:
- containerPort: 8080
name: grpc
- containerPort: 8801
name: prom
resources:
requests:
cpu: 100m
serviceAccountName: emoji
4.2 部署结果

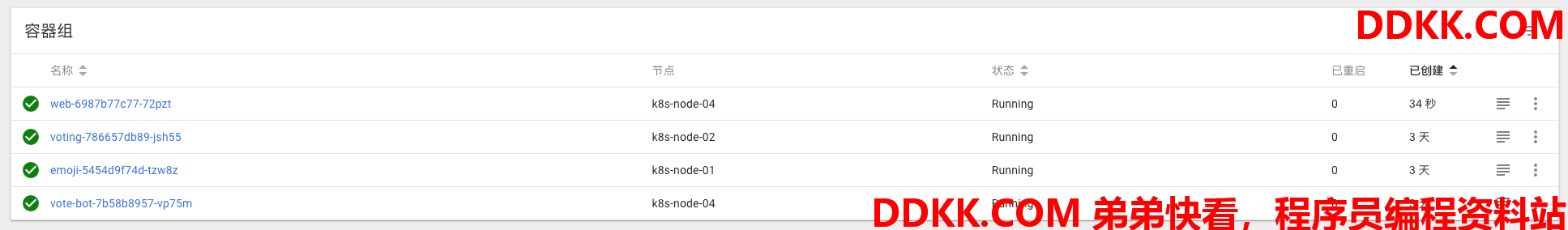

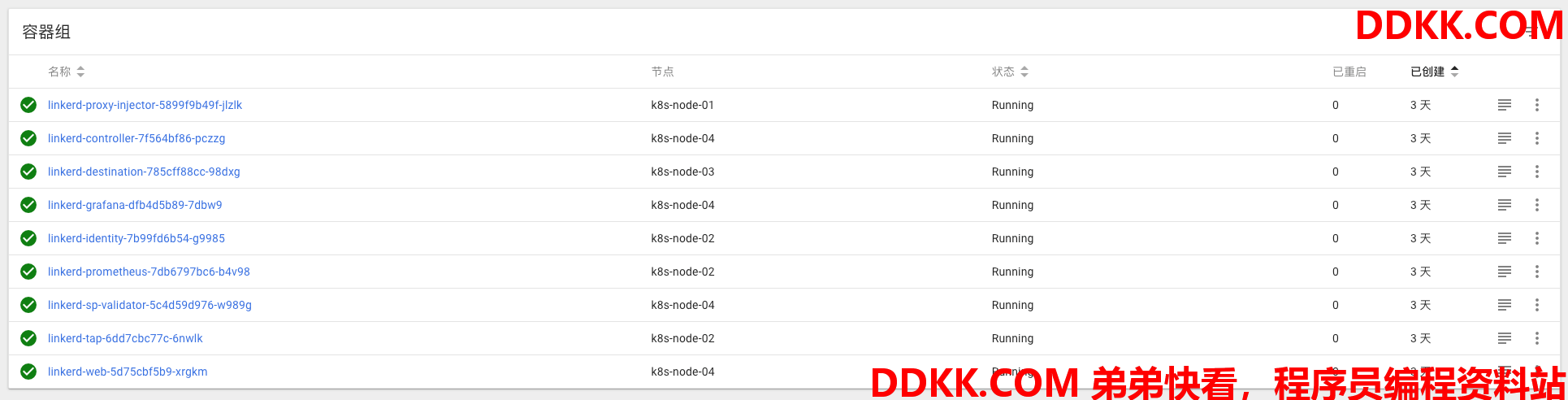

部署的POD如下：

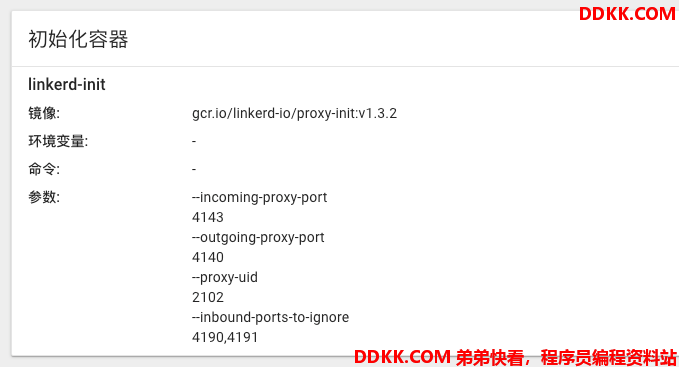

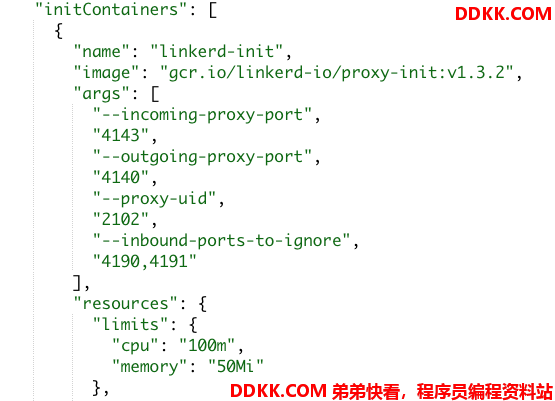

选择里面web POD进行查看可以看到被注入了一个linkerd-init 容器：

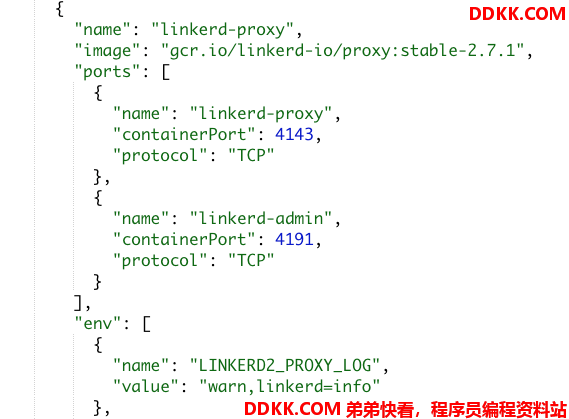

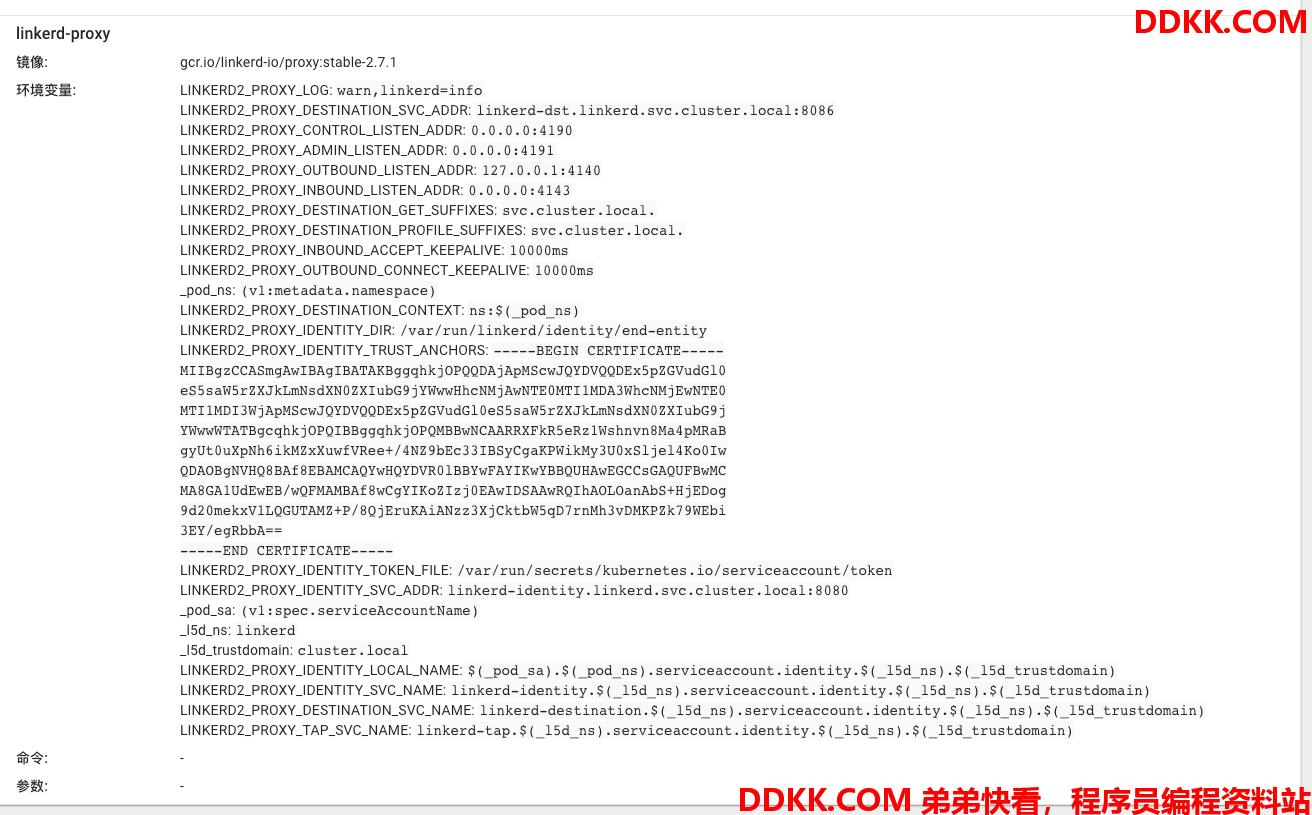

和一个linkerd-proxy 容器：
而且从容器日志可以看到linkerd-init 容器进行的iptables操作如下：
2020/05/18 09:48:21 Tracing this script execution as [1589795301]
2020/05/18 09:48:21 State of iptables rules before run:
2020/05/18 09:48:21 > iptables -t nat -vnL
2020/05/18 09:48:21 < Chain PREROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain INPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain OUTPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
2020/05/18 09:48:21 > iptables -t nat -F PROXY_INIT_REDIRECT
2020/05/18 09:48:21 < iptables: No chain/target/match by that name.
2020/05/18 09:48:21 > iptables -t nat -X PROXY_INIT_REDIRECT
2020/05/18 09:48:21 < iptables: No chain/target/match by that name.
2020/05/18 09:48:21 Will ignore port(s) [4190 4191] on chain PROXY_INIT_REDIRECT
2020/05/18 09:48:21 Will redirect all INPUT ports to proxy
2020/05/18 09:48:21 > iptables -t nat -F PROXY_INIT_OUTPUT
2020/05/18 09:48:21 < iptables: No chain/target/match by that name.
2020/05/18 09:48:21 > iptables -t nat -X PROXY_INIT_OUTPUT
2020/05/18 09:48:21 < iptables: No chain/target/match by that name.
2020/05/18 09:48:21 Ignoring uid 2102
2020/05/18 09:48:21 Redirecting all OUTPUT to 4140
2020/05/18 09:48:21 Executing commands:
2020/05/18 09:48:21 > iptables -t nat -N PROXY_INIT_REDIRECT -m comment --comment proxy-init/redirect-common-chain/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PROXY_INIT_REDIRECT -p tcp --match multiport --dports 4190,4191 -j RETURN -m comment --comment proxy-init/ignore-port-4190,4191/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PROXY_INIT_REDIRECT -p tcp -j REDIRECT --to-port 4143 -m comment --comment proxy-init/redirect-all-incoming-to-proxy-port/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PREROUTING -j PROXY_INIT_REDIRECT -m comment --comment proxy-init/install-proxy-init-prerouting/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -N PROXY_INIT_OUTPUT -m comment --comment proxy-init/redirect-common-chain/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PROXY_INIT_OUTPUT -m owner --uid-owner 2102 -o lo ! -d 127.0.0.1/32 -j PROXY_INIT_REDIRECT -m comment --comment proxy-init/redirect-non-loopback-local-traffic/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PROXY_INIT_OUTPUT -m owner --uid-owner 2102 -j RETURN -m comment --comment proxy-init/ignore-proxy-user-id/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PROXY_INIT_OUTPUT -o lo -j RETURN -m comment --comment proxy-init/ignore-loopback/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A PROXY_INIT_OUTPUT -p tcp -j REDIRECT --to-port 4140 -m comment --comment proxy-init/redirect-all-outgoing-to-proxy-port/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -A OUTPUT -j PROXY_INIT_OUTPUT -m comment --comment proxy-init/install-proxy-init-output/1589795301
2020/05/18 09:48:21 <
2020/05/18 09:48:21 > iptables -t nat -vnL
2020/05/18 09:48:21 < Chain PREROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
0 0 PROXY_INIT_REDIRECT all -- * * 0.0.0.0/0 0.0.0.0/0 /* proxy-init/install-proxy-init-prerouting/1589795301 */
Chain INPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain OUTPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
0 0 PROXY_INIT_OUTPUT all -- * * 0.0.0.0/0 0.0.0.0/0 /* proxy-init/install-proxy-init-output/1589795301 */
Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain PROXY_INIT_OUTPUT (1 references)
pkts bytes target prot opt in out source destination
0 0 PROXY_INIT_REDIRECT all -- * lo 0.0.0.0/0 !127.0.0.1 owner UID match 2102 /* proxy-init/redirect-non-loopback-local-traffic/1589795301 */
0 0 RETURN all -- * * 0.0.0.0/0 0.0.0.0/0 owner UID match 2102 /* proxy-init/ignore-proxy-user-id/1589795301 */
0 0 RETURN all -- * lo 0.0.0.0/0 0.0.0.0/0 /* proxy-init/ignore-loopback/1589795301 */
0 0 REDIRECT tcp -- * * 0.0.0.0/0 0.0.0.0/0 /* proxy-init/redirect-all-outgoing-to-proxy-port/1589795301 */ redir ports 4140
Chain PROXY_INIT_REDIRECT (2 references)
pkts bytes target prot opt in out source destination
0 0 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 multiport dports 4190,4191 /* proxy-init/ignore-port-4190,4191/1589795301 */
0 0 REDIRECT tcp -- * * 0.0.0.0/0 0.0.0.0/0 /* proxy-init/redirect-all-incoming-to-proxy-port/1589795301 */ redir ports 4143
五、通过Linkerd Dashboard观察Service Mesh
通过如下命令可以启动linkerd dashboard：
linkerd dashboard &

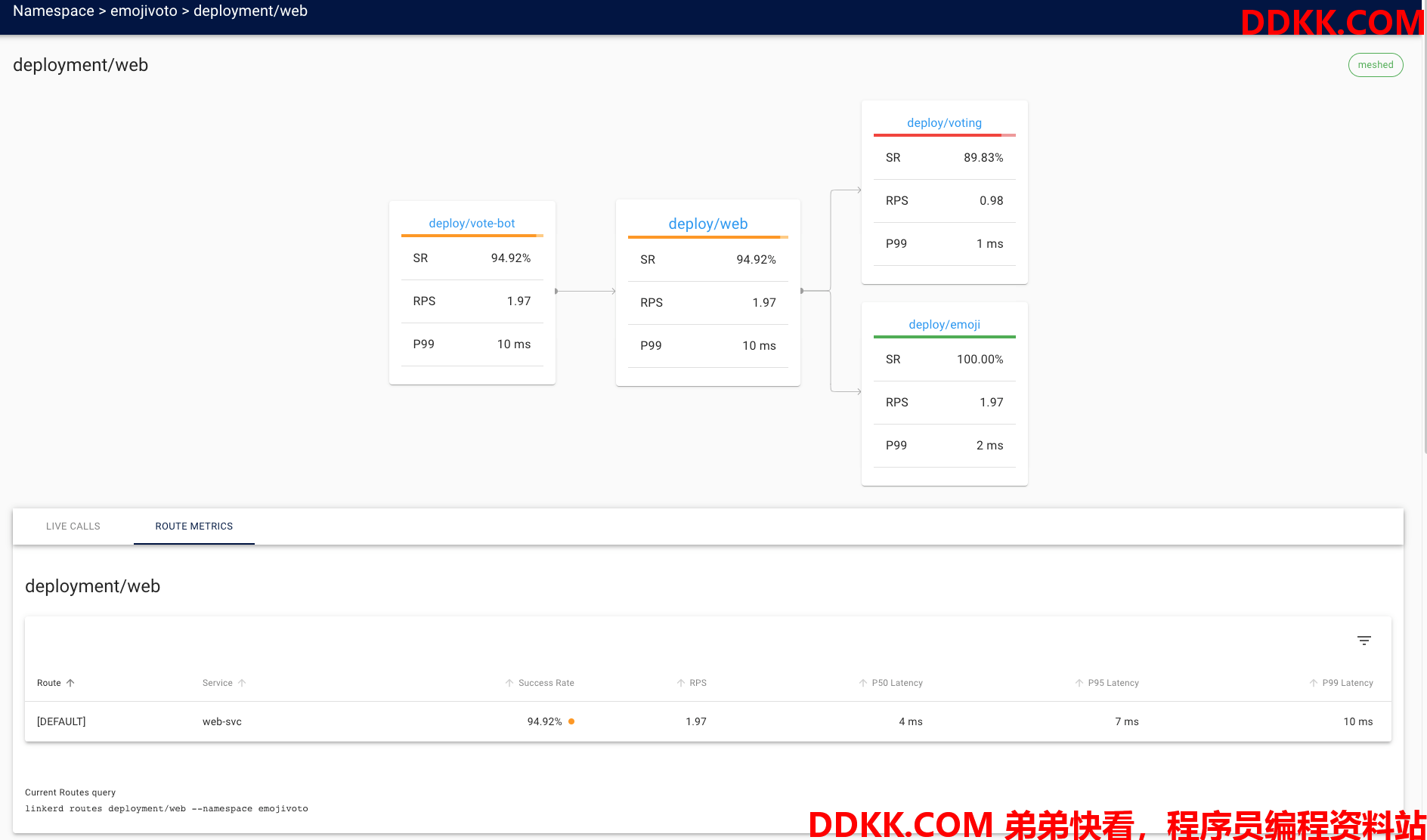

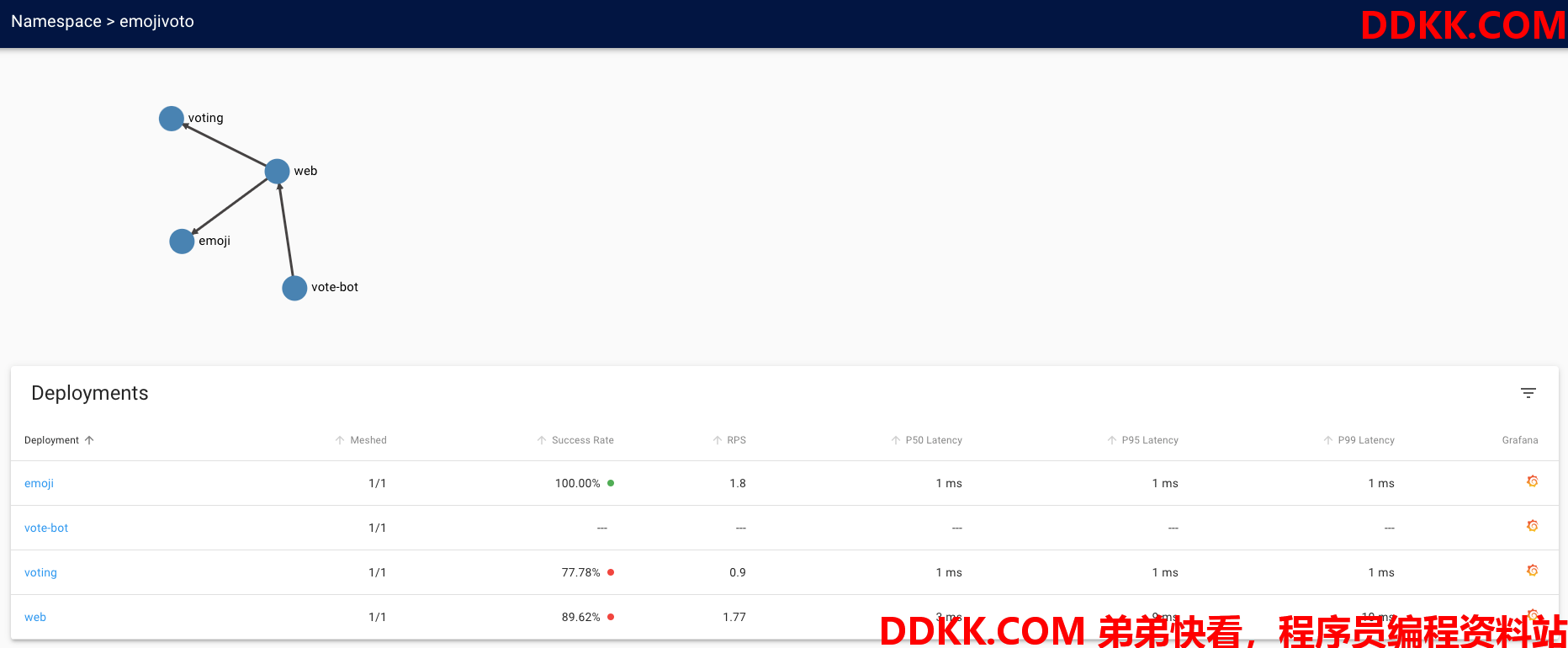

可以看到这个namespace的服务进行service mesh之后的状态：
也可以查看单个服务的信息：
Linkerd自带的监控系统还可以展示grafana监控信息：
