全局事务拦截器
前言
在上篇文档，我们分析了全局事务扫描器会为使用了分布式事务注解的Bean 添加拦截器，接下来我们分析下全局事务拦截器GlobalTransactionalInterceptor是如何进行拦截的？
方法代理拦截
GlobalTransactionalInterceptor 实现了MethodInterceptor接口，MethodInterceptor是AOP中的拦截器，它拦截的目标是方法，实现该接口可以对需要增强的方法进行增强，扫描器扫描到标注了@GlobalTransaction的方法，就会添加这个AOP，所以执行目标方法时，实际是进入了拦截器的invoke方法。
在invoke方法中，会获取当前执行方法上的注解信息，然后开启全局事务：
@Override
public Object invoke(final MethodInvocation methodInvocation) throws Throwable {
// 目标的Class 类型
Class<?> targetClass =
methodInvocation.getThis() != null ? AopUtils.getTargetClass(methodInvocation.getThis()) : null;
// 目标的执行方法
Method specificMethod = ClassUtils.getMostSpecificMethod(methodInvocation.getMethod(), targetClass);
if (specificMethod != null && !specificMethod.getDeclaringClass().equals(Object.class)) {
final Method method = BridgeMethodResolver.findBridgedMethod(specificMethod);
// 获取@GlobalTransactional注解
final GlobalTransactional globalTransactionalAnnotation =
getAnnotation(method, targetClass, GlobalTransactional.class);
// 获取@GlobalLock 注解
final GlobalLock globalLockAnnotation = getAnnotation(method, targetClass, GlobalLock.class);
boolean localDisable = disable || (degradeCheck && degradeNum >= degradeCheckAllowTimes);
if (!localDisable) {
if (globalTransactionalAnnotation != null) {
// 执行@GlobalTransactional全局事务
return handleGlobalTransaction(methodInvocation, globalTransactionalAnnotation);
} else if (globalLockAnnotation != null) {
// 执行@GlobalLock事务
return handleGlobalLock(methodInvocation, globalLockAnnotation);
}
}
}
// 没有注解，直接执行
return methodInvocation.proceed();
}
事务执行器

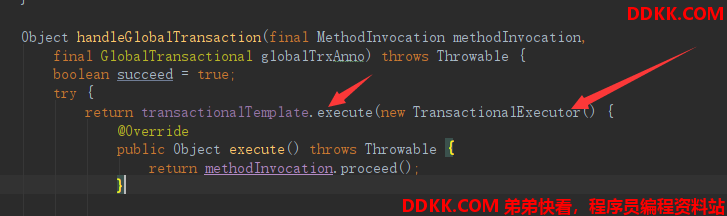

在使用了@GlobalTransactional注解时，会进入到handleGlobalTransaction方法中，该方法首先会创建一个事务执行器，然后使用事务处理模板类，进入execute方法执行。
TransactionalExecutor 事务执行器接口，提供了两个方法，具体说明如下：
public interface TransactionalExecutor {
/**
* 执行实际业务逻辑
*/
Object execute() throws Throwable;
/**
* 获取事务配置或其他属性
*/
TransactionInfo getTransactionInfo();
}
在TransactionalExecutor声明了一个内部枚举，用于标记事务异常时的状态：
public static enum Code {
// 开始失败
BeginFailure,
// 提交失败
CommitFailure,
// 回滚失败
RollbackFailure,
// 回滚完成
RollbackDone,
// 报告失败
ReportFailure,
// 回滚重试中
RollbackRetrying;
}
handleGlobalTransaction方法中，直接使用内部类创建了一个TransactionalExecutor实例，代码如下：
new TransactionalExecutor() {
// 执行业务逻辑
@Override
public Object execute() throws Throwable {
return methodInvocation.proceed();
}
// 自定义或者格式化生成事务的名称
public String name() {
String name = globalTrxAnno.name();
if (!StringUtils.isNullOrEmpty(name)) {
return name;
}
return formatMethod(methodInvocation.getMethod());
}
// 将注解封装为成TransactionInfo对象
@Override
public TransactionInfo getTransactionInfo() {
// reset the value of timeout
// 超时时间
int timeout = globalTrxAnno.timeoutMills();
if (timeout <= 0 || timeout == DEFAULT_GLOBAL_TRANSACTION_TIMEOUT) {
timeout = defaultGlobalTransactionTimeout;
}
TransactionInfo transactionInfo = new TransactionInfo();
transactionInfo.setTimeOut(timeout);
// 事务名=》test()
transactionInfo.setName(name());
// 传播行为=》REQUIRED
transactionInfo.setPropagation(globalTrxAnno.propagation());
transactionInfo.setLockRetryInternal(globalTrxAnno.lockRetryInternal());
transactionInfo.setLockRetryTimes(globalTrxAnno.lockRetryTimes());
// 回滚规则
Set<RollbackRule> rollbackRules = new LinkedHashSet<>();
for (Class<?> rbRule : globalTrxAnno.rollbackFor()) {
rollbackRules.add(new RollbackRule(rbRule));
}
for (String rbRule : globalTrxAnno.rollbackForClassName()) {
rollbackRules.add(new RollbackRule(rbRule));
}
for (Class<?> rbRule : globalTrxAnno.noRollbackFor()) {
rollbackRules.add(new NoRollbackRule(rbRule));
}
for (String rbRule : globalTrxAnno.noRollbackForClassName()) {
rollbackRules.add(new NoRollbackRule(rbRule));
}
transactionInfo.setRollbackRules(rollbackRules);
return transactionInfo;
}
});

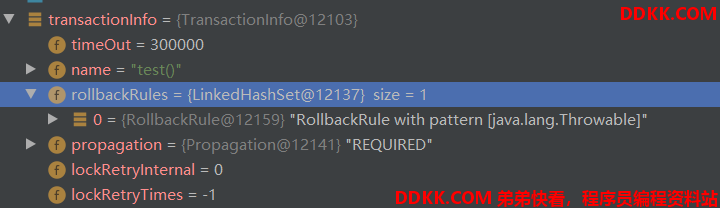

最终当前TransactionalExecutor实例，包含的事务信息如下图所示：
事务模板处理类
TransactionalExecutor实例创建后，它包含了当前事务注解的信息和被代理执行的方法，接着就会调用执行模板TransactionalTemplate的execute方法，该方法是执行全局事务的核心方法，其中包含了AT模式下，两个阶段处理逻辑：
public Object execute(TransactionalExecutor business) throws Throwable {
// 注解信息
TransactionInfo txInfo = business.getTransactionInfo();
if (txInfo == null) {
throw new ShouldNeverHappenException("transactionInfo does not exist");
} else {
// 1. 从RootContext中获取xid，没有则返回NULL,
// 这里是全局事务发起方，所有没有，直接返回NULL
// 如果是被调用方，则会存在传递过来的xid,使用xid创建GlobalTransaction 对象
GlobalTransaction tx = GlobalTransactionContext.getCurrent();
// 2. 事务传播行为，默认为REQUIRED
// REQUIRED：如果本来有事务，则加入该事务，如果没有事务，则创建新的事务
Propagation propagation = txInfo.getPropagation();
SuspendedResourcesHolder suspendedResourcesHolder = null;
Object ex;
try {
Object var6;
// 3. 根据不同的传播行为，执行不同的逻辑
switch(propagation) {
case NOT_SUPPORTED:
if (this.existingTransaction(tx)) {
suspendedResourcesHolder = tx.suspend();
}
var6 = business.execute();
return var6;
case REQUIRES_NEW:
if (this.existingTransaction(tx)) {
suspendedResourcesHolder = tx.suspend();
tx = GlobalTransactionContext.createNew();
}
break;
case SUPPORTS:
if (this.notExistingTransaction(tx)) {
var6 = business.execute();
return var6;
}
case REQUIRED:
break;
case NEVER:
if (this.existingTransaction(tx)) {
throw new TransactionException(String.format("Existing transaction found for transaction marked with propagation 'never', xid = %s", tx.getXid()));
}
var6 = business.execute();
return var6;
case MANDATORY:
if (this.notExistingTransaction(tx)) {
throw new TransactionException("No existing transaction found for transaction marked with propagation 'mandatory'");
}
break;
default:
throw new TransactionException("Not Supported Propagation:" + propagation);
}
// 4. 不存在全局事务信息，创建一个
if (tx == null) {
tx = GlobalTransactionContext.createNew();
}
GlobalLockConfig previousConfig = this.replaceGlobalLockConfig(txInfo);
// 5. 执行全局事务
try {
// 5.1 开启全局事务
this.beginTransaction(txInfo, tx);
Object rs;
try {
// 5.2 执行业务逻辑
rs = business.execute();
} catch (Throwable var17) {
ex = var17;
// 5.3 发生异常全局回滚
this.completeTransactionAfterThrowing(txInfo, tx, var17);
throw var17;
}
// 5.4 没有异常，提交全局事务
this.commitTransaction(tx);
ex = rs;
} finally {
// 释放资源
this.resumeGlobalLockConfig(previousConfig);
this.triggerAfterCompletion();
this.cleanUp();
}
} finally {
if (suspendedResourcesHolder != null) {
tx.resume(suspendedResourcesHolder);
}
}
return ex;
}
}
全局事务
GlobalTransaction就是Seata 中的全局事务，默认实现类为DefaultGlobalTransaction，实现了其开始、提交、回滚等方法。
public interface GlobalTransaction {
/**
* Begin a new global transaction with default timeout and name.
*
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
*/
void begin() throws TransactionException;
/**
* Begin a new global transaction with given timeout and default name.
*
* @param timeout Global transaction timeout in MILLISECONDS
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
*/
void begin(int timeout) throws TransactionException;
/**
* Begin a new global transaction with given timeout and given name.
*
* @param timeout Given timeout in MILLISECONDS.
* @param name Given name.
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
*/
void begin(int timeout, String name) throws TransactionException;
/**
* Commit the global transaction.
*
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
*/
void commit() throws TransactionException;
/**
* Rollback the global transaction.
*
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
*/
void rollback() throws TransactionException;
/**
* Suspend the global transaction.
*
* @return the SuspendedResourcesHolder which holds the suspend resources
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* @see SuspendedResourcesHolder
*/
SuspendedResourcesHolder suspend() throws TransactionException;
/**
* Resume the global transaction.
*
* @param suspendedResourcesHolder the suspended resources to resume
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
* @see SuspendedResourcesHolder
*/
void resume(SuspendedResourcesHolder suspendedResourcesHolder) throws TransactionException;
/**
* Ask TC for current status of the corresponding global transaction.
*
* @return Status of the corresponding global transaction.
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
* @see GlobalStatus
*/
GlobalStatus getStatus() throws TransactionException;
/**
* Get XID.
*
* @return XID. xid
*/
String getXid();
/**
* report the global transaction status.
*
* @param globalStatus global status.
*
* @throws TransactionException Any exception that fails this will be wrapped with TransactionException and thrown
* out.
*/
void globalReport(GlobalStatus globalStatus) throws TransactionException;
/**
* local status of the global transaction.
*
* @return Status of the corresponding global transaction.
* @see GlobalStatus
*/
GlobalStatus getLocalStatus();
/**
* get global transaction role.
*
* @return global transaction Role.
* @see GlobalTransactionRole
*/
GlobalTransactionRole getGlobalTransactionRole();
}
总结
1、 GlobalTransactionalInterceptor使用AOP对添加了事务注解的方法进行代理执行；
2、 创建事务执行器TransactionalExecutor，实际封装了被代理的业务逻辑执行对象和注解信息；
3、 调用TransactionalTemplate，进行分布式事务的两个阶段执行，发生异常回滚，无异常全局提交；
