错误信息
当前环境
- Spring Boot : 2.3.12.RELEASE
- Nacos : 2.0.3
- Seata:1.4.2
- mysql-connector-java：8.0.25
报错信息
在全局事务进行失败进行全局回滚时，出现报错信息，如下：
com.fasterxml.jackson.databind.exc.InvalidDefinitionException: Cannot construct instance of java.time.LocalDateTime (no Creators, like default constructor, exist): cannot deserialize from Object value (no delegate- or property-based Creator)
at [Source: (byte[])"{"@class":"io.seata.rm.datasource.undo.BranchUndoLog","xid":"192.168.1.29:8091:2747451841886423578","branchId":2747451841886423582,"sqlUndoLogs":["java.util.ArrayList",[{"@class":"io.seata.rm.datasource.undo.SQLUndoLog","sqlType":"INSERT","tableName":"illegal_det_record_detail","beforeImage":{"@class":"io.seata.rm.datasource.sql.struct.TableRecords$EmptyTableRecords","tableName":"illegal_det_record_detail","rows":["java.util.ArrayList",[]]},"afterImage":{"@class":"io.seata.rm.datasource.sql.stru"[truncated 3115 bytes]; line: 1, column: 2173] (through reference chain: io.seata.rm.datasource.undo.BranchUndoLog["sqlUndoLogs"]->java.util.ArrayList[0]->io.seata.rm.datasource.undo.SQLUndoLog["afterImage"]->io.seata.rm.datasource.sql.struct.TableRecords["rows"]->java.util.ArrayList[0]->io.seata.rm.datasource.sql.struct.Row["fields"]->java.util.ArrayList[11]->io.seata.rm.datasource.sql.struct.Field["value"])
at com.fasterxml.jackson.databind.exc.InvalidDefinitionException.from(InvalidDefinitionException.java:67)
at com.fasterxml.jackson.databind.DeserializationContext.reportBadDefinition(DeserializationContext.java:1615)
at com.fasterxml.jackson.databind.DatabindContext.reportBadDefinition(DatabindContext.java:400)
at com.fasterxml.jackson.databind.DeserializationContext.handleMissingInstantiator(DeserializationContext.java:1077)
at com.fasterxml.jackson.databind.deser.BeanDeserializerBase.deserializeFromObjectUsingNonDefault(BeanDeserializerBase.java:1332)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserializeFromObject(BeanDeserializer.java:331)
at com.fasterxml.jackson.databind.deser.BeanDeserializer._deserializeOther(BeanDeserializer.java:199)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserialize(BeanDeserializer.java:166)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer._deserializeTypedForId(AsPropertyTypeDeserializer.java:132)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromObject(AsPropertyTypeDeserializer.java:99)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromAny(AsPropertyTypeDeserializer.java:195)
at com.fasterxml.jackson.databind.deser.std.UntypedObjectDeserializer$Vanilla.deserializeWithType(UntypedObjectDeserializer.java:710)
at com.fasterxml.jackson.databind.deser.impl.MethodProperty.deserializeAndSet(MethodProperty.java:138)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.vanillaDeserialize(BeanDeserializer.java:293)
at com.fasterxml.jackson.databind.deser.BeanDeserializer._deserializeOther(BeanDeserializer.java:194)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserialize(BeanDeserializer.java:166)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer._deserializeTypedForId(AsPropertyTypeDeserializer.java:132)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromObject(AsPropertyTypeDeserializer.java:99)
at com.fasterxml.jackson.databind.deser.BeanDeserializerBase.deserializeWithType(BeanDeserializerBase.java:1209)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:292)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:249)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:26)
at com.fasterxml.jackson.databind.jsontype.impl.AsArrayTypeDeserializer._deserialize(AsArrayTypeDeserializer.java:120)
at com.fasterxml.jackson.databind.jsontype.impl.AsArrayTypeDeserializer.deserializeTypedFromArray(AsArrayTypeDeserializer.java:53)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserializeWithType(CollectionDeserializer.java:318)
at com.fasterxml.jackson.databind.deser.impl.MethodProperty.deserializeAndSet(MethodProperty.java:138)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.vanillaDeserialize(BeanDeserializer.java:293)
at com.fasterxml.jackson.databind.deser.BeanDeserializer._deserializeOther(BeanDeserializer.java:194)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserialize(BeanDeserializer.java:166)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer._deserializeTypedForId(AsPropertyTypeDeserializer.java:132)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromObject(AsPropertyTypeDeserializer.java:99)
at com.fasterxml.jackson.databind.deser.BeanDeserializerBase.deserializeWithType(BeanDeserializerBase.java:1209)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:292)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:249)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:26)
at com.fasterxml.jackson.databind.jsontype.impl.AsArrayTypeDeserializer._deserialize(AsArrayTypeDeserializer.java:120)
at com.fasterxml.jackson.databind.jsontype.impl.AsArrayTypeDeserializer.deserializeTypedFromArray(AsArrayTypeDeserializer.java:53)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserializeWithType(CollectionDeserializer.java:318)
at com.fasterxml.jackson.databind.deser.impl.MethodProperty.deserializeAndSet(MethodProperty.java:138)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.vanillaDeserialize(BeanDeserializer.java:293)
at com.fasterxml.jackson.databind.deser.BeanDeserializer._deserializeOther(BeanDeserializer.java:194)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserialize(BeanDeserializer.java:166)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer._deserializeTypedForId(AsPropertyTypeDeserializer.java:132)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromObject(AsPropertyTypeDeserializer.java:99)
at com.fasterxml.jackson.databind.deser.BeanDeserializerBase.deserializeWithType(BeanDeserializerBase.java:1209)
at com.fasterxml.jackson.databind.deser.impl.MethodProperty.deserializeAndSet(MethodProperty.java:138)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.vanillaDeserialize(BeanDeserializer.java:293)
at com.fasterxml.jackson.databind.deser.BeanDeserializer._deserializeOther(BeanDeserializer.java:194)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserialize(BeanDeserializer.java:166)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer._deserializeTypedForId(AsPropertyTypeDeserializer.java:132)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromObject(AsPropertyTypeDeserializer.java:99)
at com.fasterxml.jackson.databind.deser.BeanDeserializerBase.deserializeWithType(BeanDeserializerBase.java:1209)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:292)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:249)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserialize(CollectionDeserializer.java:26)
at com.fasterxml.jackson.databind.jsontype.impl.AsArrayTypeDeserializer._deserialize(AsArrayTypeDeserializer.java:120)
at com.fasterxml.jackson.databind.jsontype.impl.AsArrayTypeDeserializer.deserializeTypedFromArray(AsArrayTypeDeserializer.java:53)
at com.fasterxml.jackson.databind.deser.std.CollectionDeserializer.deserializeWithType(CollectionDeserializer.java:318)
at com.fasterxml.jackson.databind.deser.impl.MethodProperty.deserializeAndSet(MethodProperty.java:138)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.vanillaDeserialize(BeanDeserializer.java:293)
at com.fasterxml.jackson.databind.deser.BeanDeserializer._deserializeOther(BeanDeserializer.java:194)
at com.fasterxml.jackson.databind.deser.BeanDeserializer.deserialize(BeanDeserializer.java:166)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer._deserializeTypedForId(AsPropertyTypeDeserializer.java:132)
at com.fasterxml.jackson.databind.jsontype.impl.AsPropertyTypeDeserializer.deserializeTypedFromObject(AsPropertyTypeDeserializer.java:99)
at com.fasterxml.jackson.databind.deser.BeanDeserializerBase.deserializeWithType(BeanDeserializerBase.java:1209)
at com.fasterxml.jackson.databind.deser.impl.TypeWrappedDeserializer.deserialize(TypeWrappedDeserializer.java:68)
at com.fasterxml.jackson.databind.ObjectMapper._readMapAndClose(ObjectMapper.java:4526)
at com.fasterxml.jackson.databind.ObjectMapper.readValue(ObjectMapper.java:3529)
at io.seata.rm.datasource.undo.parser.JacksonUndoLogParser.decode(JacksonUndoLogParser.java:139)
at io.seata.rm.datasource.undo.AbstractUndoLogManager.undo(AbstractUndoLogManager.java:276)
at io.seata.rm.datasource.DataSourceManager.branchRollback(DataSourceManager.java:178)
at io.seata.rm.AbstractRMHandler.doBranchRollback(AbstractRMHandler.java:125)
at io.seata.rm.AbstractRMHandler$2.execute(AbstractRMHandler.java:67)
at io.seata.rm.AbstractRMHandler$2.execute(AbstractRMHandler.java:63)
at io.seata.core.exception.AbstractExceptionHandler.exceptionHandleTemplate(AbstractExceptionHandler.java:116)
at io.seata.rm.AbstractRMHandler.handle(AbstractRMHandler.java:63)
at io.seata.rm.DefaultRMHandler.handle(DefaultRMHandler.java:63)
at io.seata.core.protocol.transaction.BranchRollbackRequest.handle(BranchRollbackRequest.java:35)
at io.seata.rm.AbstractRMHandler.onRequest(AbstractRMHandler.java:150)
at io.seata.core.rpc.processor.client.RmBranchRollbackProcessor.handleBranchRollback(RmBranchRollbackProcessor.java:63)
at io.seata.core.rpc.processor.client.RmBranchRollbackProcessor.process(RmBranchRollbackProcessor.java:58)
at io.seata.core.rpc.netty.AbstractNettyRemoting.lambda$processMessage$2(AbstractNettyRemoting.java:265)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
at java.lang.Thread.run(Thread.java:748)
问题原因
位置
全局事务进行回滚时，会去查询undo_log 表中的回滚信息，回滚信息记录了当前数据操作前后镜像。
Seata 默认采用的是jackson 进行序列化，而报错信息也是显示jackson 反序列化失败，最终定位到JacksonUndoLogParser类的decode方法：
public BranchUndoLog decode(byte[] bytes) {
try {
BranchUndoLog branchUndoLog;
if (Arrays.equals(bytes, this.getDefaultContent())) {
branchUndoLog = new BranchUndoLog();
} else {
branchUndoLog = (BranchUndoLog)this.mapper.readValue(bytes, BranchUndoLog.class);
}
return branchUndoLog;
} catch (IOException var3) {
LOGGER.error("json decode exception, {}", var3.getMessage(), var3);
throw new RuntimeException(var3);
}
}
原因
首先在数据库中，业务表的时间字段设置的是datetime 类型。

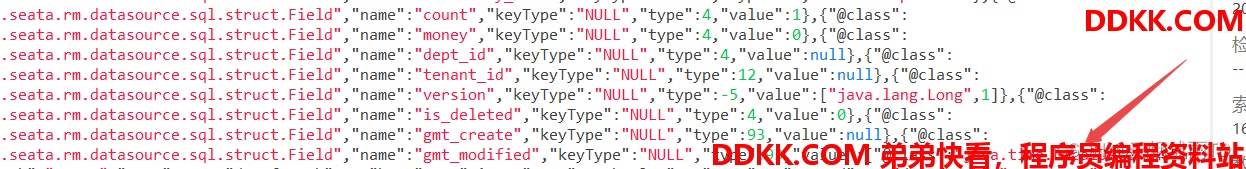

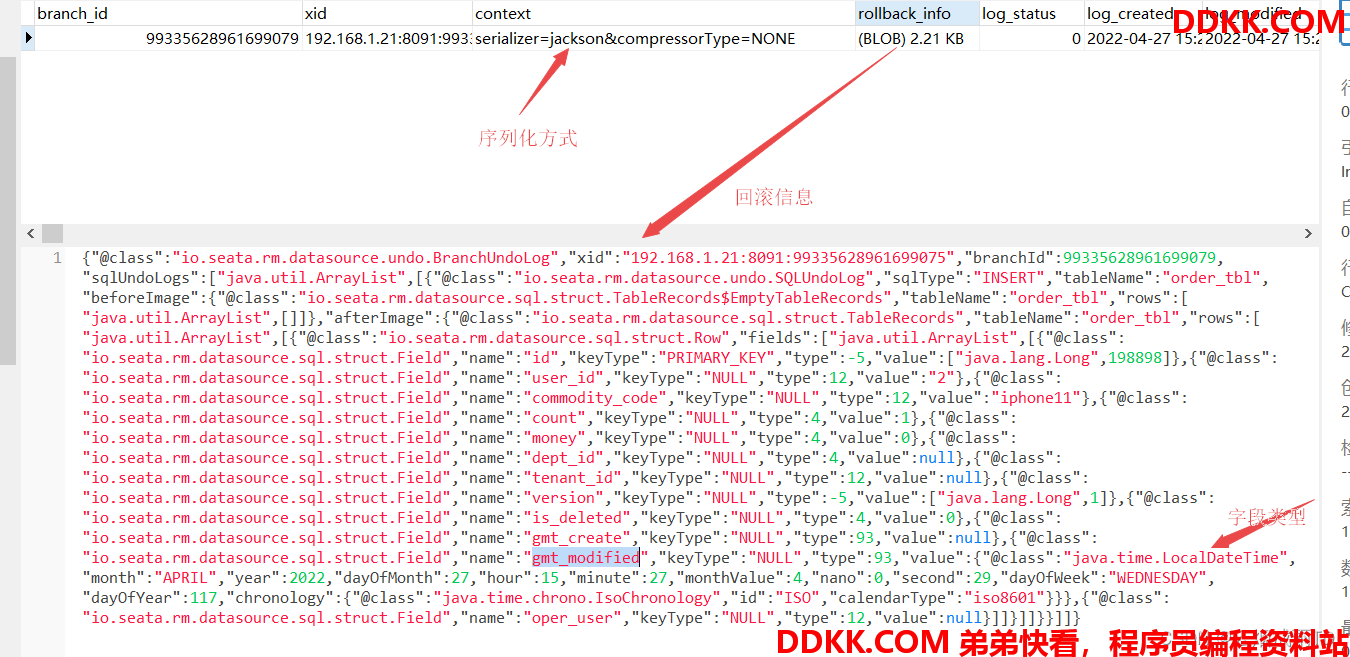

Seata 会自己去查询数据库表、字段的属性并缓存，在插入回滚信息时，可以看到数据表字段相关信息，这里数据库的datetime 被解析为java.time.LocalDateTime
总结原因：Seata 在使用Jackson 序列化器时，没有对java.time.LocalDateTime类型序列化进行配置，导致报错。
解决方案
方案1：更换序列化方式
支持以下几种序列化方式：
- FastjsonUndoLogParser：Fastjson序列化工具
- FstUndoLogParser：Fst序列化工具
- JacksonUndoLogParser：Jackson序列化工具
- KryoUndoLogParser：Kryo序列化工具
- ProtostuffUndoLogParser：Protostuff序列化工具
关于配置序列化可以参考undo_log支持的多种序列化方式。
也不是每种序列化都行，实测结果如下：
| 序列化工具 | 是否可行 |
|---|---|
| Fastjson | × |
| Jackson | × |
| Protostuff | √ |
| Fst | √ |
| Kryo | √ |
方案2：降低Mysql 驱动版本
降低到mysql-connector-java<= 8.0.22
<!--Mysql 驱动-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.22</version>
</dependency>

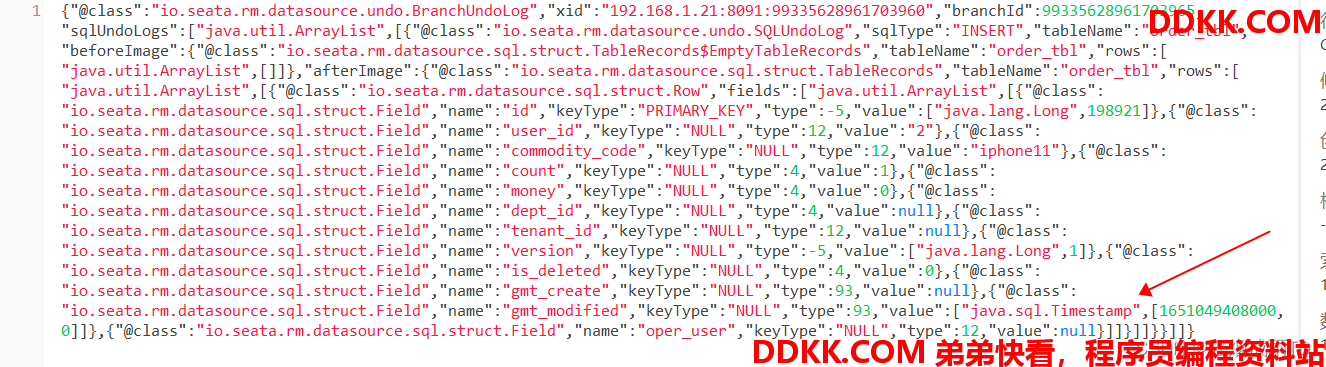

可以看到在该版本下，数据库的datetime 被解析为java.sql.Timestamp也就不存在java.time.LocalDateTime无法反序列化的问题了。
方案3 ： 修改源码，支持解析
可以修改源码，支持java.time.LocalDateTime解析，具体参考Github。
