一、项目概述
1.1 订单支付实时监控
基本需求
1、 用户下单之后，应设置订单失效时间，以提高用户支付的意愿，并降低系统风险；
2、 用户下单后15分钟未支付，则输出监控信息；
解决思路
1、 利用CEP库进行事件流的模式匹配，并设定匹配的时间间隔；
2、 也可以利用状态编程，用processfunction实现处理逻辑；
1.2 订单支付实时对账
基本需求
1、 用户下单并支付后，应查询到账信息，进行实时对账；
2、 如果有不匹配的支付信息或者到账信息，输出提示信息；
解决思路
1、 从两条流中分别读取订单支付信息和到账信息，合并处理；
2、 用connect连接合并两条流，用coProcessFunction做匹配处理；
二、 代码
2.1 pom文件配置
pom文件配置如下:
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-java</artifactId>
<version>1.10.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-streaming-java_2.11</artifactId>
<version>1.10.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-kafka_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-core</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-clients_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-redis_2.11</artifactId>
<version>1.1.5</version>
</dependency>
<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.19</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-statebackend-rocksdb_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<!-- Table API 和 Flink SQL -->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-planner-blink_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-planner_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-api-java-bridge_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-streaming-scala_2.11</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-common</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-csv</artifactId>
<version>1.10.1</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-cep_2.11</artifactId>
<version>1.10.1</version>
</dependency>
2.2 POJO类
OrderEvent
private Long orderId;
private String eventType;
private String txId;
private Long timestamp;
ReceiptEvent
private String txId;
private String payChannel;
private Long timestamp;
OrderResult
private Long orderId;
private String resultState;
2.3 订单支付超时监控-CEP
代码:
package com.zqs.flink.project.orderpay_detect;
/**
* @remark 订单支付超时监控
*/
import com.zqs.flink.project.orderpay_detect.beans.OrderEvent;
import com.zqs.flink.project.orderpay_detect.beans.OrderResult;
import org.apache.flink.cep.CEP;
import org.apache.flink.cep.PatternSelectFunction;
import org.apache.flink.cep.PatternStream;
import org.apache.flink.cep.PatternTimeoutFunction;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.SimpleCondition;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.OutputTag;
import java.net.URL;
import java.util.List;
import java.util.Map;
public class OrderPayTimeout {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
env.setParallelism(1);
// 读取数据并转换成POJO类型
URL resource = OrderPayTimeout.class.getResource("/OrderLog.csv");
DataStream<OrderEvent> orderEventStream = env.readTextFile(resource.getPath())
.map( line -> {
String[] fields = line.split(",");
return new OrderEvent(new Long(fields[0]), fields[1], fields[2], new Long(fields[3]));
} )
.assignTimestampsAndWatermarks(new AscendingTimestampExtractor<OrderEvent>() {
@Override
public long extractAscendingTimestamp(OrderEvent element) {
return element.getTimestamp() * 1000L;
}
});
// 1. 定义一个带时间限制的模式
Pattern<OrderEvent, OrderEvent> orderPayPattern = Pattern
.<OrderEvent>begin("create").where(new SimpleCondition<OrderEvent>() {
@Override
public boolean filter(OrderEvent value) throws Exception {
return "create".equals(value.getEventType());
}
})
.followedBy("pay").where(new SimpleCondition<OrderEvent>() {
@Override
public boolean filter(OrderEvent value) throws Exception {
return "pay".equals(value.getEventType());
}
})
.within(Time.minutes(15));
// 2. 定义侧输出流标签， 用来表示超时事件
OutputTag<OrderResult> orderTimeoutTag = new OutputTag<OrderResult>("order-timeout"){
};
// 3. 将pattern应用到输入数据流上， 得到pattern stream
PatternStream<OrderEvent> patternStream = CEP.pattern(orderEventStream.keyBy(OrderEvent::getOrderId), orderPayPattern);
// 4. 调用select方法，实现对匹配复杂事件和超时复杂事件的提取和处理
SingleOutputStreamOperator<OrderResult> resultStream = patternStream
.select(orderTimeoutTag, new OrderTimeoutSelect(), new OrderPaySelect() );
resultStream.print("payed normally");
resultStream.getSideOutput(orderTimeoutTag).print("timeout");
env.execute("order timeout detect job");
}
// 实现自定义的超时事件处理函数
public static class OrderTimeoutSelect implements PatternTimeoutFunction<OrderEvent, OrderResult>{
@Override
public OrderResult timeout(Map<String, List<OrderEvent>> pattern, long timeoutTimestamp) throws Exception {
Long timeoutOrderId = pattern.get("create").iterator().next().getOrderId();
return new OrderResult(timeoutOrderId, "timeout " + timeoutTimestamp);
}
}
// 实现自定义的正常匹配事件处理函数
public static class OrderPaySelect implements PatternSelectFunction<OrderEvent, OrderResult>{
@Override
public OrderResult select(Map<String, List<OrderEvent>> pattern) throws Exception {
Long payedOrderId = pattern.get("pay").iterator().next().getOrderId();
return new OrderResult(payedOrderId, "payed");
}
}
}
测试记录:
2.4 订单支付超时监控-Without CEP
代码:
package com.zqs.flink.project.orderpay_detect;
/**
* @remark 监控超时未支付订单-不使用CEP
*/
import com.zqs.flink.project.orderpay_detect.beans.OrderEvent;
import com.zqs.flink.project.orderpay_detect.beans.OrderResult;
import org.apache.flink.api.common.state.ValueState;
import org.apache.flink.api.common.state.ValueStateDescriptor;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor;
import org.apache.flink.util.Collector;
import org.apache.flink.util.OutputTag;
import java.net.URL;
public class OrderTimeoutWithoutCep {
// 定义超时时间的侧输出流标签
private final static OutputTag<OrderResult> orderTimeoutTag = new OutputTag<OrderResult>("order-timeout"){
};
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
env.setParallelism(1);
// 读取数据并转换成POJO类型
URL resource = OrderPayTimeout.class.getResource("/OrderLog.csv");
DataStream<OrderEvent> orderEventStream = env.readTextFile(resource.getPath())
.map(line -> {
String[] fields = line.split(",");
return new OrderEvent(new Long(fields[0]), fields[1], fields[2], new Long(fields[3]));
})
.assignTimestampsAndWatermarks(new AscendingTimestampExtractor<OrderEvent>() {
@Override
public long extractAscendingTimestamp(OrderEvent element) {
return element.getTimestamp() * 1000L;
}
});
// 自定义处理函数，主流输出正常匹配订单事件， 侧输出流输出超时报警事件
SingleOutputStreamOperator<OrderResult> resultStream = orderEventStream
.keyBy(OrderEvent::getOrderId)
.process(new OrderPayMatchDetect());
resultStream.print("payed normally");
resultStream.getSideOutput(orderTimeoutTag).print("timeout");
env.execute("order timeout detect without cep job");
}
// 实现自定义KeyedProcessFunction
public static class OrderPayMatchDetect extends KeyedProcessFunction<Long, OrderEvent, OrderResult>{
// 定义状态， 保存之前点单是否已经来过create、pay事件
ValueState<Boolean> isPayedState;
ValueState<Boolean> isCreatedState;
// 定义状态，保存定时器时间戳
ValueState<Long> timerTsState;
@Override
public void open(Configuration parameters) throws Exception {
isPayedState = getRuntimeContext().getState(new ValueStateDescriptor<Boolean>("is-payed", Boolean.class, false));
isCreatedState = getRuntimeContext().getState(new ValueStateDescriptor<Boolean>("is-created", Boolean.class, false));
timerTsState = getRuntimeContext().getState(new ValueStateDescriptor<Long>("timer-ts", Long.class));
}
@Override
public void processElement(OrderEvent value, Context ctx, Collector<OrderResult> out) throws Exception {
// 先获取当前装填
Boolean isPayed = isPayedState.value();
Boolean isCreated = isCreatedState.value();
Long timerTs = timerTsState.value();
// 判断当前事件类型
if( "create".equals(value.getEventType()) ){
// 1. 如果来的是create，要判断是否支付过
if( isPayed ){
// 1.1 如果已经正常支付，输出正常匹配结果
out.collect(new OrderResult(value.getOrderId(), "payed successfully"));
// 清空状态，删除定时器
isCreatedState.clear();
isPayedState.clear();
timerTsState.clear();
ctx.timerService().deleteEventTimeTimer(timerTs);
} else {
// 1.2 如果没有支付过，注册15分钟后的定时器，开始等待支付事件
Long ts = ( value.getTimestamp() + 15 * 60 ) * 1000L;
ctx.timerService().registerEventTimeTimer(ts);
// 更新状态
timerTsState.update(ts);
isCreatedState.update(true);
}
} else if( "pay".equals(value.getEventType()) ){
// 2. 如果来的是pay，要判断是否有下单事件来过
if( isCreated ){
// 2.1 已经有过下单事件，要继续判断支付的时间戳是否超过15分钟
if( value.getTimestamp() * 1000L < timerTs ){
// 2.1.1 在15分钟内，没有超时，正常匹配输出
out.collect(new OrderResult(value.getOrderId(), "payed successfully"));
} else {
// 2.1.2 已经超时，输出侧输出流报警
ctx.output(orderTimeoutTag, new OrderResult(value.getOrderId(), "payed but already timeout"));
}
// 统一清空状态
isCreatedState.clear();
isPayedState.clear();
timerTsState.clear();
ctx.timerService().deleteEventTimeTimer(timerTs);
} else {
// 2.2 没有下单事件，乱序，注册一个定时器，等待下单事件
ctx.timerService().registerEventTimeTimer( value.getTimestamp() * 1000L);
// 更新状态
timerTsState.update(value.getTimestamp() * 1000L);
isPayedState.update(true);
}
}
}
@Override
public void onTimer(long timestamp, OnTimerContext ctx, Collector<OrderResult> out) throws Exception {
// 定时器触发， 说明一定有一个事件没来
if ( isPayedState.value() ){
// 如果pay来了，说明create没来
ctx.output(orderTimeoutTag, new OrderResult(ctx.getCurrentKey(), "payed but not found created log "));
} else {
// 如果pay没来，支付超时
ctx.output(orderTimeoutTag, new OrderResult(ctx.getCurrentKey(), "timerout"));
}
// 清空状态
isCreatedState.clear();
isPayedState.clear();
timerTsState.clear();
}
}
}

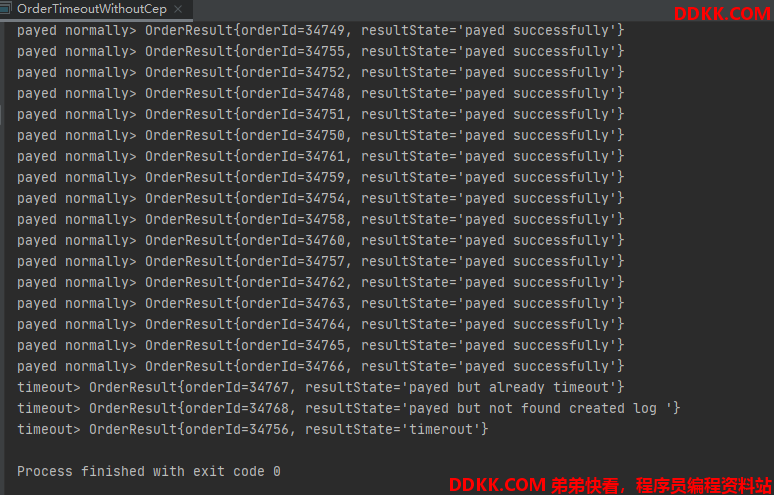

测试记录:
2.5 支付账单核对
代码:
package com.zqs.flink.project.orderpay_detect;
/**
* @remak 支付账单核对
*/
import com.zqs.flink.project.orderpay_detect.beans.OrderEvent;
import com.zqs.flink.project.orderpay_detect.beans.ReceiptEvent;
import org.apache.flink.api.common.state.ValueState;
import org.apache.flink.api.common.state.ValueStateDescriptor;
import org.apache.flink.api.java.tuple.Tuple;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.CoProcessFunction;
import org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor;
import org.apache.flink.util.Collector;
import org.apache.flink.util.OutputTag;
import java.net.URL;
public class TxPayMatch {
// 定义侧输出流标签
private final static OutputTag<OrderEvent> unmatchedPays = new OutputTag<OrderEvent>("unmatched-pays"){
};
private final static OutputTag<ReceiptEvent> unmatchedReceipts = new OutputTag<ReceiptEvent>("unmatched-receipts"){
};
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
env.setParallelism(1);
// 读取数据并转换成POJO类型
// 读取订单支付事件数据
URL orderResource = TxPayMatch.class.getResource("/OrderLog.csv");
DataStream<OrderEvent> orderEventStream = env.readTextFile(orderResource.getPath())
.map( line -> {
String[] fields = line.split(",");
return new OrderEvent(new Long(fields[0]), fields[1], fields[2], new Long(fields[3]));
} )
.assignTimestampsAndWatermarks(new AscendingTimestampExtractor<OrderEvent>() {
@Override
public long extractAscendingTimestamp(OrderEvent element) {
return element.getTimestamp() * 1000L;
}
})
.filter( data -> !"".equals(data.getTxId()) ); // 交易id不为空，必须是pay事件
// 读取到账事件数据
URL receiptResource = TxPayMatch.class.getResource("/ReceiptLog.csv");
SingleOutputStreamOperator<ReceiptEvent> receiptEventStream = env.readTextFile(receiptResource.getPath())
.map(line -> {
String[] fields = line.split(",");
return new ReceiptEvent(fields[0], fields[1], new Long(fields[2]));
})
.assignTimestampsAndWatermarks(new AscendingTimestampExtractor<ReceiptEvent>() {
@Override
public long extractAscendingTimestamp(ReceiptEvent element) {
return element.getTimestamp() * 1000L;
}
});
// 将两条流进行连接合并，进行匹配处理，不匹配的事件输出到侧输出流
SingleOutputStreamOperator<Tuple2<OrderEvent, ReceiptEvent>> resultStream = orderEventStream
.keyBy(OrderEvent::getTxId)
.connect(receiptEventStream.keyBy(ReceiptEvent::getTxId))
.process(new TxPayMatchDetect());
resultStream.print("matched-pays");
resultStream.getSideOutput(unmatchedPays).print("unmatched-pays");
resultStream.getSideOutput(unmatchedReceipts).print("unmathced-receipts");
env.execute("tx match detect job");
}
// 实现自定义CoProcessFunction
public static class TxPayMatchDetect extends CoProcessFunction<OrderEvent, ReceiptEvent, Tuple2<OrderEvent, ReceiptEvent>>{
// 定义状态， 保存当前已经到来的订单支付事件和到账时间
ValueState<OrderEvent> payState;
ValueState<ReceiptEvent> receiptState;
@Override
public void open(Configuration parameters) throws Exception {
payState = getRuntimeContext().getState(new ValueStateDescriptor<OrderEvent>("pay", OrderEvent.class));
receiptState = getRuntimeContext().getState(new ValueStateDescriptor<ReceiptEvent>("receipt", ReceiptEvent.class));
}
@Override
public void processElement1(OrderEvent pay, Context ctx, Collector<Tuple2<OrderEvent, ReceiptEvent>> out) throws Exception {
// 订单支付事件来了，判断是否已经有对应的到账事件
ReceiptEvent receipt = receiptState.value();
if ( receipt != null){
// 如果receipt不为空， 说明到账事件已经来过， 输出匹配事件，清空状态
out.collect( new Tuple2<>(pay, receipt));
payState.clear();
receiptState.clear();
} else {
// 如果receipt没来， 注册一个定时器，开始等待
ctx.timerService().registerEventTimeTimer((pay.getTimestamp() + 5) * 1000L); // 等待5秒钟
// 更新状态
payState.update(pay);
}
}
@Override
public void processElement2(ReceiptEvent receipt, Context ctx, Collector<Tuple2<OrderEvent, ReceiptEvent>> out) throws Exception {
// 到账事件来了，判断是否已经有对应的支付事件
OrderEvent pay = payState.value();
if ( pay != null ){
// 如果pay不为空，说明支付事件已经来过，输出匹配时间，清空状态
out.collect( new Tuple2<>(pay, receipt));
payState.clear();
receiptState.clear();
} else {
// 如果pay没来， 注册一个定时器，开始等待
ctx.timerService().registerEventTimeTimer( (receipt.getTimestamp() + 3) * 1000L );
// 更新状态
receiptState.update(receipt);
}
}
@Override
public void onTimer(long timestamp, OnTimerContext ctx, Collector<Tuple2<OrderEvent, ReceiptEvent>> out) throws Exception {
// 定时器触发，有可能是有一个事件没来，不匹配，也有可能是都来过了，已经输出并清空状态
// 判断哪个不为空，那么另一个就没来
if(payState.value() != null ){
ctx.output(unmatchedPays, payState.value());
}
if (receiptState.value() != null){
ctx.output(unmatchedReceipts, receiptState.value());
}
// 清空状态
payState.clear();
receiptState.clear();
}
}
}

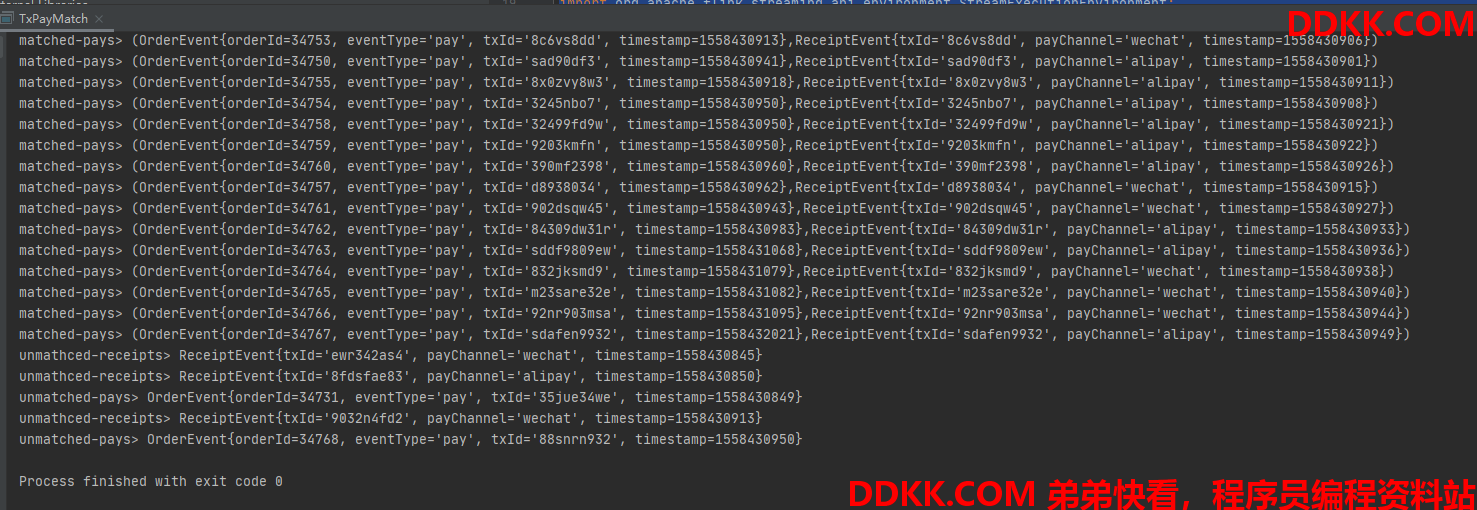

测试记录:
2.6 账单核对-使用join
代码:
package com.zqs.flink.project.orderpay_detect;
/**
* @remark 账单核对-使用join
*/
import com.zqs.flink.project.orderpay_detect.beans.OrderEvent;
import com.zqs.flink.project.orderpay_detect.beans.ReceiptEvent;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.ProcessJoinFunction;
import org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;
import java.net.URL;
public class TxPayMatchByJoin {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
env.setParallelism(1);
// 读取数据并转换成POJO类型
// 读取订单支付事件数据
URL orderResource = TxPayMatchByJoin.class.getResource("/OrderLog.csv");
DataStream<OrderEvent> orderEventStream = env.readTextFile(orderResource.getPath())
.map(line -> {
String[] fields = line.split(",");
return new OrderEvent(new Long(fields[0]), fields[1], fields[2], new Long(fields[3]));
})
.assignTimestampsAndWatermarks(new AscendingTimestampExtractor<OrderEvent>() {
@Override
public long extractAscendingTimestamp(OrderEvent element) {
return element.getTimestamp() * 1000L;
}
})
.filter(data -> !"".equals(data.getTxId())); // 交易id不为空，必须是pay事件
// 读取到账事件数据
URL receiptResource = TxPayMatchByJoin.class.getResource("/ReceiptLog.csv");
SingleOutputStreamOperator<ReceiptEvent> receiptEventStream = env.readTextFile(receiptResource.getPath())
.map(line -> {
String[] fields = line.split(",");
return new ReceiptEvent(fields[0], fields[1], new Long(fields[2]));
})
.assignTimestampsAndWatermarks(new AscendingTimestampExtractor<ReceiptEvent>() {
@Override
public long extractAscendingTimestamp(ReceiptEvent element) {
return element.getTimestamp() * 1000L;
}
});
// 区间连接两条流, 得到匹配的数据
SingleOutputStreamOperator<Tuple2<OrderEvent, ReceiptEvent>> resultStream = orderEventStream
.keyBy(OrderEvent::getTxId)
.intervalJoin(receiptEventStream.keyBy(ReceiptEvent::getTxId))
.between(Time.seconds(-3), Time.seconds(5)) // -3,5区间范围
.process(new TxPayMatchDetectByJoin());
resultStream.print();
env.execute("tx pay match by join job");
}
// 实现自定义ProcessJoinFunction
public static class TxPayMatchDetectByJoin extends ProcessJoinFunction<OrderEvent, ReceiptEvent, Tuple2<OrderEvent, ReceiptEvent>>{
@Override
public void processElement(OrderEvent left, ReceiptEvent right, Context ctx, Collector<Tuple2<OrderEvent, ReceiptEvent>> out) throws Exception {
out.collect(new Tuple2<>(left, right));
}
}
}
测试记录:

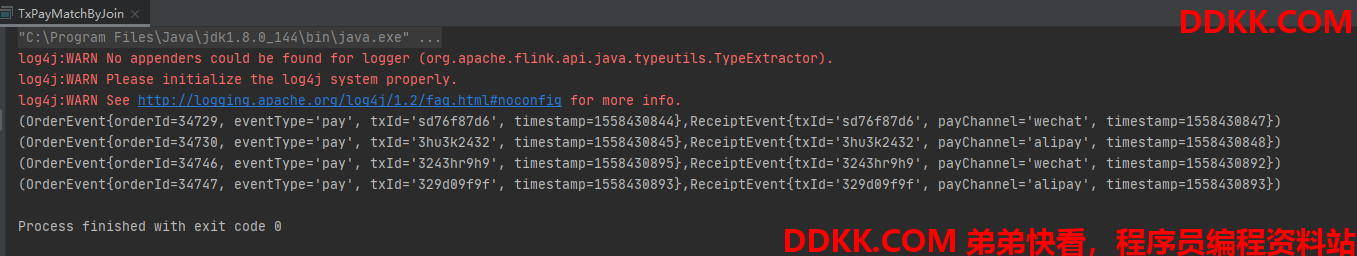

类似SQL的内连接，只能显示对应上的数据。
